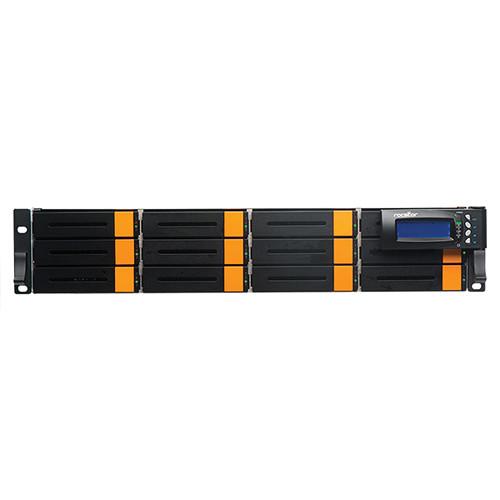

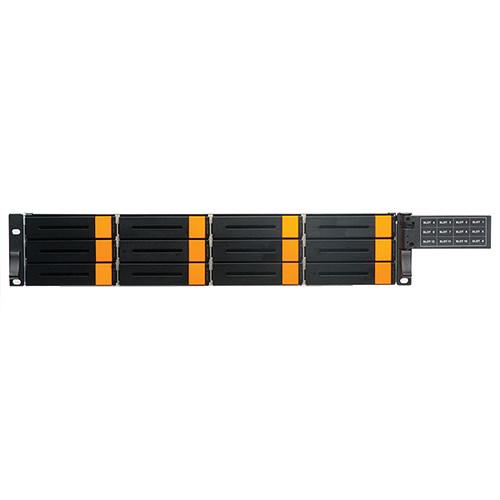

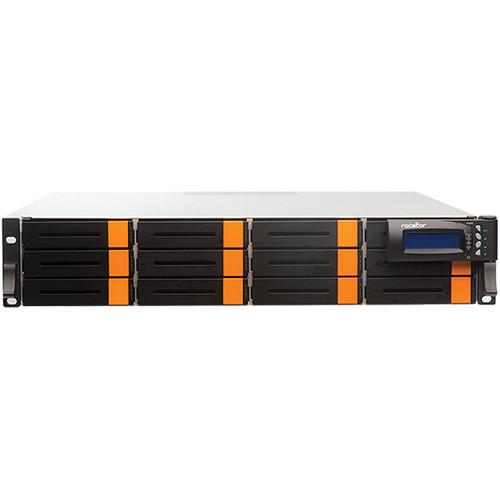

Product description Featuring a single controller, the Rocstor 24TB Enteroc F1620 12-Bay 16Gb Fibre SAN Storage System offers 16Gb FC-AL host performance to increase system efficiency as well as providing continuous availability of data to your network. It's built with 12 hot-swappable 6 Gb/s SAS/SATA drive bays that hold enterprise SAS 7200 rpm hard drives with 64MB of cache memory to deliver a total storage capacity of 24TB. Further storage expansion is made possible by connecting an optional SAS expansion chassis to the single 6 Gb/s SAS port. Additionally, it supports RAID levels 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, and JBOD.

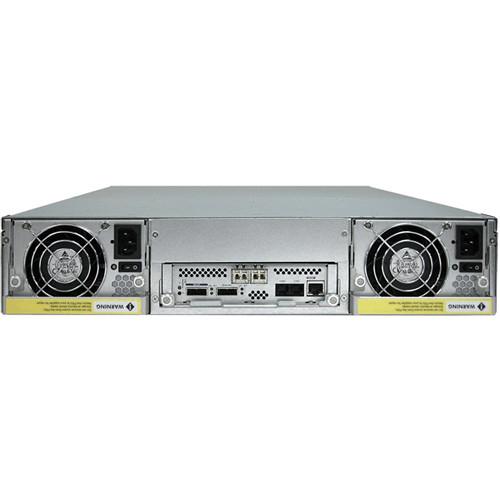

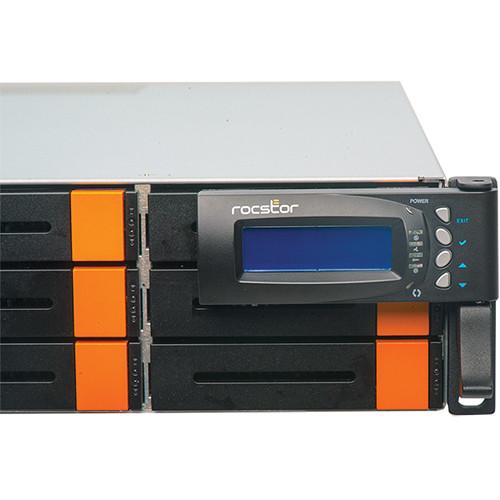

This storage system is powered with an 800 MHz dual-core RAID-On-Chip processor and 4GB of RAM, which can be upgraded to 16GB. It is equipped with two 400W power supplies and two fans that cool the system. Moreover, this 2U rackmount storage system has an integrated menu-driven front display panel and includes firmware-based software to configure the RAID as well as monitoring system events. - Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD
- Supports online array roaming
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Supports global and dedicated hot spare
- Online Volume Set Expansion
- Supports multiple array enclosures per host connection
- Greater than 2TB per volume set (64-bit LBA support)
- Greater than 2TB per disk drive
- Supports 4K bytes/sector for Windows up to 16TB per volume set
- Disk scrubbing / array verify scheduling for automatic repair of all configured RAID sets
- Login record in the event log with IP address and service (http, telnet, and serial)
- Supports intelligent power management to save energy and extend service life
- Supports NTP protocol to synchronize RAID controller clock over the on-board LAN port
- Max 128 LUNs (volume set)
- Transparent data protection for all popular operating systems
- Instant availability and background initialization
- Multi-path & load-balancing support
- Automatic synchronization of firmware version in the dual-active mode
- Supports S.M.A.R.T, NCQ, and OOB Staggered Spin-up capable drives
- Supports hot swap and automatic hot rebuild
- Local audible event notification alarm
- Redundant flash image for high availability
In the Box Rocstor 24TB Enteroc F1620 12-Bay Single Controller 16Gb Fibre SAN Storage System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor 24TB Enteroc F1620 12-Bay Single Controller 16Gb Fibre SAN Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor F1620-S Specs | | | Controller CPU | 800 MHz RAID-on-Chip Dual-Core | | Total Installed Memory | 4 GB ECC 1333 MHz DDR3 | | Maximum Memory Capacity | 16 GB | | # of RAID Controllers | Single | | | | Total Raw Capacity | 24 TB | | Cache Memory per Drive | 64 MB | | Interface | SAS | | Rotational Speed | 7200 rpm | | | | Number of Bays | 12 x 2.5"/3.5" | | Connections | 1 x Mini SAS (SFF-8088)
2 x LC (Fiber) | | Compatible Drive Interface | SAS-2, SATA III | | Form Factor | Rackmount (2 RU) | | RAID Modes | RAID 0, 1, 10, 1E, 3, 30, 5, 50, 6, 60, JBOD | | | | Security Features | Lockable Bay Door | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz at 4 to 7.5 A | | PSU Wattage | 2 x 400 W | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 10 to 85% | | | | Status Monitoring | LED Indicator | | Cooling | 2 x Fans | | Dimensions | 23.2 x 19.0 x 3.5" / 59.0 x 48.2 x 8.8 cm | | Weight | 43.4 lb / 19.7 kg without Drives |
