User Manual for Rocstor 64TB RT38 Thunderbolt 3 Rackmount 2U HDD RAID Array Click to enlarge the picture
Contents of the user manual for the Rocstor 64TB RT38 Thunderbolt 3 Rackmount
- Product category: Hard Drive Arrays Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Hard Drive Arrays
 |
User manual for the Rocstor 64TB RT38 Thunderbolt 3 Rackmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|

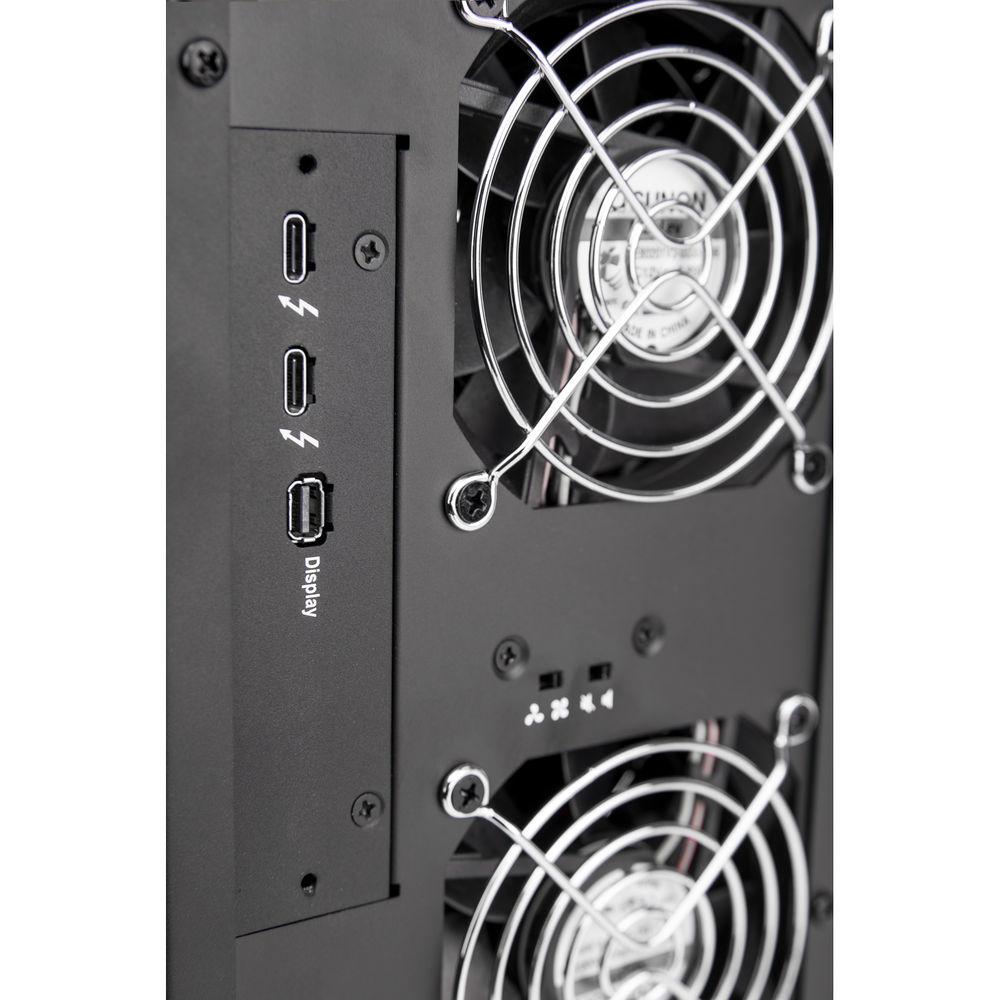

Product description RAID Arrays for Photography and Pro Video Read More Boost your storage capacity with the 64TB RT38 Thunderbolt 3 Rackmount 2U HDD RAID Array from Rocstor. Equipped with eight 8TB 7200 rpm HDDs and capable of transfer rates up to 1,500 MB/s, this RAID array comes with two Thunderbolt 3 ports that allow for daisy-chaining other Thunderbolt 3 devices or connecting your compatible Mac or Windows PC. The Mini DisplayPort is ideal for connecting a supported monitor. The RT38 has a hardware RAID controller and supports RAID modes 0, 1, 5, 6, 10, 50, and 60, as well as JBOD mode. The fan-cooled RAID array features audible alarms to warn you of drive failures and warning events, while built-in S.M.A.R.T. software regularly tests the integrity of the HDDs. - Dual Thunderbolt 3 Ports

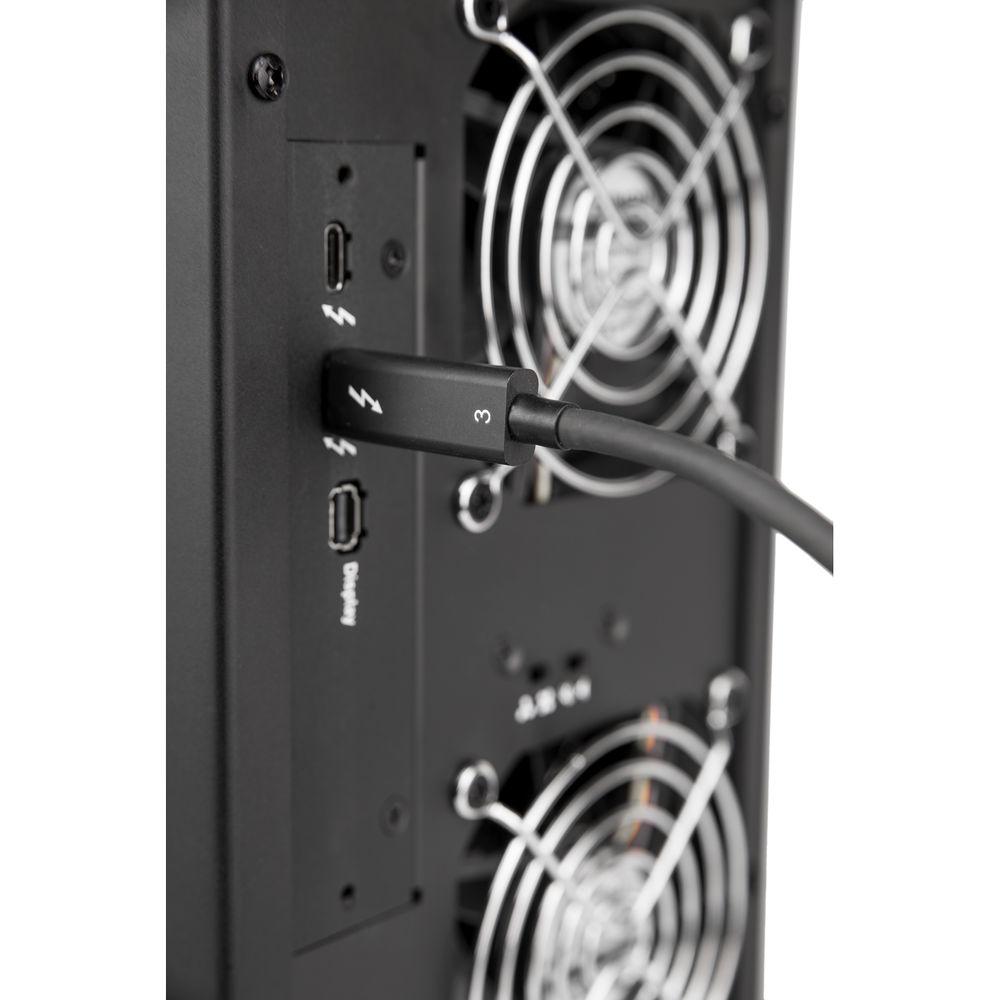

- With dual Thunderbolt 3 ports, you can easily daisy chain up to 5 additional devices such as multiple drives, 4K displays, or Rocpro RT38 storage. Control all of your connected Rocpro RT38 RAID arrays through one Rocstor MSU. The Thunderbolt 3 ports can also charge your mobile or tablet with up to 15W (5V/3A) of power.
- Optimized Support for 4K and 8K Multi-Stream Workflows
- With transfer rates up to 1500 MB/s, the Rocpro RT38 provides the right solution for your demanding video workflows. Rely on RT38 for sustained data rates and optimized 4K and 8K support. Natively edit footage and make changes in real-time. Render multi-layer video and graphic effects and export your footage with optimal performance and speed.
- Hardware RAID
- Take advantage of RAID 0, 1, 5, and 10 modes, as well as hardware settings and redundancy features.
- Utility Notifications
- Rocstor Thunderbolt 3 storage drives provide an MSU Utility that assists in monitoring the RAID status while your drive is in use. Audible alerts and email notifications warn you of changing drive conditions. Rocstor's MSU also records detailed product status and tests your HDD quality through its built-in S.M.A.R.T. testing software.
- Thunderbolt and Thunderbolt 2 Compatibility
- Connect your Macs with Thunderbolt and Thunderbolt 2 ports to the Rocpro RT38 RAID array using the optional Apple Thunderbolt 3 (USB Type-C) to Thunderbolt 2 Adapter. Your Mac must be running macOS Sierra 10.12 or later and transfer rates are based upon the speed of the connection (up to 10 Gb/s for Thunderbolt and up to 20 Gb/s for Thunderbolt 2).
- Built-In Power Supply

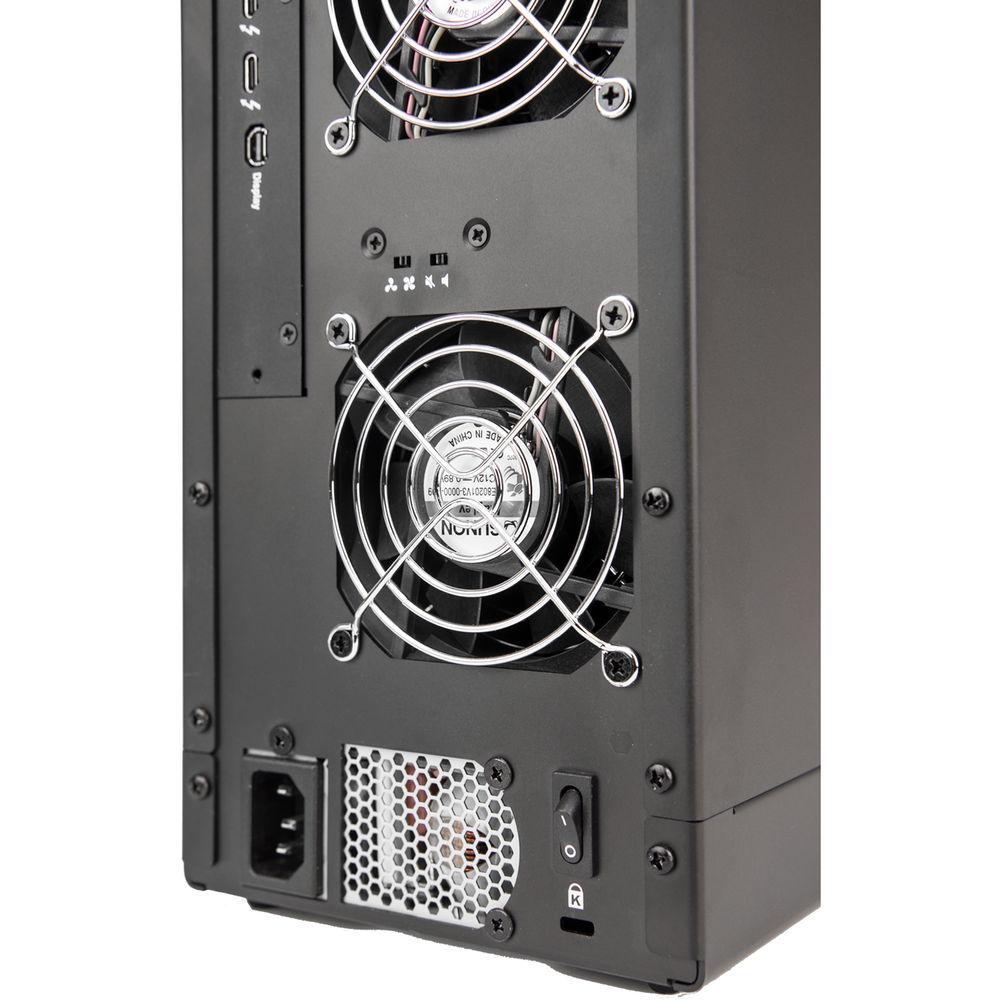

- Has a built-in 300W power supply, along with energy-efficient hardware components that work hand-in-hand with Mac systems to conserve power. The RT38 spins down its hard drives and activates sleep mode after a period of inactivity.
- Mini DisplayPort
- Gives you an option to connect to your display device. An optional adapter allows you to use the Mini DisplayPort with DVI, HDMI, and VGA display devices.
- Aluminum Chassis
- The Rocpro RT38 features a lightweight aluminum chassis that's ideal for transportable rackmount cases. Install the RT38 into your standard 19" server rack for both server and workstation storage applications.
In the Box Rocstor 64TB RT38 Thunderbolt 3 Rackmount 2U HDD RAID Array Power Cable Thunderbolt 3 40 Gb/s Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor 64TB RT38 Thunderbolt 3 Rackmount 2U HDD RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor Rocpro RT38 Specs | | | Number of Bays | 8 x 2.5"/3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x Mini DisplayPort | | Compatible Drive Interface | SATA III | | Form Factor | Rackmount (2 RU) | | Maximum RAID Transfer Rate | 1500 MB/s | | RAID Modes | RAID 0, 1, 10, 5, 50, 6, 60, JBOD | | Hot-Swap Support | Yes | | Operating System Support | Windows, macOS/OS X | | OS Compatibility | macOS 10.10 or Later
Windows 8 or Later | | | | Total Raw Capacity | 64 TB (8 x 8 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Interface | SATA III | | Initial RAID Configuration | None | | Pre-Format | None | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 300 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Security Features | Kensington Security Slot, Lockable Bay Door | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 116°F / -20 to 46°C | | | | Cooling | 2 x 80 mm Fan | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.5 x 11.1 x 11.7" / 140.0 x 282.0 x 296.0 mm | | Weight | 21.7 lb / 9.8 kg |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
