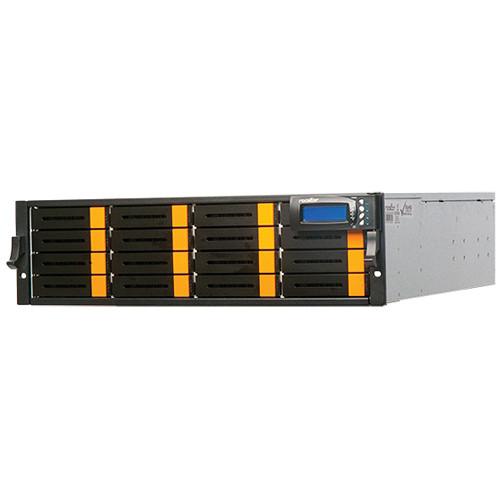

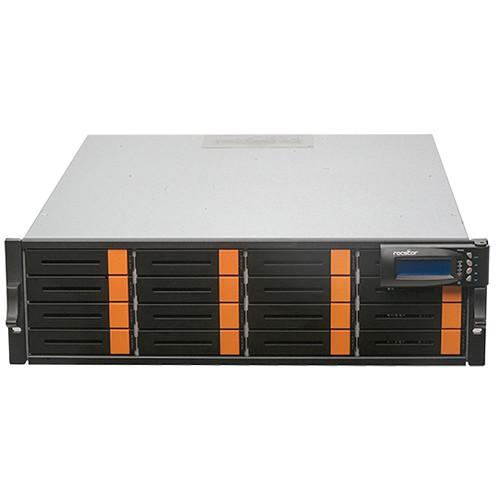

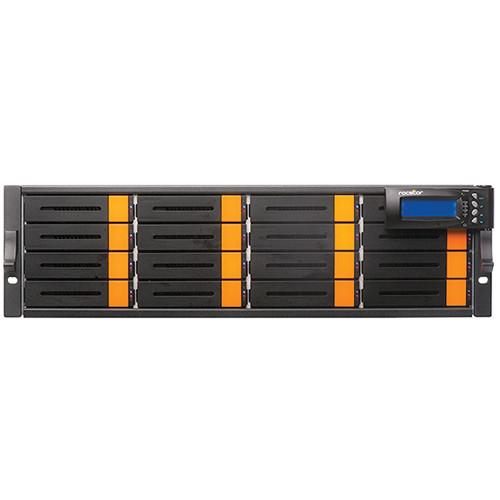

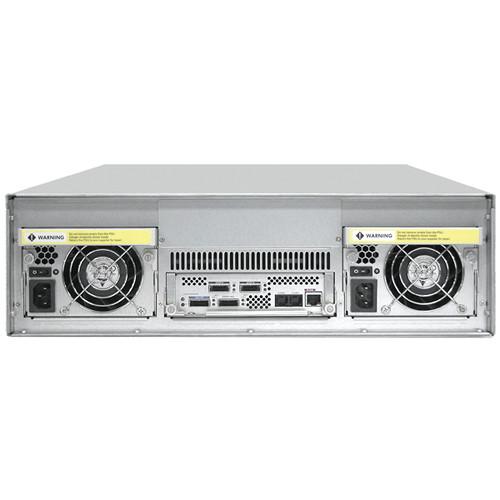

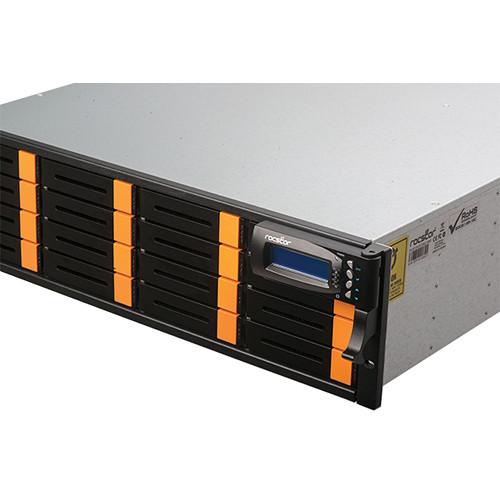

Product description RAID Arrays for Photography and Pro Video Read More The Rocstor Enteroc S630 SAS Rackmount RAID Storage System offers 96TB of data capacity housed in a 3U rackmount enclosure. Inside its sixteen hot swappable bays are SAS enterprise hard drives that are more reliable than standard drives and are designed to run 24 x 7. In addition, each of the drives spins at a speed of 7200 rpm and has 128MB of cache. It comes with two controllers that provide four SAS 6 Gb/s interfaces. For added reassurance, it is equipped with redundant 500W power supplies and offers RAID support.
The Enteroc S630 is outfitted an 800 MHz dual-core RAID-On-Chip processor that manages the data on the drives. Moreover, it supports RAID levels 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, and JBOD to provide data redundancy, performance, or both. Further storage expansion is made possible by connecting an optional SAS expansion chassis to one of the two 6 Gb/s SAS expansion ports. - Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD
- Supports online array roaming
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Supports global and dedicated hot spare
- Online Volume Set Expansion
- Supports multiple array enclosures per host connection
- Greater than 2TB per volume set (64-bit LBA support)
- Greater than 2TB per disk drive
- Supports 4K bytes/sector for Windows up to 16TB per volume set
- Disk scrubbing / array verify scheduling for automatic repair of all configured RAID sets
- Login record in the event log with IP address and service (http, telnet, and serial)
- Supports intelligent power management to save energy and extend service life
- Supports NTP protocol to synchronize RAID controller clock over the on-board LAN port
- Max 128 LUNs (volume set)
- Transparent data protection for all popular operating systems
- Instant availability and background initialization
- Supports S.M.A.R.T, NCQ, and OOB Staggered Spin-up capable drives
- Supports hot swap and automatic hot rebuild
- Local audible event notification alarm
- Redundant flash image for high availability
In the Box Rocstor 96TB Enteroc S630 SAS Dual Controller RAID Storage System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor 96TB Enteroc S630 SAS Dual Controller RAID Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor S630-S Specs | | | Controller | Dual | | Host Interface | 4 x SAS (6 Gb/s) | | Disk Interface | 6 Gb/s SAS, 6 Gb/s SATA | | Expansion | 2 x SAS (6 Gb/s)
Supports up to 192 disks | | Drives | 7200 rpm
128 MB cache
Enterprise SAS hard drives | | Capacity | Holds 16 disks | | Processor | 800 MHz dual-core RAID-On-Chip storage processor | | Cache Memory | 2 GB to 8 GB / 4 GB to 16 GB DDR3-1333 ECC SDRAM | | Battery Backup | Optional | | Management Port | Supported | | | | RAID Level | 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD | | Array Size | Up to 128 | | LUNs | Up to 128 | | Supported Features | Hot spare
Drive roaming
Online rebuild
Variable stripe size
E-mail notification
Online capacity expansion, RAID level / stripe size migration
Online array roaming
Online consistency checker
SMTP manager and SNMP agent
Redundant flash image
Instant availability and background initialization
SMART support
MAID 2.0
Bad block auto-remapping | | | | Platform | 3U rackmount | | Bays | 16 hot-swap trays
Tray lock | | Indicators | Access / Fail LED | | Backplane | SAS II / SATA III single backplane | | Fans | 2 | | Power | 2 x 500 W with PFC
90 to 264 VAC, 4 to 7.5 A, 47 to 63 Hz | | | | Humidity (Non-condensing) | 10 to 85% | | Temperature | Operating: 50 to 104°F / 10 to 40°C | | Dimensions (LxWxH) | 23.2 x 19.0 x 5.2" / 590.0 x 482.0 x 131.0 mm | | Weight | 86.5 lb / 39.2 kg |
