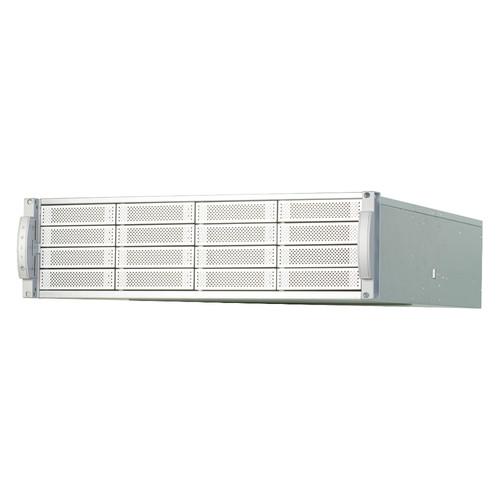

User Manual for Rocstor Accustor PR3600 128TB 16-Bay Thunderbolt 2 RAID Array Click to enlarge the picture
Contents of the user manual for the Rocstor Accustor PR3600 128TB 16-Bay Thunderbolt
- Product category: Hard Drive Arrays Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Hard Drive Arrays
 |
User manual for the Rocstor Accustor PR3600 128TB 16-Bay Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|

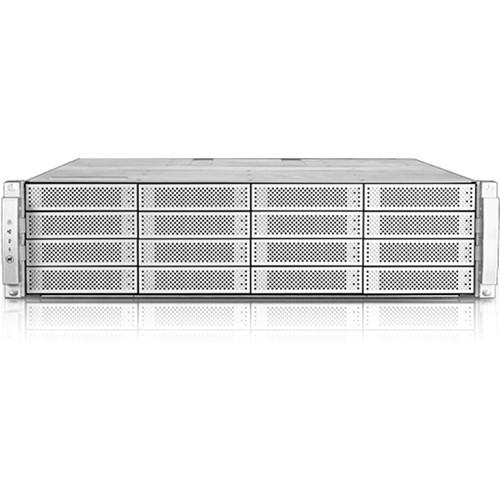

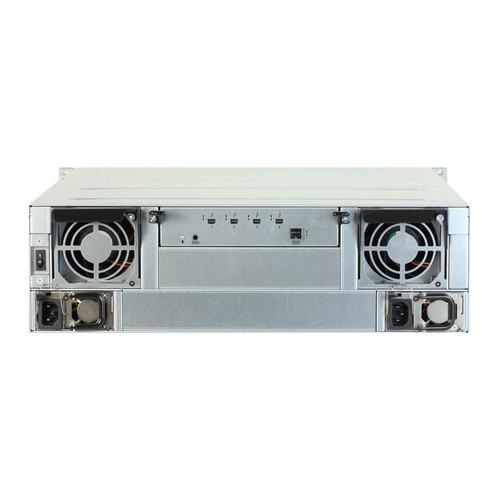

Product description RAID Arrays for Photography and Pro Video Read More The Accustor PR3600 128TB 16-Bay Thunderbolt 2 RAID Array from Rocstor delivers a total storage capacity of 128TB for up to four Thunderbolt-enabled systems. The PR3600 comes with sixteen bays, housing a single 8TB 7200 rpm hard drive in each bay. You can configure the included drives for performance and reliability by utilizing the onboard hardware RAID controller. To deliver data quickly to your system, the Accustor PR3600 sports four Thunderbolt 2 ports, which each transfer content at a rate of up to 20 Gb/s. For increased speeds, Rocstor has outfitted the Accustor with Thunderbolt Pairing technology that joins two Thunderbolt cable connections, creating dual paths. Furthermore, cooling and powering the array is accomplished with 120mm fans and 400W power supplies. - Thunderbolt SAN
- The Accustor PR3600 couples the functionality of a complete SAN solution within a single Thunderbolt storage device that features 16 bays, housing SSDs and HDDs with a SATA or SAS interface. It is capable of achieving 2500 MB/s reads and 2100 MB/s writes for editing and storing 4K content. In conjunction with the high performance of Thunderbolt 2, the PR3600 hardware has no protocol conversion latency. Accustor's reliability is derived from an independent hardware RAID system, which differentiates it from other Thunderbolt storage products.
- Thunderbolt Pairing

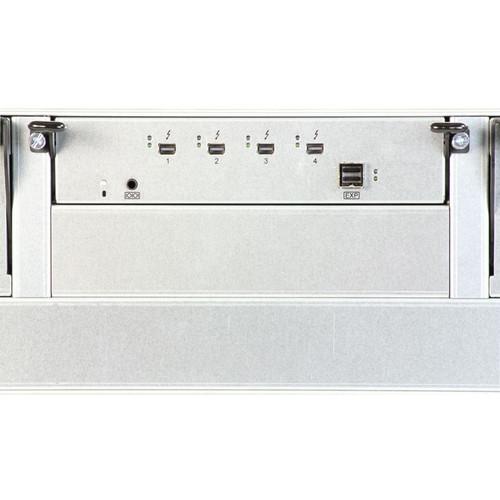

- Thunderbolt Pairing allows users to double their transfer speeds by pairing two Thunderbolt cable connections between host computer and the Accustor PR3600 storage RAID storage unit. Two Thunderbolt ports can be utilized to connect a Mac Pro. With four TB ports available on the PR3600, two users can create dual paths for increased speeds simultaneously. PR3600 devices are pre-installed with Accustor Mac Installer that includes the driver for T-Pairing. Once the driver is installed, it will automatically communicate with the PR3600 RAID controller for easy configuration.
In the Box Rocstor Accustor PR3600 128TB 16-Bay Thunderbolt 2 RAID Array (16 x 8TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Accustor PR3600 128TB 16-Bay Thunderbolt 2 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor PR3600 Specs | Form Factor | 3U RackmountRAID system | | Ports | 4 x Thunderbolt 2 | | Disk Interface | SAS/SATA | | Drives Supported | 2.5" and 3.5" HDDs and SSDs | | Drives Included | 16 x 8 TB 7,200 rpm hard drives with 256 MB of cache | | Drive Bays | 16 | | RAID Level | 0, 1, 5, 6, 0+1 | | Controller | LSI SAS3108 Processor | | Cache Memory | 2 GB DDR3 1866 MHz with ECC-protected | | Expansion | 3 JBOD | | RAID Function | Online RAID Set Expansion and RAID Level Migration
Online bad block data recovery and reallocation
Online disk scrubbing with data refresh and parity
Disk health monitoring by S.M.A.R.T
Array Roaming and Drive Traveling
Mirror Snapshot for fast backup and restore
Disk Lag Proof Technology to guarantee disk timely response
Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation | | Management | Java-based RAIDGuard X GUI
Event log saving in text file for quick troubleshooting
Event notification by email (SMTP)
LED indicator for RAID & disk drives status in front | | Power | 2 x 400 W (redundant) 110 to 240 V power supplies | | Cooling | Two 120 mm fans with smart fan control feature | | Dimensions (L x W x H) | 22.3 x 17.4 x 5.2" / 567 x 441 x 131 mm | | Weight | 42.8 lb / 19.4 kg |
