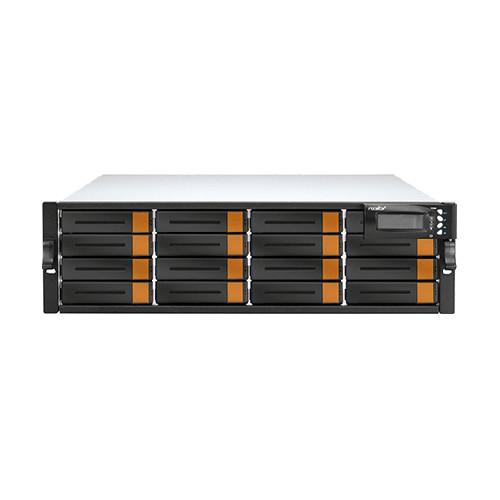

Product description RAID Arrays for Photography and Pro Video Read More Built with 6 Gb/s SAS host performance to help increase system performance, the Eneroc 128TB S630 16-Bay SAS RAID Array (16 x 8TB) from Rocstor features high capacity expansion with 16 hot-swappable SAS-II / SATA III drive bays that are contained within a 19" / 3 RU rackmount form factor.
The Eneroc S630 has a total storage capacity of 128TB, made up of 16 x 8TB 7200 rpm Enterprise SAS 3.5" drives. The system is further supported by an 800 MHz Dual-Core processor and 16GB of 1333 MHz DDR3 ECC RAM. The S630 can be configured as RAID 0, 1, 10 (1E), 3, 5, 6, 30, 50, and 60, each of which provides data redundancy, performance, or a combination of both. For those who do not require the functionality of RAID, this array may also be configured as JBOD. For those who need to expand their system's storage, external expansion supports up to 192 disks.
This RAID array comes equipped with dual controllers that offer power and cooling with dual 500W power supplies and cooling fans. As this array has dual controllers, it also has four SAS host channels (two per controller) that can be used to connect to a SAS HBA on the host system, or to connect to a SAS switch. Two SAS expansion ports (one per controller) may be used for expansion, or to connect to the "SAS In" port of a JBOD subsystem, while two COM2 RJ-11 ports (one per controller) may be used to connect to CLI (command line interfaces) and perform tasks such as upgrading the expander firmware. Two separate COM1 RJ-11 ports (one per controller) may be used to check for controller debug messages, and two R-Link (10/100/1000 RJ-45 Gigabit Ethernet) ports (one per controller) may be used to manage the RAID subsystem using your network and web browser.
The Eneroc 128TB S630 16-Bay SAS RAID Array (16 x 8TB) operates using 90~264 VAC at 47~63 Hz. It is protected by a limited 3-year warranty. General Features - Supports RAID levels 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, and JBOD
- Supports online array roaming
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Support global and dedicated hot spare
- Online volume set expansion
- Support multiple array enclosures per host connection
- Greater than 2TB per volume set (64-bit LBA support)
- Greater than 2TB per disk drive
- Supports 4K bytes/sector for Windows up to 16TB per volume set
- Disk scrubbing/ array verify scheduling for automatic repair of all configured RAID sets
- Login record in the event log with IP address and service (http, telnet and serial)
- Support intelligent power management to save energy and extend service life
- Support NTP protocol to synchronize RAID controller clock over the on-board LAN port
- Max 128 LUNs (volume set) per controller
- Transparent data protection for all popular operating systems
- Instant availability and background initialization
- Supports S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives
- Supports hot spare and automatic hot rebuild
- Local audible event notification alarm
- Redundant flash image for high availability
Manageability - The firmware-embedded web browser-based RAID manager allows local or remote management and configuration
- The firmware-embedded SMTP manager monitors all system events and user notifications automatically
- The firmware-embedded SNMP agent allows the remote monitoring of events via LAN with no SNMP agent required
- Menu-Driven front panel display
In the Box Rocstor Eneroc 128TB S630 16-Bay SAS RAID Array (16 x 8TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Eneroc 128TB S630 16-Bay SAS RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor S630-D Specs | | | Capacity | 128 TB (16 x 8 TB) | | Memory | 16 GB of 1333 MHz DDR3 ECC RAM | | RAID Controller | 6 Gb SAS - 6 Gb SAS | | Host Interface | Four 6 Gb/s SAS (SFF-8088) | | Disk Interface | 6 Gb/s SAS, 6 Gb/s SATA | | SAS Expansion | Two 6 Gb/s SAS (SFF-8088) | | | | Direct Attach | 16 Disks | | Expansion | Up to 192 disks | | Processor Type | 800 MHz Dual-Core RAID-On-Chip processor | | Battery Backup | Optional | | Management Port Support | Yes | | | | RAID Level | 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, and JBOD | | Array Group | Up to 128 | | LUNs | Up to 128 | | Hot Spare | Yes | | Drive Roaming | Yes | | Online Rebuild | Yes | | Variable Stripe Size | Yes | | E-Mail Notification | Yes | | Online Capacity Expansion, RAID Level /Stripe Size | Yes | | Online Array Roaming | Yes | | Online Consistency Check | Yes | | SMTP Manager and SNMP Agent | Yes | | Redundant Flash Image | Yes | | Instant Availability and Background Initialization | Yes | | SMART Support | Yes | | MAID 2.0 | Yes | | Bad Block Auto-Remapping | Yes | | | | Platform | Rackmount | | Form Factor | 3 RU | | Number of Hot Swap Trays | 16 | | Tray Lock | Yes | | Disk Status Indicator | Access / Fail LED | | Backplane | SAS-2 / SATA III Single BP | | Number of PS/Fan Modules | 2 x 500 W with PFC | | Number of Fans | 2 | | Power Requirements | 90 ~ 264 VAC Full range 7.5 ~ 4 A, 47 ~ 63 Hz | | | | Relative Humidity | 10 ~ 85% Non-condensing | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Physical Dimensions | 23.2 x 19.0 x 3.5" / 590.0 x 482.0 x 88.0 mm | | Weight | 40.1 lb / 18.2 kg (without disks) |
