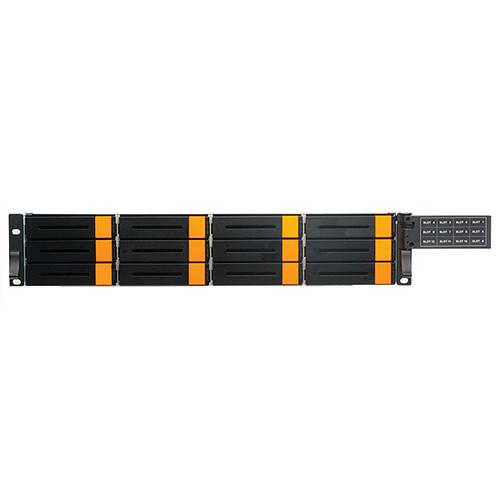

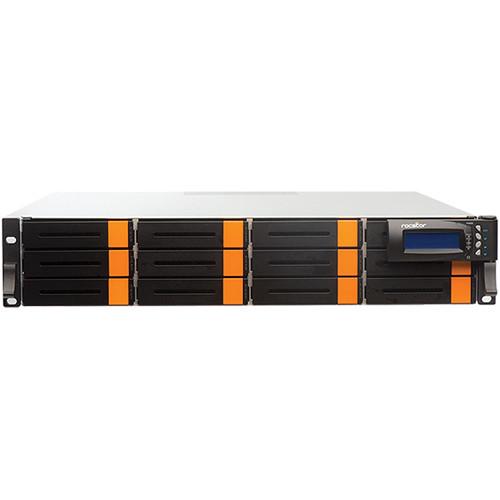

Product description Featuring a single controller, the Rocstor Enteroc F1620 12-Bay 16Gb Fibre Storage System Enclosure offers 16Gb FC-AL host performance to increase system efficiency as well as providing continuous availability of data to your network. It's built with 12 hot-swappable 6 Gb/s SAS/SATA drive bays that can hold optional hard drives. You can build a cost-friendly storage system by installing SATA hard drives or provide quick and reliable data to your network with SAS enterprise class drives. Further storage expansion is possible by connecting an optional SAS expansion chassis to the single 6 Gb/s SAS port. Additionally, it supports RAID levels 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, and JBOD.

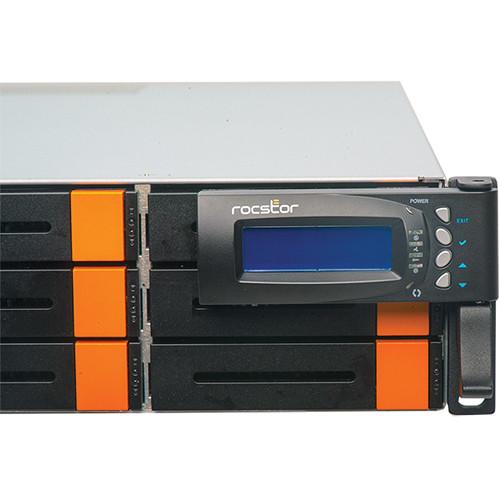

This storage system is powered with an 800 MHz dual-core RAID-On-Chip processor and 4GB of RAM, which can be upgraded to 16GB. It is equipped with two 400W power supplies and two fans that cool the system. Moreover, this 2U rackmount storage system has an integrated menu-driven front display panel and includes firmware-based software to configure the RAID as well as monitoring system events. - Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD
- Supports online array roaming
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Supports global and dedicated hot spare
- Online Volume Set Expansion
- Supports multiple array enclosures per host connection
- Greater than 2TB per volume set (64-bit LBA support)
- Greater than 2TB per disk drive
- Supports 4K bytes/sector for Windows up to 16TB per volume set
- Disk scrubbing / array verify scheduling for automatic repair of all configured RAID sets
- Login record in the event log with IP address and service (http, telnet, and serial)
- Supports intelligent power management to save energy and extend service life
- Supports NTP protocol to synchronize RAID controller clock over the on-board LAN port
- Max 128 LUNs (volume set)
- Transparent data protection for all popular operating systems
- Instant availability and background initialization
- Multi-path & load-balancing support
- Automatic synchronization of firmware version in the dual-active mode
- Supports S.M.A.R.T, NCQ, and OOB Staggered Spin-up capable drives
- Supports hot swap and automatic hot rebuild
- Local audible event notification alarm
- Redundant flash image for high availability
In the Box Rocstor Enteroc F1620 12-Bay Single Controller 16Gb Fibre Storage System Enclosure Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Enteroc F1620 12-Bay Single Controller 16Gb Fibre Storage System Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor F1620-S Specs | RAID Controller | 16 Gb FC - 6 Gb SAS | | Controller | Single | | Host Interface | 2 x FC-AL (16 Gb/s) | | Disk Interface | 6 Gb/s SAS
6 Gb/s SATA | | Cache Memory | 4 GB DDR3 1333 MHz ECC SDRAM (Option: 8 GB or 16 GB upgrade) | | SAS Expander | 1 x 6 Gb/s SAS (SFF-8088) | | Capacity | Expansion up to 144 disks | | Processor Type | 800 MHz dual-core RAID-On-Chip processor | | Management Port | Yes | | RAID Modes | 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD | | Array Format | Up to 128 | | LUNs | Up to 128 | | Supported Features | Hot spare
Drive roaming
Online rebuild
Variable stripe size
E-mail notification
Online capacity expansion, RAID level / stripe size migration
Online array roaming
Online consistency checker
SMTP manager and SNMP agent
Redundant flash image
Instant availability and background initialization
SMART support
MAID 2.0
Bad block auto-remapping | | Enclosure | 2U rackmount | | Bays | 12 hot-swap trays
Holds up to 12 drives
Tray lock supported | | Indicators | Access/Fail LED disk status | | Backplane | SAS2 / SATA3 single BP | | Fans | 2 | | Power Supply | 2 x 400 W with PFC | | Power Requirements | AC 90 to 264 VAC full range
7.5 A to 4 A
47 Hz to 63 Hz | | Environmental | Humidity: 10 to 85% non-condensing
Operating Temperature: 50 to 104°F / 10 to 40°C | | Dimensions (LxWxH) | 23.2 x 19.0 x 3.5" / 590.0 x 482.0 x 88.0 mm | | Weight | Without Disks: 43.4 lb / 19.7 kg |
