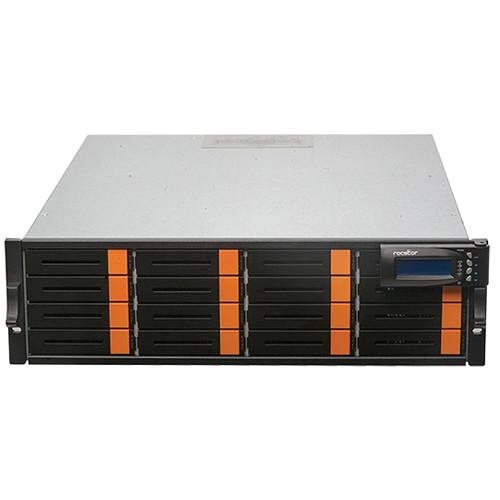

User Manual for Rocstor Enteroc iS1030 16-Bay Single Controller iSCSI Redundant RAID Storage Enclosure Click to enlarge the picture
Contents of the user manual for the Rocstor Enteroc iS1030 16-Bay Single Controller
- Product category: NAS Enclosures Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor NAS Enclosures
|
User manual for the Rocstor Enteroc iS1030 16-Bay Single Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description The Rocstor Enteroc iS1030 16-Bay Single Controller iSCSI Redundant RAID Storage Enclosure features an Intel Xeon 64-bit RAID processor for fast I/O operations, multipath I/O, iSCSI jumbo frame support, and one SBB compliant controller in a 3U 16-bay enclosure. The enclosure supports an optional SATA or SAS hard drive in each of its sixteen bays to satisfy your data storage needs. Moreover, additional expansion is possible with a single SAS port that connects to a separately sold storage unit to provide more storage capacity for your network.
The Enteroc iS1030 enclosure delivers reliable data protection with RAID support as well as ease-of-use and iSCSI to support your company's storage requirements. To secure maximum investment protection, it is built with dual redundant 460W power supplies, cooling fans, and hot swappable drive bays. Furthermore, it is outfitted with two 10 Gb and two 1 Gb Ethernet ports that provide ample bandwidth to satisfy today's server needs. -
- Single active controller
- 3U 16-Bay rack-mount redundant RAID subsystem
- Supports port trunking, 802.3ad Link Aggregation Control Protocol (LACP) with VLAN
- High data bandwidth of system architecture by Intel 64-bit RAID processor
- Management GUI via serial console, SSH telnet, Web, and secure web (HTTPS)
- Event notification via Email and SNMP trap
- Menu-driven front panel display
- Supports Volume Cloning, Replication, Thin Provision
- Supports Microsoft Windows Volume Shadow Copy Services (VSS)
- Supports iSCSI jumbo frame
- Supports Microsoft Multipath I/O (MPIO), MC/S
- Supports RAID levels 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60 and JBOD
- Local N-way mirror: Extension to RAID 1 level, N copies of the disk
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Global, local and dedicated hot spare disks
- Write-through or write-back cache policy for different application usage
- Supports greater than 2TB per volume set (64-bit LBA support)
- Greater than 2TB per volume set (64-bit LBA support)
- Supports manual or scheduling volume snapshot (up to 64 snapshot)
- Snapshot rollback mechanism
- On-line volume migration with no system down-time
- Online volume expansion
- Instant RAID volume availability and background initialization
- Automatic synchronization of firmware version in the dual-active mode
- Supports S.M.A.R.T, NCQ, and OOB Staggered Spin-up capable drives
- High efficiency power supply which compliant with 80Plus
- Supports fast rebuild
In the Box Rocstor Enteroc iS1030 16-Bay Single Controller iSCSI Redundant RAID Storage Enclosure Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Enteroc iS1030 16-Bay Single Controller iSCSI Redundant RAID Storage Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor IS1030-S Specs | RAID Controller | iSCSI - 6 Gb SAS | | Controller | Single | | Host Interface | 2 x 10 Gb Ethernet
2 x 1 Gb Ethernet | | Disk Interface | 6 Gb/s SAS
6 Gb/s SATA
Holds up to 16 storage drives | | SAS Expander | 1 x 6 Gb/s SAS (SFF-8088) | | Processor Type | Intel Xeon processor | | Cache Memory | 4 to 16 GB DDR3 ECC SDRAM (per Controller) | | Battery Backup | Optional hot pluggable BBM | | Management Port | Yes | | RAID Modes | 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, and JBOD | | Logical Volume | Up to 4096 | | Host | Connection: Up to 128
Clustering: Up to 16 for one logical volume | | Hot Spare | Global, local, and dedicated | | Supported Features | Monitor Port
UPS connection
iSCSI Jumbo frame
Supports Microsoft Multipath I/O (MPIO)
Port Trunking,802.3ad LACP
Manual/scheduling volume snapshot up to 64
Host access control (read-write, read-only)
Online Volume migration
Online Volume sets expansion
Configurable stripe size
Auto volume rebuild
N-way mirror (N copies of the disk)
Microsoft Windows Volume Shadow Copy Services (VSS)
Supports CHAP authentication
Thin Provision
Local Clone
Remote Replication
VAAI (vStorage APIs for Array Integration)
S.M.A.R.T.
Snapshot rollback mechanism | | Enclosure | 3U rackmount | | Bays | 16 hot-swap trays
Tray lock supported | | Indicators | Access/Fail LED disk status | | Backplane | 6 Gb/s SAS/SATA single BP | | Power Supply | 2 x 460 W with PFC | | Fans | 2 | | Power Requirements | AC 90 to 264 VAC full range
10 A to 5 A
47 Hz to 63 Hz (per module) | | Environmental | Humidity: 10 to 85% non-condensing
Operating Temperature: 50 to 104°F / 10 to 40°C | | Dimensions (LxWxH) | 23.2 x 19.0 x 5.2" / 590.0 x 482.0 x 131.0 mm | | Weight | 55.1 lb / 25.0 kg |
