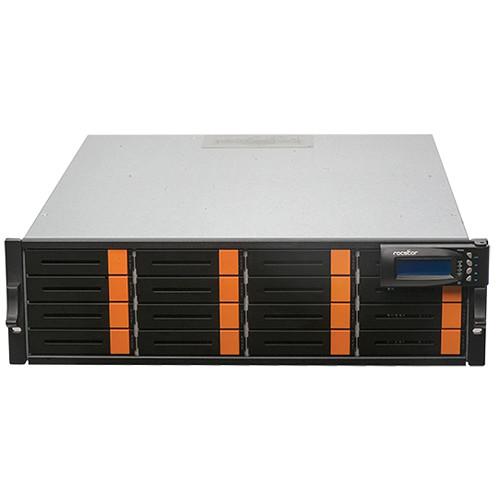

User Manual for Rocstor Enteroc iS1030 48TB 16-Bay Single-Controller iSCSI SAS RAID Array Click to enlarge the picture
Contents of the user manual for the Rocstor Enteroc iS1030 48TB 16-Bay Single-Controller
- Product category: Network Attached Storage Drives Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Network Attached Storage Drives
|
User manual for the Rocstor Enteroc iS1030 48TB 16-Bay Single-Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description The Rocstor Enteroc iS1030 16-Bay Single-Controller iSCSI/SAS RAID Array features a 64-bit Intel Xeon RAID processor for fast I/O operations, multipath I/O, iSCSI jumbo frame support, one SBB compliant controller, and 48TB of storage capacity in a 3 RU rackmount chassis. Housed in the bays are enterprise-class SAS hard drives that spin at a rate of 7200 rpm and offer 128MB of cache. Moreover, additional expansion is possible with a SAS port that connects to an optional storage unit to provide more storage capacity to your network.
The Enteroc iS1030 storage system delivers reliable data protection with RAID support as well as ease-of-use and iSCSI to support your company's storage requirements. To secure maximum investment protection, it is built with dual redundant 460W power supplies, cooling fans, and hot swappable drive bays along with the ability to hold an optional second controller. Furthermore, it is outfitted with two 10Gb and two 1Gb Ethernet ports that provide ample bandwidth to satisfy today's server needs. -
- Single active controller
- Supports port trunking, 802.3ad Link Aggregation Control Protocol (LACP) with VLAN
- Management GUI via serial console, SSH telnet, Web, and secure web (HTTPS)
- Event notification via Email and SNMP trap
- Menu-driven front panel display
- Supports Volume Cloning, Replication, Thin Provision
- Supports Microsoft Windows Volume Shadow Copy Services (VSS)
- Supports iSCSI jumbo frame
- Supports Microsoft Multipath I/O (MPIO), MC/S
- Supports RAID levels 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, and JBOD
- Local N-way mirror: Extension to RAID 1 level, N copies of the disk
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Global, local, and dedicated hot-spare disks
- Write-through or write-back cache policy for different application usage
- Supports greater than 2TB per volume set (64-bit LBA support)
- Supports manual or scheduling volume snapshot (up to 64 snapshot)
- Snapshot rollback mechanism
- Online volume migration with no system downtime
- Online volume expansion
- Instant RAID volume availability and background initialization
- Automatic synchronization of firmware version in the dual-active mode
- Supports S.M.A.R.T, NCQ, and OOB Staggered Spin-up capable drives
- High-efficiency, 80 Plus-compliant power supply
- Supports fast rebuild
In the Box Rocstor Enteroc iS1030 48TB 16-Bay Single-Controller iSCSI/SAS RAID Array Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Enteroc iS1030 48TB 16-Bay Single-Controller iSCSI SAS RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor IS1030-S Specs | | | CPU | Intel Xeon | | Total Installed Memory | 4 GB ECC DDR3 | | Maximum Memory Capacity | 8 GB | | # of RAID Controllers | Single | | | | Total Raw Capacity | 48 TB | | Cache Memory per Drive | 128 MB | | Interface | SAS | | Rotational Speed | 7200 rpm | | | | Number of Bays | 16 x 3.5" | | Connections | 1 x Mini SAS (SFF-8088)
2 x RJ45 (10GbE)
2 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SAS-2, SATA III | | Form Factor | Rackmount (3 RU) | | RAID Modes | RAID 0, 0+1, 1, 10, 3, 30, 5, 50, 6, 60, JBOD | | | | Supported Protocols | iSCSI | | Max Volume Number | 4096 | | | | Security Features | Lockable Bay Door | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz at 5 to 10 A | | PSU Wattage | 2 x 460 W | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 10 to 85% | | | | Status Monitoring | LED Indicator | | Cooling | 2 x Fans | | Dimensions | 23.2 x 19.0 x 5.2" / 59.0 x 48.2 x 13.1 cm | | Weight | 80.5 lb / 36.5 kg |
