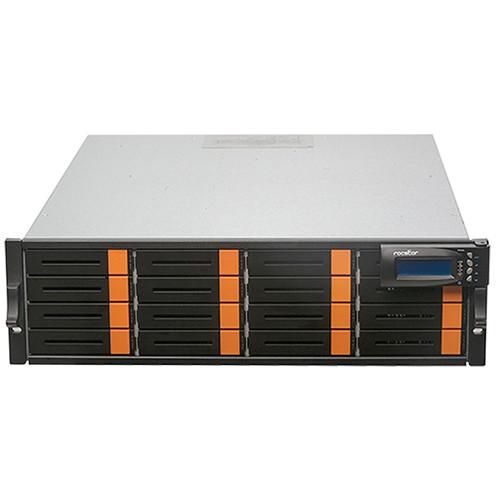

User Manual for Rocstor Enteroc N1823 12-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the Rocstor Enteroc N1823 12-Bay NAS Enclosure
- Product category: NAS Enclosures Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor NAS Enclosures
|
User manual for the Rocstor Enteroc N1823 12-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description Designed with business storage needs in mind, the Enteroc N1823 12-Bay NAS Enclosure from Rocstor features 12 drive bays complete with 12 Gb/s SAS/SATA disk architecture for enhanced data throughput. In addition to enhanced data throughput, the N1823 NAS Server comes equipped with four Gigabit Ethernet ports for improved network connectivity and expandability. On the inside of the Enteroc N1823 you will find a 3.1 GHz quad-core Intel Xoen CPU along with 8 GB DDR3 SDRAM cache memory to ensure the NAS operates smoothly even under demanding conditions.
Once configured, Enteroc N1823 supports RAID 0, 1, 5, 6, 10, 50, and 60 settings to suit a variety of storage needs. Additionally, users benefit from a variety of backup and data protection features including Volume Clone, iSCSI replication, Amazon S3 backup, and more.
Rocstor has included their intuitive management utility ProNAS OS and Disk Manager giving users a wealth of tools to full manage this NAS server. From automatic IP address configuration to web browser-based management, central management, and more you do not have to be an IT expert to manage your storage. Rocstor even offers a dedicated app available for both iOS and Android further simplifying the process of managing this NAS server. - Single Intel Quad Core Xeon 3.1G Processor
- Combining a Dual 10 Gigabit Ethernet and a powerful 12 Gbs SAS/SATA disk structure with consolidation capabilities and turnkey simplicity. The Enteroc N1823 offers heterogeneous protocols, easy expandability, 12 Gbs SAS/SATA disk technology, and efficient utilization of storage space. It supports features such as VAAI, HA, Thin-Provisioning, Volume Clone, remote replication, Snapshot, and data copy options. The N1823 seamlessly integrates into your computing environment and providing a world-class NAS storage solution that delivers down the overall cost of storage while creating the best possible return on storage investment.
- Intel Xeon Quad Core
- The Enteroc N1823 is powered by Intel Xeon Quad Core 3.1 GHz processor CPU and 8 GB DDR3 SDRAM memory module expandable to 32 GB. This rackmount NAS storage is a powerful server designed for SMB complex storage needs.
- Built-in Backup and Data Protection
- The Enteroc N1823 includes a fully-featured backup solution including manual or scheduled backup for file, folder, and shared files. It can be backup and restore from multiple local or remote devices. The N1823 features volume clone, snapshot, remote replication, and data copy options which are all designed to ensure and enhance your valuable data.
• Volume Clone (EXT3/EXT4/XFS/NTFS/VMFS/ZFS)
• Symantec BackupExec Agent (by additional installation)
• Scheduling multi-snapshot (Support iSCSI snapshot)
• Replication (Remote real-time data mirroring)
• Scheduling Rsync Replication
• Support NetVault backup client (by additional installation)
• Support CA ARCserve (by additional installation)
• Data copy (copy files to other share/attached storage)
• Scheduling backup
• Differential/incremental backup
• iSCSI Replication
• Amazon S3 backup
• Backup/restore from attached storage (USB/eSATA/iSCSI/RDX/USM)
• Support Apple Time Machine - Logical Volume AES-256 Encryption
- For your extensive data protection, the Enteroc N1823 includes an AES-256 logical volume encryption option. If shared folders have not been created in the logical volume setup, the volume can be encrypted by configuring data "Encrypt" option in the setup. After an encrypted volume is created, system will download the key file automatically. The key is a part of the encryption validation and the volume cannot be accessed without key file.
- SSD Cache Technology
- The Enteroc N1823 features SSD Caching that enables an SSD drive to be used in conjunction with a high-capacity hard drive (HDD). SSD Caching feature recognizes and automatically stores your most frequently used applications and data into the SSD, while giving you full access to the large storage capacity of an HDD. You can create, work, and access your data faster than ever before without paying more for a larger SSD to store our entire data.
- Built For Business
- The Rocstor Enteroc N1823 is full featured and supports Windows LDAP, Android/iOS mobile APP for monitoring, Backup/Restore from attached storage (USB/eSATA/iSCSI/RDX/USM), Backup/Restore from remote share (CIFS/NFS), Backup to Cloud (Amazon S3), VMware ESXi 5 iSCSI/FC/NFS VAAI support, Microsoft Windows 98/ME/NT/2000/XP/2003/Vista/2008 /Win7/Windows 2012/Win 8 Unix/Win 10, Linux, Mac OS, iSCSI Target manager which support LUN Mapping/Initiator Filter/Thin Provisioning, Support NIC/Trunking/Load Balance/Fail Over/802.3ad, and many more for a true enterprise solution with one of the lowest Total Cost of Ownership storage solutions.
- Compression and Deduplication Advance Features
- The Enteroc N1823 features a robust Data Deduplication option which is a method of reducing storage needs by eliminating redundant data. Only one unique instance of the data is actually retained on storage media. Data Compression is also a feature of N1823 which provides a reduction in storage hardware, data transmission time and communication bandwidth, hence resulting in data storage cost savings.
- Rocstor ProNAS OS and Disk Manager
- The Rocstor ProNAS OS and Disk Manger is a powerful and full featured enterprise NAS operating system which provides configuring and managing your NAS data infrastructure easy. ProNAS delivers business featured options that are easy-to-use thru its GUI interface. Simplifying setup and management. ProNAS is built specifically for Enteroc range of NAS storage and delivers optimal performance, reliability and efficiency.
• Automatic IP address configuration
•Web browser-based management
•SNMP management and notification
•Fail-free online firmware upgrade
•Unicode support
•Multi-node management GUI
•System configuration backup/restore
•Central management
•Quick wizard
•APP for Android/iOS monitoring - Rocstor Enteroc NAS are built for Virtualization
- The Rocstor Enteroc N1823 is a perfect storage system for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere & VAAI integration support. The N1823 also supports iSCSI Target and Thin Provisioning block storage.
- Unified Storage System
- Consolidating file data with a Rocstor Enteroc N1823 Network Attached Storage (NAS) solution can easily help you to address your changing file serving needs and reduce cost of ownership - enabling simplified management, better resource utilization, and centralized growth and data protection. The Enteroc N1823 allows you to share files across Windows, Mac, and Linux platforms efficiently and seamlessly. The N1823 supports Backup/Restore from remote share (CIFS/NFS) along with TCP/IP, SMB/CIFS, NFS, SNMP, FTP/SFTP/FXP, HTTP, HTTPS, Telnet, SSH, AFP, WebDAV, Bonjour and TFTP protocols.
In the Box Rocstor Enteroc N1823 12-Bay NAS Enclosure Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Enteroc N1823 12-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor N1823 Specs | Hardware | Intel Quad Core Xeon 3.1G processor
Cache Memory : 8 GB DDR3 ECC SDRAM up to 32 GB
Four Gigabit Ethernet ports (10 Gigabit Ethernet for options)
Up to Sixteen 2.5"/3.5" hot-swappable 12 Gb/s SAS, 6 Gb/s SATA hard drives Connect up to 128
Connect up to 128 3 Gb/s, 6 Gb/s, or 12 Gb/s SATA and SAS devices
Real-time drive activity and status indicators
Environmental monitoring unit
2 x 460 W 80 plus hot-swappable power supplies with PFC
Spare PCIE/PCI slot for H/W upgrade | | RAID Controller | 1.2 GHz dual core RAID on Chip (ROC) storage processor
Supports RAID Level: RAID 0, 1, 5, 6, 10, 50 and 60
Supports 1 GB DDR3 cache memory
Support drive hot spare and automatic hot rebuild
Allow online capacity expansion within the enclosure
Locally audible event notification alarm | | Storage Management | Volume management (Support ZFS, XFS, EXT3 and EXT4 file system)
Support SSD Caching, Compression and Deduplication (Support on ZFS file system)
Disk usage statistics
Hot spare drives
iSCSI Target Manager: Support LUN Mapping/Initiator Filter/Thin Provisioning
FC Target Manager: Support LUN Mapping/Thin Provisioning
VAAI support for iSCSI/FC/NFS | | General | Independent file server
Multiple language support
Support UPS
Support LV encryption | | System Management | Automatic IP address configuration
Web browser-based management
SNMP management and notification
Fail-free online firmware upgrade
Unicode support
Multi-node management GUI
System configuration backup/restore
Central management
Quick wizard
APP for Android/iOS monitoring | | Networking | Support NIC/Trunking/Load Balance/Fail Over/802.3ad
DHCP Server/DHCP Client
WINS Server
Internet gateway
DDNS | | Protocols | TCP/IP, SMB/CIFS, NFS, SNMP, FTP/SFTP/FXP, HTTP, HTTPS, Telnet, SSH, AFP, WebDAV, Bonjour, TFTP | | Operating Systems Supported | Microsoft Windows 98/ME/NT/2000/XP/2003/Vista/2008/Win7/Windows 2012/Win 8
Unix/Linux
Mac OS | | Authentication | Local user account/group
Microsoft NT Domain Controller (PDC)
Microsoft Active Directory Authentication (ADS)
Network Information Service (NIS)
Support OpenLDAP service
Support creating users by batch
User quota management
Share level security
File level security
User ID security for NFS
Recycle bin (Samba)
File access log, audit (Samba)
Write Once Read Many (WORM) | | Block Storage (SAN) | iSCSI Target Support
Fiber Target Support (optional)
Thin Provisioning support
VMware VAAI support | | Virtualization | VMware/Citrix/Hyper-V
VMware VAAI for NFS support | | Storage Device | ISO Mount
USB/eSATA/iSCSI initiator | | Data Backup | Volume Clone (EXT3/EXT4/XFS/NTFS/VMFS/ZFS)
Symantec BackupExec Agent (by additional installation)
Scheduling multi-snapshot (Support iSCSI & FC snapshot)
Replication (Remote realtime data mirroring)
proNAS High-Availability (Three nodes HA Cluster) (optional)
Scheduling Rsync Replication
Support NetVault backup client (by additional installation)
Support CA ARCserve (by additional installation)
Data copy (copy files to other share/attached storage)
Scheduling backup
Differential/incremental backup
iSCSI/FC Replication
Amazon S3 backup
backup/restore from attached storage
(USB/eSATA/iSCSI/RDX/USM)
Support Apple Time Machine | | Plug-In Compatibility | Anti-Virus
Central management
iTunes Server
Virtualization (VM on NAS) | | Power Requirements | 100 ~ 240 VAC full range
10 ~ 5 A, 47~63 Hz | | Temperature & Humidity | Operating Temperature
50 to 104°F / 10 to 50°C
Relative Humidity
10 to 85% non-condensing | | Dimensions | 5.2 x 19.0 x 28.7" / 133 x 482 x 730 mm | | Weight | Not specified by manufacturer |
