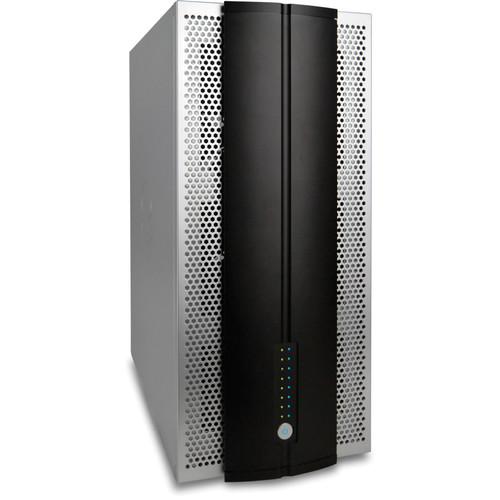

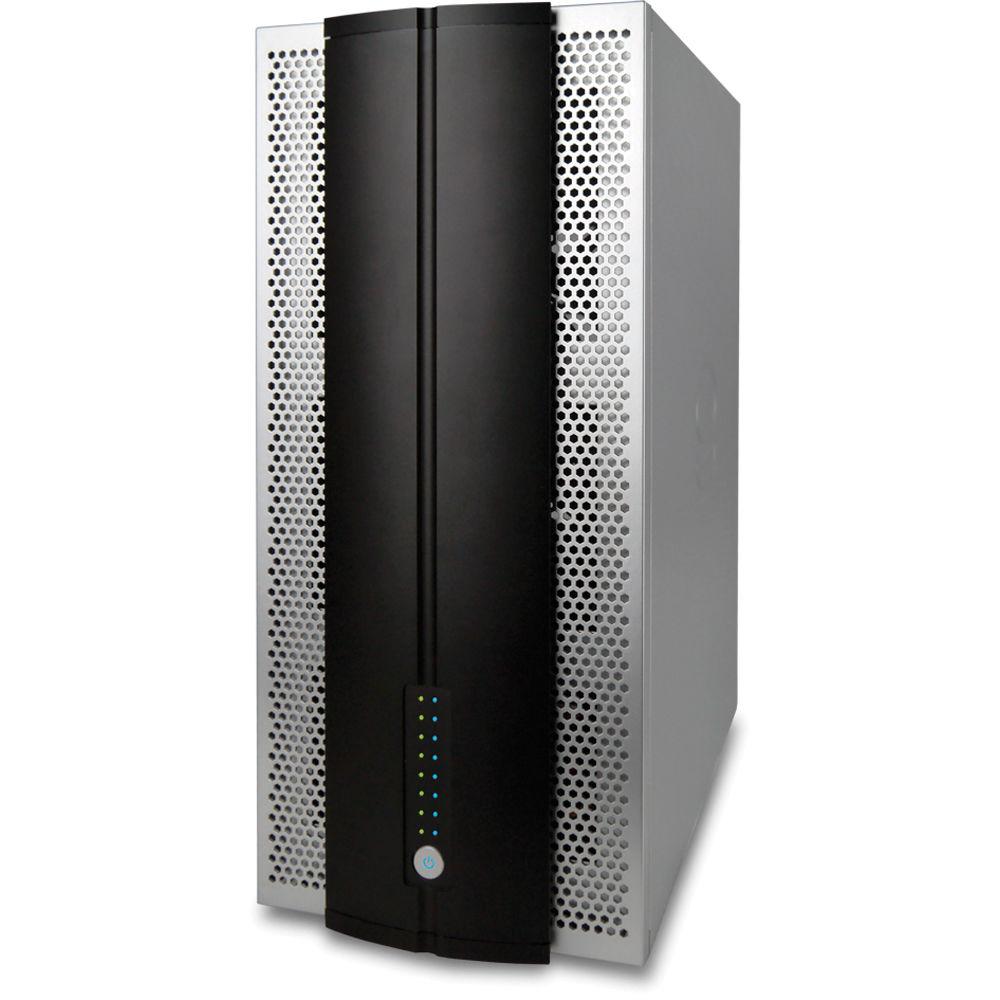

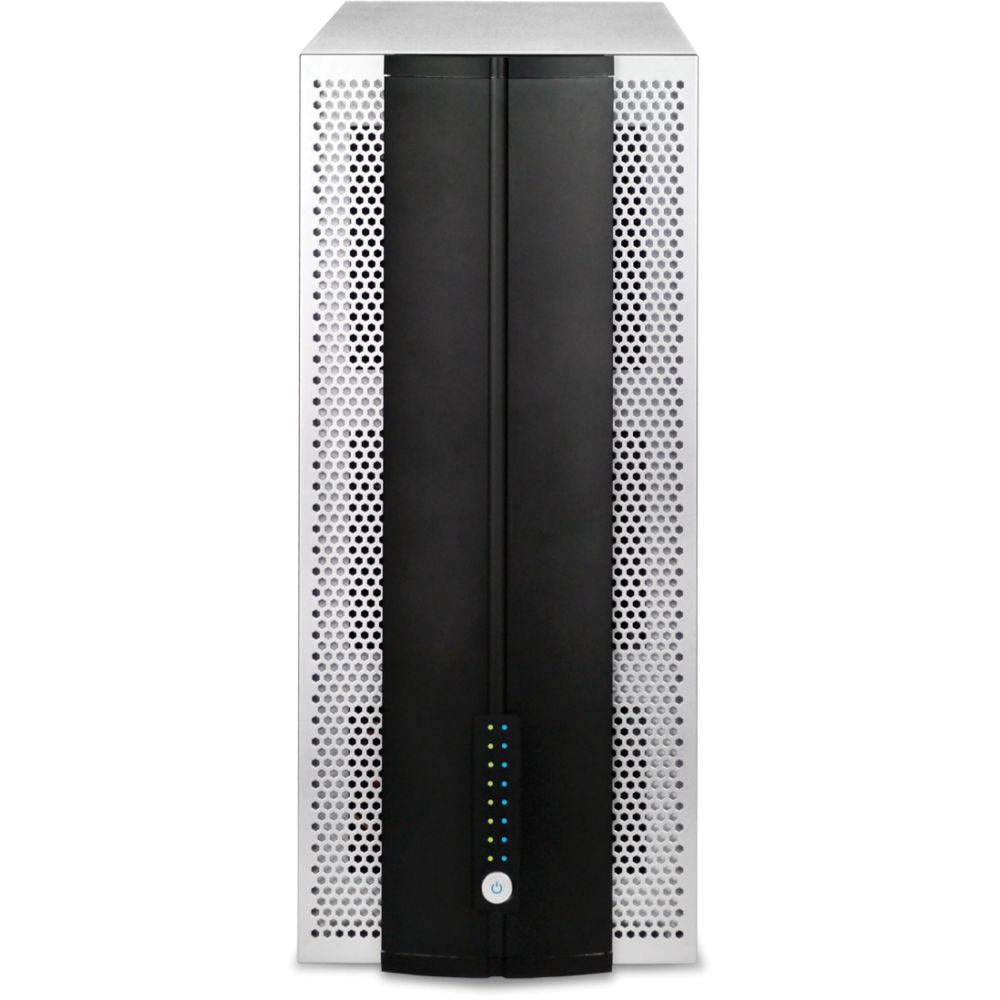

User Manual for Rocstor Enteroc PT3250 8-Bay PCIe 3.0 Desktop Tower RAID Storage System Enclosure Click to enlarge the picture
Contents of the user manual for the Rocstor Enteroc PT3250 8-Bay PCIe 3.0
- Product category: Hard Drive Enclosures & Docks Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Hard Drive Enclosures & Docks
 |
User manual for the Rocstor Enteroc PT3250 8-Bay PCIe 3.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description The Rocstor Enteroc PT3250 8-Bay PCIe 3.0 Desktop/Tower RAID Storage System Enclosure features eight drive bays that can hold 2.5" or 3.5" SAS/SATA storage drives and PCI express 3.0 technology. The PT3250 offers four data channels that deliver a total bandwidth of 32 Gb/s to your workstation with the included dual-port Z2M-G3 HBA card. You install the Z2M-G3 PCIe card inside your workstation and attach both devices via a QSFP 6.6 (2m) cable. The PT3250's bays support hot swapping and can hold SSDs and hard drives. When drives are installed, they can be RAID configured to offer you data performance, redundancy, or both.
The Enteroc PT3250 is powered by a LSISAS2208 processor and 2GB of DDR3 ECC RAM. It can be utilized as an SAN with an optional PCIe switch and comes with java-based RAIDGuard X software that helps achieve stable performance. Furthermore, it is outfitted with a 300-watt power supply along with two 120mm fans for drive and system cooling. With 32 Gb/s data throughput and reliability, you'll now have a storage system capable of processing through your next post production work of 2K/4K video streams. - Feature
-
- Capable of transferring data up to 1200 MB/s
- Supports RAID Level 0, 1, 5, 6, 10, JBOD
- PCIe 3.0 32 Gb bandwidth
- Compatible with 3.5" and 2.5" SATA/SAS enterprise hard disks and SSDs
- PCIe SAN ready
- Supports optional redundant power supply
- RAIDGuard X
- Rocstor provides RAIDGuard X that features EQ Mode and DLP functions to offer smooth, steady, and sustained performance. Selecting Performance Equalization mode in the RAIDGuard X GUI prevents frame drops, ensures smooth I/Os, and achieves stable performance with small peaks in bandwidth fluctuation, which regain as much as 20% in dropped storage. When a hard drive doesn't perform due to delays or aging, DLP technology utilizes RAID parity with other drives to resume the corrected data in real-time for maintaining stable I/O data transfers.
- Storage Performance and Versatility
- The PT3250 lets you build a suitable storage solution by supporting various types of storage drives. For a cost-friendly storage system, you can install optional SATA hard drives to build a digital storage capacity up to 32TB. When performance and stability is needed, the PT3250 can utilize SAS enterprise hard drives to process large amounts of data flow. When the drives are configured for optimal performance, they can deliver a throughput up to 1200 MB/s to quickly process post-production tasks. Moreover, the PT3250 is based on PCI express 3.0 technology, which supports 800 MB/s of bandwidth in every channel, and has four data transmission channels to offer 32 Gb/s of bandwidth.
- Cooling
- The PT3250 is equipped with two integrated 120mm low radiation and quiet fans that help prevent overheating. In addition, the RAID controller features a troubleshooting system to maximize the cooling efficiency of the fans.
- RAID Controller Functions
-
- Online RAID Set Expansion and RAID Level Migration
- Online bad block data recovery and reallocation
- Online disk scrubbing with data refresh and parity
- Disk health monitoring by S.M.A.R.T
- Array Roaming and DriveTraveling
- Mirror Snapshot for fast backup and restore
- Disk Lag Proof Technology to guarantee disk timely response
- Equalization Mode to smooth the performance of sequential I/Os and reduce large fluctuation
- Management
-
- Java-based RAIDGuard X GUI
- Event log saving in text file for quick troubleshooting
- Event notification by email (SMTP)
- LED indicator for RAID & disk drives status in front
In the Box Rocstor Enteroc PT3250 8-Bay PCIe 3.0 Desktop/Tower RAID Storage System Enclosure Z2M-G3 Dual-Port HBA PCI Card QSFP Copper Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Enteroc PT3250 8-Bay PCIe 3.0 Desktop Tower RAID Storage System Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor PT3250 Specs | Number of Bays | 8 x 2.5"/3.5" | | Compatible Drive Interface | SAS, SATA | | Form Factor | Desktop | | Memory | 2 GB ECC 1333 MHz DDR3 | | Operating System Support | Linux, Windows, macOS/OS X | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 300 W (Supports Redundancy) | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 85% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 5 to 95% | | | | Cable Length | 6.6' / 2 m | | Bridge Chipset | LSI SAS2208 | | Dimensions (W x H x D) | 14.7 x 6.9 x 15.5" / 374.0 x 175.0 x 394.0 mm | | Weight | 25.4 lb / 11.5 kg |
