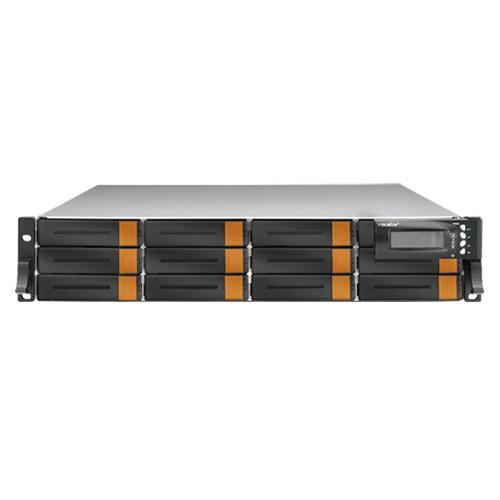

User Manual for Rocstor Enteroc S620 96TB 12-Bay SAS Single Controller RAID Array Click to enlarge the picture
Contents of the user manual for the Rocstor Enteroc S620 96TB 12-Bay SAS
- Product category: Hard Drive Arrays Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Hard Drive Arrays
|
User manual for the Rocstor Enteroc S620 96TB 12-Bay SAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More With twelve hot-swappable drive bays fit into a 2 RU rack mount form factor, the Enteroc S620 96TB 12-Bay SAS Single Controller RAID Array from Rocstor makes it easy for network administrators to exchange drives from this storage array even when installed into an existing rack mount configuration. Aside from ease of use, this storage array supports both single and dual controllers as well as multiple RAID configurations including RAID 0, 1,10(1E), 3, 5, 6, 30, 50, 60, 00, 100, Single Disk and JBOD making it easy to configure the R2USDSS6-S96 to suit specific storage needs.
Once installed the Rocstor R2USDSS6-S96 features a 4x mini SAS HD host interface with speeds up to 12 Gb/s and 6 Gb/s SAS and SATA disk interfaces. The unit itself comes equipped with 12 direct attached disks and can be expanded to handle as many as 256 disks. Inside this storage enclosure is an 1.2 GHz dual core RAID-on-chip processor along with 4GB of DDR3 RAM which is expandable up to 16GB for optimal system performance. - SAS 12Gb - SAS 6Gb / 2U 12Bay Storage System
- The Enteroc S620 SAS RAID features 6Gb SAS host performance to increase system efficiency and performance. It features high capacity expansion, with 12 hot-swappable SAS2/SATA3 hard disk drive bays in a 19-inch 2U rackmount unit, scaling to a maximum storage capacity in the terabyte range. The S620 systems is equipped with 12 hot swappable SAS2/SATA3 hard disk drive bays. It can connect with expansion enclosures to accommodate up to 256 drives. The Enteroc S620 series also supports dual redundant controllers which provide better fault tolerance and higher reliability of system operation.
- Controller Redundancy
- • Dual-active RAID controller with cache mirroring through dedicated high-speed bus
• Automatic synchronization of firmware version in the dual-active mode
• Redundant controller operation with active/active and failover/failback function
• Redundant flash image for controller availability
• Management port seamless take-over - High Availability
- • DataBolt Bandwidth Optimizer for balance faster host and slower SAS or SATA devices
• RAID level 0, 1,10(1E), 3, 5, 6, 30, 50, 60, 00, 100, Single Disk and JBOD - Enhanced Drive Support
- • Support for native 4K and 512 byte sector SAS and SATA devices
• Support HDD firmware update
• SSD automatic monitor clone (AMC) support
• S.M.A.R.T. support - Energy Saving
- • Low power consumption & low heat production
• Support intelligent power management to save energy and extend service life - RAID Management
- • Access terminal menu by telnet via a LAN port
• API library for customer to write its own monitor utility
• Field-upgradeable firmware in flash ROM
• Firmware-embedded manager via RS-232 port
• Firmware-embedded Web Browser-based RAID manager allows local or remote management and configuration
• SAP management utility to easily manage multiple RAID units in the network In the Box Rocstor Enteroc S620 96TB 12-Bay SAS Single Controller RAID Array Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Enteroc S620 96TB 12-Bay SAS Single Controller RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor S620-S Specs | RAID Controller | 12Gb SAS - 6Gb SAS | | Controller | Single or redundant | | Host Interface | Two / Four 4x mini SAS HD
(12Gb/s) (SFF-8644) | | Disk Interface | 6Gb/s SAS, 6Gb/s SATA HDD/SSD | | SAS Expander | One / Two 6Gb/s SAS (SFF-8644)
- Direct Attached: 12 disks
- Expansion: 256 disks | | Processor Type | 1.2 GHz Dual Core RAID-On-Chip processor | | Cache Memory | 4 GB Single Controller
8 GB Dual Controller Standard
8 GB / 16 GB DDR3 ECC SDRAM Option Upgrade | | Management Port Support | 2 x RJ-11 Serial Ports
1 x RJ-45 Ethernet Port | | RAID | RAID Level
0, 1,10(1E), 3, 5, 6, 30, 50, 60, 00, 100, Single Disk and JBOD
LUNs
Up to 128
Hot Spare
Global and Dedicated
Stripe Size
Up to 1024 KB
Cache Writing Approaches
Write-through or write-back
Other RAID Specifications
• Online Rebuild
• Automatic Drive Insertion / Removal Detection
• Multiple RAID Selection
• Online Array Roaming
• Online RAID Level / Stripe Size Migration
• Online Capacity Expansion
• Online Volume Set Growth
• SNMP Manager
• E-mail Notification
• Instant Availability and Background Initialization
• HDD Xfer Speed Test
• Real Time Clock Support
• RAID Clock Synchronization: Yes (Using NTP)
• Multiple Pairs SSD/HDD Disk Clone
• Multi-Path I/O (MPIO) Support | | Enclosure | Platform
Rackmount
Form Factor
2 RU
# of Hot Swap Trays
12
Tray Lock
Yes
Disk Status Indicator
Access / Fail LED
Backplane
SAS2 / SATA3 Single BP
# of PS / Fan Modules
400 W x 2 w/PFC
# of Fans
2
Power Requirements
90 VAC ~ 264 V Full Range
8 ~ 4 A, 47 ~ 63 Hz | | Temperature & Humidity | Operating Temperature: 50 to 104°F / 10 to 40°C
Relative Humidity: 10 to 85% non-condensing | | Dimensions | 23.2 x 19.0 x 3.5" / 590 x 482 x 88 mm | | Weight | With Disks: 40.1 lb / 18.2 kg
Without Disks: 43.4 lb / 19.7 kg |
