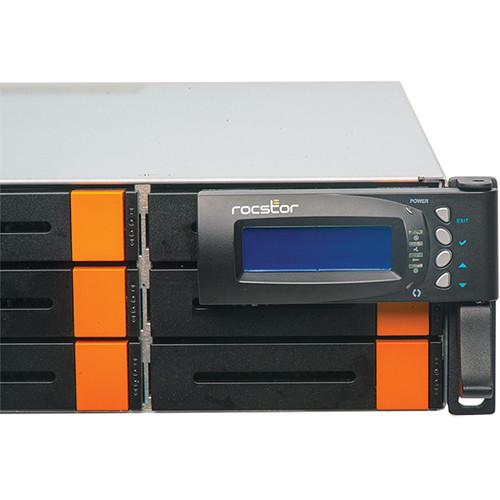

User Manual for Rocstor Enteroc S620 SAS Single Controller RAID Enclosure Click to enlarge the picture
Contents of the user manual for the Rocstor Enteroc S620 SAS Single Controller
- Product category: NAS Enclosures Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor NAS Enclosures
 |
User manual for the Rocstor Enteroc S620 SAS Single Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description The Rocstor Enteroc S620 SAS Single Controller RAID Enclosure features a single controller along with twelve 3.5" drive bays in a 2U rack-mountable form factor. Inside its twelve hot swappable bays are interfaces that can support SAS or SATA 3.5" hard drives. For added reassurance, it is equipped with redundant 400W power supplies and offers RAID support. Additionally, it is equipped with two SAS 6 Gb/s interfaces.
This enclosure is outfitted an 800 MHz dual-core RAID-On-Chip processor that is well designed to manage data. Moreover, it supports RAID levels 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, and JBOD to provide data redundancy, performance, or both. Further storage expansion is made possible by connecting an optional SAS expansion chassis to the single 6 Gb/s SAS expansion port. - Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD
- Supports online array roaming
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Supports global and dedicated hot spare
- Online Volume Set Expansion
- Supports multiple array enclosures per host connection
- Greater than 2TB per volume set (64-bit LBA support)
- Greater than 2TB per disk drive
- Supports 4K bytes/sector for Windows up to 16TB per volume set
- Disk scrubbing / array verify scheduling for automatic repair of all configured RAID sets
- Login record in the event log with IP address and service (http, telnet, and serial)
- Supports intelligent power management to save energy and extend service life
- Supports NTP protocol to synchronize RAID controller clock over the on-board LAN port
- Max 128 LUNs (volume set)
- Transparent data protection for all popular operating systems
- Instant availability and background initialization
- Supports S.M.A.R.T, NCQ, and OOB Staggered Spin-up capable drives
- Supports hot swap and automatic hot rebuild
- Local audible event notification alarm
- Redundant flash image for high availability
In the Box Rocstor Enteroc S620 SAS Single Controller RAID Enclosure Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Enteroc S620 SAS Single Controller RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor S620-S Specs | | | Controller | Single | | Host Interface | 2 x SAS (6 Gb/s) | | Disk Interface | 6 Gb/s SAS, 6 Gb/s SATA | | Expansion | 1 x SAS (6 Gb/s)
Supports up to 96 disks | | Capacity | Holds 12 disks | | Processor | 800 MHz RAID-On-Chip storage processor | | Cache Memory | 1GB to 4 GB DDR2-800 ECC Registered SDRAM | | Battery Backup | Optional | | Management Port | Supported | | | | RAID Level | 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD | | Array Size | Up to 128 | | LUNs | Up to 128 | | Supported Features | Hot spare
Drive roaming
Online rebuild
Variable stripe size
E-mail notification
Online capacity expansion, RAID level / stripe size migration
Online array roaming
Online consistency checker
SMTP manager and SNMP agent
Redundant flash image
Instant availability and background initialization
SMART support
MAID 2.0
Bad block auto-remapping | | | | Platform | 2U rackmount | | Bays | 12 hot-swap trays
Tray lock | | Indicators | Access / Fail LED | | Backplane | SAS II / SATA III single backplane | | Fans | 2 | | Power | 2 x 400 W with PFC
90 to 264 VAC, 4 to 7.5 A, 47 to 63 Hz | | | | Humidity (Non-condensing) | 10 to 85% | | Temperature | Operating: 50 to 104°F / 10 to 40°C | | Dimensions (LxWxH) | 23.2 x 19.0 x 3.5" / 590.0 x 482.0 x 88.0 mm | | Weight | 43.4 lb / 19.7 kg |
