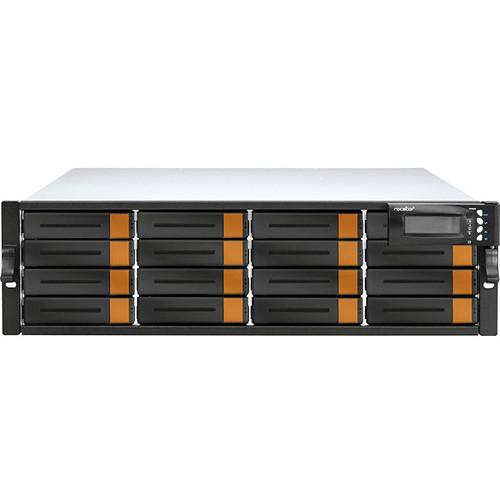

User Manual for Rocstor Enteroc S630 SAS Redundant Raid Storage Click to enlarge the picture
Contents of the user manual for the Rocstor Enteroc S630 SAS Redundant Raid
- Product category: Hard Drive Arrays Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Hard Drive Arrays
|
User manual for the Rocstor Enteroc S630 SAS Redundant Raid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The Enteroc S630 SAS Redundant Raid Storage from Rocstor features 6GB SAS host performance to increase system efficiency and performance. It offers high capacity expansion with 16 hot-swappable SAS2 / SATA3 hard disk drive bays in a 19" 3U rackmount unit. The firmware-embedded Web Browser-based RAID manager allows local or remote management and configuration, and the firmware-embedded SMTP manager monitors all system events and user notifications automatically. The firmware-embedded SNMP agent enables remote to monitor events using LAN with no SNMP agent required. The Enteroc also features a menu-driven front panel display and real time clock support. - Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD
- Supports online array roaming
- Online RAID level / stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Support global and dedicated hot spare
- Online volume set expansion
- Support multiple array enclosures per host connection
- Supports 4K bytes/sector for Windows up to 16TB per volume set
- Disk scrubbing / array verify scheduling for automatic repair of all configured RAID sets
- Login record in the events log with IP address and service (http, telnet, and serial)
- Support intelligent power management to save energy and extend service life
- Support NTP protocol to synchronize RAID controller clock over the on-board LAN port
- Maximum 128 LUNs (volume set) per controller
- Transparent data protection for most operating systems
- Instant availability and background initialization
- Supports S.M.A.R.T., NCQ, and OOB Staggered Spin-up capable drives
- Supports hot spare and automatic hot rebuild
- Local audible event notification alarm
- Redundant flash image for high availability
- Greater than 2TB per volume set and 2TB per disk drive
In the Box Rocstor Enteroc S630 SAS Redundant Raid Storage (3U, 6GB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Enteroc S630 SAS Redundant Raid Storage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor R3USDSS6-S96 Specs | RAID Controller | 6 GB SAS | | Host Interface | 4 x 6 GB per second SAS (SFF-8088) | | Disk Interface | 6 GB per second SAS, 6 GB per second SATA | | SAS Expansion | 2 x 6 GB per second SAS (SFF-8088) | | Capacity | Direct attached: 16 disks
Expansion: up to 192 disks
Processor type: 800 MHz Dual Core RAID-On-Chip processor
Cache memory: 2 GB to 8 GB / 4 GB to 16 GB DDR3-1333 ECC SDRAM
Battery backup: optional | | RAID Level | 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, JBOD | | Array Group | Up to 128 | | LUNs | Up to 128 | | Power Requirements | 90 to 264 VAC
Full range: 7.5 A to 4 A, 47 to 63 Hz | | Form Factor | 3U | | Number of Trays | 16 | | Backplane | SAS2 / SATA3 Single BP | | Fan Module | 2 x 500 W with PFC | | LED | Disk status indicator: access / fail | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Relative Humidity | 10 to 85% non-condensing | | Dimensions | 23.2 x 19.0 x 3.5" / 590.0 x 482.0 x 88.0 mm | | Weight | 40.1 lb / 18.2 kg |
