User Manual for Rocstor Rocpro T24 Thunderbolt 2 RAID Enclosure Click to enlarge the picture
Contents of the user manual for the Rocstor Rocpro T24 Thunderbolt 2 RAID
- Product category: Hard Drive Enclosures & Docks Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Hard Drive Enclosures & Docks
 |
User manual for the Rocstor Rocpro T24 Thunderbolt 2 RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|

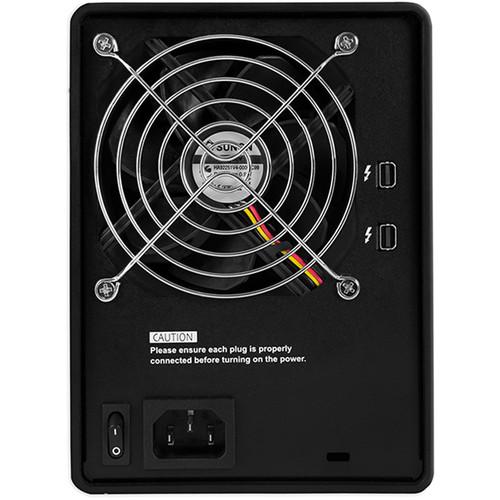

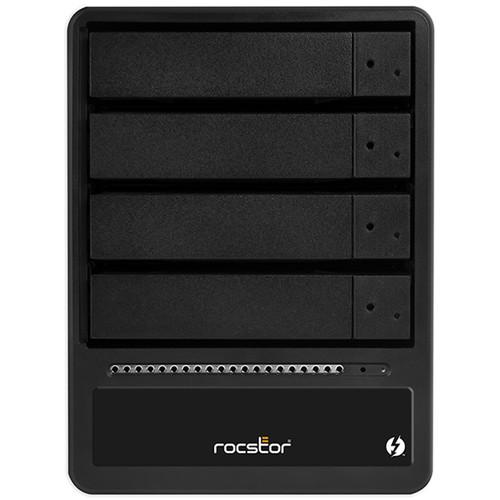

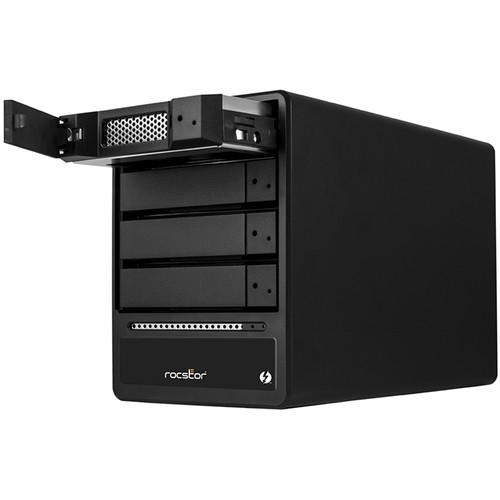

Product description The Rocpro T24 Thunderbolt 2 RAID Enclosure from Rocstor connects to Windows and Mac systems via an included Thunderbolt cable and features four drive bays, which can house your 2.5" and 3.5" drives. The bays offer hot-swap support and can accept hard drives and solid-state drives. To cool your drives, Rocstor has designed this enclosure with an aluminum case for passive cooling and equipped it with two silent fans to maximize airflow. The Rocpro T24 sports two Thunderbolt 2 ports, offering 20 Gb/s transfer rates each. This connection technology supports daisy chaining with up to six Thunderbolt devices. Moreover, this enclosure has the ability to email you alerts, regarding to the health of the RAID or the condition of your drive.
With drives installed, you can easily configure them into a RAID 0, 1, 10, or JBOD utilizing the GUI and integrated hardware RAID controller. When the hard drives are configured in RAID 1, they can provide 687 MB/s read speeds and 676 MB/s writes. Additionally, the Rocpro T24 can deliver read speeds up to 1464 MB/s and write speeds up to 1167 MB/s by equipping it with SSDs under RAID 0. HyperDuo technology is also available so your system can use a mixture of SSDs and a hard drive. This technology has intelligent algorithms that allow you to utilize the faster SSDs, while safeguarding your data on the hard drive. - Compatible with 6 Gb/s SATA-based hard drives and solid-state drives
- Connects via two Thunderbolt 2 ports with transfer rates of 20 Gb/s
- Hardware RAID controller offering JBOD (no RAID), RAID 0 (striping), RAID 1 (mirroring), and RAID 10 (1+0)
- Supports rebuild under RAID 1
- Connectivity with multiple Thunderbolt devices with daisy-chaining support
- Configure RAID modes easily using a Graphic User Interface (GUI)

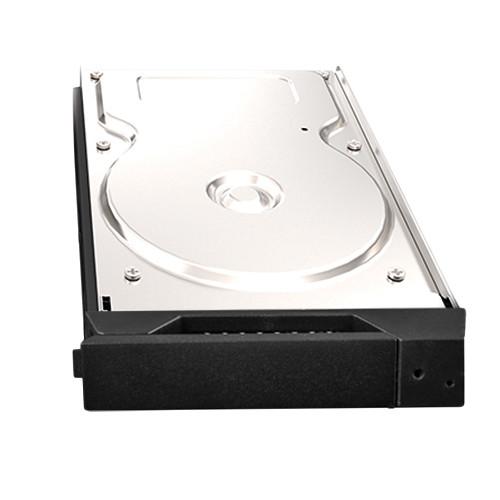

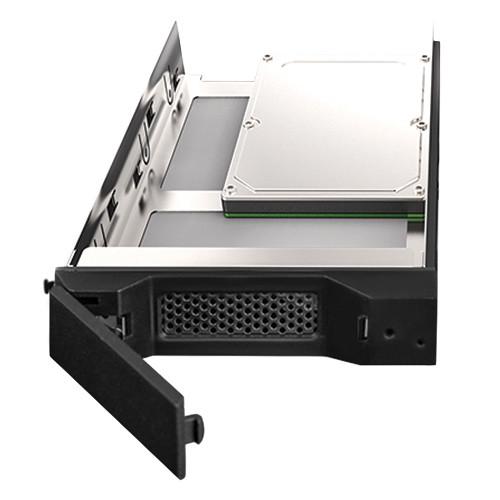

- Features hot-swap capabilities with hard disk and solid-state drives
- Dissipates heat via an aluminum housing
- Maximizes airflow with two silent fans
UPC: 853920000731 In the Box Rocstor Rocpro T24 Thunderbolt 2 RAID Enclosure Thunderbolt Cable Power Cable Accessories Kit Software and Manual CD Limited 3-Year Warranty User Manual PDF 2.5mbeyvbuwxutxydsfbvas Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Rocpro T24 Thunderbolt 2 RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor T24 Specs | Number of Bays | 4 x 2.5"/3.5" | | Connections | 2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s)) | | Compatible Drive Interface | SATA | | RAID Modes | RAID 0, 1, 10, JBOD | | Hot-Swap Support | Yes | | Operating System Support | Windows, macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Security Features | Kensington Security Slot | | | | Dimensions (W x H x D) | 6.5 x 4.9 x 8.3" / 16.6 x 12.4 x 21.0 cm | | Weight | 7.3 lb / 3.3 kg | | | | Package Weight | 9.3 lb | | Box Dimensions (LxWxH) | 12.6 x 9.3 x 8.8" |
