User Manual for Rocstor Rocpro T34 16TB 4-Bay Thunderbolt 3 RAID Array Click to enlarge the picture
Contents of the user manual for the Rocstor Rocpro T34 16TB 4-Bay Thunderbolt
- Product category: Hard Drive Arrays Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Hard Drive Arrays
 |
User manual for the Rocstor Rocpro T34 16TB 4-Bay Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|

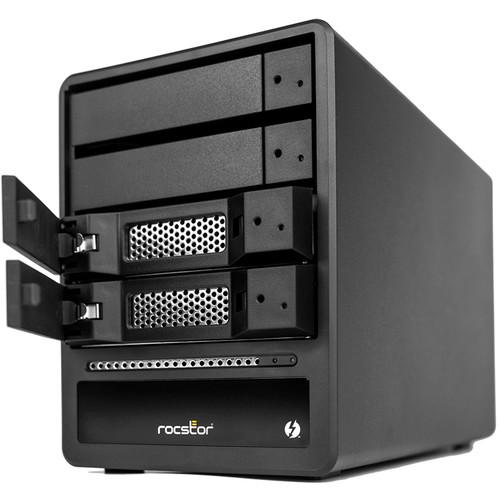

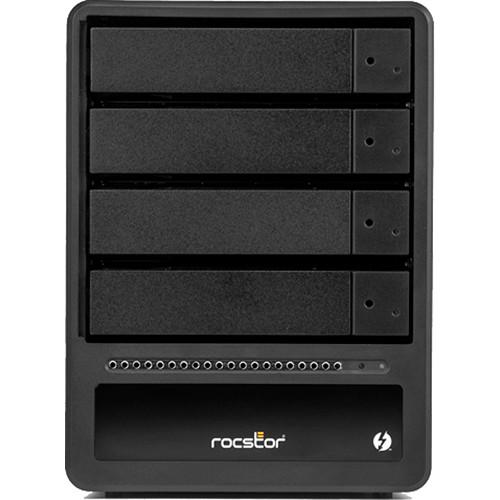

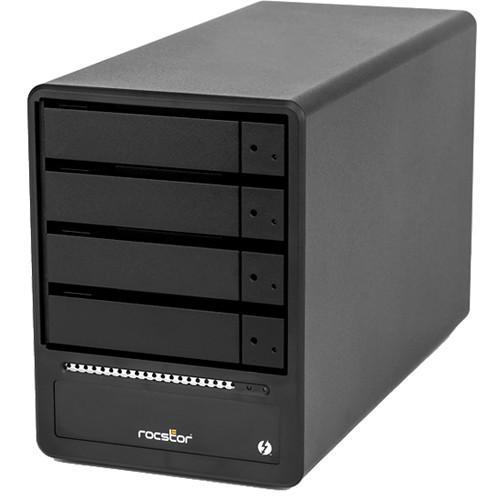

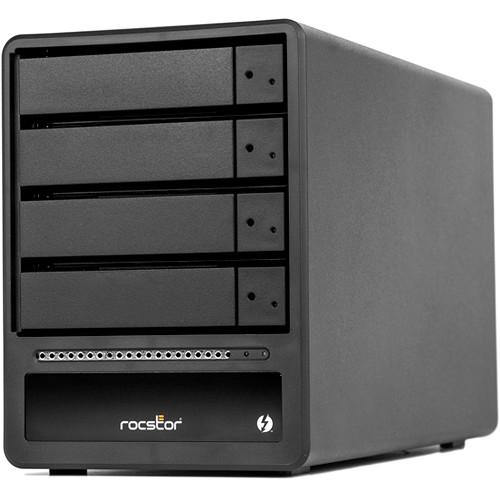

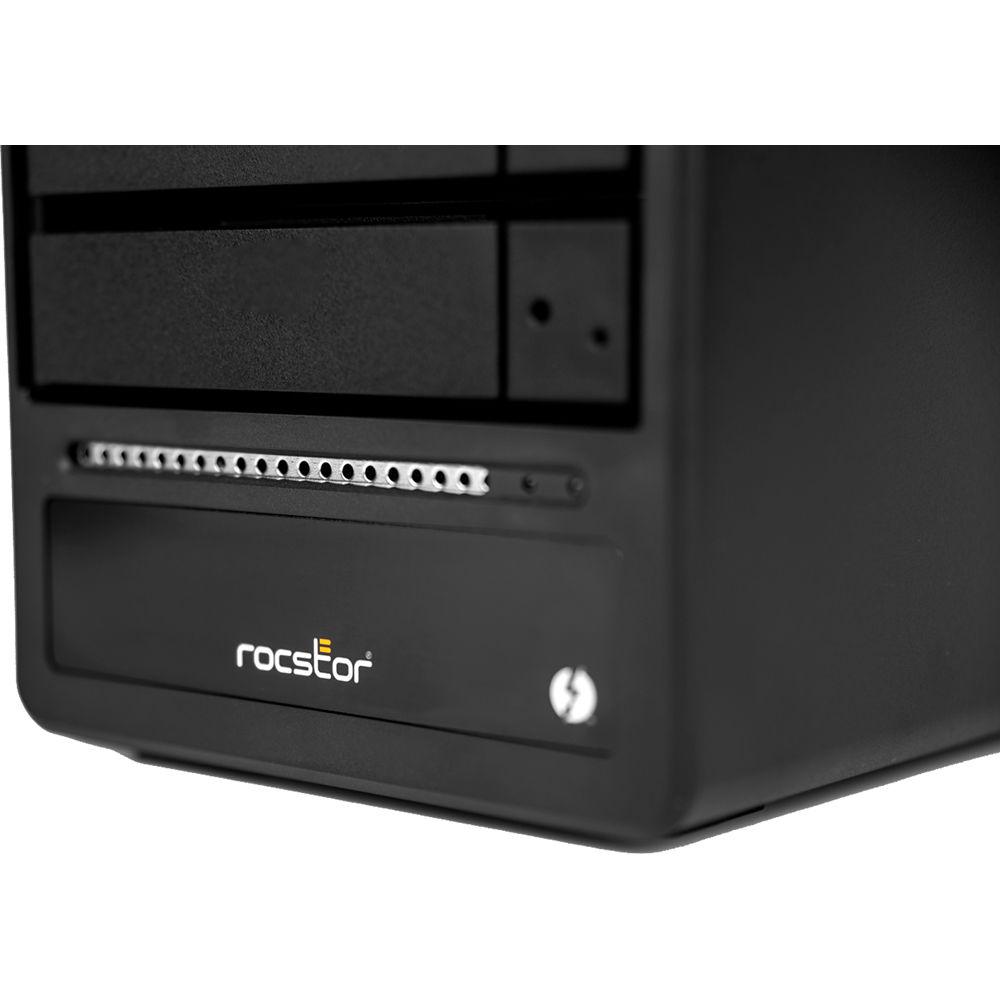

Product description RAID Arrays for Photography and Pro Video Read More Boost your system's storage capacity with the Rocpro T34 16TB 4-Bay Thunderbolt 3 RAID Array from Rocstor. This 4 x 4TB SSD RAID array comes equipped with dual Thunderbolt 3 ports and a single Mini DisplayPort input supporting multi-stream 4K and 8K workflows. Featuring transfer rates up to 1000 MB/s and a maximum storage capacity of 56TB, the Rocpro T34 supports RAID 0, 1, 5, and 10 as well as JBOD to ensure proper storage management. The array uses built-in S.M.A.R.T. testing software to continuously monitor your drives. - Optimized Support for 4K and 8K Multi-Stream Workflows
- The Rocpro T34 Thunderbolt 3 array features a powerful RAID controller and is compatible with Mac and Windows systems. With up to 56TB of capacity, transfer rates up to 1000 MB/s, and optimized 4K and 8K support, the Rocpro T34 provides an efficient solution for your demanding video workflows. Natively edit footage and make changes in real time. Render multi-layer video and graphic effects and export your footage easily.
- Redundant Hardware RAID Design
- Take advantage of RAID 0, 1, 5, and 10 hardware RAID modes and settings to dial in the level of redundancy that best fits your application.
- Built-In S.M.A.R.T. Technology and Email Notifications
- The Rocpro T34 uses Rocstor's MSU configuration and management utility to monitor RAID status while your drives are in use. The system alerts you through a loud beeping sound/buzzer and emails you a warning message in the event of anomalous drive conditions. Rocstor's MSU also keeps a detailed record of the Rocpro T34's status and uses S.M.A.R.T. testing software to test your drives.

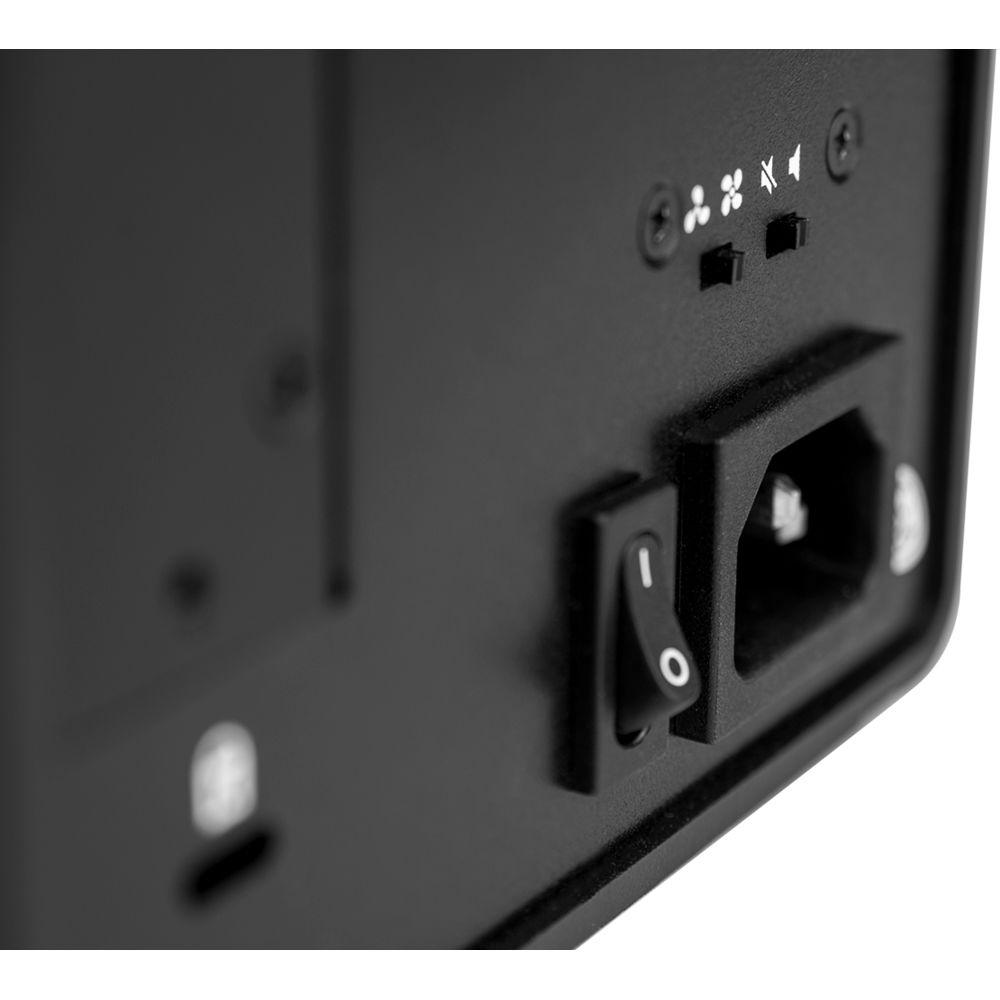

- Built-In Power Supply & Advanced Power Management
- The Rocpro T34 has a built in 180W power supply designed to provide a stable power output. Energy-efficient hardware components work hand in hand with Mac systems to conserve power. The T34 goes into sleep mode after a period of inactivity.

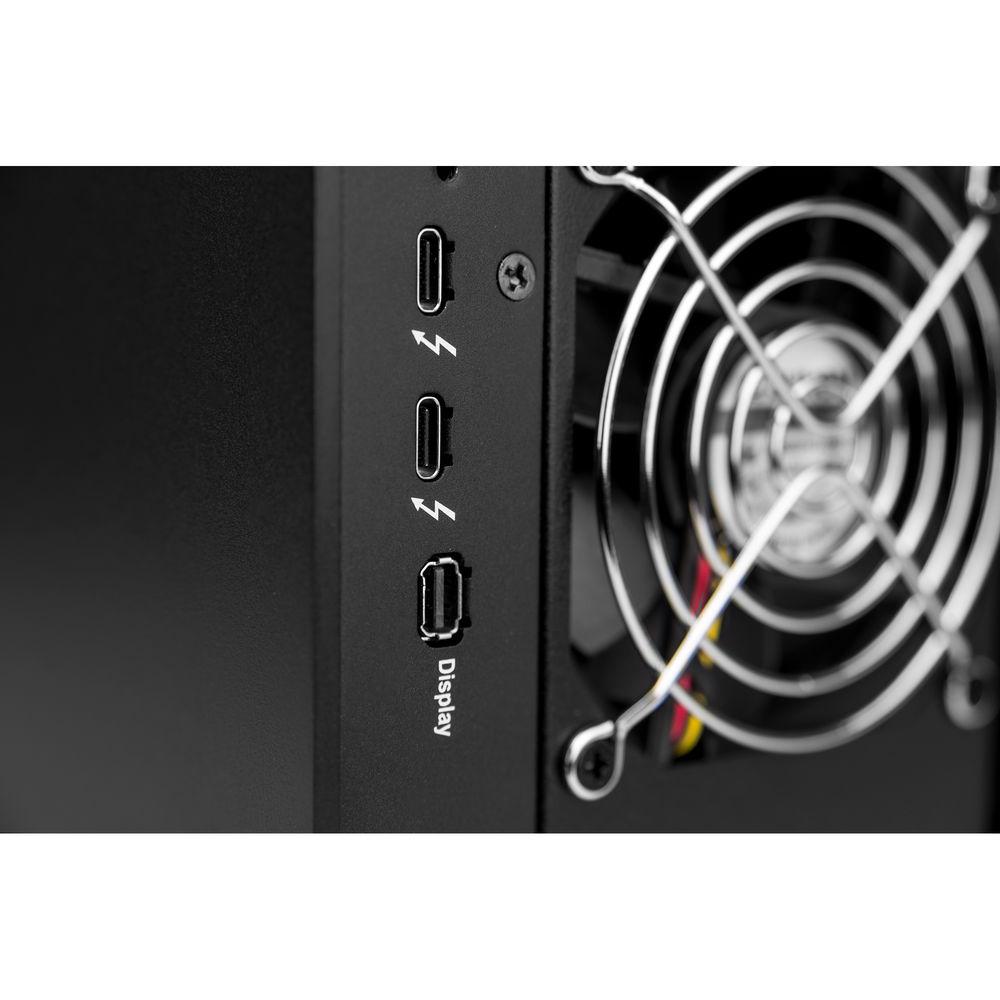

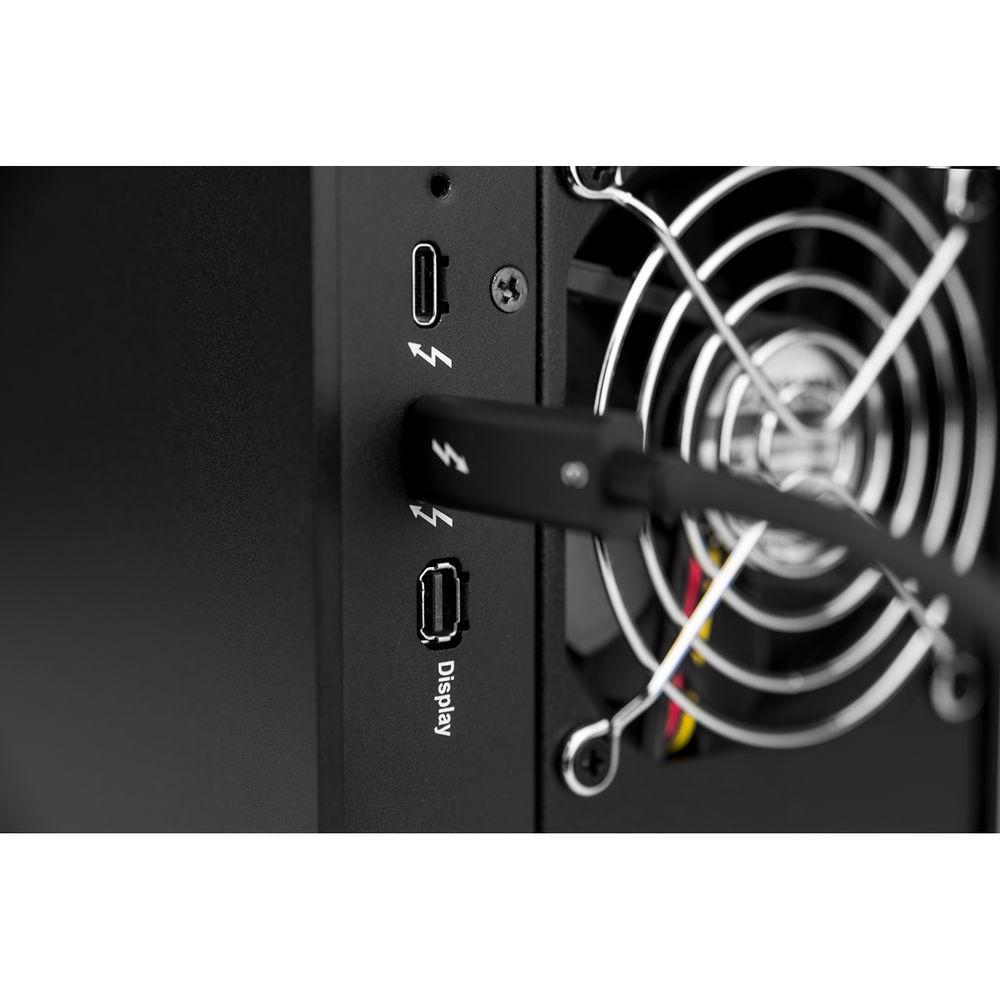

- Thunderbolt 3, USB Type-C & Mini DisplayPort Connectivity

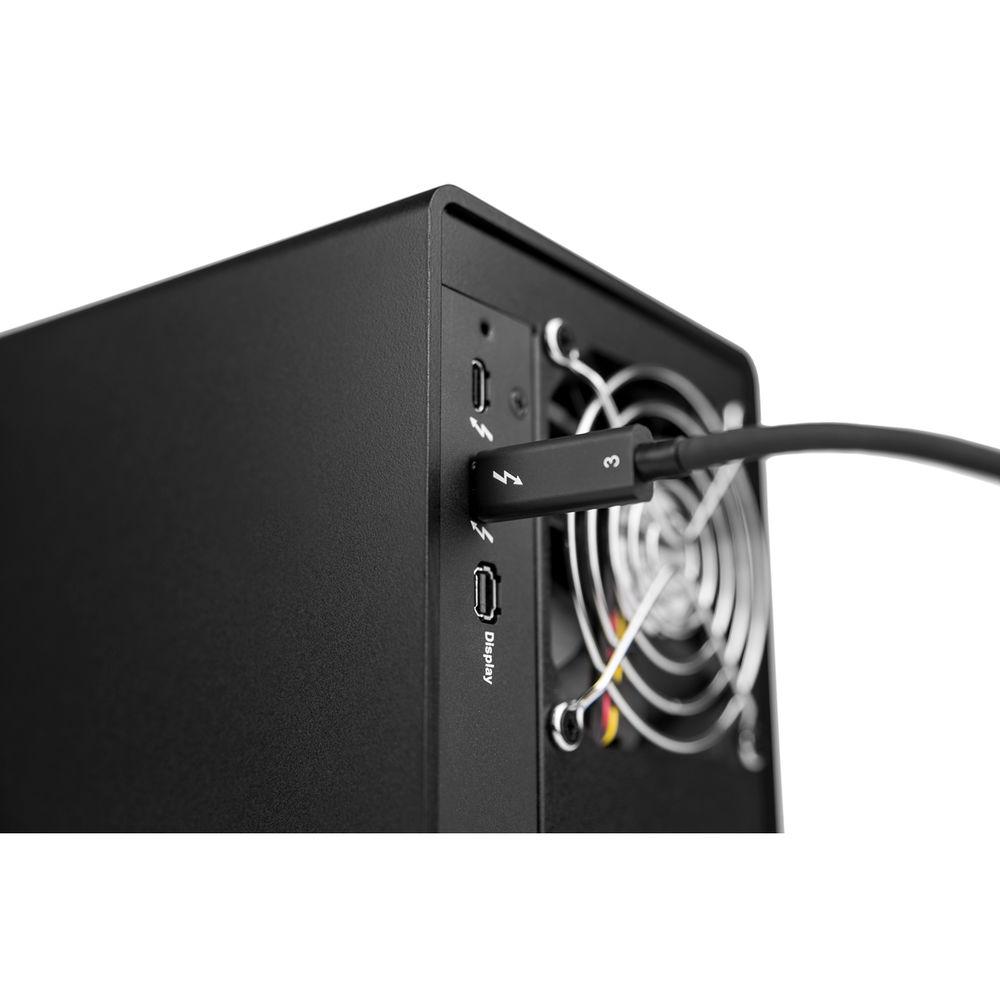

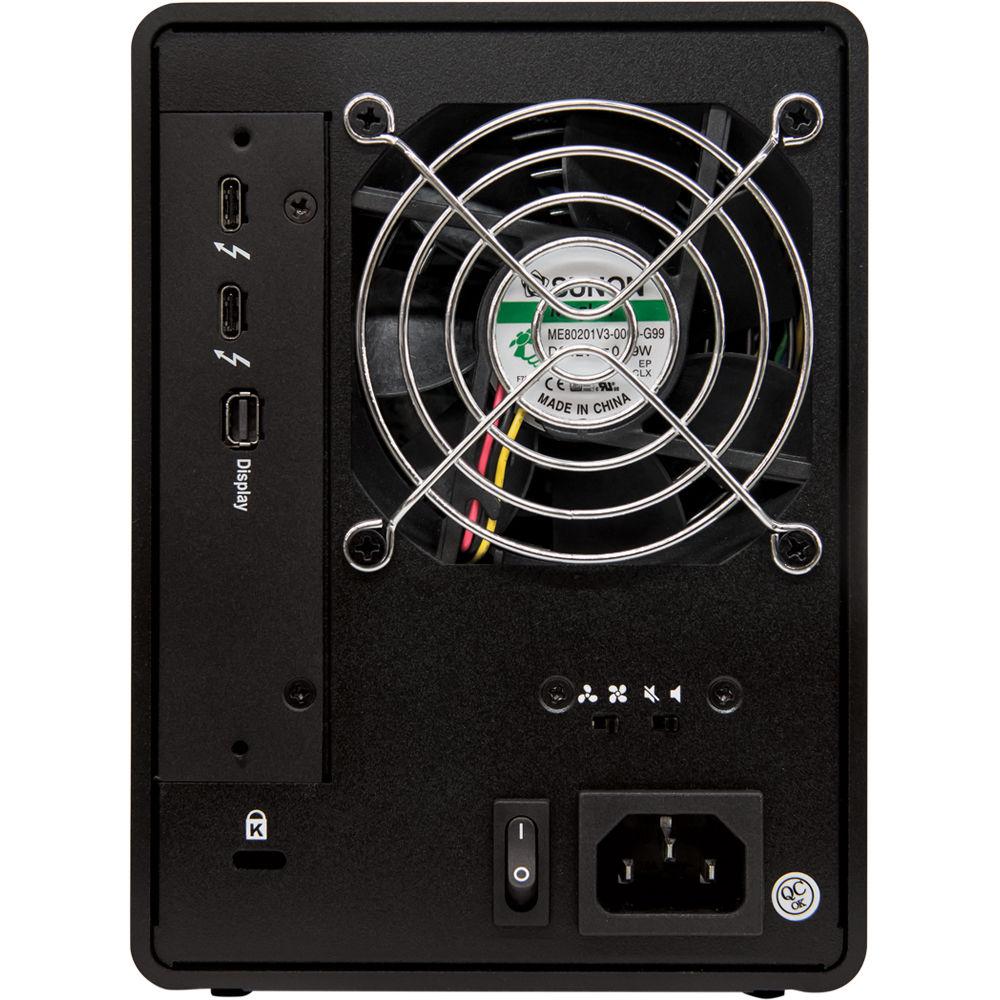

- The Rocpro T34 is equipped with two Thunderbolt 3 interface ports supporting high data-transfer speeds of up to 40 Gb/s, which is four times faster than USB 3.1 Gen 2 and two times faster than Thunderbolt 2 technology. The Thunderbolt 3 ports also support USB Type-C connectors for charging your mobile or tablet with up to 15W (5V/3A) power. Also featured is a Mini DisplayPort, which enables you to connect your display device. The Mini DisplayPort is fully compliant with DVI, HDMI, and VGA display devices via an optional adapter.
- Thunderbolt and Thunderbolt 2 Compatibility
- Macs with Thunderbolt and Thunderbolt 2 ports can be easily connected to the Rocpro T34 using an Apple Thunderbolt 3 (USB Type-C) to Thunderbolt 2 adapter (available separately).
In the Box Rocstor Rocpro T34 16TB 4-Bay Thunderbolt 3 RAID Array (4 x 4TB SSDs) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Rocpro T34 16TB 4-Bay Thunderbolt 3 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor Rocpro T34 Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Maximum Filled Capacity | 56 TB | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x Mini DisplayPort | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, 10, 5, JBOD | | Hot-Swap Support | Yes | | Operating System Support | Windows, macOS/OS X | | | | Total Raw Capacity | 16 TB (4 x 4 TB) | | Type | Solid-State Drive | | Interface | SATA III | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 180 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | <300 W | | | | Security Features | Kensington Security Slot | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 116°F / -20 to 46°C | | | | Material of Construction | Aluminum | | Cooling | 2 x 80 mm Fans | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 4.9 x 6.5 x 9.8" / 12.4 x 16.5 x 24.9 cm | | Weight | 8.6 lb / 3.9 kg |
