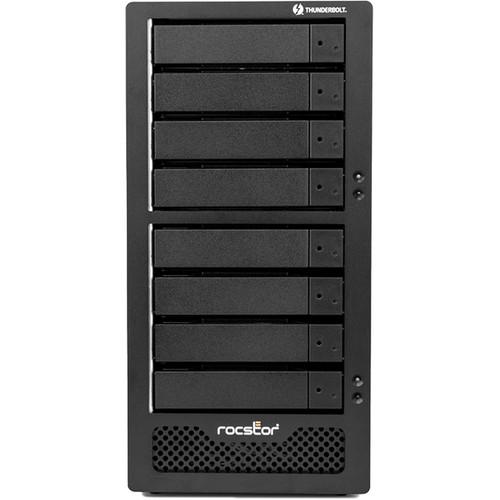

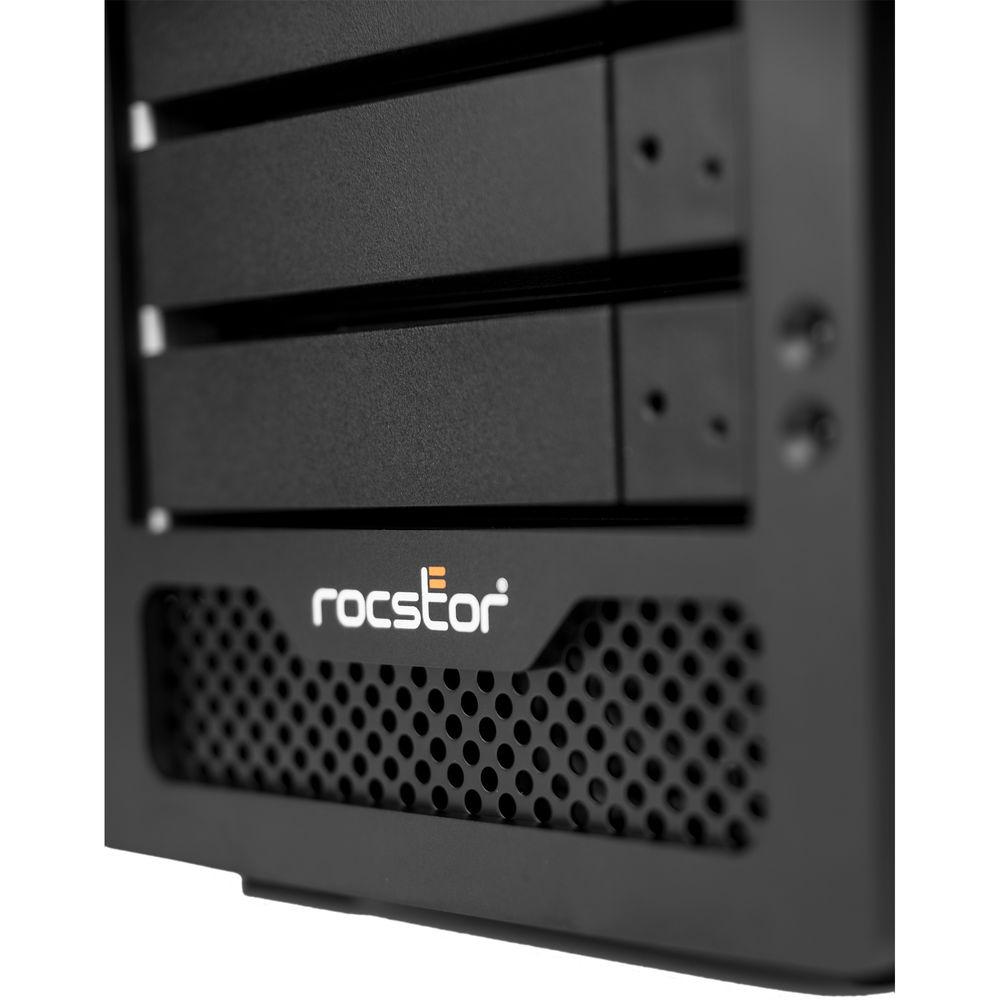

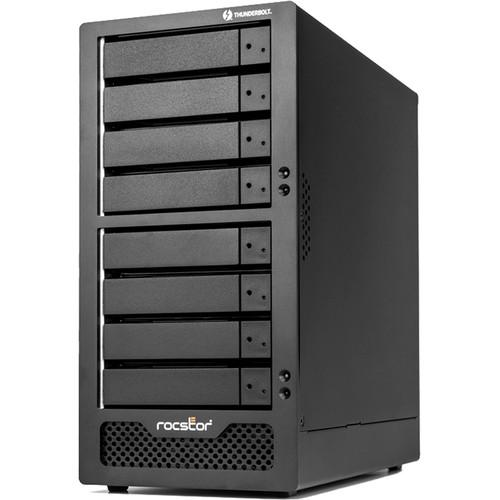

User Manual for Rocstor RocPro T38 48TB 8-Bay RAID Array Click to enlarge the picture
Contents of the user manual for the Rocstor RocPro T38 48TB 8-Bay RAID
- Product category: Hard Drive Arrays Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Hard Drive Arrays
 |
User manual for the Rocstor RocPro T38 48TB 8-Bay RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More Leverage the power of Thunderbolt 3 with the RocPro T38 48TB 8-Bay RAID Array from Rocstor. This RAID array comes equipped with dual Thunderbolt 3 ports and a single mini DisplayPort input supporting multi-stream 4K and 8K workflows. Users can also take advantage of data transfer rates up to 1500 MB/s and a maximum storage capacity of 112TB. With storage this large, it is important to ensure you manage it properly and Rocstor has you covered as the RocPro T38 supports RAID 0, 1, 5, 6, 10, 50, and 60. Managing your RAID array has also been greatly simplified thanks to the built-in S.M.A.R.T. feature and email notification designed to continuously monitor your drives and alert you with a loud beeping sound/buzzer should a drive be in danger of failure. - Optimized Support for 4K and 8K Multi-Stream Workflows
- Rocpro T38 features a powerful RAID controller that makes this Thunderbolt 3 storage a great companion for your Mac or PC. With up to 112TB of capacity and transfer rates up to 1500 MB/s, the Rocpro T38 provides the right solution for your demanding video workflows. Rely on T38 for sustain rate and optimized 4K and 8K support. Natively edit footage and make changes in real-time. Render multi-layer video and graphic effects, and export your footage easily with right performance and speed.

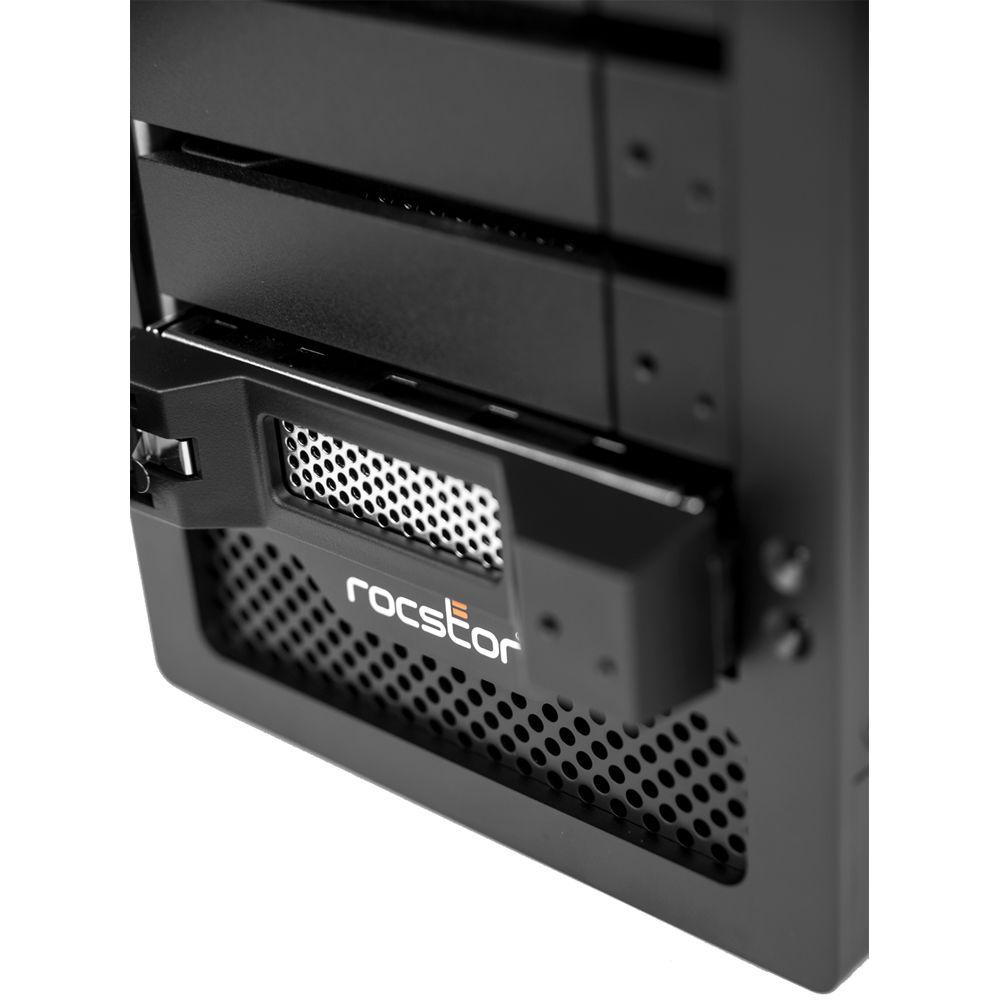

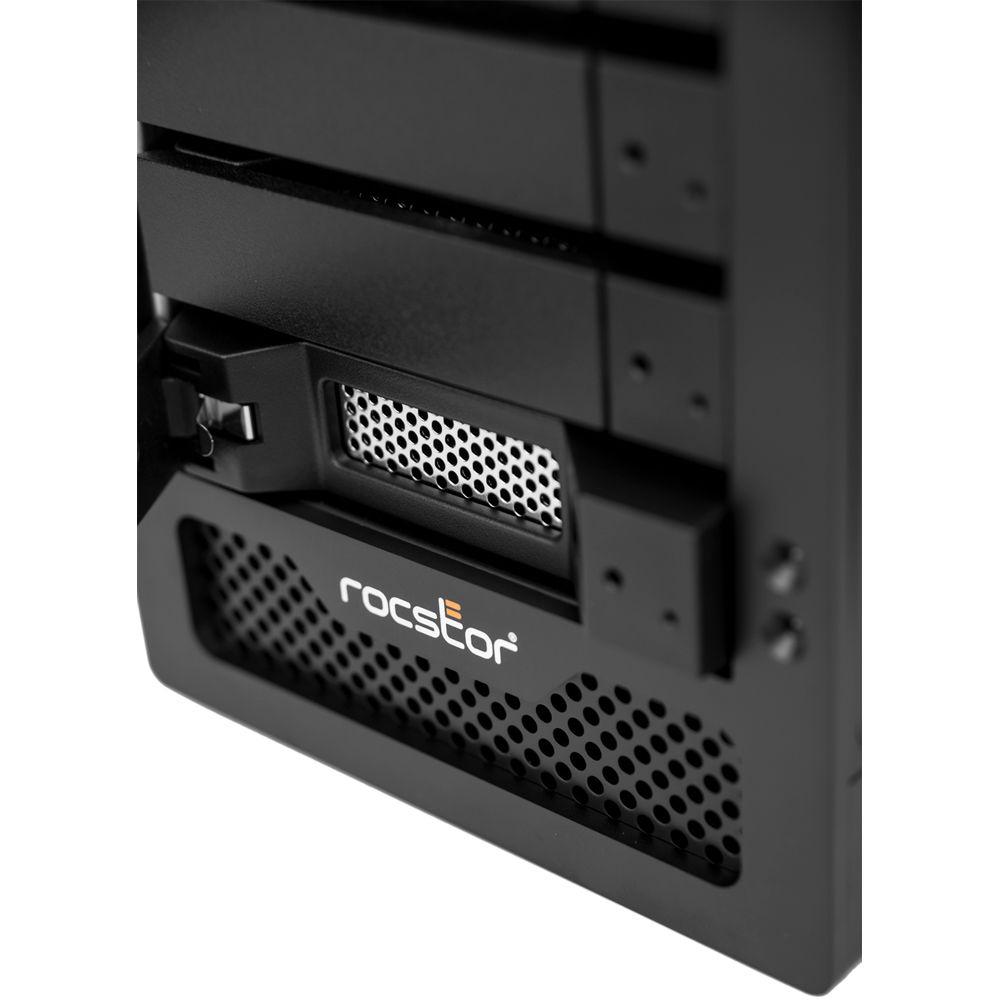

- Redundant Hardware RAID Design
- Rocstor has designed its Rocpro Thunderbolt 3 storage drives with the latest Hardware RAID modes. Take advantage of RAID 0, 1, 5, 6, 10, 50, & 60 modes and hardware settings and rest assured that you are offered a variety of redundancy features available in this Thunderbolt storage solution.

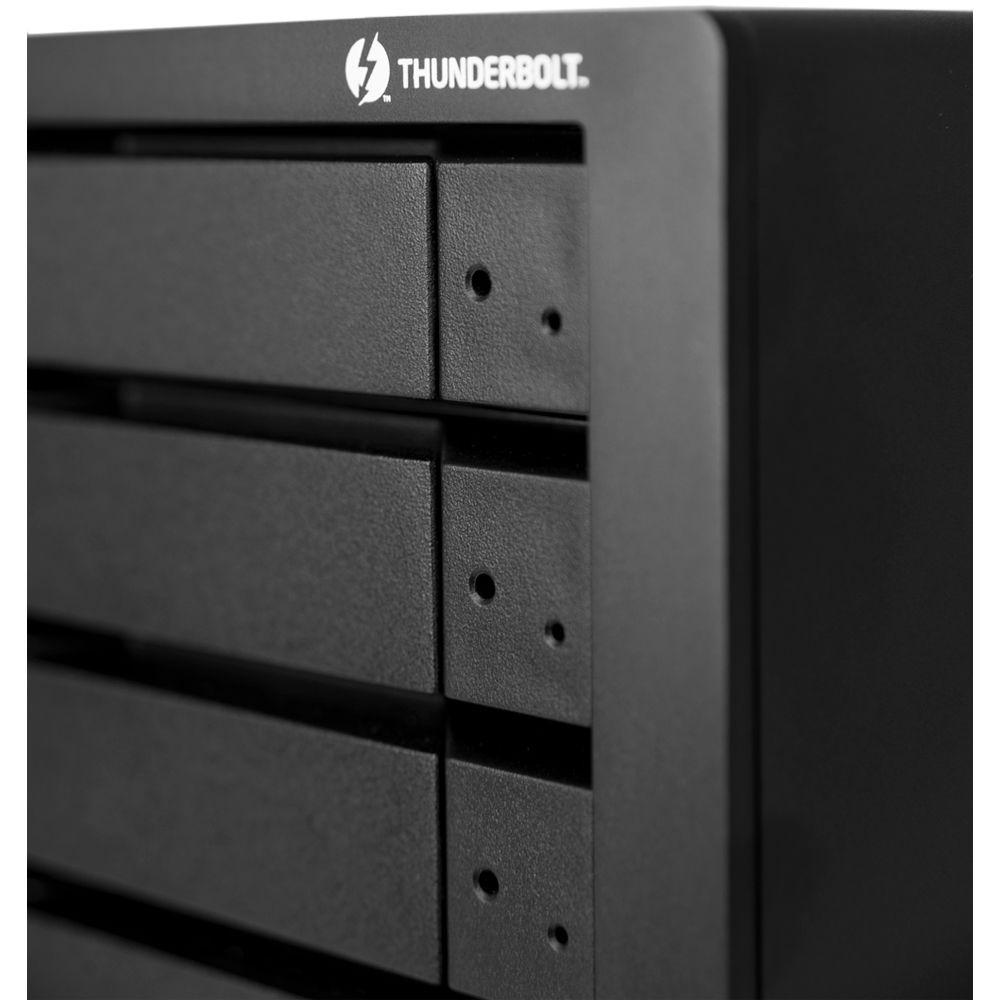

- Thunderbolt Compatibility
- Invest in the T38 technology storage RAID unit and easily connect to your Macs with Thunderbolt and Thunderbolt 2 ports, you can also connect to the Rocpro T38 using Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter (sold separately).
- Built-In S.M.A.R.T. Feature and Email Notification
- Rocstor Thunderbolt 3 storage drives provide a comprehensive MSU Utility which assists in monitoring the RAID status while your drive is in use. The system will alert you thru loud beeping sound/buzzer and will email you a warning message if the drive conditions are in danger. Rocstor's MSU also records all the product status in detailed and tests your HDD or SSD quality thru its built-in S.M.A.R.T. testing software.
- Built-In Power Supply & Advanced Power Management

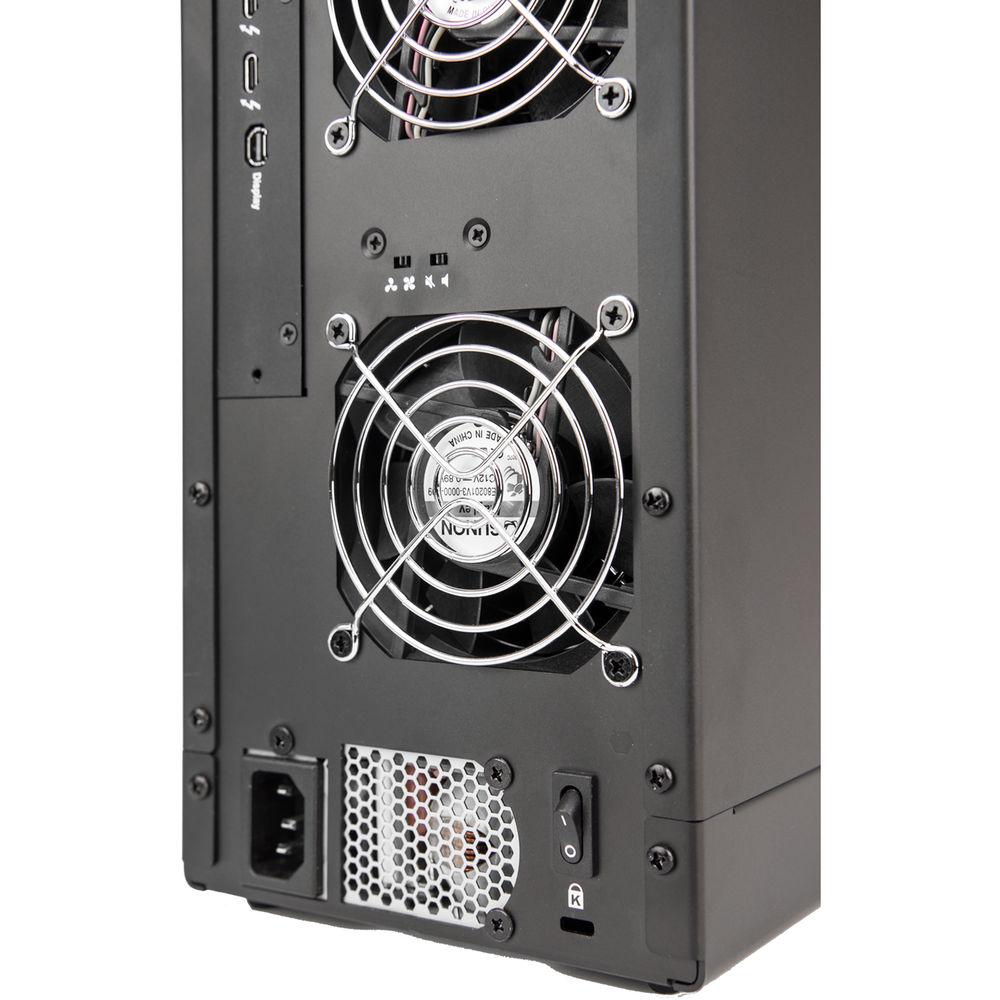

- Rocstor Rocpro T38 has a built in 300 watt power supply which conforms to safety regulations. It provides a stable and high efficient power output. It also provides energy-efficient hardware components that work hand in hand with Mac systems to conserve power. The T38 spins down the hard drives and activates the sleep mode after a period of inactivity.
- Thunderbolt 3, USB Type-C & Mini DisplayPort Connectivity

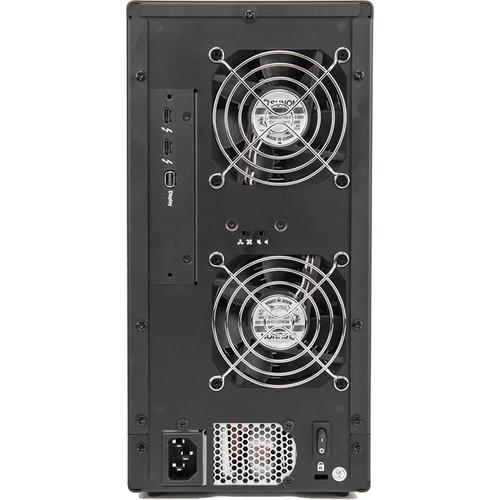

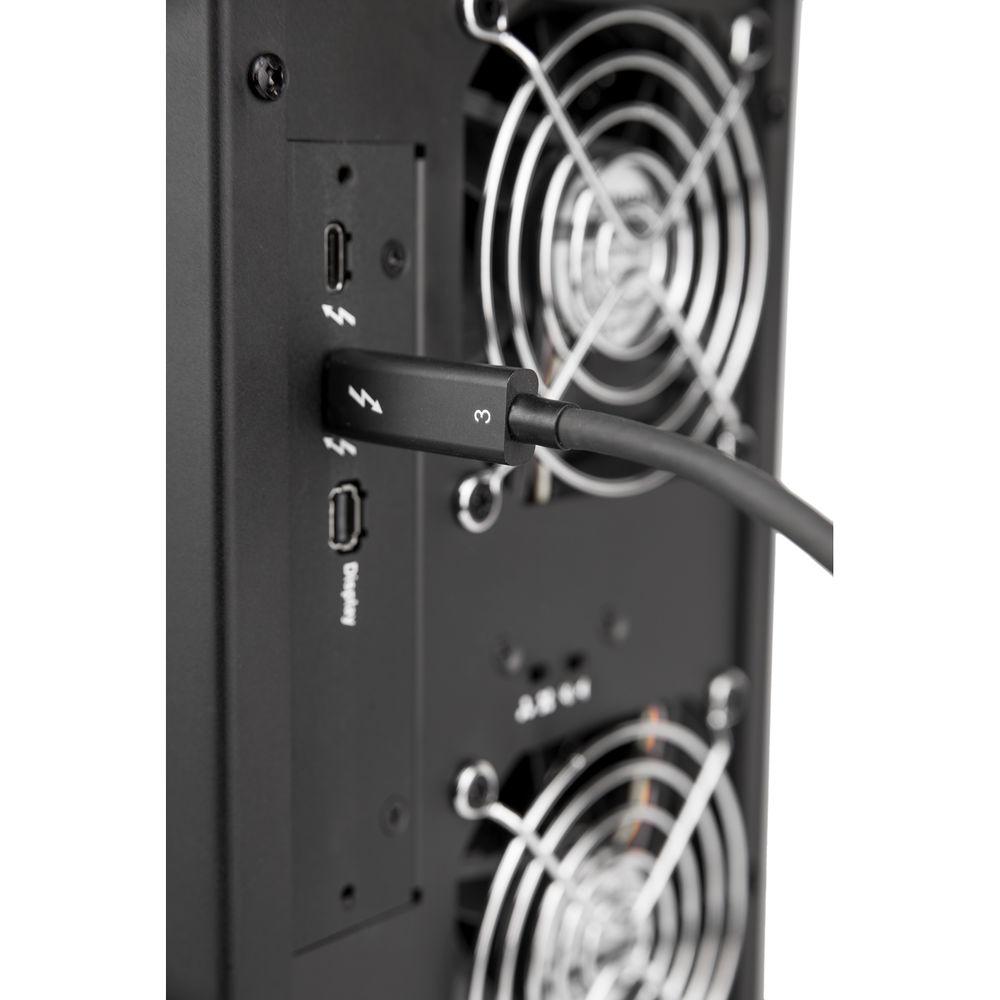

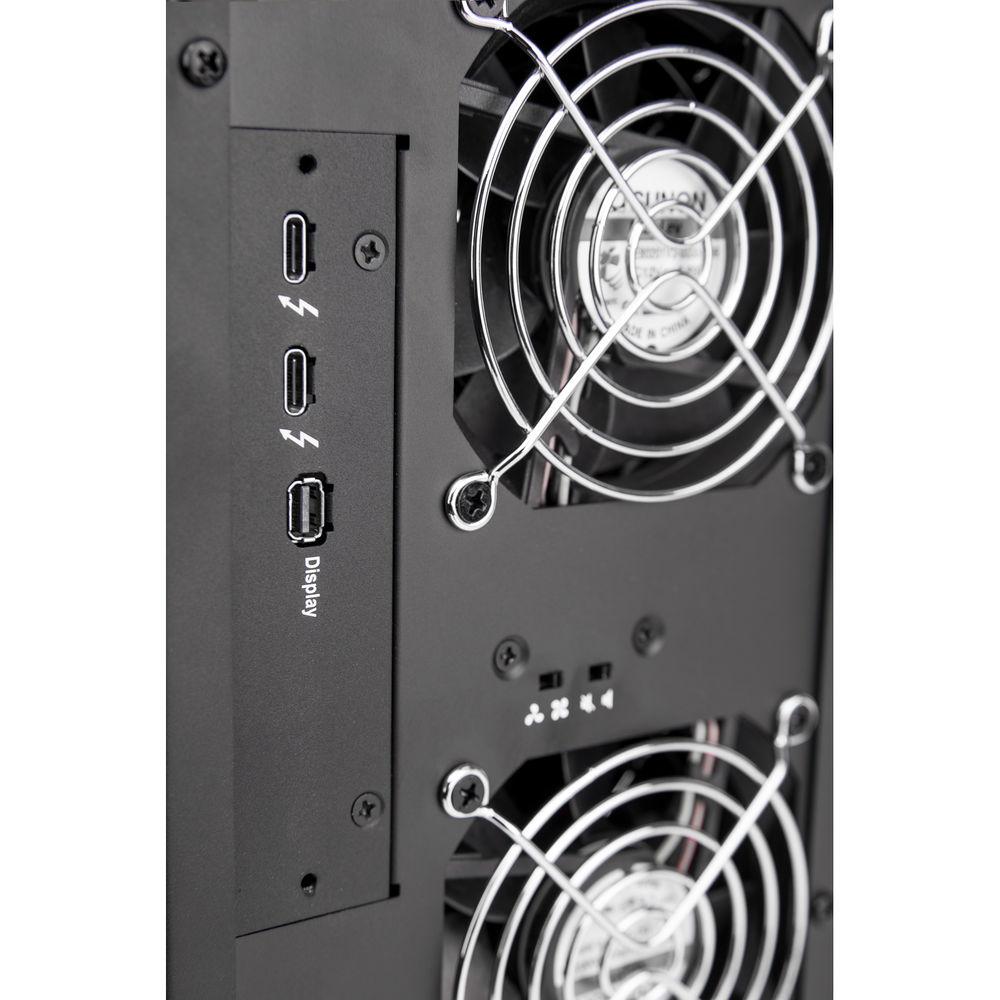

- Rocstor Rocpro Thunderbolt 3 products provide two Thunderbolt 3 interface ports supporting high data transfer speeds. Both of Thunderbolt 3 ports are equipped with up to 40 Gb/s transfer rate which is 4 times faster than USB 3.1 Gen 2 and two times faster than Thunderbolt 2 technology. It also supports the USB Type-C type connector for use of charging your mobile or tablet with up to 15W (5V/3A) power. All Rocstor's Thunderbolt 3 storage units support a Mini Displayport which gives you an option to connect to your display device. The Mini Displayport is fully compliant with all the existing DVI, HDMI, and VGA display devices with an adapter option.
In the Box Rocstor RocPro T38 48TB 8-Bay RAID Array (8 x 6TB) Power Cable USB Type-C Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor RocPro T38 48TB 8-Bay RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor Rocpro T38 Specs | | | Number of Bays | 8 x 2.5"/3.5" | | Maximum Filled Capacity | 112 TB | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s)) | | RAID Modes | RAID 0, 1, 5, 6, 10, 50, 60 | | Hot-Swap Support | Yes | | | | Total Raw Capacity | 48 TB (8 x 6 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | | | Power Source | Internal Power Supply | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | ≥300 W | | | | Security Features | Kensington Security Slot | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 116°F / -20 to 46°C | | | | Material of Construction | Aluminum | | Cooling | 2 x Fans | | Dimensions (W x H x D) | 5.5 x 11.1 x 11.7" / 14.0 x 28.2 x 29.7 cm | | Weight | 22.7 lb / 10.3 kg |
