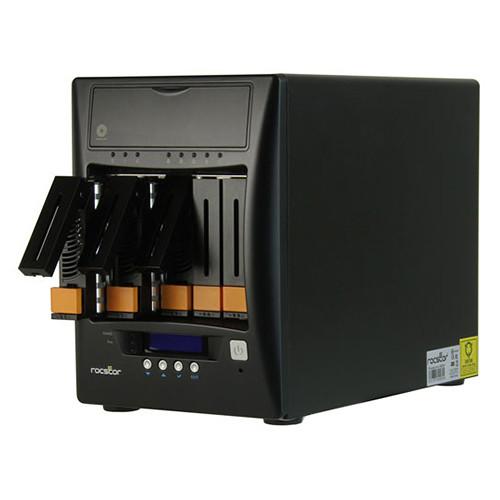

User Manual for Rocstor Rocsecure 40TB NE52 5-Bay NAS Server Click to enlarge the picture
Contents of the user manual for the Rocstor Rocsecure 40TB NE52 5-Bay NAS
- Product category: Network Attached Storage Drives Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Network Attached Storage Drives
 |
User manual for the Rocstor Rocsecure 40TB NE52 5-Bay NAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description Protect your data against unauthorized users and help ensure business continuity via AES 256-bit volume encryption using the Rocsecure 40TB NE52 5-Bay NAS Server from Rocstor. This NAS provides OS independent encrypted storage for the entire storage volume, including the boot sector and partition table, for business and government entities. It securely encrypts data in real-time as it is being written to the drive, securing it from unauthorized access, hardware theft, drive failure, or drive retirement.
This Rocsecure NE52 has an overall capacity of 40TB, which is made up of five 8TB 3.5" SATA III hard drives. Each bay is capable of natively supporting both 3.5" and 2.5" SATA hard drives, all of which can be hardware-configured as RAID 0, 1, 5, or 10, each of which provides data redundancy, performance, or a combination of both. Select RAID modes support hot spare, and for those who do not require the benefits of a RAID, the NE52 also supports JBOD. RAID and JBOD support requires no additional software and all data will be seamlessly encrypted and securely stored.
This NAS is powered using a 2.0 GHz Intel Celeron Quad-Core processor and 8GB of DDR3 RAM. It is equipped with one USB 3.0 port, two USB 2.0 ports, one eSATA 6 Gb/s port, one HDMI port, one VGA port, one serial port, and two Gigabit Ethernet ports. Full disk sharing and existing folder sharing is available for drives created by other systems, and shares can be applied to both FTP and SMB for different users, as wel as those with different read/write privileges. This allows information sharing to be set up on existing drives through LAN and WAN, making it a suitable tool for create a private cloud. It it also able to share information on an existing drive using a private network or a temporary LAN.
The Rocsecure 40TB NE52 5-Bay NAS Server operates using 100~240V at 50~60 Hz. While it is OS independent, it does support Windows, Mac, UNIX, and Linux operating systems. Included is a power cord, two Ethernet LAN cables, and a DVI-I to VGA adapter. Protection is provided by a limited 3-year warranty. General Features - 40TB of storage (5 x 8TB)
- Up to five 3.5" or 2.5" hard drives or SSDs
- Advanced Encryption Standard AES-256 Logical Volume Encryption
- Built-in Hardware RAID 0, 1, 5, 10, or JBOD
- Two Gigabit Ethernet 10/100/1000 Mb/s network ports to use as a Network Attached Storage (NAS)
- Volume management (Supports ZFS, XFS, EXT3, and EXT4 file systems)
- Supports Compression and Deduplication (support on ZFS file systems)
- Supports NIC/Trunking/Load Balance/Fail Over/802.3ad
- Supports VMware/Citrix/Hyper-V and VMware VAAI for NFS
- OS independent. Supports Microsoft Windows 8, 7, Vista, XP, 2000, NT, ME, and 98, Windows Server 2012, 2008, and 2003, Mac OS, and UNIX/Linux
- 2.0 GHz Intel Celeron Quad Core processor with 8GB of DDR3 SDRAM
- Supports WORM (Write Once Read Many) for CIFS/NFS
- EXT4 support extend over 16TB
- Well-suited for setting up a Secure Private Cloud storage or quick drive sharing
In the Box Rocstor Rocsecure 40TB NE52 5-Bay NAS Server (5 x 8TB) 1 x Power Cord 2 x Ethernet LAN Cables 1 x DVI-I to VGA Adapter Limited 3-Year Warranty Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor Rocsecure 40TB NE52 5-Bay NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor NE52 Specs | | | CPU | 2.0 GHz Intel Celeron Quad-Core | | Total Installed Memory | 8 GB DDR3 | | | | Total Raw Capacity | 40 TB | | Included Drives | 5 x 8 TB 3.5" HDD | | Interface | SATA III | | | | Number of Bays | 5 x 2.5"/3.5" | | Connections | 1 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
2 x USB Type-A (USB 2.0 (480 Mb/s))
1 x eSATA
1 x 9-Pin (Serial)
1 x VGA
1 x HDMI Type-A
2 x RJ45 (Gigabit Ethernet)
1 x 3.5 mm (Audio Out)
1 x 3.5 mm (Audio In) | | Compatible Drive Interface | SATA III | | RAID Modes | RAID 0, 1, 10, 50, JBOD | | Hot-Swap Support | Yes | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 6.3 A | | PSU Wattage | 1 x 300 W | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 10 to 85% | | | | Status Monitoring | LED Indicator | | Audible Alarm | Yes | | Dimensions | 10.3 x 7.1 x 15.4" / 261.0 x 180.0 x 390.0 mm |
