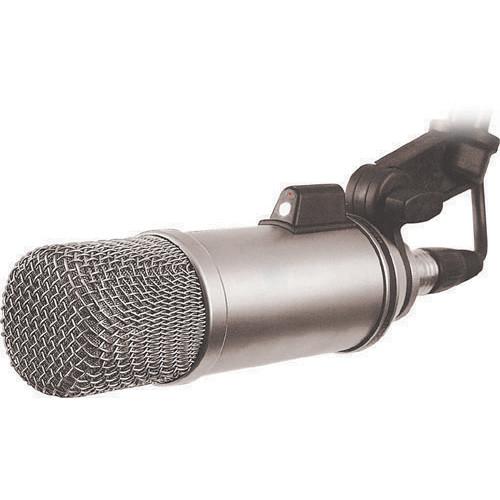

User Manual for Rode Broadcaster Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Rode Broadcaster Condenser Microphone
- Product category: Large Diaphragm Condenser Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Large Diaphragm Condenser
|
User manual for the Rode Broadcaster Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The Broadcaster Condenser Microphone from RODE is a large-diaphragm cardioid condenser microphone that features a true full-range response especially suited for voice-over use.
It has an emphasized proximity effect and features an internal pop filter, designed to minimize plosive sounds that can overload the microphone capsule and distort the audio output. In addition to the native 20 Hz-20 kHz response, a selectable high-pass filter at 75 Hz is available to prevent low-end noise, such as air conditioners and traffic, from being recorded.
The Broadcaster features an 'On-Air' indicator on the body that can be wired for external activation by the 'Channel On/Mute' function on many consoles. If not connected to a console or switch, the indicator will remain lit whenever the microphone has power. - HF2 1" capsule with gold-plated diaphragm
- Voice-tailored low-cut feature
UPC: 698813000357 In the Box Rode Broadcaster Condenser Microphone Stand Mount for NTK/NT1000 & Condenser Microphones awbxceqrabxyfdebreatzzwzwzxxwqeu ZP1 Zip Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode Broadcaster Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode Broadcaster Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 14 dB A-Weighted | | Maximum SPL | 128 dB SPL | | THD | 1% | | Impedance | 40 Ohms | | Sensitivity | -34 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 24 V
48 V | | Length | 6.57" / 167 mm | | Diameter | 2.56" / 65 mm | | Weight | 1.27 lb / 577 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.6 x 5.2 x 2.4" |
