Rode Complete Studio Kit with AI-1

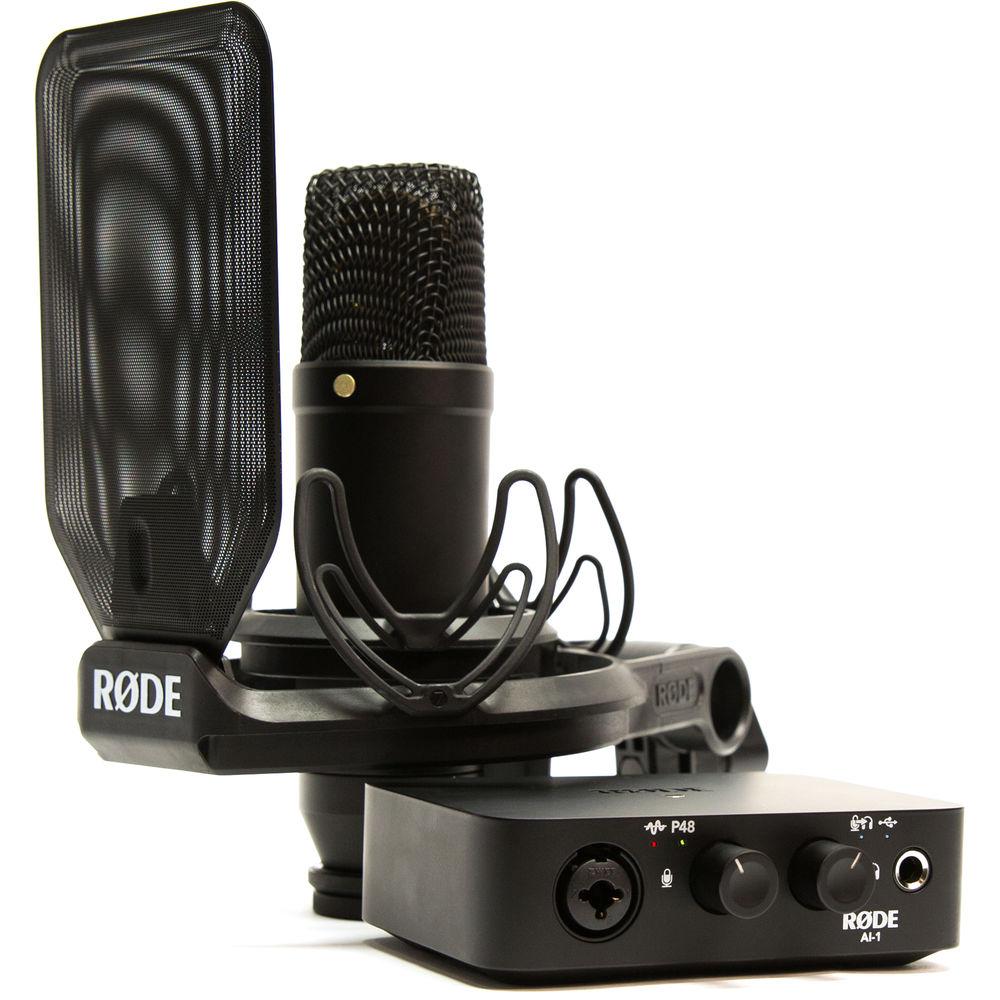

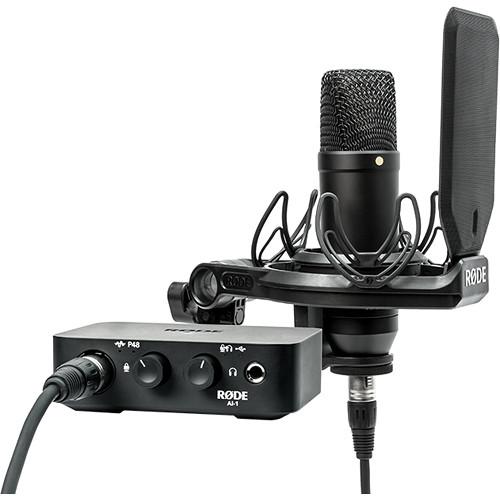

User Manual for Rode Complete Studio Kit with AI-1 Audio Interface, NT1 Microphone, SMR Shockmount, and Cables

• Product category: Large Diaphragm Condenser Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Large Diaphragm Condenser

Product description

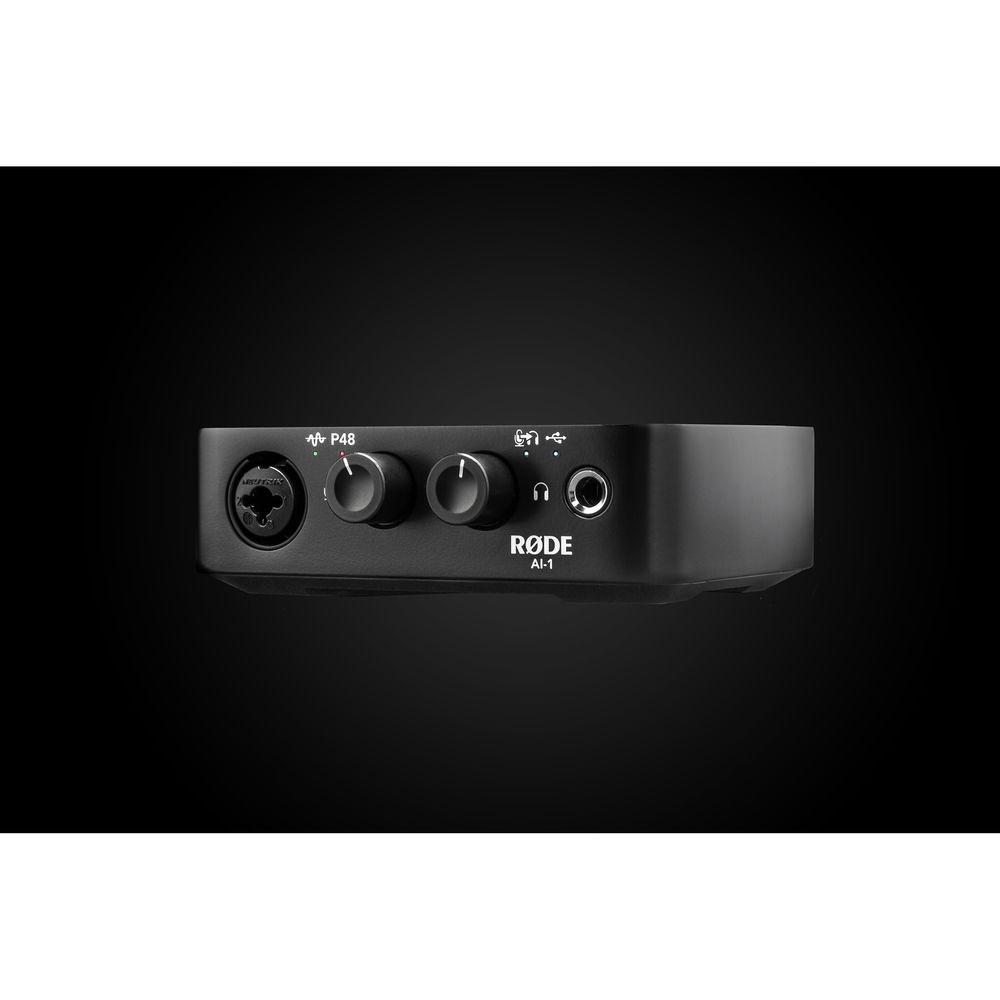

• AI-1 Studio-Quality USB Audio Interface The Rode AI-1 is a studio-quality audio interface well suited for recording vocals, instruments, and voice-overs into your Mac or Windows computer. The interface features a single, combo XLR-1/4" input with phantom power, two balanced 1/4" monitor outputs, and a single, discrete, studio-quality headphone output and level control. The device can operate in zero-latency monitoring mode, which connects the preamp directly to the headphone output for delay-free performance while recording. With the headphone input engaged, the two monitor outputs are bypassed. To engage the monitor outputs, simply remove the headphone plug from the jack.

  The rugged aluminum body is finished with a satin black finish and features large rubber feet, which prevents the desktop interface from sliding about when engaged. The class compliant AI-1 requires no drivers and features a USB-C connector, which not only connect to your computer, but also provides powers as well. The Rode AI-1 ships with a USB cable and a license for Ableton Live Lite.
  • • Desktop USB audio interface with low-noise Class-A discrete preamplifier
    • Sampling rate of up to 96kHz/24-bit
    • One combo XLR-1/4" combo input

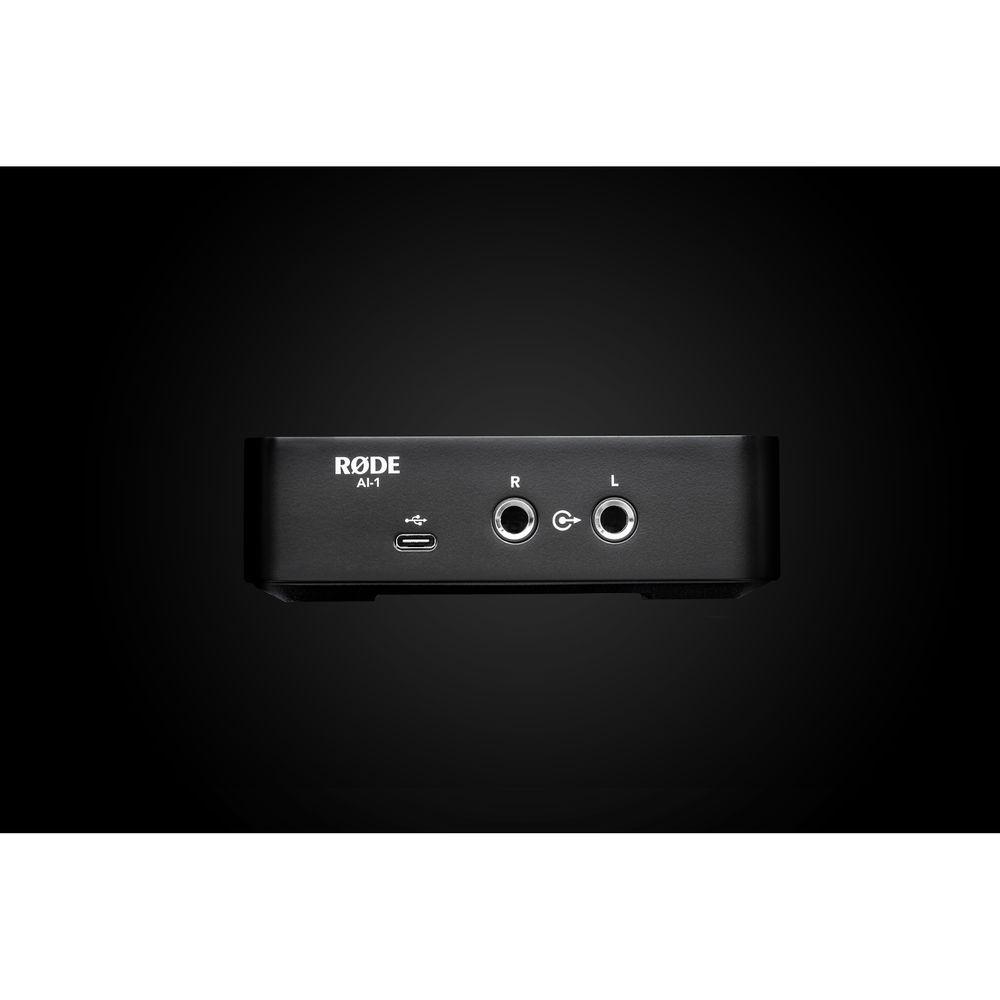

    • Two balanced 1/4" monitor outputs
    • One discrete, studio-quality headphone output
    • Phantom power for condenser microphones
    • Zero-latency monitor mode
    • USB bus powered
    • USB Type-C connector for future proof operation
    • Rugged body with Satin Black Finish
    • Class compliant—no drivers required
    • Includes Ableton Live Lite
    • Includes USB cable
  UPC: 698813005130
• NT1 Cardioid Condenser Microphone (Microphone Only) The NT1 Cardioid Condenser Microphone from RODE is a large-diaphragm cardioid condenser microphone that features RODE's HF6 1" capsule. The HF6 is designed to provide a detailed midrange response with smooth highs and warm bass. The capsule itself is seated in a Rycote Lyre internal shockmount to help reduce vibration and handling noises.

  The microphone's electronics were designed from the ground-up for quiet performance, and allow the NT1 to have a low, 4.5 dB of self-noise. The body of the mic is machined from nickel-plated aluminum that is then coated in a ceramic layer that is electrostatically applied for a scratch-resistant finish. The NT1 includes the RM2 mic clip and has a 1-year limited warranty that extends to 10-years after registration with RODE.
• SMR Advanced Shock Mount for Large Diaphragm Condenser Mics The Rode SMR is a professional-grade shock mount for large diaphragm condenser mics. Featuring a double-Lyre suspension system, the SMR enhances Rycote’s Lyre system by using a smaller inner Lyre to act as a tensioning element. The SMR's removable all-metal pop filter provides an integrated solution for plosive protection, that is washable and designed to last as long as the shock mount and microphone. The SMR's clamping system design utilizes a large surface area, allowing for ample friction and weight handling, without the need for over-tightening of the locking thread. With the load distributed over a greater surface area, the clamping system is designed to better withstand the wear and tear of repeated use.The SMR's frame is made from an engineering grade reinforced polymer. Vibration force is evenly distributed around the outer frame via the wide mounting rails, increasing the effectiveness of the Lyre system. A base nut is also included, suitable for all compatible Rode microphones. UPC: 698813003068

• USB Cable

• Registration Card for Ableton Live Lite

• Limited 2-Year Warranty

• Stand Mount for NTK/NT1000 & Condenser Microphones

• Microphone Dust Cover

• Limited 10-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Premium XLR Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AI-1 Studio-Quality USB Audio Interface

  Max Sample Rate/Resolution	96 kHz / 24-Bit

  Host Connection	USB Type-C
  Analog I/O	1 x Combo XLR / 1/4" Input 2 x 1/4" (6.3 mm) Balanced Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Phantom Power	+48 V
  Digital I/O	None
  MIDI I/O	None

  Frequency Response
