Product description - Introducing the new i-XY with Lightning connector for iPhones

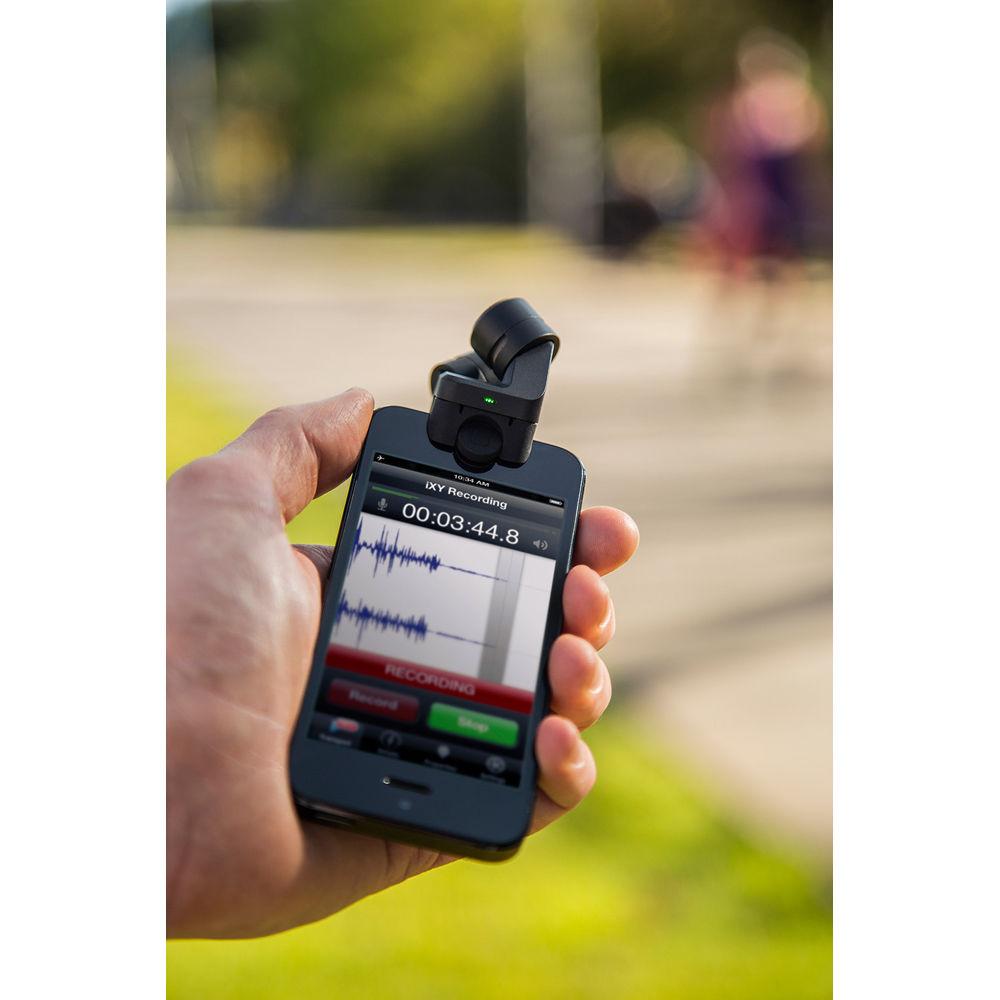

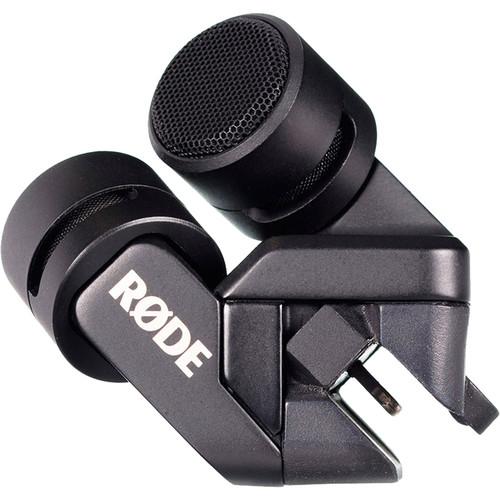

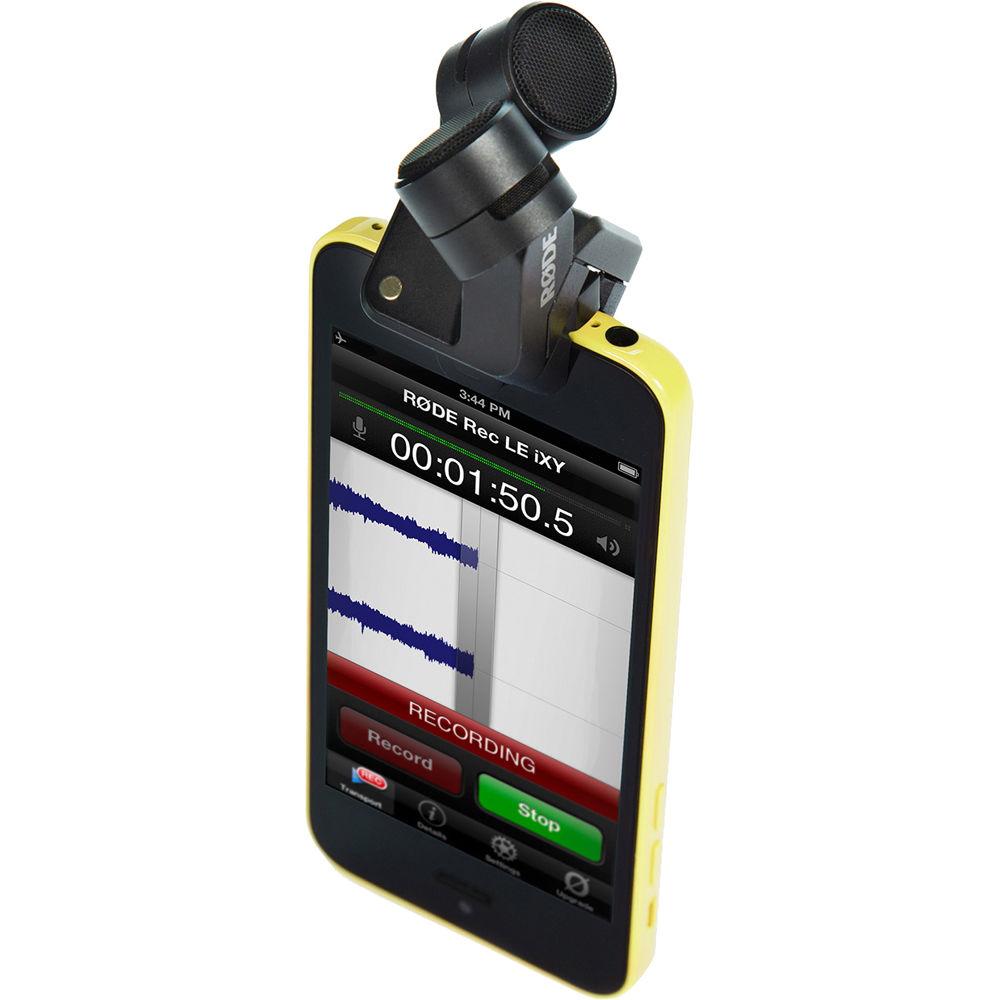

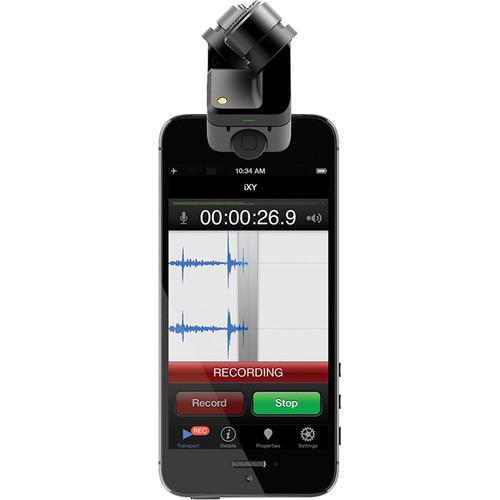

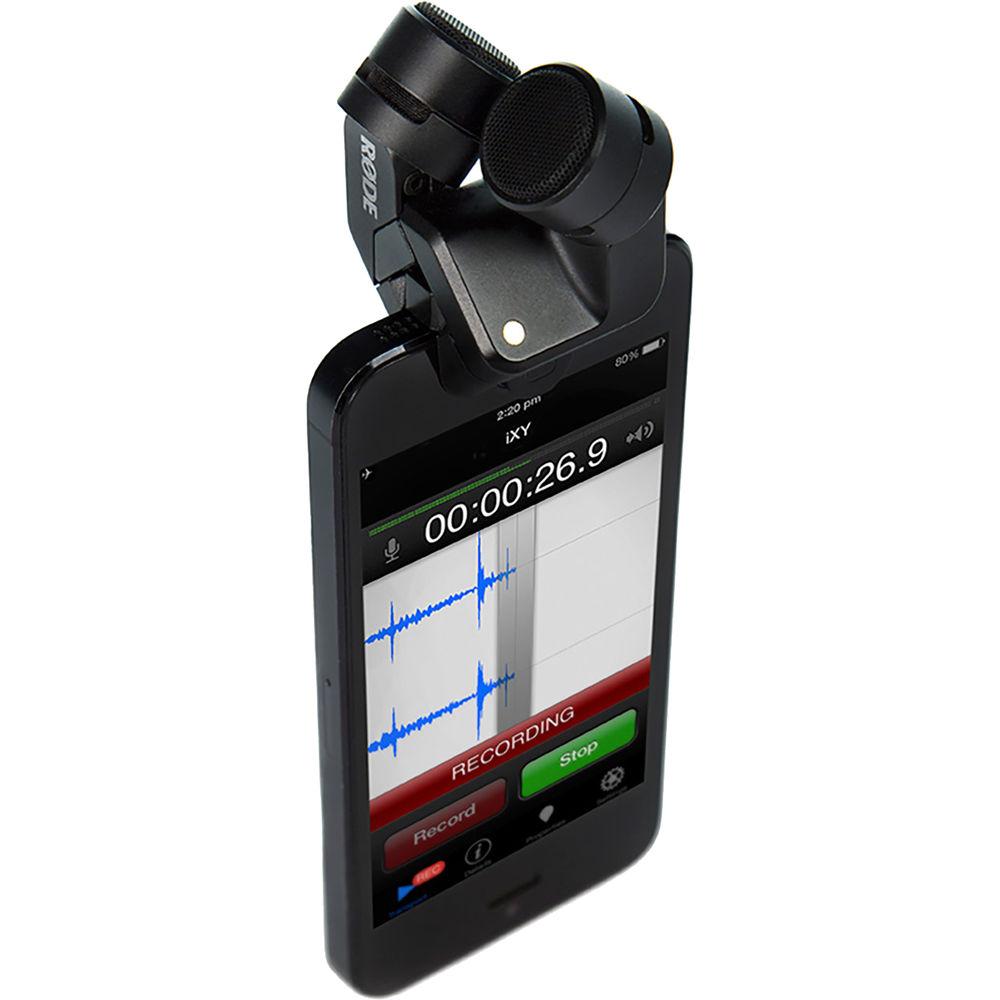

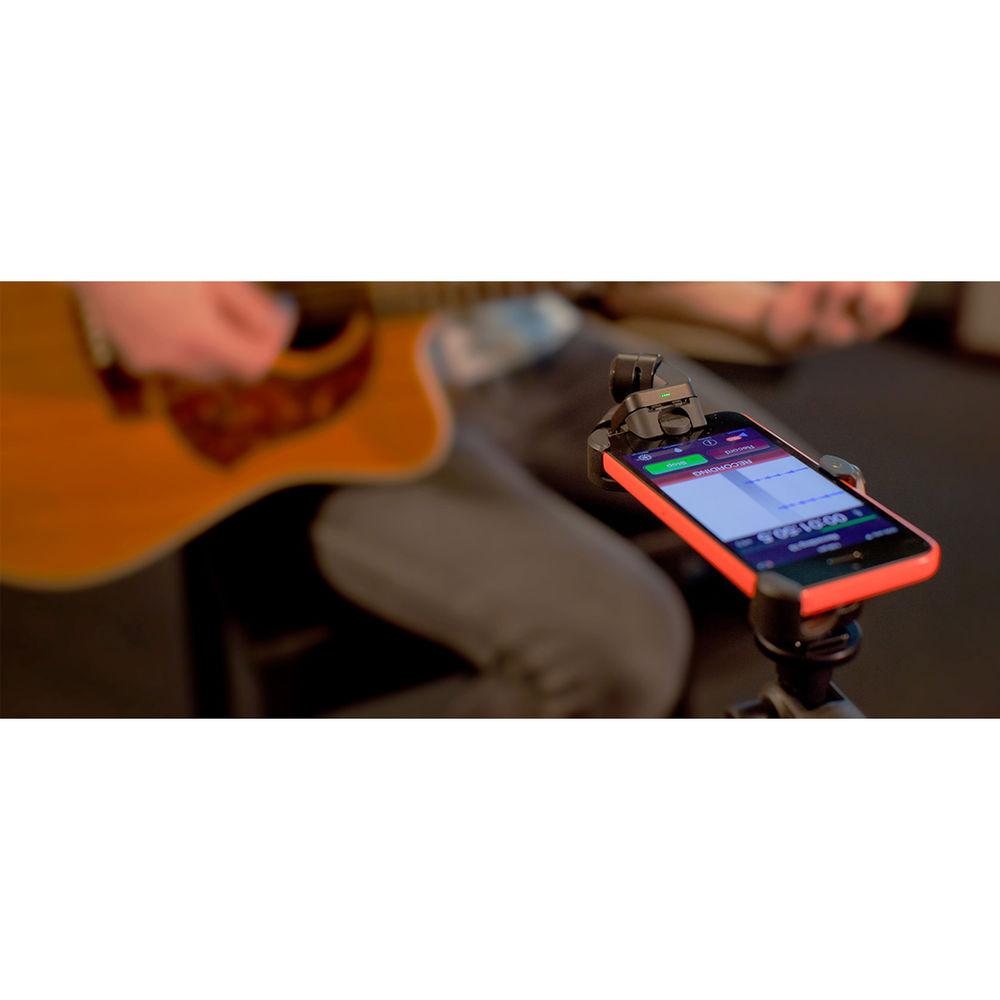

The lightning connector version of the RØDE iXY Stereo Microphone is designed for portable audio recording applications using a Lightning connector iOS device (e.g. iPhone 5/s/c). It can be used for recording music, interviews, sound design, film-making, and more. The device features a metal housing to help reduce electromagnetic interference around two condenser microphone elements positioned in an XY configuration and an integrated iClamp for securing the microphone to your mobile device. The unit can records at up to 24-bit 96 kHz resolution using the RØDE Rec App, available from the Apple iTunes App store. A 72 Hz high pass filter can be engaged in software to reduce unwanted low frequency noise. - XY Pair Microphone Pattern
- Provides stereo audio pickup pattern with realistic spatial imaging
- Metal Housing
- Protects device physically and helps reduce electromagnetic interference
- Software 72 Hz High Pass Filter
- Reduces unwanted low frequency noise
- iClamp
- Secures iXY to mobile device
- Foam Windshield
- Helps reduce wind noise from being picked up by the microphones
- Zippered Carrying Case
- Protects condenser elements from dust when not in use
UPC: 698813003105 In the Box Rode iXY Stereo Microphone (Lightning Connector) Foam Windshield Zippered Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode iXY Stereo Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode IXY-L Specs | Connector | Apple Lightning connector | | Acoustic Principle | Pressure gradient | | Active Electronics | JFET impedance converter
24-bit 96 kHz A/D converter | | Capsule | 2x 0.50" (1.3 cm) condenser | | Polar Pattern | Paired cardioid capsules in XY pattern | | Address Type | End | | Frequency Range | 20 to 20,000 Hz (selected HPF at 0) | | High Pass Filter | 72 Hz in software | | Output Impedance | 0 Ohms | | Maximum SPL | 122 dB SPL (at 1,000 Hz and 1% THD into 1 kOhms load) | | Sensitivity | -34 dB re 1V/Pa (19.7 mV at 94 dB SPL) ± 2 dB at 1,000 Hz | | Equivalent Input Noise | 17 dBA (A-weighted) | | Signal to Noise Ratio | 76 dBA SPL (as per IEC651) | | Power Requirements | Powered from device | | Dimensions | 1.2 x 1.6 x 2.0" (30 x 40 x 50 mm) | | Weight | 1.8 oz (51 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 5.3 x 5.3 x 4.8" |
