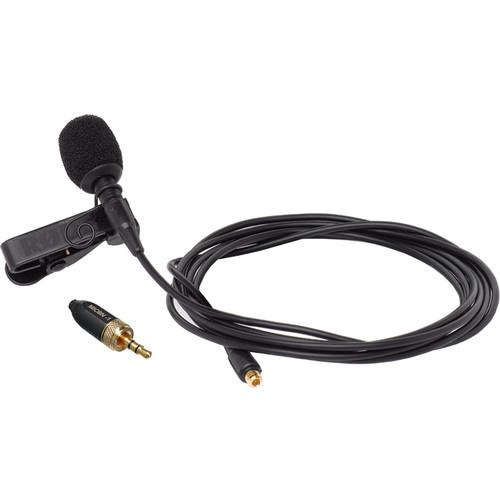

User Manual for Rode Lavalier Microphone Kit with 3.5mm MiCon Connector Click to enlarge the picture
Contents of the user manual for the Rode Lavalier Microphone Kit with 3.5mm
- Product category: Microphones for Wireless Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Microphones for Wireless
|
User manual for the Rode Lavalier Microphone Kit with 3.5mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description Bundled together by B&H for your convenience, the RØDE Lavalier Microphone Kit with 3.5mm MiCon Connector is designed to provide a bridge between the RØDE Lavalier's MiCon termination point and Sennheiser transmitters which utilize a 3.5mm connection. The RØDE Lavalier provides an omnidirectional polar pattern, a condenser capsule, an included windscreen, and a wind muff. The adapter, on the other hand, accepts MiCon connections and terminates in a locking 3.5mm plug, suitable for use with the Sennheiser K500 G3, SK300 G3, SK100 G3, SK500 G2, SK300 G2, and SK2 Freeport. - Rode Lavalier Microphone The RØDE Lavalier Microphone is a quality lavalier with an omnidirectional polar pattern and condenser element, well suited for general speech pickup in sermons, presentations, instruction, interviews, etc. The microphone's detachable cable is easily replaceable in the event of a short or break, and its proprietary MiCon connection allows you to select from a number of optional adapters, for use with virtually any wireless bodypack transmitter. The microphone ships in a protective storage case and includes a waterproof pop-filter, wind-muff and clip. Note: MiCon connection is proprietary. Requires optional adapter for use with wireless transmitters, preamplifiers, etc.
- Clear audio and low handling noise
- Included water resistant pop filter and mini-furry for high wind protection
- Rugged and secure protection for the microphone, cables and accessories.
- MiCon connector system provides seamless integration between all of RØDE's compact wearable microphones and a wide range of wireless systems.
UPC: 698813001569 - Rode MiCon 1 Connector for Rode MiCon Microphones (Sennheiser) This Rode MiCon 1 Adapter is intended for use with all Rode headsets and microphones that utilize MiCon connectors, such as the Rode Pinmic and lavalier microphones. The adapter features an 1/8" (3.5mm) locking mini connection for use with compatible bodypack transmitters, such as the Sennheiser SK500 G3, SK300 G3, SK100 G3, SK500 G2 SK300 G2 and SK2 Freeport. UPC: 698813001651
In the Box - Lavalier Microphone crzuqvdtdfdavwayvfzsfea
- Anti-Trauma Storage Case
- Water Resistant Pop-Filter
- Mini-Furry
- Shielded Detachable Kevlar Reinforced Cable
- Lapel Style Cable Management Clip
- Adjustment Tools
- 1 Year Warranty
- MiCon 1 Connector for Rode MiCon Microphones (Sennheiser)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode Lavalier Microphone Kit with 3.5mm MiCon Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode Lavalier Microphone
| Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 60Hz - 18kHz | | Signal-to-Noise Ratio | 69dB
Equivalent Noise: 25dBA SPL (per IEC651) | | Maximum Input Sound Level | 110dB (clipping SPL) | | Output Impedance | 3kΩ Typical | | Output Connectors | RØDE's MiCon Connector (Requires optional adapter for use with wireless systems) | | Dimensions | 0.17 x 0.17 x 0.47" (4.5 x 4.5 x 12mm) | | Weight | 0.03 oz (1g) | | | | Box Dimensions (LxWxH) | 4.1 x 1.7 x 0.3" | - Rode MiCon 1 Connector for Rode MiCon Microphones (Sennheiser)
| | | Box Dimensions (LxWxH) | 3.1 x 3.1 x 0.3" |
