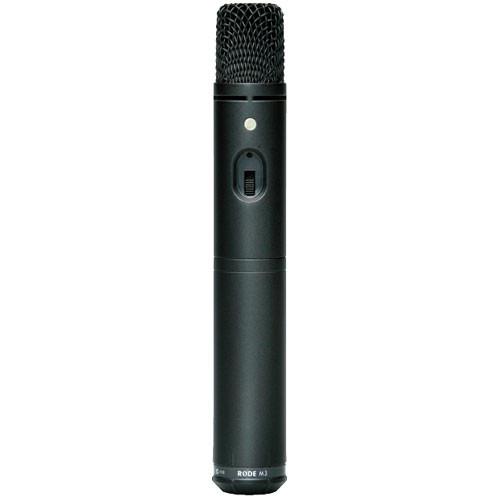

User Manual for Rode M3 Versatile End-Address Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Rode M3 Versatile End-Address Condenser Microphone
- Product category: Small Diaphragm Condenser Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Small Diaphragm Condenser
|
User manual for the Rode M3 Versatile End-Address Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The M3 Versatile End-Address Condenser Microphone from Rode is designed to be completely at home in the studio, on stage, or on location. It features a heavy-duty metal body and an internally shockmounted 1.3" condenser capsule. The mic can be powered with 24V or 48V phantom power or an internal 9V battery.The microphone's -10 dB and -20 dB level attenuator pad is selectable from inside the battery compartment and allows you to record loud sources like a snare drum or guitar amplifier. A selectable high-pass filter is built into the microphone power switch that introduces a filter at 80 Hz and helps reduce low-frequency sounds and handling noise. The Rode M3 includes a windshield, a mic clip, and a zip pouch. - Battery or Phantom-Powered Condenser
- The Rode M3 microphone can be powered by 24 to 48V phantom power or an internal 9V alkaline battery.
- Cardioid Polar Pattern
- The microphone's cardioid polar pattern reduces off-axis noise and maximizes gain.
- -10 dB and -20 dB Pad Switch
- A three-position pad switch maximizes headroom up to -10 dB and -20 dB.
- High-Pass Filter
- A high-pass filter switch eliminates noise and hum at the lower frequency range.
UPC: 698813001033 In the Box Rode M3 Versatile End-Address Condenser Microphone Stand Mount for NT3, 4, and Other Condenser Microphones tsqfxwvzdtqrfaeyusawssxzsrecxxv WSM3 Windscreen ZP1 Zip Pouch Limited 10-Year Warranty User Manual PDF 500.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode M3 Versatile End-Address Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode M3 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.3" / 33.02 mm | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Equivalent Noise Level | 21 dB A-Weighted | | Maximum SPL | 142 dB SPL Peak | | Pad | -10 dB
-20 dB | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | -40 dB | | Low-Cut Filter | @ 80 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 24 to 48 V can also be powered by 9 V battery | | Length | 8.86" / 225 mm | | Diameter | 1.30" / 33 mm | | Weight | 0.86 lb / 390 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.9 x 5.2 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
