User Manual for Rode NT1-A Large-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Rode NT1-A Large-Diaphragm Condenser Microphone
- Product category: Large Diaphragm Condenser Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Large Diaphragm Condenser
 |
User manual for the Rode NT1-A Large-Diaphragm Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|

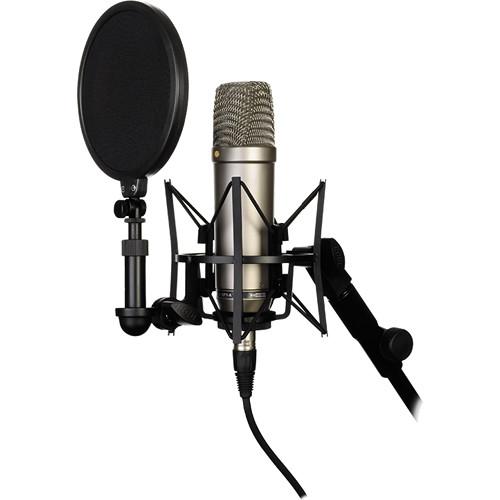

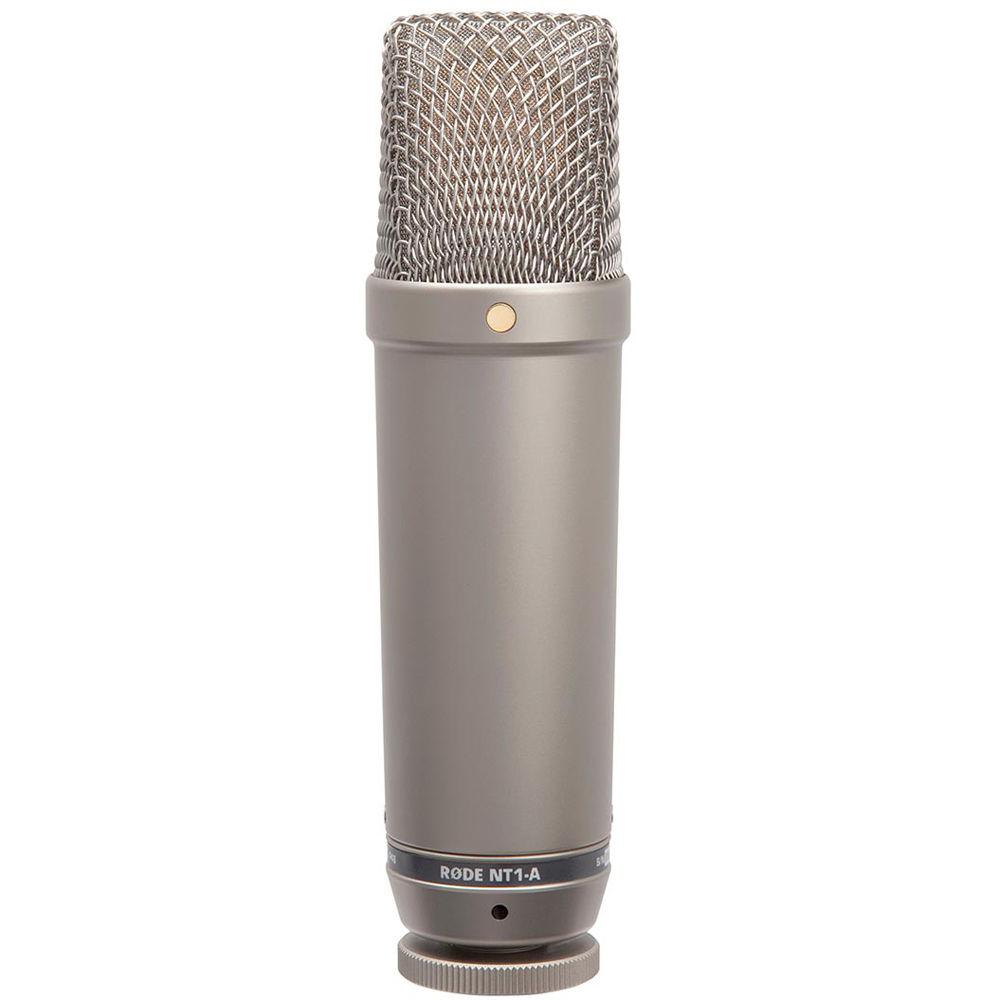

Product description The NT1-A Large-Diaphragm Condenser Microphone from RODE is a 1" cardioid condenser microphone. It has a self-noise level of 5 dB-A, making it a great choice for a vocal microphone, as well as for recording guitars and percussion instruments.
A studio-grade pop shield and shockmount is included, along with a 20' microphone cable, dust cover, and an instructional DVD with recording tips. - Large Diaphragm
- The 1" diaphragm provides a wide frequency response and excellent signal-to-noise ratio
- Cardioid Polar Pattern
- The cardioid polar pattern of the NT1-A effectively minimizes off-axis noises such as room ambiance, monitors, and off-axis instruments
- Transformerless Output
- The transformerless output electronics result in quiet, noise-free output while maintaining maximum signal gain
- 48V Phantom Power
- The microphone uses standard 48V phantom power, which is supplied through the standard XLR connector
- Accessory Package
- The accessory package includes a studio-grade shock mount with an integrated pop filter, a premium 20' cable, a dust cover, and a bonus DVD with microphone tips and techniques

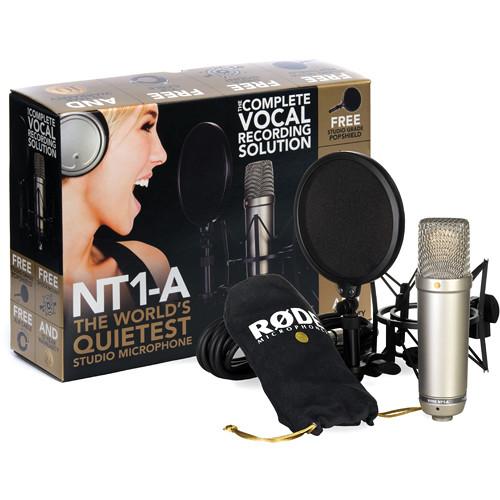

UPC: 698813000142 In the Box Rode NT1-A Large-Diaphragm Condenser Microphone (Single) NT1-A Large-Diaphragm Condenser Microphone (Single) SM6 Shock Mount with Detachable Pop Filter rcdyzxxsfudyfdrtsfxevddsrbccxv 20' Shielded XLR Cable Dust Cover Instructional DVD Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NT1-A Large-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode NT1-A Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 5 dB A-Weighted | | Maximum SPL | 137 dB SPL | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | -31.9 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 24 V
48 V | | Length | 7.48" / 190 mm | | Diameter | 1.97" / 50 mm | | Weight | 0.72 lb / 326 g | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 15.354 x 10.945 x 4.803" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
