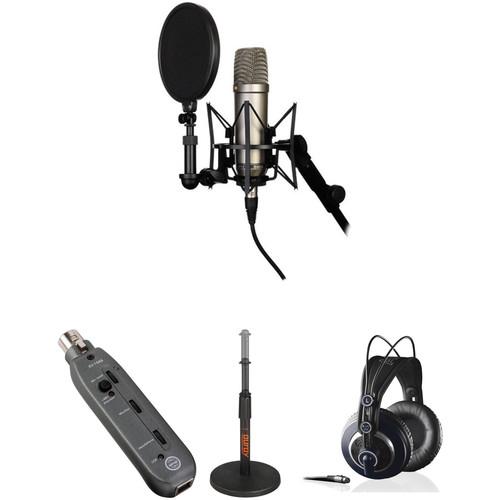

User Manual for Rode NT1-A Microphone USB Preamp Bundle Click to enlarge the picture
Contents of the user manual for the Rode NT1-A Microphone USB Preamp Bundle
- Product category: Large Diaphragm Condenser Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Large Diaphragm Condenser
|
User manual for the Rode NT1-A Microphone USB Preamp Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The Rode NT1-A Microphone/USB Preamp Bundle is a Kit perfect for the desktop podcaster or singer/songwriter. The Rode side addressed condenser microphone connects to a computer using the Senal XU-1648 XLR-to-USB adapter, which also supplies phantom power.
The microphone comes with a shock-mount and integrated pop screen, a cable and a dust cover. The bundle includes a desktop stand and a pair of headphones for monitoring. - Rode NT1-A Large-Diaphragm Condenser Microphone (Single) The NT1-A Large-Diaphragm Condenser Microphone from RODE is a 1" cardioid condenser microphone. It has a self-noise level of 5 dB-A, making it a great choice for a vocal microphone, as well as for recording guitars and percussion instruments.
A studio-grade pop shield and shockmount is included, along with a 20' microphone cable, dust cover, and an instructional DVD with recording tips. - Large Diaphragm
- The 1" diaphragm provides a wide frequency response and excellent signal-to-noise ratio
- Cardioid Polar Pattern
- The cardioid polar pattern of the NT1-A effectively minimizes off-axis noises such as room ambiance, monitors, and off-axis instruments
- Transformerless Output
- The transformerless output electronics result in quiet, noise-free output while maintaining maximum signal gain
- 48V Phantom Power
- The microphone uses standard 48V phantom power, which is supplied through the standard XLR connector
- Accessory Package
- The accessory package includes a studio-grade shock mount with an integrated pop filter, a premium 20' cable, a dust cover, and a bonus DVD with microphone tips and techniques
UPC: 698813000142 - Senal XU-1648 XLR-to-USB Interface The XU-1648 from Senal is a compact XLR-to-USB adapter interface that allows you to plug your microphone into the USB port of any Mac or Windows computer for use with your favorite digital recording software. Its rugged build and plug-and-play operation make it perfect for bands, recording artists, podcasters and more.
For use with dynamic or condenser microphones, the XU-1648 delivers 16-bit/48-kHz studio-quality sound. It also features a microphone preamp with gain control and switchable 48V phantom power. Its 1/8" headphone output features a volume control and allows for zero-latency monitoring. There is also a monitor level control to adjust the balance between the audio playback from your computer and the sound of your microphone.
In addition, the XU-1648 features a tough, all-metal chassis with non-slip neoprene feet on the bottom to prevent it from slipping. - Plug-and-play XLR-to-USB adapter
- 16-bit/48-kHz studio-quality sound
- Low-noise mic preamp with gain control
- 1/8"(3.5mm) latency-free headphone output with level control
- Monitor output adjusts balance between audio playback and live mic
- Peak level indicator to help avoid clipping
UPC: 847628569874 - Auray TT-6220 Telescoping Tabletop Microphone Stand (Black) The black TT-6220 Telescoping Tabletop Microphone Stand from Auray meets the needs of any desktop audio applications that require the use of a microphone by providing a solid, weighted round base with three nonslip rubber feet for additional stability. The telescoping shaft delivers flexibility when it comes to positioning the height of the microphone and includes a microphone cable guide. Durable steel construction ensures longevity.
- Telescoping shaft for adjustable height
- Three nonslip rubber feet
- Durable steel construction
UPC: 847628578234 - AKG K240 MKII Professional Semi-Open Stereo Headphones The AKG K240 MKII are semi-open, circumaural headphones designed for audiophile use. They utilize patented Varimotion technology and extra-large transducers to deliver precise, detailed sound with solid low end, precise midrange, and clear highs.
The headphones have a self-adjusting headband, as well as leatherette and velvet earpads for lasting comfort. A single-sided detachable cable is provided, along with a coiled cable, should that be your preference. The cables use gold-plated connectors for bolstered conductivity. Standard 3.5mm plugs provide wide compatibility, while an included 1/4" adapter allows you to connect to pro-level equipment. - Semi-open, circumaural design
- Patented Varimotion speakers for crisp, detailed sound
- Leatherette and velvet earpads
- Stereo mini plug with 1/4" adapter
UPC: 885038021193 In the Box - NT1-A Large-Diaphragm Condenser Microphone (Single) saxsccffydrrfzdttdxd
- NT1-A Large-Diaphragm Condenser Microphone (Single)
- SM6 Shock Mount with Detachable Pop Filter
- 20' Shielded XLR Cable
- Dust Cover
- Instructional DVD
- Limited 10-Year Warranty
- Senal - XU-1648 XLR-to-USB Interface saxsccffydrrfzdttdxd
- Auray - TT-6220 Telescoping Tabletop Microphone Stand (Black)
- AKG - K240 MKII Professional Semi-Open Stereo Headphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NT1-A Microphone USB Preamp Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode NT1-A Large-Diaphragm Condenser Microphone (Single)
| | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 5 dB A-Weighted | | Maximum SPL | 137 dB SPL | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | -31.9 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 24 V
48 V | | Length | 7.48" / 190 mm | | Diameter | 1.97" / 50 mm | | Weight | 0.72 lb / 326 g | | | | Box Dimensions (LxWxH) | 15.354 x 10.945 x 4.803" | - Senal XU-1648 XLR-to-USB Interface
| | | Max Sample Rate/Resolution | 48 kHz / 16-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 1 x XLR 3-Pin Input
1 x 1/8" (3.5 mm) TRS Headphone Output | | Phantom Power | +48 V ± 2 V | | Digital I/O | None | | MIDI I/O | None | | | | Frequency Response | 25 Hz to 20 kHz | | Gain Range | Inputs:
35 dB | | Headphone Output Power | 50 mW into 16 Ohms | | Impedance | Inputs:
1.2 kOhms | | | | Sample Rates | 32, 44.1, and 48 kHz (D/A Conversion)
8, 11.025, 16, 22.05, 32, 44.1, and 48 kHz (A/D Conversion) | | Bit Depth | 16-Bit | | | | Power Consumption | 2.2 W | | Phantom Power Current | 15 mA per Channel | | | | Dimensions | 5.1 x 1.2 x 1.1" / 13 x 3.1 x 2.8 cm | | Weight | 3.3 oz / 94.0 g | | | | Box Dimensions (LxWxH) | 6.7 x 6.6 x 1.7" | - Auray TT-6220 Telescoping Tabletop Microphone Stand (Black)
| | | Height | 8.3 to 13.5" / 21 to 34.3 cm | | Base Type | Round | | Base Dimensions | 6.2 x 6.2" / 15.7 x 15.7 cm | | | | Mounting Thread | 5/8"-27 | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 7.05 x 7.05 x 1.9" | - AKG K240 MKII Professional Semi-Open Stereo Headphones
| | | Driver Type | Dynamic | | Design | Over-Ear (Circumaural) | | Earcup Style | Semi-Open-Back | | | | Frequency Response | 15 Hz to 25 kHz | | Sensitivity | 104 dB | | Impedance | 55 Ohms | | Maximum Power Handling | 200 mW | | | | Audio Connector | 1/8" (3.5 mm) TRS | | Connector Plating | Gold | | Adapter (Included) | 1/4" (6.3 mm) | | | | Design | Single-Sided | | Detachable | Yes | | Cable Length | 9.8' / 2.99 m
16.0' / 4.88 m (Coiled) | | | | Dimensions (W x H x D) | 7.5 x 7.9 x 4.3" / 190.0 x 200.0 x 110.0 mm (Opened) | | Weight | 8.5 oz / 240 g | | | | Box Dimensions (LxWxH) | 9.3 x 8.8 x 4.35" |
