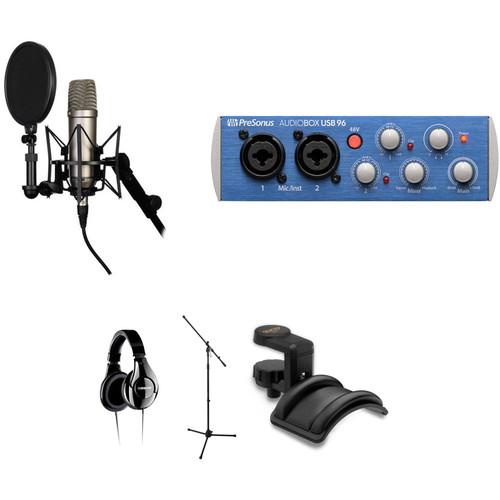

Rode NT1-A Vocal Recording Kit with

User Manual for Rode NT1-A Vocal Recording Kit with Audio Interface, Headphones & Mic Stand

• Product category: Large Diaphragm Condenser Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Large Diaphragm Condenser

Product description

• Rode NT1-A Large-Diaphragm Condenser Microphone (Single) The NT1-A Large-Diaphragm Condenser Microphone from RODE is a 1" cardioid condenser microphone. It has a self-noise level of 5 dB-A, making it a great choice for a vocal microphone, as well as for recording guitars and percussion instruments.

  A studio-grade pop shield and shockmount is included, along with a 20' microphone cable, dust cover, and an instructional DVD with recording tips.
  Large Diaphragm
  • The 1" diaphragm provides a wide frequency response and excellent signal-to-noise ratio
  Cardioid Polar Pattern
  • The cardioid polar pattern of the NT1-A effectively minimizes off-axis noises such as room ambiance, monitors, and off-axis instruments
  Transformerless Output
  • The transformerless output electronics result in quiet, noise-free output while maintaining maximum signal gain
  48V Phantom Power
  • The microphone uses standard 48V phantom power, which is supplied through the standard XLR connector
  Accessory Package
  • The accessory package includes a studio-grade shock mount with an integrated pop filter, a premium 20' cable, a dust cover, and a bonus DVD with microphone tips and techniques
  UPC: 698813000142
• PreSonus AudioBox 96 USB 2.0 Audio Recording Interface The AudioBox 96 from Presonus is a two-channel USB computer audio interface. Designed to be portable, the unit utilizes 24-bit converters that sample at 44.1, 48, 88.1, or 96 kHz. Two high-quality PreSonus microphone preamps with switchable 48V phantom power are also provided, as are combination jacks for 1/4" or XLR inputs, MIDI I/O, and solid drivers. Whilst recording, you can achieve zero-latency monitoring with a knob that allows you to blend signal from the preamp with signal in your DAW, giving you a tailored balance of both sources. The interface is bundled with the Studio One Artist 3 DAW software for Mac and Windows, and includes the Studio Magic plug-in suite, providing effects, virtual instruments, and third-party loops, software, and instrument sounds. This unit is sturdy enough to be taken on the road, though also finds its home in the studio.
  • 24-bit/44.1, 48, 88.1, 96 kHz USB audio recording interface bundled with PreSonus Studio One 3 Artist
  • Two microphone/instrument preamps
  • Switchable 48V phantom power
  • Balanced 1/4" TRS phone outputs
  • Headphone output (1/4" TRS) with dedicated volume control
  • MIDI input and output
  • All metal chassis ready to withstand the rigors of the road
  • Powered via the USB bus
  UPC: 673454005381
• Shure SRH240A Professional Around-Ear Stereo Headphones The SRH240A Professional Around-Ear Stereo Headphones from Shure provide high-quality audio in a lightweight and comfortable design. Large 40mm neodymium dynamic drivers provide clear, detailed sound with a wide frequency response while the closed-back earcup design helps to block out ambient noise.

  The enhanced design features thick around-ear cushions and an adjustable headband that provide long-lasting comfort, allowing you to listen for hours without fatigue. The OFC cable provides plenty of slack and has a standard 3.5mm plug and a 1/4" adapter for wide compatibility with consumer and professional audio gear.
  • The lightweight and durable construction withstands the rigors of day-to-day use
  • Large 40mm neodymium dynamic drivers provide high-quality sound with a wide frequency response so you experience deep bass, clear mids, and crisp treble
  • The closed-back earcup design helps to block out ambient noise so you can focus on your music instead of your environment
  • The re-engineered ergonomic design features thick around-ear cushions and an adjustable headband for long-lasting comfort
  • The impedance, power handling, and sensitivity are calibrated for optimum performance with a variety of sound sources
  • The cable has a straight design that provides plenty of slack, while the oxygen-free copper construction provides a clear signal path
  • The standard 3.5mm stereo mini plug and threaded 1/4" adapter provide wide compatibility with consumer and professional audio devices
  UPC: 042406229210
• Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
• Auray Headphone Holder With Padded Cradle and Adjustable Angle The Auray COHH-1 Headphone Holder with Padded Cradle and Adjustable Angle attaches to either a horizontal or vertical surface in order to support one full-sized pair of headphones. The holder has three settings for attaching to surfaces up to 1.3" (3.3 cm) in thickness as well as a threaded securing clamp to ensure a precise fit. Constructed from heavy duty nylon, the holder features a padded leatherette cradle to ensure your headphones don't slip while helping keep your professional studio, home studio, office workstation, or home Hi-Fi setup neat and organized.
  Adjustable Design
  • Attaches to horizontal or vertical surfaces up to 1.3" (3.3 cm) thick
  Threaded Clamp
  • Ensures precise and secure connection to clamping surface
  Cradle
  • Padded leatherette cradle with inlaid channel secures headphones in place
  Construction
  • Lightweight and durable provides reliable support for your favorite headphones
  UPC: 847628587274

• NT1-A Large-Diaphragm Condenser Microphone (Single) bqqrcbqfucbz
• NT1-A Large-Diaphragm Condenser Microphone (Single)
• SM6 Shock Mount with Detachable Pop Filter
• 20' Shielded XLR Cable
• Dust Cover
• Instructional DVD
• Limited 10-Year Warranty

• PreSonus - AudioBox 96 USB 2.0 Audio Recording Interface

• Shure - SRH240A Professional Around-Ear Stereo Headphones

• Auray - MS-5230F Tripod Microphone Stand with Fixed Boom

• Auray - Headphone Holder With Padded Cradle and Adjustable Angle

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode NT1-A Large-Diaphragm Condenser Microphone (Single)

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	1" / 25.40 mm
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Equivalent Noise Level	5 dB A-Weighted
  Maximum SPL	137 dB SPL
  THD	1%
  Impedance	100 Ohms
  Sensitivity	-31.9 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	24 V 48 V
  Length	7.48" / 190 mm
  Diameter	1.97" / 50 mm
  Weight	0.72 lb / 326 g

  Box Dimensions (LxWxH)	15.354 x 10.945 x 4.803"

• PreSonus AudioBox 96 USB 2.0 Audio Recording Interface

  Max Sample Rate/Resolution	96 kHz / 24-Bit

  Host Connection	1 x USB Type-B
  Analog I/O	2 x Combo XLR / 1/4" Mic/Line Input 2 x 1/4" (6.3 mm) TRS Balanced Monitor Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Phantom Power	+48 V
  Digital I/O	None
  MIDI I/O	1 x 5-Pin MIDI In 1 x 5-Pin MIDI Out

  Frequency Response
