User manual
Rode NT1 Microphone with Software and

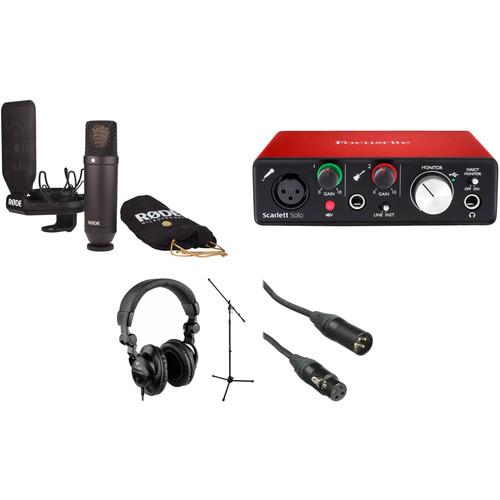

User Manual for Rode NT1 Microphone with Software and Vocal Recording Setup Kit

• Product category: Large Diaphragm Condenser Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Large Diaphragm Condenser

Product description

• Rode NT-1 KIT 1" Cardioid Condenser Microphone with SMR Shockmount The NT-1 KIT 1" Cardioid Condenser Microphone from RODE includes the Rode NT1 cardioid condenser microphone, an SMR premium shockmount with Rycote Lyre suspension, and a microphone dust cover. The kit can be used to capture audio for vocalist and instruments in recording studio applications, and more.While the body of the NT-1 still resembles the NT1-A, the mic has been completely redesigned except for the mesh grille. The large-diaphragm cardioid condenser microphone features RODE's updated HF6 capsule that is designed to provide a detailed midrange response with smooth highs and a warm bass. The HF6 capsule is suspended inside the microphone using Rycote's industry-leading Lyre system to help reduce vibration and handling noises. Also, with self-noise measured at only 4.5 dBA, the NT1 is a very quiet microphone.The body of the mic is machined from nickel-plated aluminum and is then coated in a ceramic layer, which is electrostatically applied for a scratch-resistant finish. The NT1 includes the SMR shockmount and has a 1-year limited warranty that extends to 10-years after registration with RODE.
  • Large 1" condenser capsule with gold-plated membrane
  • Cardioid polar pattern
  • Internal Rycote Lyre-based capsule shockmounting system
  • Ultra-low noise, self-noise of only 4.5 dB (A)
  • State-of-the-art surface mount electronics
  • SMR Shockmount features double-Lyre suspension system to reduce vibration noise
  • 10-year extended warranty when you register your microphone
  UPC: 698813003044
• Focusrite Scarlett Solo USB Audio Interface (2nd Generation) The Second-Generation Scarlett Solo from Focusrite is a portable USB 2.0 digital audio interface, featuring a single Scarlett microphone preamp with phantom power, and a dedicated instrument/line input. You can monitor your signal either through an independent 1/4" output or via rear-mounted, unbalanced RCA jacks. Perfect for the travelling troubadour, this unit is fully compatible with Mac and Windows computers, and includes a plethora of recording, instrument, and sample content software.

  An included Pro Tools | First Focusrite Creative pack is enhanced by a suite of Focusrite Scarlett plug-ins—a set of tools including compression, EQ, gating, and reverb. The Novation Bass Station software synthesizer can be used to add bass or melody, and a sample pack from Loopmasters contains drum loops and sound effects. Ableton Live is included to boot.

  Focusrite's Red Plug-In Suite (AAX, Audio Units, and VST) delivers modules based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware. Also included in this bundle is the Softube Time and Tone Pack for further sonic exploration within your chosen DAW.
  Notable Features
  • • One Scarlett mic preamp with high headroom and minimal distortion
    • One line/instrument input, designed to handle high-level pick-ups
    • Conversion and sample rates up to 24-bit/192 kHz
    • Low latency for using your plug-ins in real time without the need for DSP
    • One headphone output with gain control
    • Stereo RCA outputs for connecting to home speakers
    • Compact and portable at 1.3 lb
    • Powered by USB
    • Includes Pro Tools | First Focusrite Creative Pack and Ableton Live Lite
    • Includes additional software and loops
  UPC: 815301008439
• Polsen HPC-A30 Closed-Back Studio Monitor Headphones The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488
• Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558274

• NT-1 KIT 1" Cardioid Condenser Microphone with SMR Shockmount tytyqbyqscrbwbwuszsvewderx
• SMR Advanced Shock Mount for Large Diaphragm Condenser Mics
• Microphone Dust Cover
• Limited 1-Year Warranty Extends to 10-Years upon Registration

• Focusrite - Scarlett Solo USB Audio Interface (2nd Generation)

• Polsen - HPC-A30 Closed-Back Studio Monitor Headphones

• Auray - MS-5230F Tripod Microphone Stand with Fixed Boom

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode NT-1 KIT 1" Cardioid Condenser Microphone with SMR Shockmount

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	1" / 25.40 mm
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Equivalent Noise Level	4 dB A-Weighted
  Maximum SPL	132 dB SPL Peak
  THD	1%
  Impedance	100 Ohms
  Sensitivity	-29 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	24 V 48 V
  Length	7.36" / 187 mm
  Diameter	1.97" / 50 mm
  Weight	0.97 lb / 440 g

  Box Dimensions (LxWxH)	15.2 x 10.7 x 5.4"

• Focusrite Scarlett Solo USB Audio Interface (2nd Generation)

  Max Sample Rate/Resolution	192 kHz / 24-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	1 x XLR 3-Pin Mic Input 1 x 1/4" (6.3 mm) TRS Line/Hi-Z Input 2 x RCA Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Digital I/O	None
  MIDI I/O	None

  Sample Rates	44.1, 48, 88.2, 96, and 192 kHz

  OS Compatibility	macOS 10.10 macOS 10.11 Windows 7 Windows 8.1 Windows 10

  Power Requirements	USB Bus-Power

  Dimensions	1.7 x 5.7 x 4.7" / 4.4 x 14.4 x 11.9 cm
  Weight	1.3 lb / 0.6 kg

  Box Dimensions (LxWxH)	7.0 x 6.4 x 2.5"

• Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"

• Auray MS-5230F Tripod Microphone Stand with Fixed Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	31.5" / 80 cm

  Material	Steel
  Weight	4.5 lb / 2 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.7 x 2.2 x 1.0"
