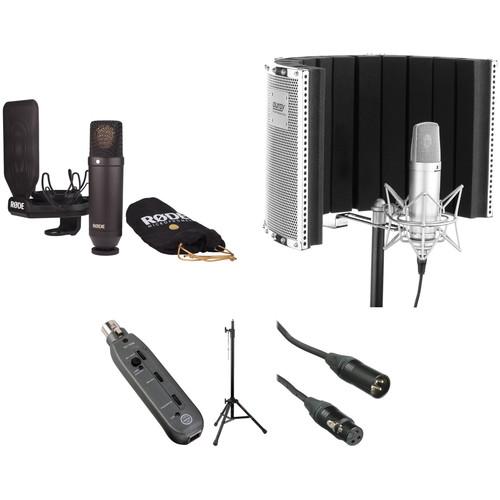

Rode NT1 Microphone with Vocal Recording

User Manual for Rode NT1 Microphone with Vocal Recording Setup Kit

• Product category: Large Diaphragm Condenser Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Large Diaphragm Condenser

Product description

• Rode NT-1 KIT 1" Cardioid Condenser Microphone with SMR Shockmount The NT-1 KIT 1" Cardioid Condenser Microphone from RODE includes the Rode NT1 cardioid condenser microphone, an SMR premium shockmount with Rycote Lyre suspension, and a microphone dust cover. The kit can be used to capture audio for vocalist and instruments in recording studio applications, and more.While the body of the NT-1 still resembles the NT1-A, the mic has been completely redesigned except for the mesh grille. The large-diaphragm cardioid condenser microphone features RODE's updated HF6 capsule that is designed to provide a detailed midrange response with smooth highs and a warm bass. The HF6 capsule is suspended inside the microphone using Rycote's industry-leading Lyre system to help reduce vibration and handling noises. Also, with self-noise measured at only 4.5 dBA, the NT1 is a very quiet microphone.The body of the mic is machined from nickel-plated aluminum and is then coated in a ceramic layer, which is electrostatically applied for a scratch-resistant finish. The NT1 includes the SMR shockmount and has a 1-year limited warranty that extends to 10-years after registration with RODE.
  • Large 1" condenser capsule with gold-plated membrane
  • Cardioid polar pattern
  • Internal Rycote Lyre-based capsule shockmounting system
  • Ultra-low noise, self-noise of only 4.5 dB (A)
  • State-of-the-art surface mount electronics
  • SMR Shockmount features double-Lyre suspension system to reduce vibration noise
  • 10-year extended warranty when you register your microphone
  UPC: 698813003044
• Senal XU-1648 XLR-to-USB Interface The XU-1648 from Senal is a compact XLR-to-USB adapter interface that allows you to plug your microphone into the USB port of any Mac or Windows computer for use with your favorite digital recording software. Its rugged build and plug-and-play operation make it perfect for bands, recording artists, podcasters and more.

  For use with dynamic or condenser microphones, the XU-1648 delivers 16-bit/48-kHz studio-quality sound. It also features a microphone preamp with gain control and switchable 48V phantom power. Its 1/8" headphone output features a volume control and allows for zero-latency monitoring. There is also a monitor level control to adjust the balance between the audio playback from your computer and the sound of your microphone.

  In addition, the XU-1648 features a tough, all-metal chassis with non-slip neoprene feet on the bottom to prevent it from slipping.
  • Plug-and-play XLR-to-USB adapter
  • Rugged metal chassis
  • 16-bit/48-kHz studio-quality sound
  • Low-noise mic preamp with gain control
  • 1/8"(3.5mm) latency-free headphone output with level control
  • Monitor output adjusts balance between audio playback and live mic
  • Peak level indicator to help avoid clipping
  • USB bus powered
  • 6.25' USB cable included
  UPC: 847628569874
• Auray RF-CM-S Reflection Filter (Silver) The silver RF-CM-S Reflection Filter from Auray is the perfect solution for recording vocalists or voice over artists in less than stellar acoustic spaces where room reflection would otherwise be recorded along with the vocal, making post processing and mixing more complicated. This might be in a home studio, an untreated rehearsal space, or a makeshift film dialogue replacement situation.

  Housed in a deep and sturdy, semicircular perforated aluminum shell, the high density acoustic foam provides a reflection free environment for the microphone, while simultaneously attenuating any room noise. The resulting dry and clearer recordings can then be treated during mixing or film post processing without extraneous noises or unwanted reflections getting in the way.

  The filter mounts onto a microphone stand, and front and rear sliding brackets easily allow you to adjust its height and depth for precise microphone placement. Standard 5/8"-27 threaded adapters fit most microphone stands, clips and shockmounts.
  • Compact solution for providing sound isolation for vocal or voice over recording in untreated spaces
  • High-density foam absorbs acoustic reflections and minimizes room ambience, isolating the microphone
  • Perforated aluminum shield diffuses and prevents sound that might reflect back to microphone, especially when recording loud vocalists
  • Sliding bracket makes it easy to mount the microphone in the ideal position inside the reflection filter
  • Rear adjustable bracket provides additional filter height adjustment to accommodate different vocalist heights
  • Adapters with industry-standard 5/8"-27 threaded studs and sockets are compatible with mic stands, shock mounts, and mic clips with a 5/8"-27 post.
  • Deep, semi-circular design ensures dry vocals while attenuating external noise
  UPC: 847628578630
• Auray RFMS-580 Reflection Filter Tripod Mic Stand The RFMS-580 Reflection Filter Tripod Mic Stand from Auray features heavy duty steel construction and is capable of providing sturdy support to your reflection filter and studio microphone at the same time. The tripod stand design features collapsible legs for convenient storage and a telescoping center column that can be adjusted to reach a maximum working height of 76", including a standard reflection filter.

  The stand also features non-slip feet for added traction on hard surfaces as well as a 5/8" threaded adapter for attaching a shockmount or mic clip.
  • Provides sturdy support to a microphone and a reflection filter at the same time
  • May also be used as a speaker stand (may require 3/8" thread adapter)
  UPC: 847628576827
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558274

• NT-1 KIT 1" Cardioid Condenser Microphone with SMR Shockmount yrufyzywvbartdctfybfuw
• SMR Advanced Shock Mount for Large Diaphragm Condenser Mics
• Microphone Dust Cover
• Limited 1-Year Warranty Extends to 10-Years upon Registration

• Senal - XU-1648 XLR-to-USB Interface

• Auray - RF-CM-S Reflection Filter (Silver)

• Auray - RFMS-580 Reflection Filter Tripod Mic Stand

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode NT-1 KIT 1" Cardioid Condenser Microphone with SMR Shockmount

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	1" / 25.40 mm
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Equivalent Noise Level	4 dB A-Weighted
  Maximum SPL	132 dB SPL Peak
  THD	1%
  Impedance	100 Ohms
  Sensitivity	-29 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	24 V 48 V
  Length	7.36" / 187 mm
  Diameter	1.97" / 50 mm
  Weight	0.97 lb / 440 g

  Box Dimensions (LxWxH)	15.2 x 10.7 x 5.4"

• Senal XU-1648 XLR-to-USB Interface

  Max Sample Rate/Resolution	48 kHz / 16-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	1 x XLR 3-Pin Input 1 x 1/8" (3.5 mm) TRS Headphone Output
  Phantom Power	+48 V ± 2 V
  Digital I/O	None
  MIDI I/O	None

  Frequency Response	25 Hz to 20 kHz
  Gain Range	Inputs: 35 dB
  Headphone Output Power	50 mW into 16 Ohms
  Impedance	Inputs: 1.2 kOhms

  Sample Rates	32, 44.1, and 48 kHz (D/A Conversion) 8, 11.025, 16, 22.05, 32, 44.1, and 48 kHz (A/D Conversion)
  Bit Depth	16-Bit

  Power Consumption	2.2 W
  Phantom Power Current	15 mA per Channel

  Dimensions	5.1 x 1.2 x 1.1" / 13 x 3.1 x 2.8 cm
  Weight	3.3 oz / 94.0 g

  Box Dimensions (LxWxH)	6.7 x 6.6 x 1.7"

• Auray RF-CM-S Reflection Filter (Silver)

  Dimensions (WxDxH)	19.75 x 11 x 12" (50 x 28 x 31 cm) Height Extension: 6" (15 cm)
  Weight	4.45 lb (2 kg) with all attachments

  Box Dimensions (LxWxH)	20.0 x 13.0 x 11.0"

• Auray RFMS-580 Reflection Filter Tripod Mic Stand

  Thread Size	5/8"
  Folded Height	35.2" (89.4 cm)
  Adjustable Height Range	42 to 68" (106.7 to 172.7 cm)
  Weight	5.2 lb (2.36 kg)

  Box Dimensions (LxWxH)	35.75 x 5.0 x 4.25"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.7 x 2.2 x 1.0"
