Product description - Mic Shootout 2: Affordable Large Diaphragm Condensers

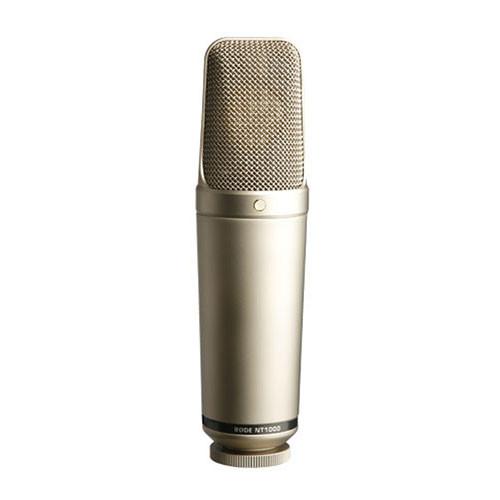

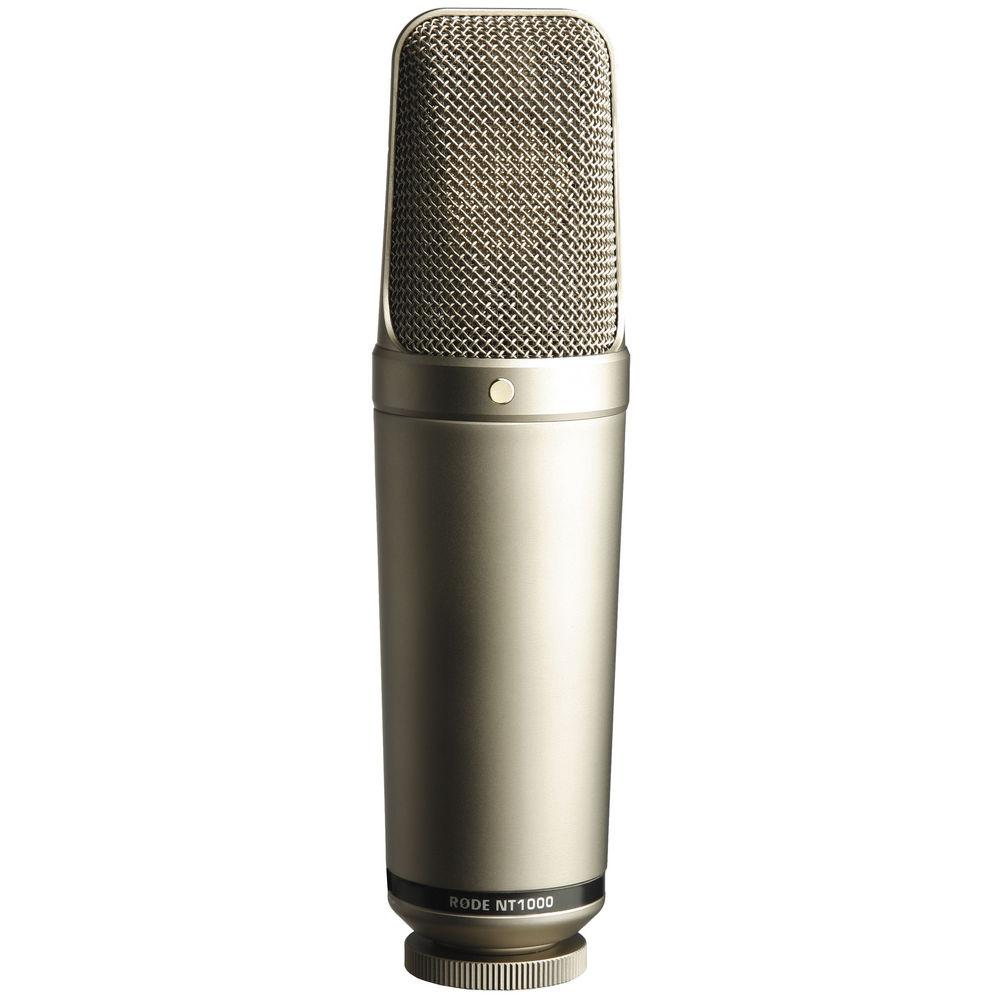

The NT1000 1" Studio Condenser Microphone from Rode features transformerless circuitry, giving the mic an ultra-low self-noise level of 6 dBA. It can be used to capture audio for both vocal and instrument applications and is well-suited for grand piano and drum overheads. It is built with a 3-pin XLR connector and requires 24 or 48V phantom power to operate. Also included is a RM2 ring-mount microphone stand and a ZP1 padded zip pouch. - Cardioid Polar Pattern
- The cardioid pick-up pattern is effective in minimizing noise from off-axis sections of the microphone such as monitors, instruments, room ambiance, etc.
- Gold-Plated Diaphragm
- The gold-plated diaphragm provides transparent signal reproduction and frequency response. The diaphragm is internally shockmounted, providing protection against potential damage.
- Wide Frequency Response
- The NT1000's 20 Hz to 20 kHz frequency response allows the microphone to be used in a variety of applications.

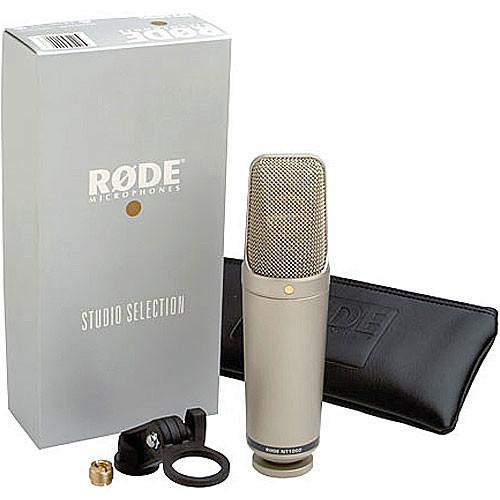

UPC: 698813000067 In the Box Rode NT1000 1" Studio Condenser Microphone Stand Mount for NTK/NT1000 & Condenser Microphones ZP1 Zip Pouch Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NT1000 1" Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode NT1000 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 6 dB A-Weighted | | Maximum SPL | 140 dB SPL Peak | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | -36 dB at 1 kHz | | Dynamic Range | Cardioid: 134 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 24 V
48 V | | Length | 8.23" / 209 mm | | Diameter | 2.13" / 54 mm | | Weight | 1.50 lb / 682 g | | | | Package Weight | 2.24 lb | | Box Dimensions (LxWxH) | 10.5 x 5.2 x 2.6" |
