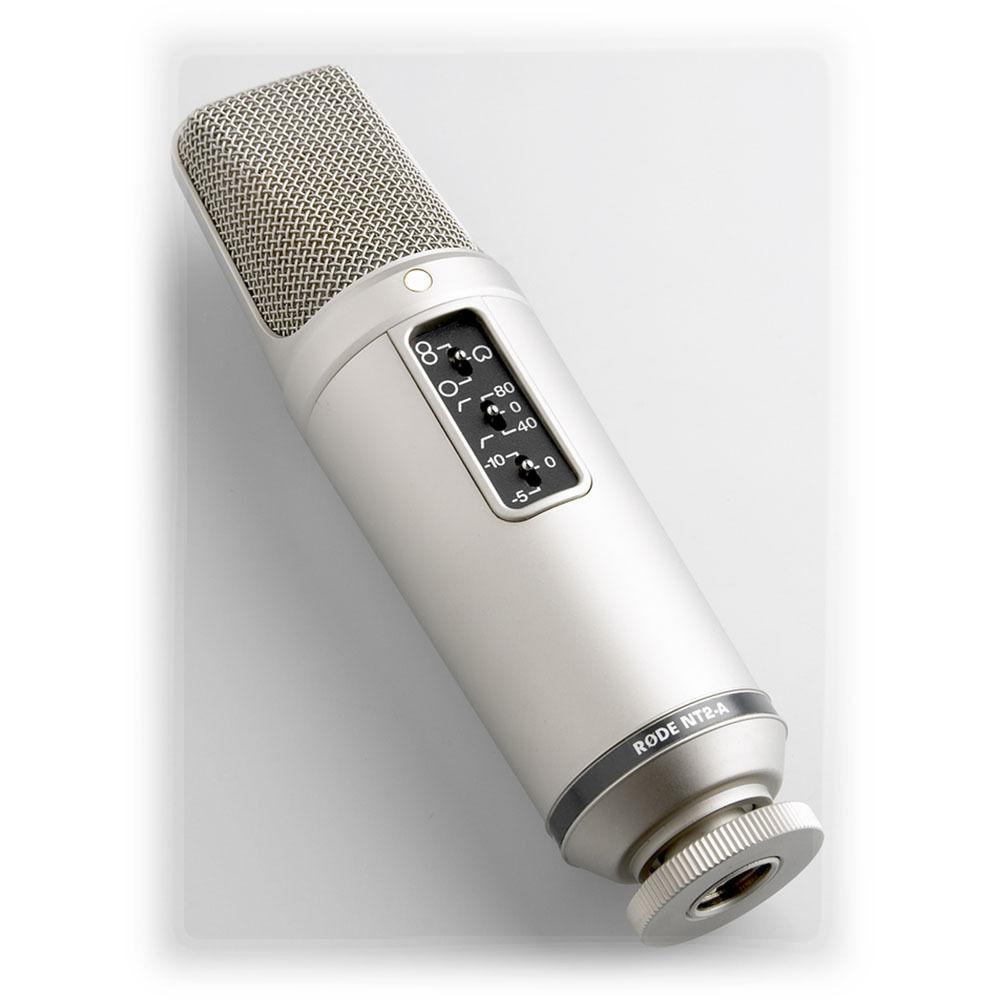

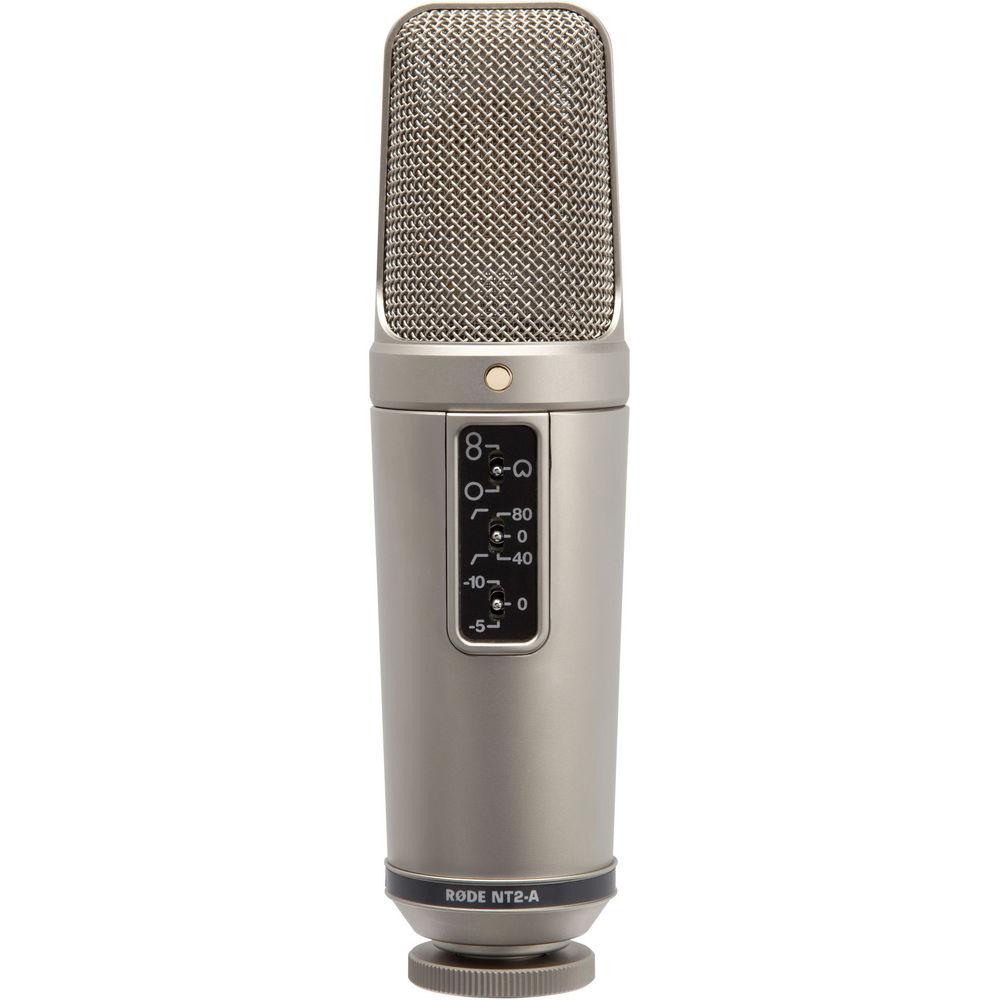

Product description The NT2-A Studio Solution Package from RODE includes the NT2-A multi-pattern condenser microphone, the SM6 shock mount and pop filter, a 10' XLR cable, and a dust cover. Also included in this package is an instructional DVD with an in-depth tutorial by Grammy nominated producer John Merchant. The Rode NT2-A has a high-quality, large dual-diaphragm multi-pattern condenser element that delivers maximum flexibility in many recording scenarios. Superior electronics result in ultra-low noise performance, and its fixed variable pad, pattern and filter adjustments provide the flexibility and control needed by musicians and recording engineers alike. - The Rode NT2-A Studio Solution Package includes the SM6 shockmount, XLR cable, dust cover and instructional DVD by Grammy Award nominated producer John Merchant

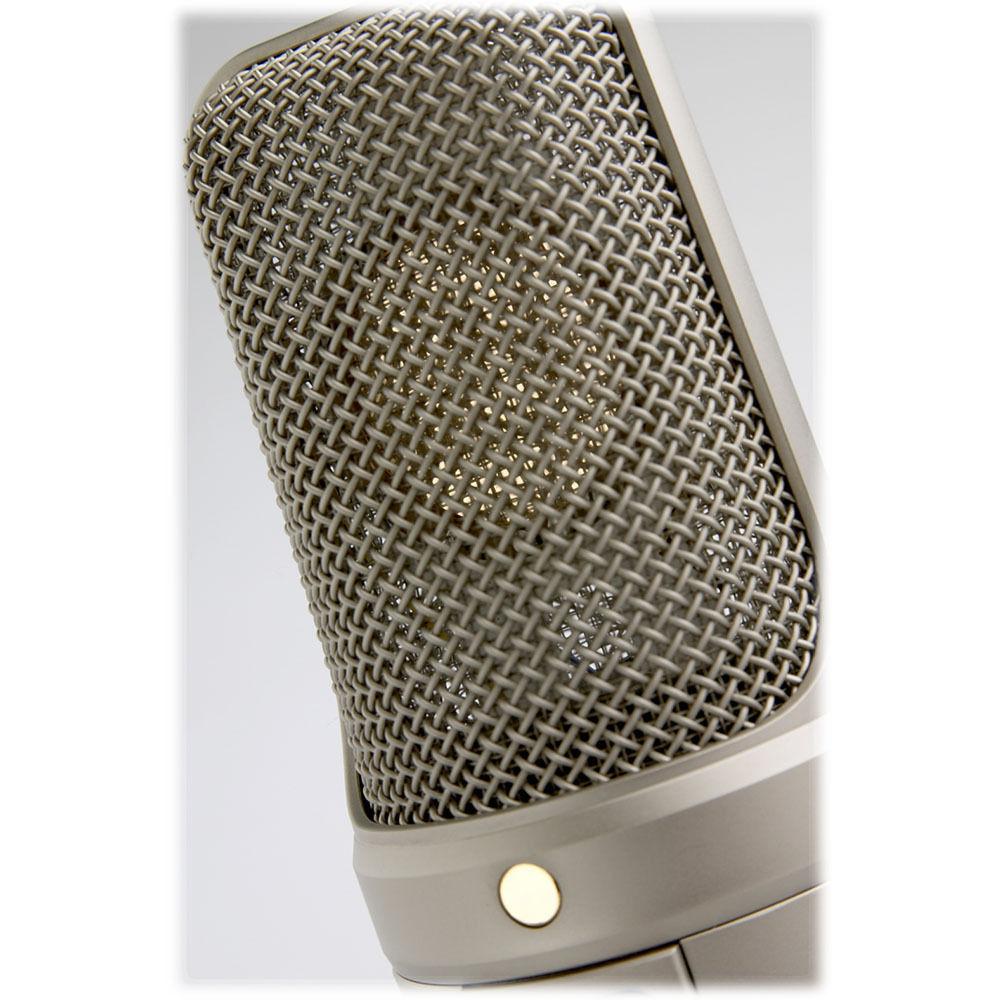

- Large 1" (25mm) HF1 gold sputtered capsule

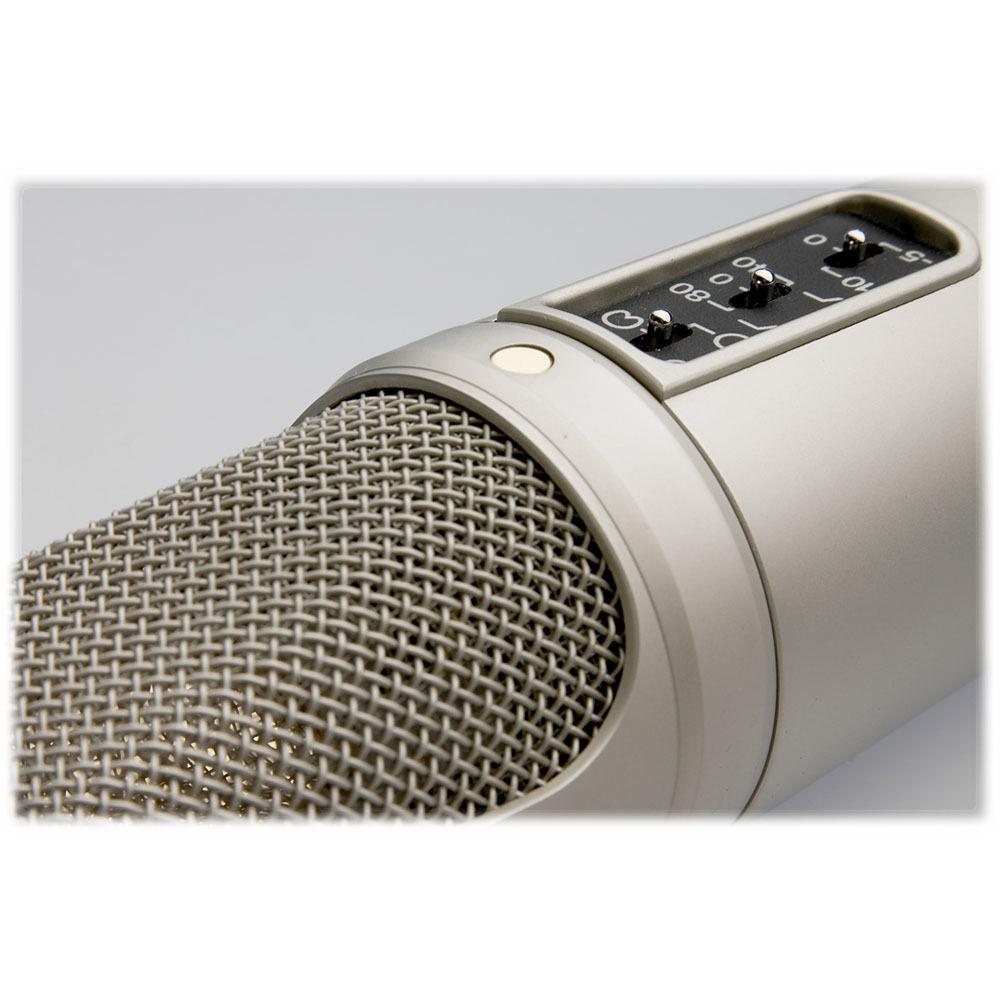

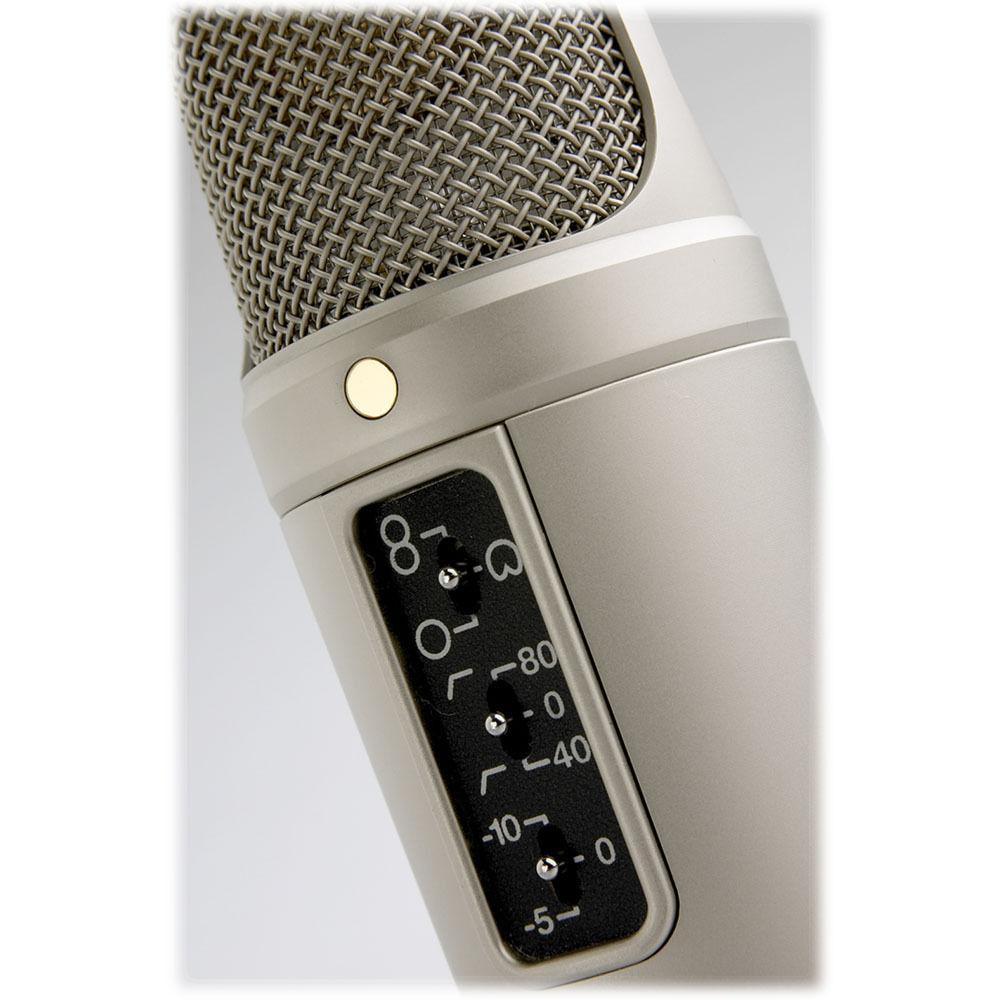

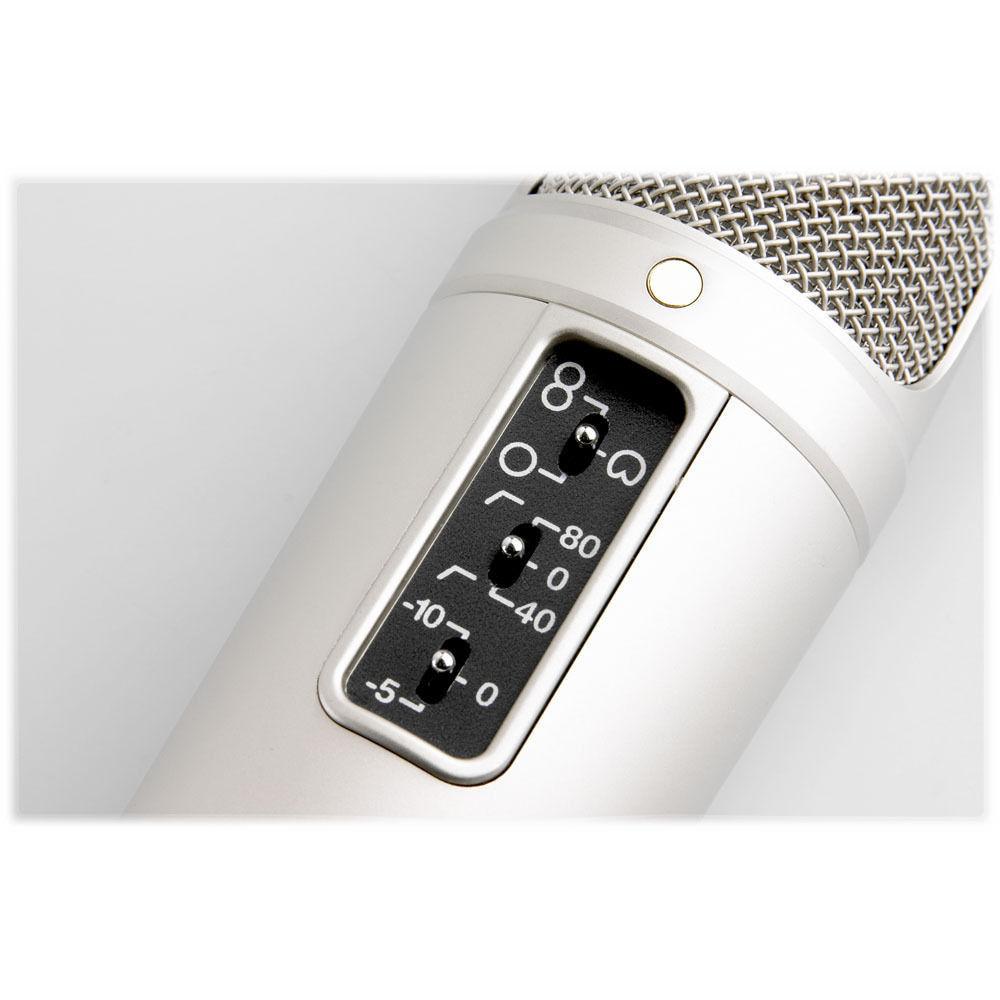

- On body control of polar pattern, HPF and PAD
- Three position variable polar pattern - Omni, Cardioid or Figure 8
- Three position variable High-Pass Filter - Flat, 40Hz or 80Hz
- Three position PAD - 0dB, -5dB or -10dB
- Ultra low noise, transformerless surface mount circuitry

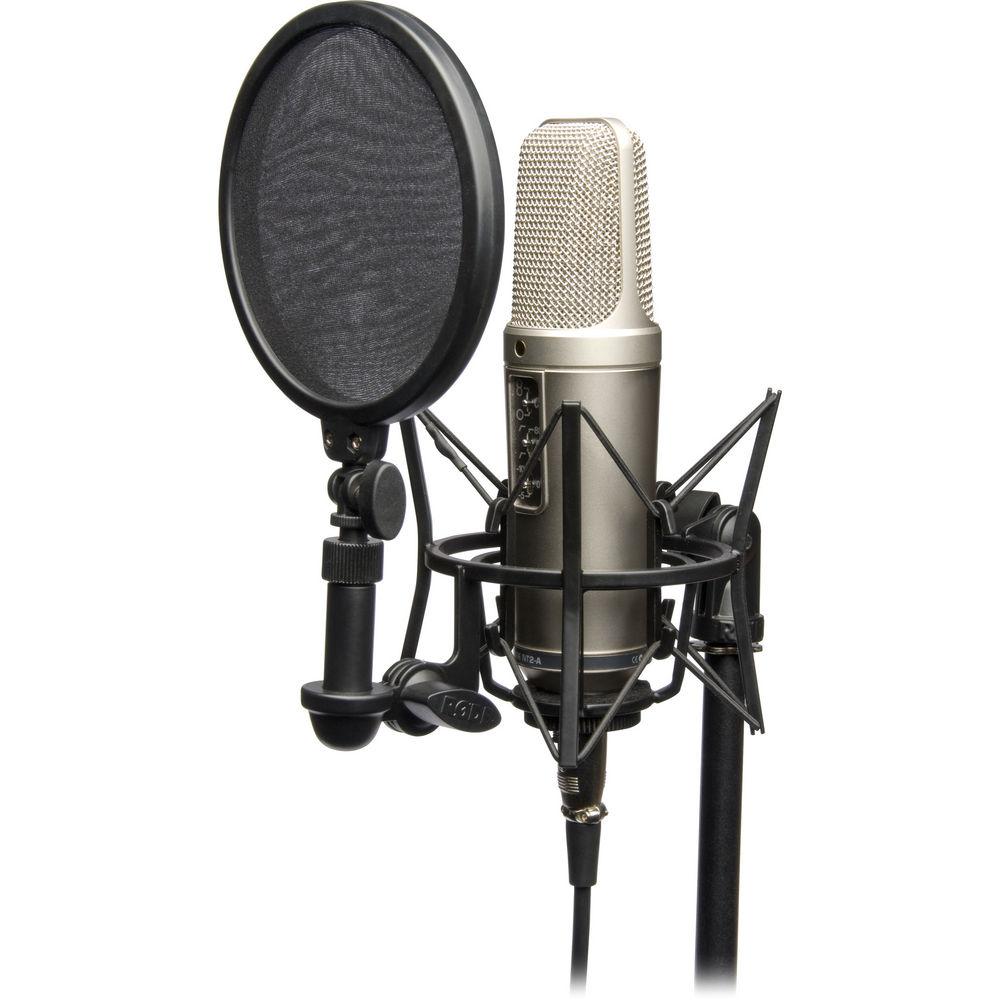

- Includes SM6 shock mount with integrated pop filter, 3m XLR cable, dustcover and exclusive training DVD.
- Internal capsule shock mounting
- Designed and manufactured in Australia

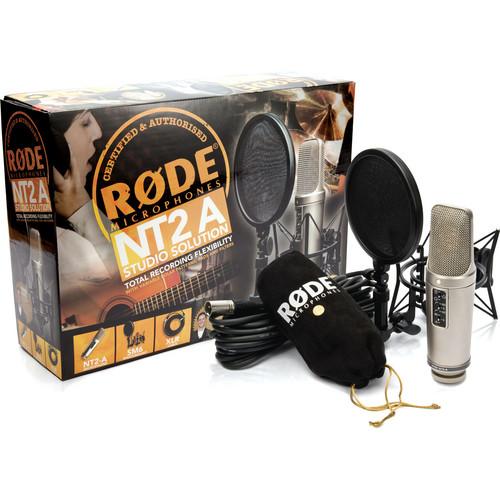

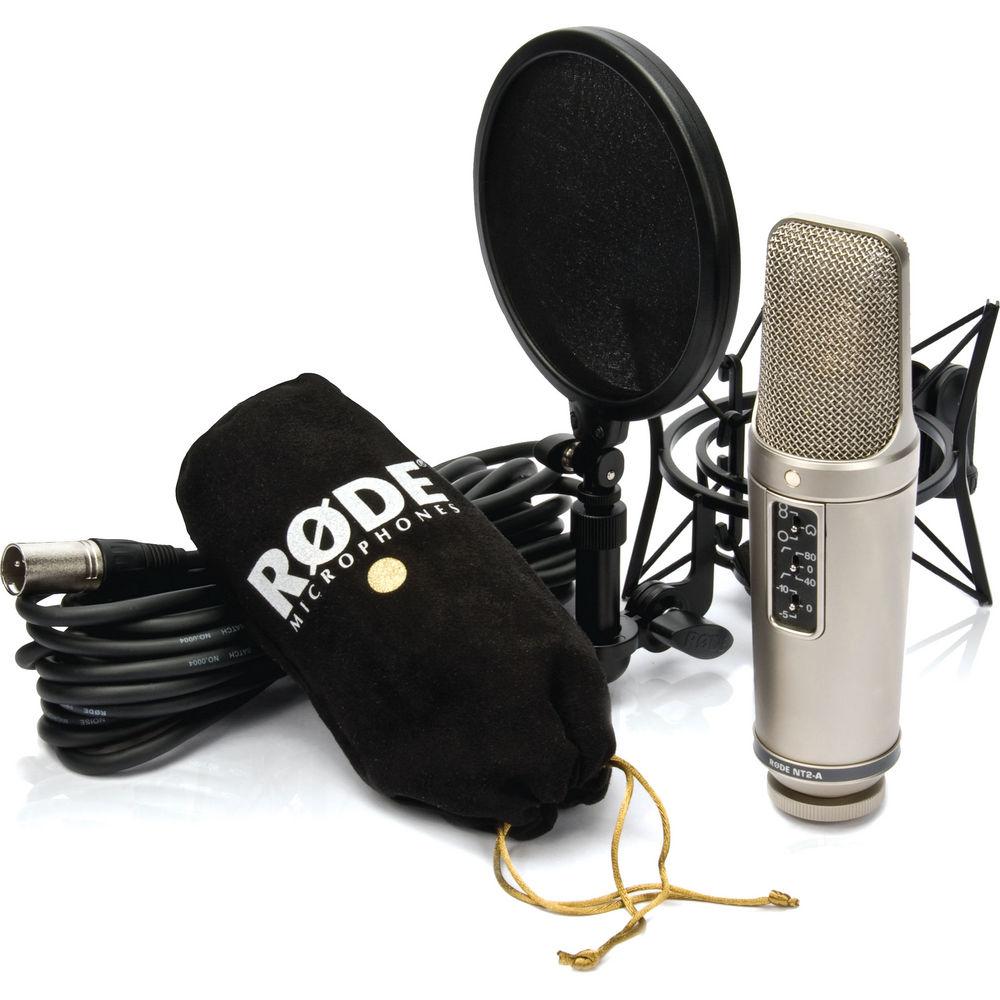

UPC: 698813000395 In the Box Rode NT2-A Studio Solution Package SM6 Shock Mount with Detachable Pop Filter 10' XLR Cable Dust Cover Insructional DVD Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NT2-A Studio Solution Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode NT2A Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1" / 25.40 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 7 dB A-Weighted | | Maximum SPL | 147 dB SPL | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | -36 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 24 V
48 V | | Length | 8.23" / 209 mm | | Diameter | 2.17" / 55 mm | | Weight | 1.89 lb / 860 g | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 15.4 x 10.9 x 4.7" |
