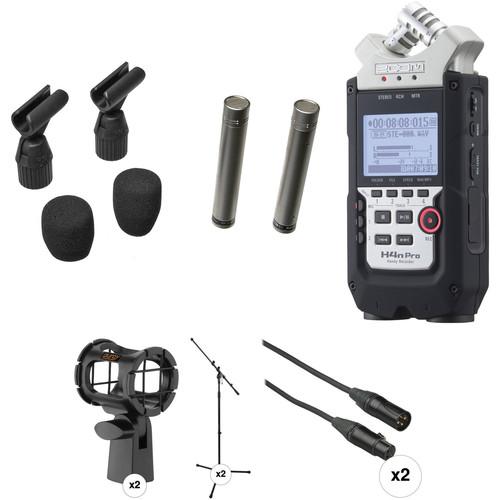

User Manual for Rode NT5 Cardioid Condenser Mic & Recorder Package for Ambient Sound Kit

• Product category: Small Diaphragm Condenser Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Small Diaphragm Condenser

Product description

• Rode NT5 Cardioid Studio Condenser Microphones (Matched Pair) The NT5 from Rode is a matched pair of small diaphragm microphones featuring full frequency response and low-noise output circuitry. Designed for general instrument recording and sound reinforcement.The cardioid polar pattern effectively minimizes audio at the off-axis sections, reducing noise caused by, leakage, monitors, additional instruments etc. The NT5 offers a frequency response of 20 Hz to 20 kHz allowing the microphones to be used in a wide variety of applications such as drum over-head miking, stereo capturing of instruments, vocal capturing etc. The NT5 is powered via +24V or +48V phantom power. The package includes dual windscreens and stand mounts in a durable road case.
  Cardioid Pattern
  • The cardioid polar pattern is effective in minimizing of-axis noise due to leakage, additional instruments, room ambiance etc.
  Wide Frequency Response
  • The NT5 features a frequency response of 20 Hz to 20 kHz allowing the flexibility to capture accurately in any recording or sound reinforcement scenario.
  UPC: 698813000081
• Zoom H4n Pro 4-Channel Handy Recorder If you want to record, mix, and export an entire arrangement on a high-quality pocket-sized device, try the H4n Pro from Zoom. This recorder lets you track all your guitar parts, your basses, your keys, your vocals, and your drums, all thanks to the combination XLR-1/4" inputs and the built-in stereo microphone. When you're done with tracking, apply all the guitar and mixing effects you need, balance the levels, and bounce down to a stereo track. If podcasting is your game, the H4n Pro is also a boon: simply take your favorite shogtun mic to the interview, and plug-it into the high-quality preamp. Flip on phantom power if need be, and you've got yourself everything you need to conduct a high-quality tape-sync in the field. The H4n's stereo X/Y microphone is capable of handling 140 dB SPL, making it suitable for tracking the loudest of instruments. If you're tracking or practicing, you'll appreciate the built-in metronome and the chromatic tuner. The H4n Pro can record up to four simultaneous channels of audio at resolutions and sample rates higher than CD quality, capturing sound sources in WAV and MP3 formats. It utilizes an SDHC card for storage and a USB connection for transferring material to your computer. A pair of standard AA batteries powers the device and can provide up to 10 hours of continuous recording.
  Key Features at a Glance
  • • 4-Channel, 24-bit / 96 kHz recording for studio-grade audio
    • Unlimited overdubbing to layer a panoply of parts
    • Guitar and vocal FX including amp simulation, reverb, delay, and more
    • Doubles as a 2-in/2-out USB audio interface for multitrack recording
    • Phantom power for your favorite condenser mics
    • 10 hours of operation from 2 AA batteries
  Built-In Stereo Mic in X/Y Configuration
  • The onboard X/Y stereo microphone is capable of handling sound pressure levels of 140 dB. It can also cover a wide width whilst capturing any sound source in its center with precision. Both microphones are angle adjustable. You can change the angle of capture from 90° (for a focused stereo image) to 120° (for a wider stereo image) simply by twisting each mic's capsule.
  Back-Lit LDC Display
  • This device utilizes a back-lit LDC display that makes reading its panel on stage more convenient.
  On-Board M/S Decoder
  • Perhaps you'd prefer to capture stereo audio by means of an M/S technique, rather than through the H4n Pro's X/Y-configured capsules. Should you wish to plug external microphones into the unit's preamp for this very purpose, the H4n Pro provides an onboard MS decoder, allowing you to adjust the width of the stereo image within the device itself. This is useful both for sound design and for broadcasting.
  Connections
  • Revamped with the same low-noise preamps as the H5 and H6, the H4n Pro provides combination inputs for XLR or 1/4" connections, both balanced and unbalanced. As such, it can handle mic/line and instrument signals. The 24 or 48V phantom power can be applied to both inputs. Additionally, a stereo 3.5mm jack for an external device, such as a lavalier microphone, is included. This jack supplies 2.5V power, if need be.
  Portable Pocket Interface
  • Utilizing its mini-USB port, you can use the H4n Pro as a 2-in/2-out interface for computers, recording straight to your DAW via its preamps and monitoring through the 3.5mm stereo headphone jack.
  Multiple Recording Modes
  • Record in stereo mode, four-channel mode (utilizing the on-board stereo mics in addition to the built-in preamps), or multitrack mode, which makes use of built-in effects, overdub functions, and the ability to work with prerecorded material. Additionally, you can use the prerecord function—ensuring you always capture audio starting from two seconds before the moment you press record—or the auto-record function, which allows the H4n Pro to start recording whenever it senses audio, and to stop as soon as the signal drops below a preset threshold.
  Onboard Effects
  • The H4n Pro offers a variety of effects including compression, limiting, reverb, delay, echo, a low-cut filter, and more. You also get an onboard metronome and tuner, along with dozens of amp models and effects crafted for guitars and basses. Furthermore, you can loop playback, adjusting the pitch and speed of the audio independently; this makes the H4n Pro a tool suitable for transcriptions, whether you need to get the words of a particularly fast talker down on paper, or the notes of a particularly fast guitar solo under your fingers.
  Cubase LE and WaveLab LE Included
  • The H4n Pro includes licenses for Steinberg's Cubase LE music production software as well as WaveLab LE audio editing software. This is particularly useful for those who hope to create their own music utilizing the Pro's USB audio interface function.
  Rubberized and Secure Construction
  • The H4n Pro sports a rubberized body and revamped locking XLR/TRS connection points to keep your mic cables secure.
  Additional Features
  • • Record up to 140 dB SPL with X/Y microphones.
    • Output/headphone jack with dedicated volume control.
    • Built-in reference speaker for fast playback.
    • Internal mix-down: Four-track to stereo and stereo to dual mono.
    • Up to 99 marks per recording.
    • Normalize (maximum gain) and Divide (file-splitting) functions.
    • Mounts to mic stand or tripod or directly to a DSLR with optional Hot Shoe adapter.
  UPC: 884354016357
• 2 x Auray SHM-SD2 Suspension Shockmount for Small Diaphragm Microphones Keeping vibrations and unwanted noise from your mic stand or boompole from reaching your small diaphragm microphone, the SHM-SD2 Suspension Shockmount for Small Diaphragm Microphones from Auray isolates your mic via its heavy-duty elastic bands. A locking knob allows for precise placement, and the shockmount features a 5/8"-27 thread for connecting to most microphone stands. A 3/8"-16 adapter is included for further compatibility, including boompoles.
  Eliminates Noise
  • The SHM-SD2 eliminates unwanted vibrations that can travel through a mic stand or boom pole and affect the performance of the microphone
  5/8"-27 Thread
  • Standard 5/8"-27 threaded female metal mic stand adapter fits any mic stand with a 5/8" stud
  3/8"-16 Adapter
  • A 3/8"-16 thread adapter is included for boom pole mounting
  Locking Knob
  • The angle of the shock mount can be locked into position with the locking knob
  ABS Construction
  • Sturdy ABS plastic construction provides a solid frame for the isolating bands and will withstand the impacts from use in the field or during transport
  Heavy-Duty Elastic Bands
  • The heavy-duty elastic bands suspend the microphone in the center of the basket, and prevent shocks and vibrations that can travel through the mic stand from reaching the microphone
  UPC: 847628585218
• 2 x Auray MS-5230T Tripod Microphone Stand with Telescoping Boom The Auray MS-5230T Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5230T mic stand collapses for easy transport. UPC: 847628015593
• 2 x Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Black The Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable (25') is a studio-quality cable for connecting mics to mixers, preamps, audio interfaces and recorders; or to be used in any other application where XLR connectivity is required. The cable is engineered to be both quiet and durable, and is well-suited for critical recording and broadcast situations.

  Studio Elite 4000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. A 98% braided outer shield makes the cable resistant to EMI and RFI noise. The Neutrix XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 98% braided shield offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Cast zinc shell and chuck style strain relief.
  UPC: 847628551206

• NT5 Cardioid Studio Condenser Microphones (Matched Pair) dczxtqwbf
• 2 x WS5 Windscreen for NT5 and NT6 (Gray)
• 2 x RM5 Stand Mount for the NT5 Microphone
• RC5 Road Case
• 3/8" and 5/8" Thread Adapter
• Limited 10-Year Warranty

• Zoom - H4n Pro 4-Channel Handy Recorder

• 2 x Auray - SHM-SD2 Suspension Shockmount for Small Diaphragm Microphones

• 2 x Auray - MS-5230T Tripod Microphone Stand with Telescoping Boom

• 2 x Kopul - Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode NT5 Cardioid Studio Condenser Microphones (Matched Pair)

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	0.5" / 12.70 mm
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	78 dB
  Equivalent Noise Level	16 dB A-Weighted
  Maximum SPL	143 dB SPL
  THD	1%
  Impedance	100 Ohms
  Sensitivity	-38 dB
  Dynamic Range	128 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	24 V 48 V
  Length	4.65" / 118 mm
  Diameter	0.79" / 20 mm
  Weight	0.22 lb / 100 g

  Box Dimensions (LxWxH)	15.6 x 12.3 x 4.4"

• Zoom H4n Pro 4-Channel Handy Recorder

  Number of Tracks	4
  Max Sample Rate/Resolution	96 kHz / 24-Bit
  Microphone	Built-In Cardioid Condenser Stereo Pair, X/Y Configuration
  Built-In Speaker	Yes, 400 mW
  Display	LCD (Backlit)
  Memory Card Support	SD (16 MB to 2 GB) SDHC (4 to 32 GB)

  Audio File Formats	MP3, WAV
  Sample Rates	WAV: 44.1 / 48 / 96 kHz MP3: 44.1 kHz (Record) 44.1 / 48 kHz (Playback)
  Bit Depth	16/24-Bit 24-Bit (AD/DA Conversion)
  Bit Rates	48 to 320 kb/s + VBR
  Signal Processing	Amp Modeling, Compressor, Delay, Limiter, Low-Cut Filter, Reverb
  Timecode	No
  Recording Time	WAV 44.1 kHz/16-Bit: 95 Mins per GB (Stereo) MP3 128 kb/s: 17 Hrs per GB (Stereo)

  Analog I/O	1 x 1/8" / 3.5 mm TRS Mic Input 1 x 1/8" / 3.5 mm TRS Headphone/Line Output 1 x 2.5 mm TRRS Remote Input 2 x Combo XLR / 1/4" TS Balanced/Unbalanced Input
  Phantom Power	+24 / 48 V
  Host Connection	1 x Mini-USB (USB 2.0)

  Gain Range	Balanced Inputs: -16 to 43 dB Unbalanced Inputs: -30 to 32 dB Mic Inputs: -16 to 51 dB
  Headphone Output Power	20 mW per Channel into 32 Ohms
  Impedance	Inputs: ≥3 kOhms (Balanced) ≥470 kOhms (Unbalanced) Line Outputs: ≥10 kOhms Aux Inputs: ≥2 kOhms
  Microphone Sensitivity	-45 dB/Pa
  Microphone Max SPL	140 dB

  Power Options	Batteries, AC/DC Power Adapter
  Battery Type	2 x AA
  Approximate Battery Life	44.1 kHz/16-Bit: 6 Hours (Alkaline, without Headphones) 8 Hours (NiMH, without Headphones) 10 Hours (Alkaline, Stamina Mode, without Headphones) 12 Hours (NiMH, Stamina Mode, without Headphones)

  Dimensions	2.9 x 6.6 x 1.5" / 73.0 x 167.2 x 37.0 mm
  Weight	10.0 oz / 294.0 g

  Box Dimensions (LxWxH)	7.6 x 5.6 x 2.9"

• 2 x Auray SHM-SD2 Suspension Shockmount for Small Diaphragm Microphones

  Material	ABS construction
  Thread Size	5/8"-27
  Dimensions (H x W x L)	3.25 x 1.75 x 2" (8.3 x 4.4 x 5.1 cm)
  Weight	1.6 oz (45.4 g)

  Box Dimensions (LxWxH)	3.2 x 3.1 x 2.2"

• 2 x Auray MS-5230T Tripod Microphone Stand with Telescoping Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	19.3 to 33.9" / 49 to 86 cm

  Material	Steel
  Weight	4.6 lb / 2.1 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• 2 x Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	25' / 7.6 m
  Shielding	98% Braid
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.3 x 6.0 x 1.9"
