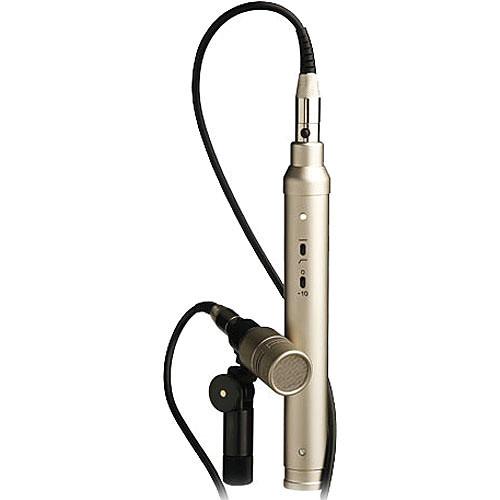

User Manual for Rode NT6 Compact Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Rode NT6 Compact Condenser Microphone
- Product category: Small Diaphragm Condenser Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Small Diaphragm Condenser
|
User manual for the Rode NT6 Compact Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The NT6 from Rode is a professional general-purpose condenser microphone that exhibits the convenience of flexible placement, making it a strong candidate for instrument capturing in recording and sound-reinforcement applications. Capitalizing on the success of the renowned NT5, the engineers at Rode integrated its cardioid capsule into the miniature design of the NT6.The NT6 features a detached microphone head (capsule) and body (output stage). A 10' Kevlar-reinforced cable attaches these two components and enables flexible microphone mounting and placement. The NT6 features a cardioid polar pattern which effectively minimizes noise due to off-axis ambient audio and feedback. A -10 dB Pad switch provides added headroom, allowing excessively loud signals, such as brass and percussion, to be captured without noise or distortion. A low-frequency roll-off switch eliminates low-frequency noise and rumble below 80 Hz. - Miniature Detached Capsule and Body
- A 10' Kevlar-reinforced microphone cable joins the miniature capsule and output stage. This design provides endless mounting possibilities on instruments, the ability to capture room ambiance, and more.
- Swivel Mount
- The 2-position swivel mount allows both horizontal and vertical pivoting of the capsule for accurate positioning. Also included are 2 thread adapters (1/4" to 5/8" and 1/4" to 3/8") which enable attachment to virtually any microphone stand.
- Cardioid Polar Pattern
- The cardioid polar pattern effectively suppresses off-axis audio, reducing residual noise caused by ambiance and feedback.
- Low-Frequency Roll-Off
- A low-frequency roll-off switch eliminates noise and rumble below 80 Hz.
- -10 dB Pad Switch
- A -10 dB pad switch provides added headroom for capturing signals that exhibit excessive level and transients. The pad allows these signals to be captured without noise caused by distortion and overload.
UPC: 698813000685 In the Box Rode NT6 Compact Condenser Microphone Rode NT6 Miniature Microphone 10' Kevlar Cable (Between Capsule and Body) RM5 Stand Mount for the NT5 Microphone cfusqatusssvyyzfuwafuzbqayrc 2-Position Swivel Mount 1/4" to 5/8" Thread Adapter 1/4" to 3/8" Thread Adapter WS5 Windshield ZP1 Zip Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NT6 Compact Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode NT6 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.5" / 12.70 mm | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 75 dB | | Equivalent Noise Level | 19 dB A-Weighted | | Maximum SPL | 135 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | -37 dB | | Dynamic Range | 119 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 24 V
48 V | | Length | 7.44" / 189 mm | | Diameter | 2.52" / 64 mm | | Weight | 0.85 lb / 386 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.5 x 5.0 x 2.0" |
