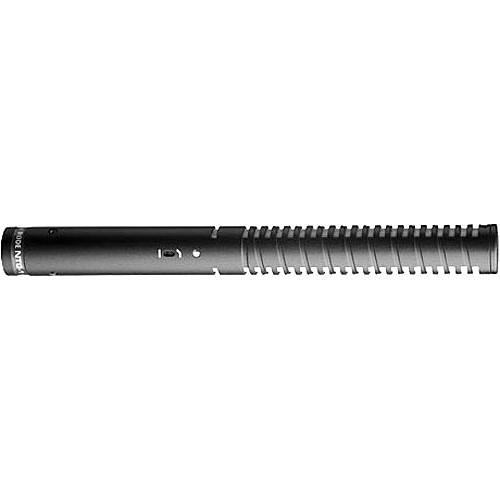

User Manual for Rode NTG1 Condenser Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Rode NTG1 Condenser Shotgun Microphone
- Product category: Shotgun Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Shotgun Microphones
|
User manual for the Rode NTG1 Condenser Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The Rode NTG1 Condenser Shotgun Microphone is designed for professional audio capturing in the field or indoors. With a history of manufacturing quality studio microphones, Rode has implemented low-noise output electronics and a wide frequency bandwidth, both of which attribute to the NTG1's broadcast sound quality.The supercardioid polar pattern and line-plus-gradient acoustic design effectively minimize audio and noise at the off-axis (sides) of the microphone, while the front of the capsule accurately reproduces incoming audio signal. The result is greater intelligibility and signal-to-noise ratio while using the NTG1 in noisy environments.The NTG1 is powered with an external +48V phantom power source; the output is a standard 3-pin XLR male connector.The microphone features a rugged, all metal, lightweight enclosure that is ideal for camera mounting yet durable enough to withstand the rigors of heavy road use. The Rode NTG1 is packaged with a microphone stand mount and windscreen. - Supercardioid Polar Pattern
- The supercardioid polar pattern and line-gradient design principle allow for a narrow pick up pattern at the front of the capsule while minimizing noise at the off-axis (side) sections.
- Lightweight Durable Construction
- The NTG1 features a lightweight metal housing that is ideal for camera mounting.
- Low Handling Noise
- Low-noise output electronics provides a high signal-to-noise ratio. The NTG1 is designed to also reduce noise caused by handling, rigid mounting hardware, loose cabling, etc.
UPC: 698813000456 In the Box Rode NTG1 Condenser Shotgun Microphone Limited 10-Year Warranty Microphone Stand Mount Windscreen Zippered Pouch User Manual PDF 591.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NTG1 Condenser Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode NTG1 Specs | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range (Typical) | 121 dB (per IEC651, IEC268-15) | | Signal-to-Noise Ratio | 76 dB (1kHz rel, 1Pa; per IEC651, IEC268-15) | | Maximum Input Sound Level | 139 dB SPL (@ 1% THD into 1 kOhm) | | Power Requirements | +48 V phantom, 44 V to 52 V | | Output Impedance | 50 Ohms | | Output Connectors | 3-pin XLR balanced | | Pad | No | | Low Frequency Roll-Off | Yes | | Dimensions (LxDiameter) | 8.54 x .87" / 217 x 22 mm | | Weight | 3.7 oz / 105 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 10.8 x 5.2 x 2.2" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
