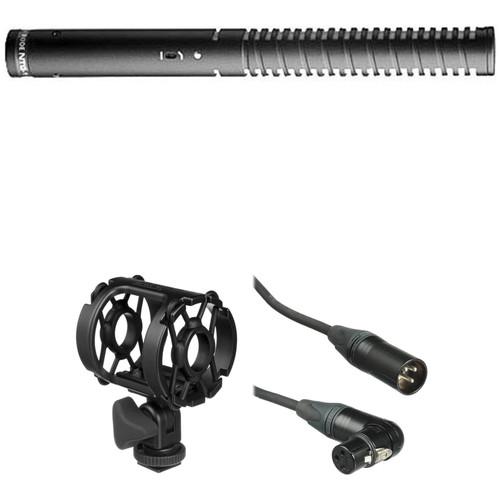

Rode NTG1 Condenser Shotgun Microphone Kit

Search your instruction manual in PDF to download

User Manual for Rode NTG1 Condenser Shotgun Microphone Kit

Click to enlarge the picture
Rode NTG1 Condenser Shotgun Microphone Kit Contents of the user manual for the Rode NTG1 Condenser Shotgun Microphone Kit
  • Product category: Shotgun Microphones Rode
  • Brand: Rode
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Rode Shotgun Microphones

User manual for the Rode NTG1 Condenser Shotgun Microphone Kit contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Rode product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!



Product description

The Rode NTG1 is a condenser shotgun microphone designed for professional audio capturing in the field or indoors. With a history of manufacturing quality studio microphones, Rode has implemented low noise output electronics and wide bandwidth, both of which attribute to the NTG1's broadcast sound quality.The super-cardioid polar pattern and line plus gradient acoustic principle effectively minimize audio and noise at the off-axis (sides) of the microphone, while the front of the capsule accurately reproduces incoming audio signal. The result is greater intelligibility and signal-to-noise ratio while using the NTG1 in noisy environments. The NTG1 is powered with an external +48 Volt phantom power source, the output is a standard 3-pin XLR male connector. The microphone features a rugged, all metal, light weight enclosure that is ideal for camera mounting yet durable enough to withstand the rigors of heavy road use. The Rode NTG1 is packaged with a microphone stand mount, an XLR cable and windscreen.
  • Rode NTG1 Condenser Shotgun Microphone The Rode NTG1 Condenser Shotgun Microphone is designed for professional audio capturing in the field or indoors. With a history of manufacturing quality studio microphones, Rode has implemented low-noise output electronics and a wide frequency bandwidth, both of which attribute to the NTG1's broadcast sound quality.The supercardioid polar pattern and line-plus-gradient acoustic design effectively minimize audio and noise at the off-axis (sides) of the microphone, while the front of the capsule accurately reproduces incoming audio signal. The result is greater intelligibility and signal-to-noise ratio while using the NTG1 in noisy environments.The NTG1 is powered with an external +48V phantom power source; the output is a standard 3-pin XLR male connector.The microphone features a rugged, all metal, lightweight enclosure that is ideal for camera mounting yet durable enough to withstand the rigors of heavy road use. The Rode NTG1 is packaged with a microphone stand mount and windscreen.
      Supercardioid Polar Pattern
    • The supercardioid polar pattern and line-gradient design principle allow for a narrow pick up pattern at the front of the capsule while minimizing noise at the off-axis (side) sections.
      Lightweight Durable Construction
    • The NTG1 features a lightweight metal housing that is ideal for camera mounting.
      Low Handling Noise
    • Low-noise output electronics provides a high signal-to-noise ratio. The NTG1 is designed to also reduce noise caused by handling, rigid mounting hardware, loose cabling, etc.
    UPC: 698813000456
  • Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
  • Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

    Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
    • 95% dual-spiral shielding offers protection from EMI and RFI noise.
    • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
    • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
    • Cotton yarn reduces electrostatic and microphonic noise.
    • All solder points shrink-wrapped for protection.
    • Neutrik XX silver connectors offer high conductivity.
    • Caged type contact and improved ground contact.
    UPC: 847628558229
In the Box
  • NTG1 Condenser Shotgun Microphone bteaywbwxvdwat
  • Limited 10-Year Warranty
  • Microphone Stand Mount
  • Windscreen
  • Zippered Pouch
  • Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
  • Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
Table of Contents




Upload User Manual

Have you got an user manual for the Rode NTG1 Condenser Shotgun Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Rode NTG1 Condenser Shotgun Microphone
    Transducer Condenser
    Polar Pattern Supercardioid
    Frequency Response 20 Hz to 20 kHz
    Dynamic Range (Typical) 121 dB (per IEC651, IEC268-15)
    Signal-to-Noise Ratio 76 dB (1kHz rel, 1Pa; per IEC651, IEC268-15)
    Maximum Input Sound Level 139 dB SPL (@ 1% THD into 1 kOhm)
    Power Requirements +48 V phantom, 44 V to 52 V
    Output Impedance 50 Ohms
    Output Connectors 3-pin XLR balanced
    Pad No
    Low Frequency Roll-Off Yes
    Dimensions (LxDiameter) 8.54 x .87" / 217 x 22 mm
    Weight 3.7 oz / 105 g
    Box Dimensions (LxWxH) 10.8 x 5.2 x 2.2"
  • Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
    Box Dimensions (LxWxH) 4.65 x 3.2 x 2.65"
  • Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
    Connector 1 3-Pin XLR Male
    Connector 2 3-Pin XLR Female Right-Angle
    Cable Length 1.5' / 0.45 m
    Shielding 95% Spiral
    Conductor Material Oxygen-Free Copper (OFC)
    Number of Conductors 2
    Wire Gauge 24 AWG
    Contact Plating Silver
    Jacket Type Polyvinyl Chloride (PVC)
    Insulation Type Polyethylene
    Box Dimensions (LxWxH) 4.8 x 3.1 x 0.9"
