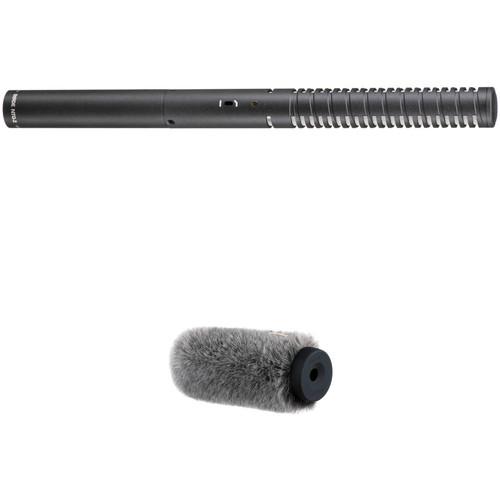

User Manual for Rode NTG2 Multi-Powered Shotgun Microphone and Auray Fur Windshield Kit Click to enlarge the picture
Contents of the user manual for the Rode NTG2 Multi-Powered Shotgun Microphone and
- Product category: Shotgun Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Shotgun Microphones
|
User manual for the Rode NTG2 Multi-Powered Shotgun Microphone and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The Rode NTG2 Multi-Powered Shotgun Microphone and Auray Fur Windshield Kit from B&H is geared for professional audio capture in outdoor environments. It is ideal for professional applications such as film, video, broadcast TV, and more.The B&H kit features a Rode NTG2 multi-powered condenser shotgun microphone that runs on battery or 48V phantom power, plus the Auray WSS-2014 professional fur windshield that reduces wind noise up to 40 dB. Also included in the kit are a mic clip, a foam windscreen, and a zip case for transporting the microphone. - Rode NTG2 Battery or Phantom Powered Condenser Shotgun Microphone The Rode NTG2 is a condenser shotgun microphone designed for professional audio capturing in the field or indoors. With a history of manufacturing quality studio microphones, Rode has implemented low-noise output electronics and wide frequency bandwidth, both of which attribute to the NTG2's broadcast sound quality.The supercardioid polar pattern and line-plus-gradient acoustic design effectively minimize audio and noise at the off-axis (sides) of the microphone, while the front of the capsule accurately reproduces incoming audio signal. The result is greater intelligibility and signal-to-noise ratio when using the NTG2 in noisy environments.The NTG2 is powered with an internal 1.5V AA battery or an external +48V phantom power source. The output is a standard 3-pin XLR male connector.The microphone features a rugged, all metal, lightweight enclosure that is ideal for camera mounting, yet durable enough to withstand the rigors of heavy road use. The Rode NTG2 is packaged with a microphone stand mount and windscreen.
- Battery Or Phantom Powered
- The Rode NTG2 can be powered with an internal 1.5V AA battery or external +48V phantom power source.
- Supercardioid Polar Pattern
- The supercardioid polar pattern and line-gradient acoustic principle allow for a narrow pick up pattern at the front of the capsule while minimizing noise at the off-axis sections.
- Lightweight Durable Construction
- The NTG2 features a lightweight metal housing that is ideal for camera mounting.
- Low Handling Noise
- Low-noise output electronics provide high signal-to-noise ratio. The NTG2 is designed to also reduce noise caused by handling, rigid mounting hardware, loose cabling, etc.
UPC: 698813000470 - Auray WSS-2014 Professional Windshield for Shotgun Microphones - (14cm) The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.
This WSS-2014 Professional Windshield has an inside depth of 14cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.
When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.
In addition to superior 360° wind protection, the WSS-2014 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Audio-Technica, Neumann, Røde, Sanken, Sennheiser and others.
The WSS-2014 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency. - Fits these and other similar sized microphones:
-
- Audio-Technica AT 835ST (BP4029), AT 897
- Røde NTG-1, NTG-2, VideoMic
UPC: 847628552692 In the Box - NTG2 Battery or Phantom Powered Condenser Shotgun Microphone uteybtxw
- Microphone Stand Mount
- Windscreen
- Zippered Pouch
- Limited 10-Year Warranty
- Auray - WSS-2014 Professional Windshield for Shotgun Microphones - (14cm)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NTG2 Multi-Powered Shotgun Microphone and Auray Fur Windshield Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode NTG2 Battery or Phantom Powered Condenser Shotgun Microphone
| Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -36.0 dB re 1 Volt/Pascal (15.00 mV @ 94 dB SPL) +/- 2 dB @ 1 kHz | | Signal-to-Noise Ratio | 76 dB (1 kHz rel, 1Pa; per IEC651, IEC268-15) | | Maximum Input Sound Level | 131 dB SPL (@ 1 kHz, 1% THD into 1 kOhms load) | | Power Requirements | 1.5 V AA battery or +48 V phantom power | | Output Impedance | 250 Ohms | | Output Connectors | 3-pin XLR balanced | | Pad | No | | Low Frequency Roll-Off | Selectable HPF @ 80 Hz/12 dB octave | | Dimensions | 10.94 x 0.87" / 278 x 22 mm (Length x Diameter) | | Weight | 5 oz / 161 g | | | | Box Dimensions (LxWxH) | 13.15 x 6.05 x 2.15" | - Auray WSS-2014 Professional Windshield for Shotgun Microphones - (14cm)
| Compatible Mic Diameter | 0.75 to 0.9" / 19 to 23 mm | | Inner Depth | 5.5" / 14 cm | | Material | Foam | | | | Box Dimensions (LxWxH) | 11.4 x 4.1 x 3.2" |
