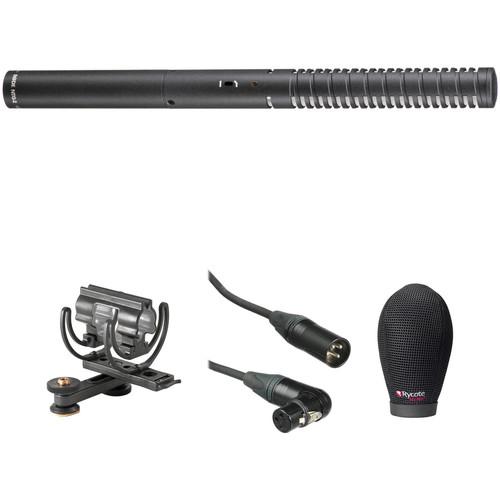

User Manual for Rode NTG2 Shotgun Mic with Hot Shoe Adapter & Rycote Super-Softie Wind Shield Kit Click to enlarge the picture
Contents of the user manual for the Rode NTG2 Shotgun Mic with Hot
- Product category: Shotgun Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Shotgun Microphones
|
User manual for the Rode NTG2 Shotgun Mic with Hot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The Rode NTG2 Shotgun Mic with Hot Shoe Adapter & Rycote Super-Softie Wind Shield Kit from comes with everything you need to start making professional outdoor recordings using your video camera with hot shoe mount. The kit comes with the Rode NTG2 shotgun mic, InVision video hot shoe adapter, 1.5' XLR M to Angled XLR F mic cable and the 15cm Rycote Super-Softie windshield. - Rode NTG2 Battery or Phantom Powered Condenser Shotgun Microphone The Rode NTG2 is a condenser shotgun microphone designed for professional audio capturing in the field or indoors. With a history of manufacturing quality studio microphones, Rode has implemented low-noise output electronics and wide frequency bandwidth, both of which attribute to the NTG2's broadcast sound quality.The supercardioid polar pattern and line-plus-gradient acoustic design effectively minimize audio and noise at the off-axis (sides) of the microphone, while the front of the capsule accurately reproduces incoming audio signal. The result is greater intelligibility and signal-to-noise ratio when using the NTG2 in noisy environments.The NTG2 is powered with an internal 1.5V AA battery or an external +48V phantom power source. The output is a standard 3-pin XLR male connector.The microphone features a rugged, all metal, lightweight enclosure that is ideal for camera mounting, yet durable enough to withstand the rigors of heavy road use. The Rode NTG2 is packaged with a microphone stand mount and windscreen.
- Battery Or Phantom Powered
- The Rode NTG2 can be powered with an internal 1.5V AA battery or external +48V phantom power source.
- Supercardioid Polar Pattern
- The supercardioid polar pattern and line-gradient acoustic principle allow for a narrow pick up pattern at the front of the capsule while minimizing noise at the off-axis sections.
- Lightweight Durable Construction
- The NTG2 features a lightweight metal housing that is ideal for camera mounting.
- Low Handling Noise
- Low-noise output electronics provide high signal-to-noise ratio. The NTG2 is designed to also reduce noise caused by handling, rigid mounting hardware, loose cabling, etc.
UPC: 698813000470 - Rycote InVision Video Hot Shoe Microphone Suspension - Lyre Shockmount The InVision Video Hot Shoe Microphone Suspension from Rycote slides into the hot shoe mount of most commercial camcorders to hold microphones with diameters from 19-25mm, while protecting against camera motor noise and vibrations. It is designed to enable camcorder users and videographers to capture the best possible sound for their productions using external camera-mounted microphones.The InVision Video uses the patented Lyre Suspension webs with a molded grip design to prevent your mic from slipping or twisting. For ease in finding the right mounting position, the InVision Video rotates freely 360° on a slotted 4" (100mm) mounting bar. The cradle can slide freely on this slotted bar to keep your mic out of the shot.
- 19 to 25mm Mounting Cradle
- The cradle included with this system accommodates microphone diameters measuring between 19 to 25mm. The interior is treated with a soft-grip surface for a perfect, non-slip fitting
- Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.
Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise.
- Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
- 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
- Cotton yarn reduces electrostatic and microphonic noise.
- All solder points shrink-wrapped for protection.
- Neutrik XX silver connectors offer high conductivity.
- Caged type contact and improved ground contact.
UPC: 847628558229 - Rycote 15cm Super-Softie Wind Shield for Shotgun Mics The Rycote 15cm Super-Softie Wind Shield for Shotgun Mics features an aerodynamic shape and surface structure made from the company's 3D-Tex material, which allows for attenuation of wind noise with acoustic transparency. It is suitable for a variety of sound recording applications including video, ENG, and more.
The 15cm Super-Softie has no rigid internal structure, thus it causes virtually no polar pattern distortion. Its robust design has been engineered for use in challenging environments, and if it becomes rain-soaked, it can be squeezed out and shaken dry quickly. Also, if it becomes coated with dust it can be rinsed quickly without affecting its performance. - Fits these and similar sized mics:
-
- Audio-Technica AT 835ST (BP4029)
- Audio-Technica AT 897
- Neumann KMR 81i
- Neumann KMR-81D
- RODE NTG-1
- RODE NTG-2
- RODE NTG4
- RODE NTG4+
- Sanken CS 1
- Sanken CS 2
- Schoeps Super CMIT
- Sennheiser MKE 600
- Shure VP82
- Shure VP89S
- Schoeps CMIT 5U
In the Box - NTG2 Battery or Phantom Powered Condenser Shotgun Microphone feqquyxvdywaesyusdebrwsw
- Microphone Stand Mount
- Windscreen
- Zippered Pouch
- Limited 10-Year Warranty
- Rycote - InVision Video Hot Shoe Microphone Suspension - Lyre Shockmount
- Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
- Rycote - 15cm Super-Softie Wind Shield for Shotgun Mics
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NTG2 Shotgun Mic with Hot Shoe Adapter & Rycote Super-Softie Wind Shield Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode NTG2 Battery or Phantom Powered Condenser Shotgun Microphone
| Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -36.0 dB re 1 Volt/Pascal (15.00 mV @ 94 dB SPL) +/- 2 dB @ 1 kHz | | Signal-to-Noise Ratio | 76 dB (1 kHz rel, 1Pa; per IEC651, IEC268-15) | | Maximum Input Sound Level | 131 dB SPL (@ 1 kHz, 1% THD into 1 kOhms load) | | Power Requirements | 1.5 V AA battery or +48 V phantom power | | Output Impedance | 250 Ohms | | Output Connectors | 3-pin XLR balanced | | Pad | No | | Low Frequency Roll-Off | Selectable HPF @ 80 Hz/12 dB octave | | Dimensions | 10.94 x 0.87" / 278 x 22 mm (Length x Diameter) | | Weight | 5 oz / 161 g | | | | Box Dimensions (LxWxH) | 13.15 x 6.05 x 2.15" | - Rycote InVision Video Hot Shoe Microphone Suspension - Lyre Shockmount
| Mounting Thread | Hot shoe | | Mounting Options | Diameter: 0.75 - 1" (19 - 25mm)
Length: 2 - 12" (50 - 300mm) | | Length | Mic Grip: 5.5" (65mm) | | Weight | 3 oz (84g) | | | | Box Dimensions (LxWxH) | 5.1 x 3.1 x 2.9" | - Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female Right-Angle | | Cable Length | 1.5' / 0.45 m | | Shielding | 95% Spiral | | Conductor Material | Oxygen-Free Copper (OFC) | | Number of Conductors | 2 | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | | | Box Dimensions (LxWxH) | 4.8 x 3.1 x 0.9" | - Rycote 15cm Super-Softie Wind Shield for Shotgun Mics
| Compatible Mic Diameter | 0.748 to 0.87" / 19 to 22 mm | | Inner Depth | 5" / 12.7 cm | | Outer Diameter | 2.8 to 3.9" / 70 to 100 mm | | Length | 8.3" / 210 mm | | | | Box Dimensions (LxWxH) | 11.181 x 4.488 x 4.409" |
