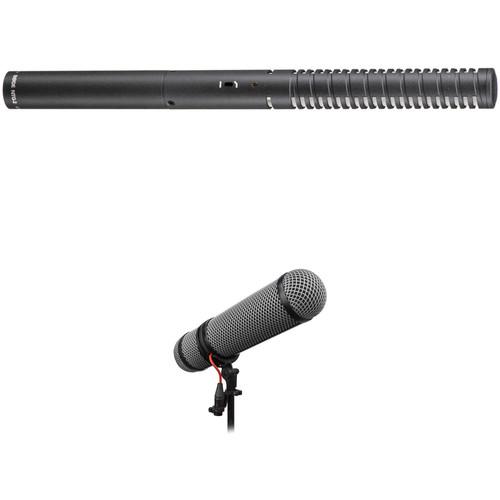

User Manual for Rode NTG2 Shotgun Microphone Kit with Rycote Super-Blimp Click to enlarge the picture
Contents of the user manual for the Rode NTG2 Shotgun Microphone Kit with
- Product category: Shotgun Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Shotgun Microphones
|
User manual for the Rode NTG2 Shotgun Microphone Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description This B&H Kit combines the Rode NTG2 Shotgun Microphone with a Rycote Super-Blimp Windshield to create a professional film and video audio recording system with protection from shock, vibration, and extreme wind noise. The NTG2 is a condenser shotgun microphone designed for professional audio capturing in the field or indoors. The supercardioid polar pattern and line plus gradient acoustic principle effectively minimize audio and noise at the off-axis (sides) of the microphone, while the front of the capsule accurately reproduces incoming audio signal. The result is greater intelligibility and signal-to-noise ratio when using the NTG2 in noisy environments. The microphone features a rugged, all metal, lightweight enclosure that is ideal for camera mounting yet durable enough to withstand the rigors of heavy road use.
The Super-Blimp NTG is a complete windshield and shock-mounting system for the Rode NTG2 microphone. The kit provides patented Lyre Technology and a broadcast industry basket to protect against shocks, vibrations, and wind noise—all with acoustic transparency. A Windjammer, designed to slip over the basket, protects against extreme wind noise. A Rycote 90° Shortie XLR connector is situated inside the basket, complete with an integral RF shield to protect against the kind of dirty audio attributed to radio interference. Furthermore, a boom adapter and pistol grip handle are included with the unit. - Rode NTG2 Battery or Phantom Powered Condenser Shotgun Microphone The Rode NTG2 is a condenser shotgun microphone designed for professional audio capturing in the field or indoors. With a history of manufacturing quality studio microphones, Rode has implemented low-noise output electronics and wide frequency bandwidth, both of which attribute to the NTG2's broadcast sound quality.The supercardioid polar pattern and line-plus-gradient acoustic design effectively minimize audio and noise at the off-axis (sides) of the microphone, while the front of the capsule accurately reproduces incoming audio signal. The result is greater intelligibility and signal-to-noise ratio when using the NTG2 in noisy environments.The NTG2 is powered with an internal 1.5V AA battery or an external +48V phantom power source. The output is a standard 3-pin XLR male connector.The microphone features a rugged, all metal, lightweight enclosure that is ideal for camera mounting, yet durable enough to withstand the rigors of heavy road use. The Rode NTG2 is packaged with a microphone stand mount and windscreen.
- Battery Or Phantom Powered
- The Rode NTG2 can be powered with an internal 1.5V AA battery or external +48V phantom power source.
- Supercardioid Polar Pattern
- The supercardioid polar pattern and line-gradient acoustic principle allow for a narrow pick up pattern at the front of the capsule while minimizing noise at the off-axis sections.
- Lightweight Durable Construction
- The NTG2 features a lightweight metal housing that is ideal for camera mounting.
- Low Handling Noise
- Low-noise output electronics provide high signal-to-noise ratio. The NTG2 is designed to also reduce noise caused by handling, rigid mounting hardware, loose cabling, etc.
UPC: 698813000470 - Rycote Super-Blimp NTG for Shotgun Microphones The Super-Blimp NTG from Rycote is a complete windshield and shock-mounting system for the Rode NTG series and similar shotgun microphones. The kit provides patented Lyre Technology and a broadcast industry basket to protect against shocks, vibrations, and wind noise—all with acoustic transparency. A Windjammer, designed to slip over the basket, protects against extreme wind noise.
A Rycote 90° Shortie XLR connector is situated inside the basket, complete with an integral RF shield to protect against the kind of dirty audio attributed to radio interference. Furthermore, a boom adapter and pistol grip handle are included with the unit. Releasing the microphone from the basket is easy thanks to its quick-release pods. - Fits Shotgun Microphones Such As:
-
- Rode: NTG1, NTG2, NTG3, NTG4, NTG4+
- DPA 4017B
- Sanken CS-2
- Sennheiser: MKE600, MKH416
In the Box - NTG2 Battery or Phantom Powered Condenser Shotgun Microphone srfestrtvybetfce
- Microphone Stand Mount
- Windscreen
- Zippered Pouch
- Limited 10-Year Warranty
- Rycote - Super-Blimp NTG for Shotgun Microphones
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NTG2 Shotgun Microphone Kit with Rycote Super-Blimp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode NTG2 Battery or Phantom Powered Condenser Shotgun Microphone
| Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -36.0 dB re 1 Volt/Pascal (15.00 mV @ 94 dB SPL) +/- 2 dB @ 1 kHz | | Signal-to-Noise Ratio | 76 dB (1 kHz rel, 1Pa; per IEC651, IEC268-15) | | Maximum Input Sound Level | 131 dB SPL (@ 1 kHz, 1% THD into 1 kOhms load) | | Power Requirements | 1.5 V AA battery or +48 V phantom power | | Output Impedance | 250 Ohms | | Output Connectors | 3-pin XLR balanced | | Pad | No | | Low Frequency Roll-Off | Selectable HPF @ 80 Hz/12 dB octave | | Dimensions | 10.94 x 0.87" / 278 x 22 mm (Length x Diameter) | | Weight | 5 oz / 161 g | | | | Box Dimensions (LxWxH) | 13.15 x 6.05 x 2.15" | - Rycote Super-Blimp NTG for Shotgun Microphones
| Outer Diameter | 4" / 10.2 cm | | Length | 16" / 40.7 cm | | | | Box Dimensions (LxWxH) | 19.1 x 8.1 x 4.5" |
