Product description

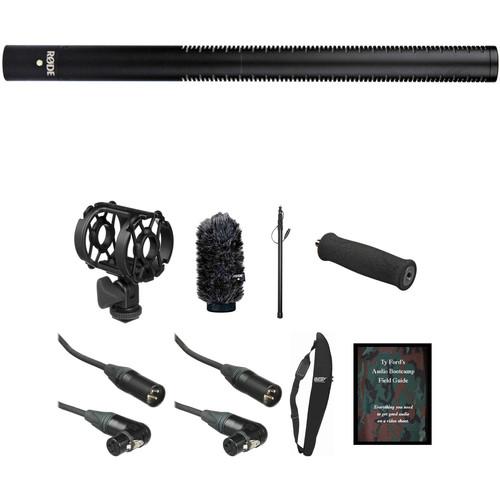

• Rode NTG3 Precision RF-Biased Shotgun Microphone (Black) The black Rode NTG3 Shotgun Microphone is a professional shotgun microphone that delivers a few unique qualities in order to meet the demands of today's broadcast audio engineers and boom operators. The microphone features radio-frequency (RF) interference properties that avoid annoying noise and interference caused by nearby RF sources such as radio antennas, WiFi networks, internet devices, power lines, etc. The microphone is also built to withstand the rigors of adverse weather conditions. Of course special attention is paid to the accurate, directional pickup characteristics and its frequency response, sensitivity and low noise floor, which result in pristine audio quality. The NTG3 shotgun microphone is an ideal solution for outdoor ENG and studio applications.
  RF Rejection
  • The microphone features radio-frequency (RF) interference properties that avoid annoying noise and interference caused by nearby RF sources such as radio antennas, WiFi networks, internet devices, power lines, etc.
  Withstands Adverse Conditions
  • The microphone is constructed to withstand adverse weather conditions for more stable use outdoors.
  Supercardioid Line+Gradient Pickup
  • The supercardioid, shotgun characteristics provide excellent off-axis rejection, focused pickup and longer range.
  UPC: 698813002696
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Rode WS7 Deluxe Windshield for the NTG3 Microphone The Rode WS7 Deluxe Windshield provides excellent noise protection against high wind and adverse weather conditions. The slip-on design of the WS7 features dimensions that accommodate the Rode NTG3 shotgun microphone, as well as any shotgun or stereo mic with a length of 7.3" (186.5mm) and diameter of 0.8" (20mm). UPC: 698813001293
• K-Tek KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable The K-Tek KE-89CC Avalon Series Aluminum Boompole provides a moderately priced, lightweight boompole solution for ENG, EFP, and other field recording applications. Its sturdy aluminum design is tough enough to endure the rigors of road use, while remaining lightweight and travel-worthy. This pole features an internal coiled cable and an XLR connection at the base of the pole. A total of four aluminum sections telescope between 2' 5" to 7' 6" and will easily store in any standard equipment case. The captive-collet coupling system locks each section in place for even further reliability.
  • Internal coiled XLR cable and connection at the base
  • The KE-89CC features a bottom-mounted three-pin XLR connection
  • Designed to fit in any standard equipment case, for ENG, EFP, and DV location production work
  • Jam-resistant collar coupling
  • Unique pole-top design with cable retention slots and replaceable stainless steel mounting stud
  UPC: 791090332033
• Auray Universal Microphone Pistol Grip The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

  In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole. UPC: 847628562738
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558298
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229
• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
• Ty Ford Audio & Video Book: Audio Bootcamp Field Guide 4th Edition by Ty Ford Audio Bootcamp Field Guide - After answering thousands of online questions from videographers about how to capture better sound on video shoots, studio and location audio pro Ty Ford wrote "Ty Ford's Audio Bootcamp Field Guide." Readers are initially surprised by how small the book is, but find that there are no wasted words and that all of them make sense to the average human; no electronic formulas to memorize, no discussions about wavelengths, calculus, trigonometry or physics required.Boom, lav and handheld mics are discussed. A section on mic patterns and their strengths and weaknesses help you choose which mic is best for a particular shot. The Mixer section explains why a mixer can make your audio sound better and how to connect everything to help you get better production sound rather than spending time in post trying to fix problem audio. A Q&A chapter takes you through the thought processes required to make good decisions about how to get the best audio you can, regardless of the setup.The Good Gear Guide is an up to date list of solid location audio gear. The Equipment Rental Guide is a list of qualified professional equipment rental houses in the US, in case you need to rent audio gear you don't have. Heavy-duty plastic covers insure the book will survive in a run bag. Spiral binding allows the book to remain open to the page you want without having to hold it. The Anti-Panic Checklist on the back cover helps you through those anxious moments when you know some thing's wrong, but you're not sure where to look. In a companion online video tutorial, Ty Ford demonstrates the differences in ear-worn, lav, supercardioid and shotgun mics. You hear what the mics sound like as they are being used with an on-going narrative that explains what you're hearing and which mics work best in different situations.

  Topics Covered

  • Microphones: Lavs, hypers, shotguns
  • Application Notes: When to use each microphone and why
  • Mixers: Why a mixer? How to connect and calibrate
  • Good Gear List: Future-proof your audio with the best gear
  • Q&A, FAQ and Index: Practical experience at your fingertips
  • Microphone & Gear Rentals: A list of rental house websites
  • Anti-Panic Audio Checklist

• NTG3 Precision RF-Biased Shotgun Microphone (Black) tavaerrf
• Water Resistant Aluminum Storage Case
• Windshield
• Zip Pouch
• Microphone Clip
• Limited 10-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

• WS7 Deluxe Windshield for the NTG3 Microphone

• K-Tek - KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable

• Auray - Universal Microphone Pistol Grip

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

• Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

• Ty Ford Audio & Video - Book: Audio Bootcamp Field Guide 4th Edition by Ty Ford

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode NTG3 Precision RF-Biased Shotgun Microphone (Black)

  Transducer	Condenser
  Polar Pattern	Line-gradient supercardioid
  Frequency Response	40 Hz to 20 kHz
  Dynamic Range (Typical)	117 dB
  Signal-to-Noise Ratio	81 dB SPL (A-weighted)
  Maximum Input Sound Level	130 dB
  Power Requirements	48V Phantom power
  Nominal Impedance	25Ω
  Output Connectors	3-pin XLR
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions (L x Diam)	10 x 0.74" (255 x 19 mm)
  Weight	5.74 oz (163 g)

  Box Dimensions (LxWxH)	13.1 x 6.7 x 3.2"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Rode WS7 Deluxe Windshield for the NTG3 Microphone

  Compatible Mic Diameter	0.7 to 0.8" / 19 to 20 mm
  Inner Depth	7.3" / 186.5 mm
  Material	Faux Fur
  Weight	1.9 oz / 53 g

  Box Dimensions (LxWxH)	12.8 x 5.9 x 3.2"

• K-Tek KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable

  Material	Aluminum
  Sections	4
  Load Capacity	Not specified by manufacturer
  Length	2' 5" to 7' 6" (0.7 to 2.3 m)
  Weight	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	33.0 x 3.0 x 2.8"

• Auray Universal Microphone Pistol Grip

  Box Dimensions (LxWxH)	6.1 x 2.8 x 1.7"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	7.0 x 3.2 x 2.6"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"

• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

  Material	Neoprene
  Type of Closure	Zipper with protective lining
  Dimensions (LxWxD)	36 x 6 x 2" (91.4 x 15.5 x 5.5 cm)
  Weight	15 oz (454 g)

  Box Dimensions (LxWxH)	39.0 x 7.8 x 1.0"

• Ty Ford Audio & Video Book: Audio Bootcamp Field Guide 4th Edition by Ty Ford

  Subject	Location Audio Recording
  Author	Ty Ford
  Edition	4th
  Hard/Soft Cover	Softcover
  Pages	Not Specified by Publisher
  Dimensions	Not Specified by Publisher
  Illustrations	Yes
  ISBN Number	978-1-60643-676-952495
  Publisher	Ty Ford
  Date Published	2008

  Box Dimensions (LxWxH)	5.4 x 4.2 x 0.4"
