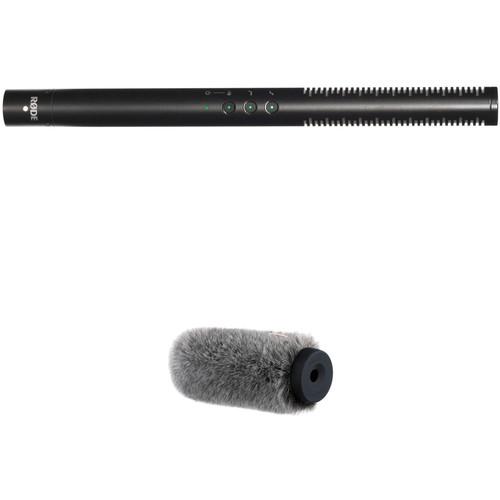

User Manual for Rode NTG4 Directional Condenser Microphone and Auray Fur Windshield Kit

• Product category: Shotgun Microphones Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Shotgun Microphones

Product description

• Rode NTG4+ Shotgun Microphone with Digital Switches and Built-In Rechargeable Battery
  • Quick Look: Rode NTG4 & NTG4+
  • Introducing the NTG4 and NTG4+ Shotgun Microphones
  The Rode NTG4+ Shotgun Microphone with Digital Switches and Built-In Rechargeable Battery is designed for ENG, filmmaking, field recording, sound design, and broadcast applications. The microphone builds upon the success of the company's NTG1 and NTG2 microphones with an updated capsule to deliver broadcast quality sound and digital switching options for versatile field operation.

  Designed to be mounted on a boom, a handheld pistol grip, or atop a compact camera for run and gun style filmmaking, the microphone features a super-cardioid directional pickup pattern, a frequency range of 20 to 20,000 Hz, a sensitivity of -32 dB re 1 V/Pa, a dynamic range of 119 dB, a signal to noise-ratio of 78 dB SPL, and a maximum SPL of 135 dB from 48V phantom power (4.8 mA current draw) or the internal rechargeable lithium battery.

  Along the body of the microphone is a power button with LED indicator as well as three digital switching buttons with LED indicators.

  The first button provides a -10 dB pad on the input of the microphone to allow the recording of loud sounds without clipping.

  The middle button turns on a 75 Hz high pass filter which is useful for reducing low frequency and infrasonic rumble from HVAC systems indoors or street traffic outdoors from over-powering the recording.

  The third button is a high frequency boost. The value of the high frequency boost is in restoring some of the high frequency content that is often lost when a blimp or furry windshield is placed over the microphone. An added benefit is that the high frequency boost switch can help improve the intelligibility of recorded speech, especially useful for filmmaking and broadcast applications.

  The NTG4+ includes a built-in rechargeable lithium-ion battery. The battery supplies the microphone with 150 hours of phantom power, which makes the NTG4+ especially desirable for run and gun mounting atop a DSLR or mirrorless camera system that would otherwise be unable to directly provide phantom power to the microphone. It takes approximately two hours to recharge the battery to full capacity using a standard Micro USB cable connected to a portable USB power pack or a USB wall adapter that are commonly used for charging most smartphones.

  The microphone comes with an RM5 microphone clip, a foam windshield and a carrying pouch. The microphone also comes with a Micro USB cable.
  -10 dB Pad
  • Attenuates the microphone input to allow for the recording of loud sounds without clipping
  75 Hz High Pass Filter
  • Reduces low frequency and infrasonic rumble from HVAC systems indoors or street traffic outdoors from over-powering the recording
  High Frequency Boost
  • Restores some of the high frequency content that is often lost when a blimp or furry windshield is placed over the microphone and improves the intelligibility of recorded speech
  Setting Memory
  • Recalls the digital switch settings when the microphone is powered on and off
  UPC: 698813004164
• Auray WSS-2014 Professional Windshield for Shotgun Microphones - (14cm)
  • Quick Look: Rode NTG4 & NTG4+
  • Introducing the NTG4 and NTG4+ Shotgun Microphones
  The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.

  This WSS-2014 Professional Windshield has an inside depth of 14cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.

  When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.

  In addition to superior 360° wind protection, the WSS-2014 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Audio-Technica, Neumann, Røde, Sanken, Sennheiser and others.

  The WSS-2014 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency.
  Fits these and other similar sized microphones:
  • Audio-Technica AT 835ST (BP4029), AT 897
  • Neumann KMR 81i
  • Panasonic WM-L30
  • Røde NTG-1, NTG-2, VideoMic
  • Sanken CS 1, CS 2
  • Sennheiser MKH-60
  • Sony DXC-637, DXC-D30P
  UPC: 847628552692

• NTG4+ Shotgun Microphone with Digital Switches and Built-In Rechargeable Battery uteybtxw
• RM5 Microphone Clip
• Foam Windshield
• Carrying Pouch
• Micro USB Recharging Cable
• Limited 10-Year Warranty with Online Registration

• Auray - WSS-2014 Professional Windshield for Shotgun Microphones - (14cm)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode NTG4+ Shotgun Microphone with Digital Switches and Built-In Rechargeable Battery

  Acoustic Principle	Line gradient
  Directional Pattern	Super-cardioid
  Frequency Range	20 to 20,000 Hz (selectable HPF at 75 Hz)
  Sensitivity	-32 dB re 1V/Pa (25 mV at 94 dB SPL) ± 2 dB at 1,000 Hz.
  Output Impedance	200 ohm
  Equivalent Noise	16 dBA SPL (per IEC651)
  Maximum Output	7 dBu (at 1 kHz, 1% THD into 1 kOhm)
  Dynamic Range	119 dB (per IEC651)
  Maximum SPL	135 dB
  Signal to Noise Ratio	78 dB SPL (per IEC651)
  Battery	150 hours of phantom power on a 2-hour charge
  Output Connection	3-pin XLR, balanced output between Pin 2 (+), Pin 3 (-) and Pin 1 (ground)
  Dimensions	0.87 x 10.94" (22.00 x 278.00 mm)
  Weight	6.21 oz (176.00 g)

  Box Dimensions (LxWxH)	13.2 x 5.2 x 2.7"

• Auray WSS-2014 Professional Windshield for Shotgun Microphones - (14cm)

  Compatible Mic Diameter	0.75 to 0.9" / 19 to 23 mm
  Inner Depth	5.5" / 14 cm
  Material	Foam

  Box Dimensions (LxWxH)	11.4 x 4.1 x 3.2"
