Rode NTG4 Shotgun Microphone with Shockmount

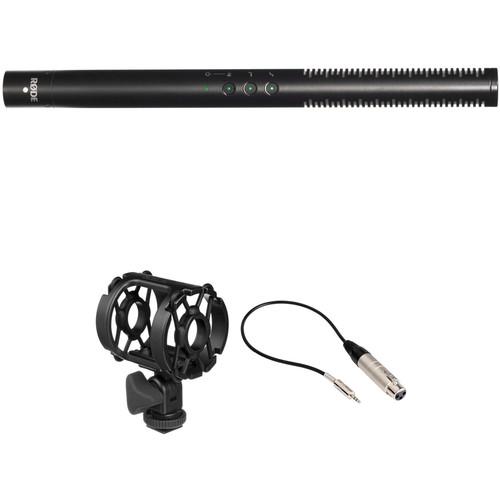

User Manual for Rode NTG4 Shotgun Microphone with Shockmount and XLR-3F to 3.5mm TRS Cable Cable Kit

• Product category: Shotgun Microphones Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Shotgun Microphones

Product description

• Rode NTG4+ Shotgun Microphone with Digital Switches and Built-In Rechargeable Battery
  • Quick Look: Rode NTG4 & NTG4+
  • Introducing the NTG4 and NTG4+ Shotgun Microphones
  The Rode NTG4+ Shotgun Microphone with Digital Switches and Built-In Rechargeable Battery is designed for ENG, filmmaking, field recording, sound design, and broadcast applications. The microphone builds upon the success of the company's NTG1 and NTG2 microphones with an updated capsule to deliver broadcast quality sound and digital switching options for versatile field operation.

  Designed to be mounted on a boom, a handheld pistol grip, or atop a compact camera for run and gun style filmmaking, the microphone features a super-cardioid directional pickup pattern, a frequency range of 20 to 20,000 Hz, a sensitivity of -32 dB re 1 V/Pa, a dynamic range of 119 dB, a signal to noise-ratio of 78 dB SPL, and a maximum SPL of 135 dB from 48V phantom power (4.8 mA current draw) or the internal rechargeable lithium battery.

  Along the body of the microphone is a power button with LED indicator as well as three digital switching buttons with LED indicators.

  The first button provides a -10 dB pad on the input of the microphone to allow the recording of loud sounds without clipping.

  The middle button turns on a 75 Hz high pass filter which is useful for reducing low frequency and infrasonic rumble from HVAC systems indoors or street traffic outdoors from over-powering the recording.

  The third button is a high frequency boost. The value of the high frequency boost is in restoring some of the high frequency content that is often lost when a blimp or furry windshield is placed over the microphone. An added benefit is that the high frequency boost switch can help improve the intelligibility of recorded speech, especially useful for filmmaking and broadcast applications.

  The NTG4+ includes a built-in rechargeable lithium-ion battery. The battery supplies the microphone with 150 hours of phantom power, which makes the NTG4+ especially desirable for run and gun mounting atop a DSLR or mirrorless camera system that would otherwise be unable to directly provide phantom power to the microphone. It takes approximately two hours to recharge the battery to full capacity using a standard Micro USB cable connected to a portable USB power pack or a USB wall adapter that are commonly used for charging most smartphones.

  The microphone comes with an RM5 microphone clip, a foam windshield and a carrying pouch. The microphone also comes with a Micro USB cable.
  -10 dB Pad
  • Attenuates the microphone input to allow for the recording of loud sounds without clipping
  75 Hz High Pass Filter
  • Reduces low frequency and infrasonic rumble from HVAC systems indoors or street traffic outdoors from over-powering the recording
  High Frequency Boost
  • Restores some of the high frequency content that is often lost when a blimp or furry windshield is placed over the microphone and improves the intelligibility of recorded speech
  Setting Memory
  • Recalls the digital switch settings when the microphone is powered on and off
  UPC: 698813004164
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
  • Quick Look: Rode NTG4 & NTG4+
  • Introducing the NTG4 and NTG4+ Shotgun Microphones
  The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Kopul LMT100 - Low to High Impedance Matching Transformer (1.5')
  • Quick Look: Rode NTG4 & NTG4+
  • Introducing the NTG4 and NTG4+ Shotgun Microphones
  The Kopul LMT100 cable simply enables a microphone or mic-level device to be input into a high-impedance 3.5mm mini input found on DSLRs, camcorders, and other devices. It is 1.5' long and has a 3-pin XLR female connector on one end and a standard 3.5mm mini plug on the other. It is designed for use with mono microphones.
  • Matches low-impedance XLR output to high-impedance 1/8" (3.5mm) audio input
  • Ideal for plugging professional XLR microphones into DSLRs, camcorders, and other devices with a 1/8˝ microphone input
  • For use with battery-powered and dynamic microphones
  • Designed for a mono source, but will split the signal to both channels of a stereo device
  UPC: 847628562615

• NTG4+ Shotgun Microphone with Digital Switches and Built-In Rechargeable Battery efecqsfcrstdztwzavzatcwycvsrdssccuwbcq
• RM5 Microphone Clip
• Foam Windshield
• Carrying Pouch
• Micro USB Recharging Cable
• Limited 10-Year Warranty with Online Registration

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

• Kopul - LMT100 - Low to High Impedance Matching Transformer (1.5')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode NTG4+ Shotgun Microphone with Digital Switches and Built-In Rechargeable Battery

  Acoustic Principle	Line gradient
  Directional Pattern	Super-cardioid
  Frequency Range	20 to 20,000 Hz (selectable HPF at 75 Hz)
  Sensitivity	-32 dB re 1V/Pa (25 mV at 94 dB SPL) ± 2 dB at 1,000 Hz.
  Output Impedance	200 ohm
  Equivalent Noise	16 dBA SPL (per IEC651)
  Maximum Output	7 dBu (at 1 kHz, 1% THD into 1 kOhm)
  Dynamic Range	119 dB (per IEC651)
  Maximum SPL	135 dB
  Signal to Noise Ratio	78 dB SPL (per IEC651)
  Battery	150 hours of phantom power on a 2-hour charge
  Output Connection	3-pin XLR, balanced output between Pin 2 (+), Pin 3 (-) and Pin 1 (ground)
  Dimensions	0.87 x 10.94" (22.00 x 278.00 mm)
  Weight	6.21 oz (176.00 g)

  Box Dimensions (LxWxH)	13.2 x 5.2 x 2.7"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Kopul LMT100 - Low to High Impedance Matching Transformer (1.5')

  Connectors

  XLR to 1/8" (3.5 mm)

  Box Dimensions (LxWxH)	4.1 x 0.6 x 0.1"
