User Manual for Rode NTG4 Shotgun Microphone with Shockmount and XLR-3M to Angled XLR-3F Cable Cable Kit Click to enlarge the picture
Contents of the user manual for the Rode NTG4 Shotgun Microphone with Shockmount
- Product category: Shotgun Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Shotgun Microphones
|
User manual for the Rode NTG4 Shotgun Microphone with Shockmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|

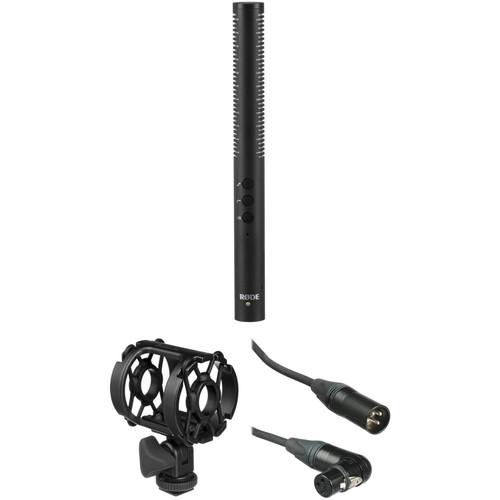

Product description Designed for professional sound recording in film making and videography applications, this Kit features a Rode NTG4 Shotgun Microphone, a shockmount for reducing the amount of handling noise that influences the microphone when mounted on a camera or boom pole, as well as an XLR-3M to angled XLR-3F microphone cable. The cable allows you to connect the microphone to a camera or field recorder that features an XLR-3F input.. - Rode NTG4 Shotgun Microphone with Digital Switches
- Quick Look: Rode NTG4 & NTG4+
- Introducing the NTG4 and NTG4+ Shotgun Microphones
The Rode NTG4 Shotgun Microphone with Digital Switches is designed for ENG, filmmaking, field recording, sound design, and broadcast applications. The microphone builds upon the success of the company's NTG1 and NTG2 microphones with an updated capsule to deliver broadcast quality sound and digital switching options for versatile field operation.
Designed to be mounted on a boom, a handheld pistol grip, or atop a compact camera for run and gun style filmmaking, the microphone features a super-cardioid directional pickup pattern, a frequency range of 20 to 20,000 Hz, a sensitivity of -32 dB re 1 V/Pa, a dynamic range of 119 dB, a signal to noise-ratio of 78 dB SPL, and a maximum SPL of 135 dB from 48V, 24V, or12V phantom power (4.5 mA current draw).
Along the body of the microphone is a power button with LED indicator as well as three digital switching buttons with LED indicators.
The first button provides a -10 dB pad on the input of the microphone to allow the recording of loud sounds without clipping.
The middle button turns on a 75 Hz high pass filter which is useful for reducing low frequency and infrasonic rumble from HVAC systems indoors or street traffic outdoors from over-powering the recording.
The third button is a high frequency boost. The value of the high frequency boost is in restoring some of the high frequency content that is often lost when a blimp or furry windshield is placed over the microphone. An added benefit is that the high frequency boost switch can help improve the intelligibility of recorded speech, especially useful for filmmaking and broadcast applications.
The microphone comes with an RM5 microphone clip, a foam windshield and a carrying pouch. - -10 dB Pad
- Attenuates the microphone input to allow for the recording of loud sounds without clipping
- 75 Hz High Pass Filter
- Reduces low frequency and infrasonic rumble from HVAC systems indoors or street traffic outdoors from over-powering the recording
- High Frequency Boost
- Restores some of the high frequency content that is often lost when a blimp or furry windshield is placed over the microphone and improves the intelligibility of recorded speech
- Setting Memory
- Recalls the digital switch settings when the microphone is powered on and off
UPC: 698813004140 - Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
- Quick Look: Rode NTG4 & NTG4+
- Introducing the NTG4 and NTG4+ Shotgun Microphones
The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776 - Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
- Quick Look: Rode NTG4 & NTG4+
- Introducing the NTG4 and NTG4+ Shotgun Microphones
The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.
Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise.
- Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
- 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
- Cotton yarn reduces electrostatic and microphonic noise.
- All solder points shrink-wrapped for protection.
- Neutrik XX silver connectors offer high conductivity.
- Caged type contact and improved ground contact.
UPC: 847628558229 In the Box - NTG4 Shotgun Microphone with Digital Switches tauftbraxfzdusaawwyu
- RM5 Microphone Clip
- Foam Windshield
- Carrying Pouch
- Limited 10-Year Warranty with Online Registration
- Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
- Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NTG4 Shotgun Microphone with Shockmount and XLR-3M to Angled XLR-3F Cable Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode NTG4 Shotgun Microphone with Digital Switches
| Acoustic Principle | Line gradient | | Directional Pattern | Super-cardioid | | Frequency Range | 20 to 20,000 Hz (selectable HPF at 75 Hz) | | Sensitivity | -32 dB re 1V/Pa (25 mV at 94 dB SPL) ± 2 dB at 1,000 Hz. | | Output Impedance | 200 ohm | | Equivalent Noise | 16 dBA SPL (per IEC651) | | Maximum Output | 7 dBu (at 1 kHz, 1% THD into 1 kOhm) | | Dynamic Range | 119 dB (per IEC651) | | Maximum SPL | 135 dB | | Signal to Noise Ratio | 78 dB SPL (per IEC651) | | Battery | Not applicable | | Output Connection | 3-pin XLR, balanced output between Pin 2 (+), Pin 3 (-) and Pin 1 (ground) | | Dimensions | 0.87 x 8.86" (22.00 x 225.00 mm) | | Weight | 4.44 oz (126.00 g) | | | | Box Dimensions (LxWxH) | 13.2 x 5.2 x 2.7" | - Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
| | | Box Dimensions (LxWxH) | 4.65 x 3.2 x 2.65" | - Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female Right-Angle | | Cable Length | 1.5' / 0.45 m | | Shielding | 95% Spiral | | Conductor Material | Oxygen-Free Copper (OFC) | | Number of Conductors | 2 | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | | | Box Dimensions (LxWxH) | 4.8 x 3.1 x 0.9" |
