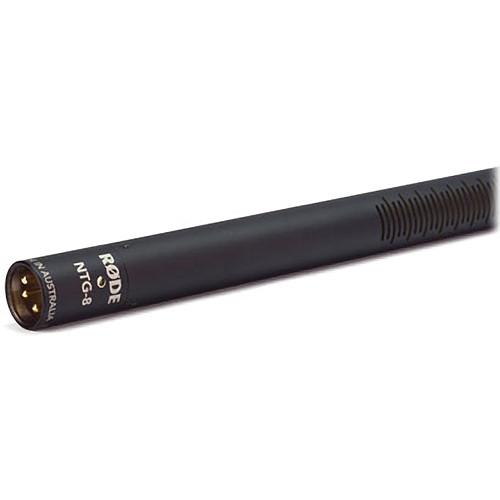

User Manual for Rode NTG8 Precision Broadcast-Grade Long Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Rode NTG8 Precision Broadcast-Grade Long Shotgun
- Product category: Shotgun Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Shotgun Microphones
 |
User manual for the Rode NTG8 Precision Broadcast-Grade Long Shotgun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The Rode NTG8 Precision Broadcast-Grade Long Shotgun Microphone picks up on the tradition of the NTG3 shotgun microphone with broadcast-quality performance, uniform directionality, and durable construction. The long NTG8 measures 22" (559mm) in length and features a true condenser, supercardioid, external RF biased element with a high resistance to humidity and adverse weather conditions.Its extended length makes the NTG8 a viable choice for achieving high levels of intelligibility, detail, and low noise during wide camera shots, or while positioned further from the signal source. The NTG8's frequency response, sensitivity, and dynamic range make it ideal for use in audio for video, feature film, documentaries, live broadcasts, and much more. The microphone is phantom powered (externally), and includes a windscreen, shockmount, and aluminum storage cylinder. - High level of intelligibility during wide shots and long distances
- Highly directional polar response
- Natural sounding audio both on- and off-axis
- Designed to withstand adverse environmental conditions
- Extremely low handling noise
- High level of immunity to radio frequency interference
- True condenser (external RF biased)
- Enhanced broadcast sound quality

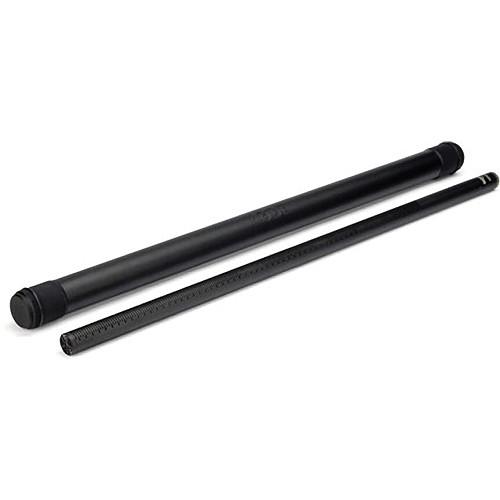

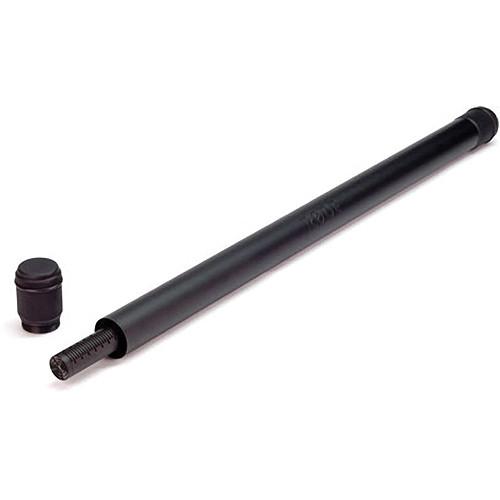

UPC: 698813002283 In the Box Rode NTG8 Precision Broadcast-Grade Long Shotgun Microphone SM8 Shockmount for Long Shotgun Microphones sweyqyfdtv Water-Resistant Aluminum Storage Cylinder (RCNTG8) Windshield (WSNTG8) Limited 1-Year Warranty, Extendable to 10 Years with Registration User Manual PDF 762.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NTG8 Precision Broadcast-Grade Long Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode NTG8 Specs | Transducer | Line Gradient | | Frequency Range | 40 ~ 20,000 Hz | | Nominal Impedance | 25 ohms | | Maximum Output | +8.2 dBu
(@ 1% THD into 1 kOhm) | | Polar Pattern | Supercardioid | | Sensitivity | -20 dB ±2 dB re 1 V/Pa @ 1 kHz | | Dynamic Range (Typical) | 116 dB (per IEC651) | | Signal-to-Noise Ratio | 81 dB SPL (A-weighted per IEC651) | | Equivalent Noise | 8 dBA SPL (A-weighted per IEC651) | | Maximum Input Sound Level | 124 dB (@ 1 kHz, 1% THD into 1 kOhm load) | | Power Requirements | 48 V Phantom Power (44-52 V min 2.5 mA) | | Output Connectors | 3-pin XLR, balanced output between Pin 2 (+), Pin 3 (-) and Pin 1 (ground) | | Dimensions (LxDiameter) | 22 x 0.74" (559 x 19 mm) | | Weight | 12.07 oz (345 g) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 28.5 x 6.1 x 3.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
