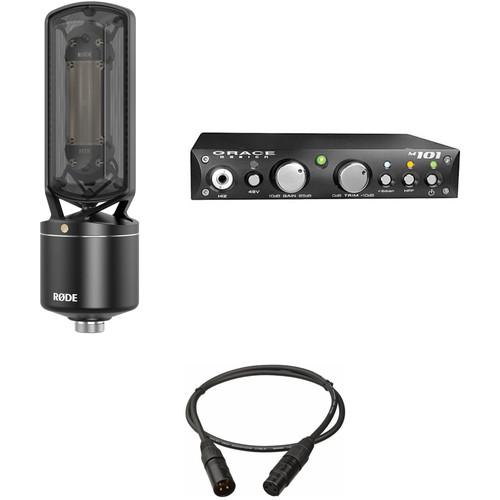

Product description If you want to add a versatile ribbon microphone to your locker with a clean preamp with ample gain, check out the Rode NTR Active Ribbon Microphone and Grace Design M101 Preamp Kit from . Consisting of Rode NTR active ribbon microphone, a Grace Design M101 preamp, and a Mogami XLR cable, the kit allows you to mic up a wide variety of sources, ranging from strings to vocals to guitar amplifiers. - Rode NTR Active Ribbon Microphone
- Art & Science - bringing the RODE NTR to life
Designed by Rode to be at home in world-class recording facilities as well as project and home studios, the NTR Active Ribbon Microphone is based around its sensitive 1.8-micron-thick ribbon element, which is capable of providing a wide 20 Hz to 20 kHz frequency response, uncommon for a typical ribbon mic. Thanks to its broad response, its applications go beyond that of a typical ribbon mic, allowing it to be more accommodating for a broader range of vocal types, as well as strings, brass, electric and acoustic guitars, drum overheads or room mics, and more.
Internally, the mic features a custom-designed and manufactured transformer, in addition to an internal shock mounting system. A ribbon-securing travel screw is included, allowing you to secure the sensitive ribbon while transporting the mic, assuring it is not accidentally damaged. Like many Rode microphones, the NTR has an extended 10-year warranty with registration, which includes one free ribbon replacement during the period. UPC: 698813004300 - Grace Design m101 - Microphone Preamp
- Art & Science - bringing the RODE NTR to life
The m101 from Grace Design is a single-channel microphone preamplifier that uses the same fast, musical transimpedance amplifier architecture as the model 801 and model 201, but packaged and priced to be within the reach of any recording engineer, musician or studio. The preamp now employs 0.5% precision metal film resistors.An upgrade from the model 101, the unit still employs fully balanced, transformerless circuit topology and has no electrolytic capacitors in the signal path. With incredible bandwidth, headroom and resolution, the unit is remarkably natural, musical and detailed. A universal power supply is internally mounted.The m101 features a ribbon microphone mode which provides additional gain that is usually required by that type of microphone. Pushing the dedicated ribbon switch does three things. Phantom power is locked-out to prevent potential damage to ribbon microphones, the impedance of the microphone input is raised from 8.1kΩ to 20kΩ, and the 48V DC blocking input capacitors are bypassed with sealed gold contact relays.The included instrument DI input is designed to accommodate a wide variety of high impedance input sources, making the unit an excellent choice as a DI box which will flawlessly preserve the sound of any plugged-in instrument while imparting lackluster sounding instrument pickups with clarity and detail. - Fully balanced, transformerless, single-channel microphone preamp with optimized DI instrument input
- Fast, musical transimpedance amplifier architecture
- Updated audio path with 0.5% precision metal film resistors
- Built-in switchable 75Hz, 12dB/8ve high pass filter
- Precision 12-position, gold contact, rotary switch gain control
- 10dB output trim controls for fine level adjustment
- Switchable 48V phantom power
- Ribbon microphone mode with an optimized signal path
- Input impedance, and 48V lockout
- No electrolytic capacitors in the signal path
- Enhanced RFI interference suppression
- Sealed gold contact relays for all signal switching
- Minimal internal signal wiring
- Three output connectors: XLR balanced, TRS balanced and 1/4" unbalanced
- Two color, bi-phase LED peak indicator
- Internal, universal power supply
UPC: 823821110105 - Mogami Gold Studio XLR Female to XLR Male Microphone Cable (Black, 15')
- Art & Science - bringing the RODE NTR to life
The black, 15' Mogami Gold Studio XLR Female to XLR Male Microphone Cable is a high-quality, 4-conductor cable engineered for maximum rejection of RFI and EMI, accurate signal transmission with low noise, and durability. It uses the company's Neglex twisted, double-conductor quad cable with a spiral, bare copper shield, which is effective in maintaining signal integrity, even when used with unbalanced equipment, in professional or home studios suffering from wiring and grounding problems.The cable is terminated with black-body, gold-plated XLR connectors, and features a 0.236" diameter jacket, ideal for applications where a small-diameter quad mic cable is required. Key Features - Studio and broadcast-quality microphone cable wired with Mogami 2534 Neglex twisted quad-conductor cable
- Ideal for home studios suffering from wiring and grounding problems—maintains signal quality when used with unbalanced equipment
- Served (spiral) bare copper shield for long-lasting protection against RFI and EMI
- XLPE (Cross-Linked Polyethylene) conductor insulation
- Terminated with black-body, 3-pin XLR connectors (XLR female to XLR male)
- Gold-plated contacts to prevent corrosion
- 0.236" jacket diameter—for use where a small-diameter quad mic cable is required
- Limited lifetime warranty
UPC: 801813075830 In the Box - NTR Active Ribbon Microphone buxseqqbqefe
- Ribbon-Securing Travel Screw
- Stand Mount for NTK/NT1000 & Condenser Microphones
- Dust Cover
- Limited 10-Year Warranty
- Grace Design - m101 - Microphone Preamp buxseqqbqefe
- Mogami - Gold Studio XLR Female to XLR Male Microphone Cable (Black, 15')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode NTR Active Ribbon Microphone and Grace Design M101 Preamp Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode NTR Active Ribbon Microphone
| | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 15 dB A-Weighted | | Maximum SPL | 130 dB SPL | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | -30.5 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 8.50" / 216 mm | | Diameter | 2.56" / 65 mm | | Weight | 2.31 lb / 1.047 kg | | | | Box Dimensions (LxWxH) | 13.0 x 6.0 x 4.0" | - Grace Design m101 - Microphone Preamp
| Number of Channels | Single | | Inputs | 1 x XLR Microphone (rear panel)
1 x 1/4" TRS phone Instrument (front panel) | | Output | 1 x XLR
1 x 1/4" TRS phone
1 x 1/4" TS phone | | Phantom Power | Yes | | Multi Function | No | | Gain Range | 10dB to 65dB, in 5dB steps
Output trim control adds 0dB to +10dB | | Maximum Output Level | +25dBu, 100kΩ load, 0.1% THD | | Frequency Response | Mic Input: 4.5Hz to 390kHz, -3dB @ 40dB gain
Hi-Z Input: 2.5Hz to 195kHz, -3dB @ 20dB gain | | Noise | <-124dB, 600Ω source | | Power Requirements | 100~240VAC | | Dimensions (WxDxH) | 8.5 x 9.0 x 1.7" (216 x 228 x 43mm) | | Weight | 2.4 lbs (1.09 kg) | | Specialties | Peak LED meter | | | | Box Dimensions (LxWxH) | 16.4 x 14.2 x 4.7" | - Mogami Gold Studio XLR Female to XLR Male Microphone Cable (Black, 15')
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 15' / 4.6 m | | Outer Diameter | 0.236" / 6 mm | | Shielding | Bare Copper Spiral | | Conductor Material | Oxygen-Free Copper (OFC) | | Number of Conductors | 4 | | Wire Gauge | 24 AWG | | Contact Plating | Gold | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | Conductor Capacitance | 29.6 pF/ft at 1 kHz | | | | Box Dimensions (LxWxH) | 9.37 x 7.165 x 0.787" |
