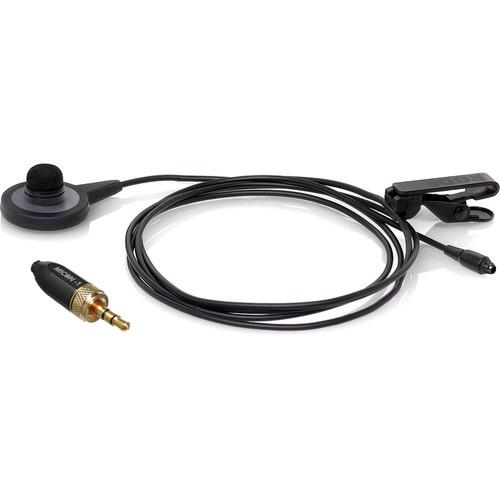

User Manual for Rode PinMic-Long Wearable Microphone Kit with 3.5mm MiCon Connector Click to enlarge the picture
Contents of the user manual for the Rode PinMic-Long Wearable Microphone Kit with
- Product category: Microphones for Wireless Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Microphones for Wireless
|
User manual for the Rode PinMic-Long Wearable Microphone Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description Bundled together by B&H for your convenience, the RØDE PinMic-Long Wearable Microphone Kit with 3.5mm MiCon Connector is designed to provide a bridge between the RØDE Lavalier's MiCon termination point and Sennheiser transmitters which utilize a 3.5mm connection. The RØDE PinMic-Long is wearable, mounting on fabric up to 3.5mm thick by means of the backplate, which detaches from the capsule for this express purpose. It also features an omnidirectional polar pattern, a Kevlar-reinforced cable with management clip, and a proprietary MiCon connection point. The adapter, on the other hand, accepts MiCon connections and terminates in a locking 3.5mm plug, suitable for use with the Sennheiser K500 G3, SK300 G3, SK100 G3, SK500 G2, SK300 G2, and SK2 Freeport. - Rode PinMic-Long Wearable Microphone The RØDE PinMic-Long Wearable Microphone is identical to the standard version of the RØDE PinMic except the PinMic-Long is designed to successfully mount to fabric up to 0.14" (3.5mm) thick. The PinMic-Long delivers a patented mounting system that surpasses traditional lavalier microphones, and enables flexible mounting in all applications. It features a detachable capsule and backplate system. Simply place the backplate to the inside of an article of clothing or other material, and reattach the capsule to the three pins on the backplate.In addition to its convenient mounting system, the PinMic-Long features a miniature condenser capsule with an omnidirectional polar pattern and audio fidelity well suited for professional recording, broadcast applications, live sound and more. The PinMic-Long includes a rugged Kevlar reinforced cable, water resistant pop filter, mini-furry, cable management clip and rugged storage case.
- The RØDE PinMic-Long features a detachable capsule head that mounts onto three pins on the microphone backplate
- The MiCon connector system provides seamless integration between all of RØDE's compact wearable microphones and a wide range of wireless systems
- Water resistant case provides rugged and secure protection for the microphone, cables and accessories
UPC: 698813002214 - Rode MiCon 1 Connector for Rode MiCon Microphones (Sennheiser) This Rode MiCon 1 Adapter is intended for use with all Rode headsets and microphones that utilize MiCon connectors, such as the Rode Pinmic and lavalier microphones. The adapter features an 1/8" (3.5mm) locking mini connection for use with compatible bodypack transmitters, such as the Sennheiser SK500 G3, SK300 G3, SK100 G3, SK500 G2 SK300 G2 and SK2 Freeport. UPC: 698813001651
In the Box - PinMic-Long Wearable Microphone
- Impact Resistant Storage Case
- Water Resistant Pop Filter
- Mini-Furry
- Shielded Detachable Kevlar Reinforced Cable
- Lapel Style Cable Management Clip
- Adjustment Tools
- 5 Year Warranty
- MiCon 1 Connector for Rode MiCon Microphones (Sennheiser)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode PinMic-Long Wearable Microphone Kit with 3.5mm MiCon Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode PinMic-Long Wearable Microphone
| Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 60Hz to 18kHz | | Signal-to-Noise Ratio | Signal noise ratio 69dB
Equivalent noise 25dBA SPL (per IEC651) | | Maximum Input Sound Level | Maximum SPL 110dB (clipping SPL) | | Power Requirements | Min 2V - Max 5V through MiCon wireless adaptors
P48 through MiCon XLR adaptor | | Output Impedance | 3kΩ Typical | | Output Connectors | MiCon XLR Adaptor | | Dimensions (HxWxD) | 0.62 x 0.86 x 1.29" (16 x 22 x 33mm) | | Weight | 0.35oz (10g) | | | | Box Dimensions (LxWxH) | 5.7 x 4.3 x 1.8" | - Rode MiCon 1 Connector for Rode MiCon Microphones (Sennheiser)
| | | Box Dimensions (LxWxH) | 3.1 x 3.1 x 0.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
