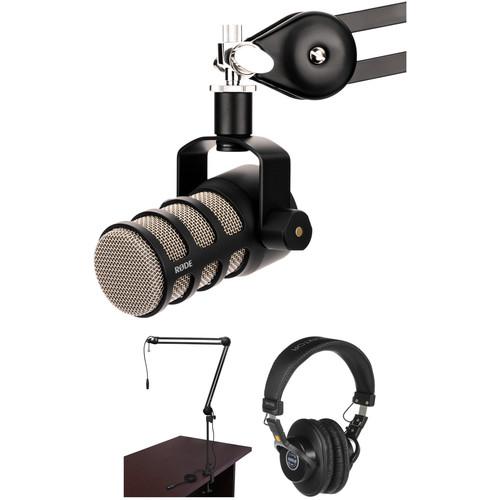

Rode PodMic Microphone with Broadcast Arm

User Manual for Rode PodMic Microphone with Broadcast Arm and Headphone Kit

• Product category: Podcasting Solutions Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Podcasting Solutions

Product description

• Rode PodMic Dynamic Podcasting Microphone
  • Introducing the PodMic - Podcast-Ready Dynamic Microphone
  Podcasters looking for the right mic to bring professional-quality sound to their productions on YouTube, FaceBook, Twitch, and elsewhere have a great option with the PodMic from Rode. This cost-effective, stylish, end-address dynamic XLR microphone is specifically tuned for speech and broadcast. Tailor-made for use with the RODECaster Pro podcast production studio and PSA1 broadcast arm, it can also be plugged into a wide range of pro audio gear to deliver broadcast-quality sound.
  Podcast in Any Environment
  • Most podcasts happen in bedrooms, home studios, or offices with less than perfect acoustics and noises coming from the outside. The PodMic features a dynamic capsule with a tight cardioid polar pattern, great for picking up the speaker while reducing unwanted sounds that are further away or off to the sides.
  Get Close to Your Mic
  • With its end-address design, the PodMic invites you to get right up close and create intimate, broadcast-style voice recordings with a deep and warm tone. Its compact size lets you and your guests see each other and enjoy an open and comfortable talking experience, while the mic stays out of the camera's way when videocasting.
  Built to Last
  • Solid-brass construction with a hard-wearing matte-black ceramic finish ensures that the PodMic will continue to deliver the same level of performance over the years, while still looking great.
  Clean Speech without Distractions
  • The PodMic's internal pop filter and double-mesh housing work to effectively reduce distracting breath and plosive noises (as in "s", "p", and "b" sounds) without the need for an unsightly external pop filter.
  Protect Your Sound from Vibrations
  • The internal shockmount helps to isolate the PodMic from handling noise and vibrations when you are adjusting the mic or if there's a bump or knock on the table. The integrated swing mount that holds the mic further insulates it from low-frequency noises, which could ruin your audio.
  Swing into the Right Position
  • The PodMic has two wing nuts on each side of its built-in mount, allowing you to quickly swing the mic into the right orientation and lock it into place. Mounting the PodMic on the PSA1 broadcast boom arm (available separately) gives you the added flexibility to position the microphone exactly where you want it.
  Get Professional Results
  • Pair the PodMic with the powerful RODECaster Pro podcast production studio to leverage the most out of your microphone. Select the PodMic microphone preset in the RODECaster Pro audio options and matching digital signal processing is automatically applied, giving your voice the depth, presence, and hint of shimmer associated with top professional radio broadcasters.
  UPC: 698813005567
• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable
  • Introducing the PodMic - Podcast-Ready Dynamic Microphone
  The Auray BAI-2X is a two-section broadcast arm with internal springs and an integrated XLR cable. This versatile and sturdy broadcast arm is great for studio as well as home use. It's ideal for broadcast, voiceover, and podcasts.

  The BAI-2X broadcast arm is designed with internal springs that provide a clean and sleek look. The internal balance springs are precision engineered to support and hold in place microphones of up to 5 lb. (2.27 kg). The design also minimizes handling noise when re-positioning the arm. The broadcast arm features a standard 5/8"-27 microphone stud mount that is compatible with most shockmounts and microphone clips. The angle of the microphone stud mount can be adjusted and secured with the locking knob, and the angle is maintained when re-positioning the arm. This eliminates the need to readjust it every time the arm is moved. With an extension of up to 40 inches, and the ability to rotate the arm 360°, the BAI-2X allows for precise microphone placement.

  The BAI-2X also features a heavy-duty combo mount that consists of a sturdy C-clamp and a heavy-metal desktop mount. The C-clamp is capable of fastening onto desktops up to 2.3" thick. The C-clamp's slim design minimizes the clearance needed to mount it between a desk and wall. The desktop mount detaches from the C-clamp and provides the option of permanent installation to a desktop with the mounting screws (included). A 14" riser is included for adding height to the broadcast arm in order to extend over computer or studio monitors.
  Versatile
  • Ideal for studios as well as home use
  Internal Springs
  • Internal springs provide smooth, noise-free positioning and clean and sleek profile
  Sturdy
  • Supports microphones up to 5 lb. (2.27 kg)
  Compatibility
  • The 5/8"-27 standard microphone thread is compatible with most shockmounts and microphone clips
  Precision
  • Extends up to 40" (101.6 cm) and rotates 360° allowing for precise microphone placement
  XLR Cable
  • The integrated 15-foot (457.2 cm) XLR cable provides a secure, locking connection and excellent signal transfer
  Extra Height
  • A 14" (13.6 cm) riser is included. It provides extra height to the broadcast arm for extending over computer or studio monitors
  Combo Mount
  • The heavy-duty combo mount is comprised of a C-clamp for clamping to a desktop up to 2.3-inch (5.8 cm) thick, and a detachable desktop mount for permanent attachment to a desktop with the included screws
  14" Riser
  • The included riser adds 14" of height to the broadcast arm so that it can easily extend over computer or studio monitors
  UPC: 847628578272
• Senal SMH-1000 Professional Field and Studio Monitor Headphones
  • Introducing the PodMic - Podcast-Ready Dynamic Microphone
  The SMH-1000 Professional Field and Studio Monitor Headphones from Senal feature a classic closed-back, over-the-ear, collapsible design. With features like interchangeable cables, a refined frequency response, wire guides, superior comfort, and durable materials, the SMH-1000 is ideal for studio and field applications.

  Equipped with 40mm neodymium drivers at 58-Ohm impedance, the SMH-1000 headphones are designed to be loud enough when attached to low powered devices such as mobile phones and mp3 players, yet robust enough to handle studio headphone amps without distortion.The over-ear, closed-back design is intended to help block unwanted outside noise, which is useful in professional field recording and studio monitoring scenarios where isolation is critical.

  The headphones are designed with an EQ curve that's been tailored for a slightly enhanced low end that allows field engineers to detect wind noise more effectively, and for studio engineers to monitor bass and sub bass frequencies. The high frequency response has been extended to accurately reproduce spatial detail. There is also a pronounced but smooth midrange that reduces ear fatigue over prolonged periods, while maintaining focus on vocal and dialogue intelligibility.

  Designed for flexibility as well as great sound, the SMH-1000 makes use of twist-lock detachable cabling. There are two detachable cables included in each box that can be used interchangeably. There is a stretchable 4 to 10' coiled cable that provides better mobility and reach, that also helps prevent snags from pulling the headphones off of your head. This can be useful when navigating through gear-cluttered recording studio environments. There is also a 3' straight cable that is useful when less slack is ideal, such as when using a waist-mounted field recorder or mixer, or when using your mobile device.

  The SMH-1000 has been built with convenience, practicality and comfort in mind as well. The headphones have a collapsible folding mechanism for compact storage and transport. They also have wire guides to keep the ear-cup wires from pinching. Furthermore, they are fitted with a padded headband and soft, replaceable ear cushions to maximize comfort during extended listening.
  • An excellent choice for commercial recording, broadcast, home studios, and live and location sound. Also great for home and portable entertainment.
  • Over-ear, closed-back (circumaural) stereo headphone design to help block unwanted environmental noise. Ideal for use in professional applications such as studio or field recording.
  • Detachable, twist-locking 10' coiled cable and 3' straight cable included. Replacement cables also available from Senal.
  • Enhanced low end designed to allow field engineers to detect wind noise effectively, and for studio engineers to monitor bass and sub bass frequencies.
  • Pronounced but smooth midrange tailored to reduce ear fatigue over prolonged periods while maintaining focus on vocal and dialog intelligibility.
  • Extended high frequency response designed to reproduce spatial detail accurately. Gradual roll off at 14 kHz allows for accurate low level monitoring and hearing protection.
  • Padded headband and soft, replaceable ear cushions. Replacement cushions are available for purchase.
  • Easy storage via collapsible folding mechanism.
  UPC: 847628015821

• PodMic Dynamic Podcasting Microphone veqybddxey
• Limited 1-Year Warranty Extends 1 Additional Year with Registration

• Auray - BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

• Senal - SMH-1000 Professional Field and Studio Monitor Headphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode PodMic Dynamic Podcasting Microphone

  Sound Field	Mono
  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 13 kHz
  Impedance	32 Ohms
  Sensitivity	Cardioid: -57 dB at 1 kHz

  Output Connectors	1 x 3-Pin XLR
  Length	6.77" / 172 mm
  Diameter	4.29" / 109 mm
  Weight	2.06 lb / 937 g

• Auray BAI-2X Two-Section Broadcast Arm with Internal Springs and Integrated XLR Cable

  Length	40" (101.6 cm)
  Weight Capacity	5 lb (2.27 kg)
  Microphone Mount	5/8"-27 standard microphone thread
  Clamping Range	2.3" (5.8 cm)
  Riser	14" (35.56 cm)
  Cable	XLR M to XLR F: 15' (457.2 cm)
  Weight	4.47 lb. (2.02 kg)

  Box Dimensions (LxWxH)	23.5 x 7.4 x 3.5"

• Senal SMH-1000 Professional Field and Studio Monitor Headphones

  Driver Size	1.6" / 40 mm
  Magnet Type	Neodymium
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	10 Hz to 20 kHz
  Sensitivity	102 dB at 1 kHz / 1 mW
  Impedance	58 Ohms
  Maximum Power Handling	1000 mW
  Total Harmonic Distortion (THD)	1%

  Audio Connector	1/8" (3.5 mm)
  Adapter (Included)	1/4" (6.3 mm)

  Detachable	Yes

  Weight	8 oz / 226.8 g

  Box Dimensions (LxWxH)	9.1 x 8.8 x 3.8"
