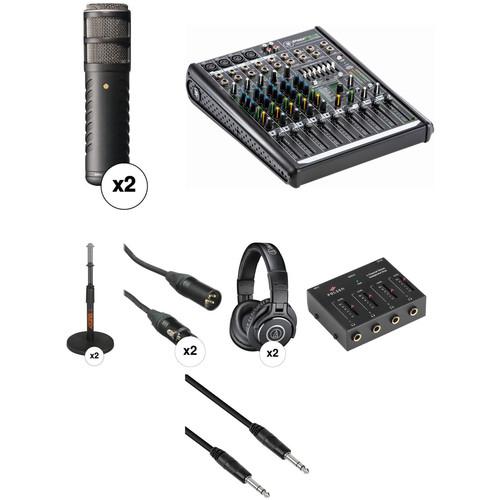

Rode Procaster Broadcast Quality Two-Person Podcasting

User Manual for Rode Procaster Broadcast Quality Two-Person Podcasting Kit

• Product category: Dynamic Microphones Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Dynamic Microphones

Product description

• 2 x Rode Procaster Broadcast Quality Dynamic Microphone The Procaster Broadcast Quality Dynamic Microphone from Rode is designed for capturing speech in broadcast radio, voice-over recording, podcasts, and similar applications. It features a tight cardioid polar pattern and tailored frequency response that result in optimum speech reproduction without off-axis noise. The all metal contruction, internal pop-filter, and internal shockmount further minimize handling noise and contribute to the microphone's durability. The package includes a microphone stand mount and a zip pouch.
  • Tailored frequency response for maximum speech reproduction
  • Tight cardioid polar pattern minimizes off-axis noise
  • Internal shockmount and pop filter minimize handling noise and plosives
  • Durable all metal contruction
  UPC: 698813001118
• Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX The ProFX8v2 8-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 4 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 1 aux send, and an FX out for feeding external processors, the ProFX8v2 offers professional features to suit a wide variety of configurations.

  In addition to the mic inputs, the ProFX8v2 includes 8 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.

  The ProFX8v2's effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer.
  Features at a Glance:
  • • 4 low-noise Mackie Vita mic preamps
    • ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
    • 7-band graphic EQ for tuning mains or monitors
    • Built-in USB interface to record the show or provide music playback
    • Aux output ideal for driving a monitor mix
    • 3 stereo channels plus extra stereo return for external effects or stereo playback devices
    • 60mm faders for input channels, return, and main/monitor masters
    • 3-band EQ (80 Hz, 2.5 kHz, and 12 kHz) on all channels
    • Directly connect guitar, bass, and other instruments via Hi-Z input
    • Stereo RCA tape I/O with input level control
    • Headphone output with separate level control
    • Balanced XLR and balanced/unbalanced 1/4" main outputs
    • FX mute with remote control via footswitch
    • Break switch mutes all channels for music playback between sets
    • Built-in USB recording interface with simple setup via Mac or Windows
    • For live recording and home studios
    • Stream playback music for live or studio applications
    • Includes Tracktion recording software
    • Rugged design
    • Solid steel chassis protects your investment
    • Tough ABS side protection
    • Robust internal multi-voltage power supply
  UPC: 663961045581
• 2 x Auray TT-6220 Telescoping Tabletop Microphone Stand (Black) The black TT-6220 Telescoping Tabletop Microphone Stand from Auray meets the needs of any desktop audio applications that require the use of a microphone by providing a solid, weighted round base with three nonslip rubber feet for additional stability. The telescoping shaft delivers flexibility when it comes to positioning the height of the microphone and includes a microphone cable guide. Durable steel construction ensures longevity.
  • Telescoping shaft for adjustable height
  • Weighted round base
  • Three nonslip rubber feet
  • Microphone cable guide
  • Durable steel construction
  UPC: 847628578234
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558267
• 2 x Audio-Technica ATH-M40x Monitor Headphones (Black) The black ATH-M40x Monitor Headphones from Audio Technica are designed for use in studio tracking and mixing and well as for DJ monitoring applications. They feature 40mm Neodymium drivers with copper-clad aluminum voice coils tuned for a flat response. The headphones have a circumaural, around-the-ear design that provides sound isolation in loud environments. The ear cups on the ATH-M40x can be swiveled up to 90 degrees, allowing for single-ear monitoring. The headphones have a detachable single-sided cable system, and both coiled and straight cables are included. When not in use, the ATH-M40x can be folded down and stored in the included carry pouch.
• Polsen HMA-41 4-Channel Stereo Headphone Amplifier The HMA-41 4-Channel Stereo Headphone Amplifier from Polsen features a durable, compact, and easy to use design for a variety of professional and project applications, including studio recording, band rehearsals, and more. It features a high-output level that allows for precise monitoring at high volume, while its low-noise circuitry ensures clear reproduction of your sound. Each of its four channels boasts independent volume control and amp circuitry, which allows for a wide frequency response of 20 Hz to 20 kHz for full-range stereo sound while assuring no signal loss when all 4 headphone outputs are used simultaneously.

  The unit features a 1/4" stereo TRS input, and four 1/4" TRS headphone outputs. To assure compatibility with a variety of headphones, Polsen includes four 1/8" to 1/4" adapters as well as a stereo mini cable that, when used with one of the included adapters, allows you to connect a device with a 1/8" output.
  • Durable, compact, and easy to use
  • High output level for precise monitoring at high volume
  • Low noise circuitry
  • Four headphone jacks each with independent volume control
  • Wide frequency response (20 Hz to 20 kHz) for full-range stereo sound
  • No loss of signal when all four headphones are connected
  • Includes 5 ft (1.5 m) stereo mini cable for connecting devices with 1/8" output (use included ¼" adapter)
  UPC: 847628577701
• Pearstone PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (6') The 6 foot PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable from Pearstone features Rean connectors with nickel-plated contacts on both ends, 24-gauge oxygen-free copper conductors, and spiral shielding to protect against EMI and RFI noise. Additionally, twin conductive PVC shields reduce electrostatic noise and provide a clean signal path while retaining good flexibility for those occasions that demand it.

  The connector's molded strain relief over metal shells provides excellent durability and allows for increased protection between the OFC conductors and the connectors. The cable is ideal for both live and studio applications, including connecting powered speakers to studio monitor controllers, or connecting synthesizers and outboard gear to mixers, or wherever balanced connections are indicated.
  • Rean male 1/4" TRS connectors with nickel-plated contacts on both ends of the interconnect cable offer excellent durability
  • 24-gauge OFC conductors maximize conductivity, making the cable ideal for both live and studio applications
  • Spiral shielding rejects both EMI and RFI noise and offers a clean signal path
  • Twin conductive PVC shields minimize electrostatic noise, while being flexible and durable for running the cable in tight spots
  • Metal shells provide rigid strain relief and protect the solder points between the OFC conductors and the connectors for greater cable longevity
  UPC: 847628580404

• 2 x Procaster Broadcast Quality Dynamic Microphone yvbdqafcaysb
• RM2 Stand Mount
• ZP1 Zip Pouch
• Limited 10-Year Warranty

• Mackie - ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX yvbdqafcaysb

• 2 x Auray - TT-6220 Telescoping Tabletop Microphone Stand (Black)

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

• 2 x Audio-Technica - ATH-M40x Monitor Headphones (Black)

• Polsen - HMA-41 4-Channel Stereo Headphone Amplifier

• Pearstone - PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (6')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Rode Procaster Broadcast Quality Dynamic Microphone

  Transducer	Dynamic
  Polar Pattern	Cardioid
  Frequency Range	75 Hz to 18 kHz
  Impedance	320 Ohms
  Sensitivity	-56 dB at 1 kHz

  Output Connectors	1 x 3-Pin XLR
  Length	8.43" / 214 mm
  Diameter	2.09" / 53 mm
  Weight	1.64 lb / 745 g

  Box Dimensions (LxWxH)	11.2 x 5.3 x 2.6"

• Mackie ProFX8v2 8-Channel Sound Reinforcement Mixer with Built-In FX

  Equivalent Input Noise	150 ohm source impedance, 20 Hz to 20 kHz: Mic in to insert send out, max gain -125 dBu
  Residual Output Noise	All outputs, master levels off, all channel levels off: -95 dBu All outputs, master levels unity, one channel level unity: -80 dBu
  Frequency Response	Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 30 kHz
  THD+N	22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.03%
  Attenuation and Crosstalk	Adjacent Inputs @ 1 kHz: -90 dB Inputs to Outputs @ 1 kHz: -80 dB Fader Off @ 1 kHz: -75 dB Mute Switch / Break Switch Mute @ 1 kHz: -90 dB
  Common Mode Rejection Ratio	Mic In to Main Out, max gain, 1 kHz: 70 dB
  Maximum Level	All inputs: +22 dB Main Out XLR: +28 dBu All other outputs: +22 dBu
  Impedance	Mic In 3.8 kOhms Channel Insert Return 10 kOhms All other inputs ≥ 20 kOhms Tape output 1 kOhms Phones output 25 ohms All other outputs 120 ohms unbalanced, 240 ohms balanced
  Equalization	Low ±15 dB @ 80 Hz Mid ±15 dB @ 2.5 kHz High ±15 dB @ 12 kHz Low Cut Filter 18 dB/octave @ 100 Hz
  Maximum Voltage Gain	Mic Input Channel to: Insert Output: 50 dB Tape Output: 60 dB USB Output: 50 dB 1/4" Main Output: 70 dB XLR Main Output: 76 dB Monitor Send: 76 dB FX Send: 90 dB Mono Line Input Channel to: Insert Output: 30 dB Tape Output: 40 dB USB Output: 30 dB XLR Main Output: 56 dB Monitor Send: 56 dB FX Send: 70 dB Stereo Line Input Channel to: Tape Output: 30 dB USB Output: 30 dB XLR Main Output: 46 dB Monitor Send: 46 dB FX Send: 60 dB Tape Input to: XLR Main Output: 36 dB USB Input to: XLR Main Output: 36 dB Stereo Return to: XLR Main Output: 26 dB
  Digital Effects	I/O: mono input / stereo output Number of Presets: 16
  Meters	Main L/R Mix: Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30 Channel OL LED: Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
  Graphic EQ	Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k Gain: ±15 dB Assignable to Main or Monitor, bypassable
  USB	USB Recording to Computer (Mac & Win)
  Phantom Power	48 VDC to all mic channels simultaneously
  AC Power Requirements	Power Consumption: 20 watts Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz Class II Detachable Line Cord: Yes
  Operating Temperature	32 - 104˚F (0 - 40˚C)
  Dimensions	3.6 x 11.4 x 14.1" (91 x 290 x 358 mm)
  Weight	7.1 lb (3.2 kg)

  Box Dimensions (LxWxH)	17.8 x 15.6 x 6.9"

• 2 x Auray TT-6220 Telescoping Tabletop Microphone Stand (Black)

  Height	8.3 to 13.5" / 21 to 34.3 cm
  Base Type	Round
  Base Dimensions	6.2 x 6.2" / 15.7 x 15.7 cm

  Mounting Thread	5/8"-27
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	7.05 x 7.05 x 1.9"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	6' / 1.8 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	3.5 x 0.9 x 0.2"

• 2 x Audio-Technica ATH-M40x Monitor Headphones (Black)

  Driver Size	1.6" / 40 mm
  Magnet Type	Neodymium
  Design	Over-Ear (Circumaural)

  Frequency Response	15 Hz to 24 kHz
  Sensitivity	98 dB
  Impedance	35 Ohms
  Maximum Power Handling	1600 mW

  Audio Connector	1/8" (3.5 mm)

  Weight	8.5 oz / 240 g

  Box Dimensions (LxWxH)	12.2 x 11.9 x 4.9"

• Polsen HMA-41 4-Channel Stereo Headphone Amplifier

  Channels	4
  Frequency Response	20 Hz to 20 kHz
  Input Connections	1x 1/4" (6.3 mm) TRS master input
  Output Connectors	4x 1/4" (6.3 mm) TRS headphone outputs
  Maximum Input Level	+14 dBV
  Maximum Output Level	20 dB per channel
  Input Impedance	100 kΩ, unbalanced
  Output Impedance	51 Ω, per output
  Signal to Noise Ratio	>90 dB
  THD	<0.008%
  Power	12 V DC, 150 mA
  Dimensions (L x W x D)	3.9 x 3.2 x 1.2" (100 x 80 x 30 mm)
  Weight	9.6 oz (272 g)

  Box Dimensions (LxWxH)	7.4 x 3.7 x 2.5"

• Pearstone PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (6')

  Connector 1	1 x 1/4" TRS Male Straight
  Connector 2	1 x 1/4" TRS Male Straight
  Connector Brand	Rean
  Cable Length	6' / 1.8 m
  Shielding	92% Copper Spiral
  Wire Gauge	24 AWG
  Contact Plating	Nickel
  Jacket Type	Polyvinyl Chloride (PVC)
  Conductor Material	Oxygen-Free Copper (OFC)

  Box Dimensions (LxWxH)	9.0 x 5.0 x 1.0"
