Rode RODELink 2-Person Digital Camera-Mount Wireless

Search your instruction manual in PDF to download

User Manual for Rode RODELink 2-Person Digital Camera-Mount Wireless Combo Microphone System Kit

Click to enlarge the picture

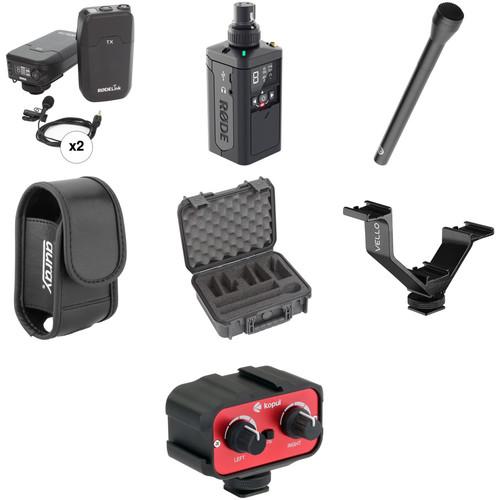

Rode RODELink 2-Person Digital Camera-Mount Wireless Combo Microphone System Kit Contents of the user manual for the Rode RODELink 2-Person Digital Camera-Mount Wireless
  • Product category: Wireless Systems Rode
  • Brand: Rode
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Rode Wireless Systems

User manual for the Rode RODELink 2-Person Digital Camera-Mount Wireless contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Rode product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!



Product description

The Rode RODELink 2-Person Digital Camera-Mount Wireless Combo Microphone System Kit from B&H provides a complete audio solution for recording hands-free interviews and dialog with two people using lav mics, or for man-on-the-street-style interviews using a single handheld mic.
The kit features two lavalier microphones with foam windscreens, two RX-CAM wireless receivers, two TX-BELT wireless transmitters, a TX-XLR plug-on transmitter, a Senal ENG-18RL omnidirectional dynamic microphone (long), and a Kopul CMX-1-V2 two-channel mini mixer. The mixer allows you to record two mics to a single camera. Additional accessories include an Auray universal plug-on transmitter holder, a Vello triple-shoe bracket, camera connection cables, and a custom SKB iSeries 3i-1209-4-BH3 waterproof case to store and transport the system.
  • 2 x Rode RODELink Filmmaker Kit Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)
    • Rode RodeLink Filmmaker Kit: Hands On Review
    • Introducing the RODELink Digital Wireless Audio System
    The Rode RODELink Filmmaker Kit brings vloggers, DIY videographers, and content creators a cost-effective digital wireless microphone system with simple, plug-and-record operation, clean and reliable sound, and extended battery life.The kit features an omnidirectional lavalier microphone for hands-free speech and dialog, along with a bodypack transmitter, and a camera-mount receiver. It operates anywhere in the world in the 2.4 GHz spectrum—well away from potential TV and radio interference.For ease of use, the transmitter and receiver are paired at the factory. Just power up and you're good to go. The system plugs into your DSLR or mirrorless camera, allowing you to capture audio for projects ranging from YouTube vlogs and wedding videos to corporate spots and interviews.The Filmmaker Kit boasts a remarkable battery life, routinely operating for over 30 hours (and up to 50 hours in ideal environments) on two AA batteries. Up to eight systems can operate on set.
      Transmitter with Lavalier Mic
      • Made of lightweight plastic, the bodypack transmitter clips to the talent’s waist and features a locking 3.5mm connection for the lavalier, ensuring the mic doesn’t detach while in use.
      • A 3-stage gain adjustment lets you set the input to accommodate mic levels ranging from a soft whisper to loud speech.
      • The transmitter features a single mute/mute lock/power button and a status-indicator LED—displaying battery life, and mute status.
      Receiver with OLED Display
      • The equally lightweight (at 6.7 oz) receiver also features easy, one-button operation for basic controls, and a detachable shoemount with a rounded base that lets you conveniently angle the unit on top of your camera.
      • The included cable connects the receiver's output to the 3.5mm audio input of any DSLR or mirrorless camera. Alternatively, the VXLR 3.5mm to XLR adapter (available separately) allows you plug your system into the XLR input of a camcorder or recording device.
      • The receiver features a high-output level with three-stage gain adjustment, which lets you turn down the camera gain for cleaner recordings with less hiss.
      • Conveniently, the receiver’s OLED display shows critical information for the receiver as well as the transmitter, including battery status, signal level, mute status, and channel selection for both units.
      Simple and Flexible Operation
      • The transmitter and the receiver arrive pre-paired, and automatically seek out a clean frequency when you turn them on—saving you the hassle of scanning and syncing before a shoot.
      • The system uses an intuitive, single-button interface for frequently used basic functions including power, muting, and the mute lock function (which prevents the talent from muting the mic).
      • The mute-lock function on the transmitter can be wirelessly activated from the receiver.
      • Additional buttons offer more advanced controls—without elaborate menu diving—over audio levels, additional pairing, and channel selection (if you’re using multiple systems).
      Clean and Reliable Sound
      • RODELink employs Series II 2.4 GHz digital transmission, which constantly monitors and hops between frequencies to maintain a clean transmission, at a range of up to 330’.
      • To ensure clear communication, the system sends the audio on two separate frequencies (frequency diversity) and uses the cleanest signal.
      • The system transmits a strong signal at the selected frequency to overcome interference even in busy 2.4 GHz (Wi-Fi) environments. For optimal performance, users are encouraged to maintain as direct a line of sight as possible between the transmitter and receiver.
      • To deliver high-quality wireless audio, the system offers a resolution of 24-bit / 44.1 kHz, a wide frequency response of 35 Hz to 22 kHz, and an impressive dynamic range of 112 dB.
      • Note: Each RODELink system creates a wireless peer-to-peer connection allowing the transmitter and the receiver to operate as a pair. This means that the transmitter can transmit audio to only one receiver at a time. Conversely, the receiver can only receive audio from one transmitter at a time.
      Other Features
      • The transmitter’s belt clip and receiver’s shoemount adapters can be swapped, allowing either component to be belt clipped, mounted on cameras and tripods, or used in an audio bag
      • While in operation, the system can be powered via USB with a wall power source or a portable battery
      • 4 ms maximum latency
      • 128-bit encryption for security
      • Both the transmitter and receiver run on two AA batteries
      • For added flexibility, the compatible TX-XLR plug-on transmitter (available separately) lets you turn any handheld or shotgun mic into a wireless microphone for man-on-street interviews or wireless booming
      • Designed and made in Australia
    UPC: 698813004218
  • Rode TX-XLR Wireless Transmitter
    • Rode RodeLink Filmmaker Kit: Hands On Review
    • Introducing the RODELink Digital Wireless Audio System
    The TX-XLR from Rode is a wireless XLR transmitter for the RodeLink digital wireless system (available separately). It can be used to provide one-touch sync with your wireless system, is capable of supplying 48V of phantom power for microphones through its XLR input, and plug-in power through its TRS input. The TX-XLR sports an OLED panel, as well as an XLR input with a locking collar and a 3.5mm TRS locking input jack. This allows you to use various input configurations; though the TX-XLR can switch between its XLR and TRS inputs, you cannot use both at the same time. Whichever input you choose, you can power the unit with two AA batteries, a Sony NP-F battery, or even continuously via a micro-USB connection. While the unit will run up 7 hours, please note that activating phantom power will reduce the usable running time, depending on the power source you're using. The unit comes with a built-in internal antenna. UPC: 698813004461
  • Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)
    • Rode RodeLink Filmmaker Kit: Hands On Review
    • Introducing the RODELink Digital Wireless Audio System
    The Senal ENG-18RL is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone's exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences.

    At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking.

    The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives.

    The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment.

    The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag.
      Ideal Choice for Critical Field Applications
    • The broadcast-quality omnidirectional dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications
      Isolated Inner Shell
    • The kinetic isolation system helps protect the microphone capsule and dissipate kinetic energy to dramatically reduce handling noise and resonance. Natural rubber shockmouts are bonded to carbon steel rings to isolate the sealed inner shell from the outer shell
      Diffuses Excess Sound Pressure From Wind and Vocal Plosives
    • Multistage wind protection comprises a mesh grille, acoustic foam, a bullet-shaped ring, acoustic fabric, and another layer of acoustic foam to diffuse excess sound pressure from wind and vocal plosives
      Broadcast Live Without EQ Adjustment
    • The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion
      Can Accommodate Mic Flag
    • The ENG-18RL is long enough to fit a mic flag for show or station identification
    UPC: 847628572461
  • Auray UPOH-B Universal Plug-On Transmitter Holster
    • Rode RodeLink Filmmaker Kit: Hands On Review
    • Introducing the RODELink Digital Wireless Audio System
    The Auray UPOH-B Universal Plug-On Transmitter Holster is a durable leather case that will fit most wireless plug-on transmitters. It builds upon its predecessor, the UPOH-A, by increasing the area of the side window. This change accommodates more brands and models.

    The side window will make it easy for you to view and access your transmitter's controls. Also, you'll notice that the connector cutout has been made wider to facilitate cable interaction and connectivity with a greater range of transmitters.

    The Auray UPOH-B is built with a heavy-duty belt clip. The transmitter is secured in the holster by a touch-fastener closure that keeps your device protected while conveniently at your side.
      Leather Holster
    • The Auray holster is an excellent option for your transmitter. It keeps it secured within this stylish leather case, and protects it from dust, dirt, and the bumps in your environment.
      Heavy-Duty Belt Clip
    • The belt clip is made of a heavy-duty metal and clamps securely to your belt or pocket.
      Large Side Window
    • The side window is larger than the window of this model's predecessor, the UPOH-B; it allows easy viewing and access to your transmitter, permitting you to quickly make adjustments such as changing channels or volume on the fly.
      Touch-Fastener Closure
    • The touch-fastener closure provides a snug fit for your transmitter and securely keeps the transmitter protected, while on the belt and even when in use.
      Compatible Plug-On Transmitters:
      • Azden 35XT
      • Lectrosonics HMa
      • Senal AWS-2000P
      • Sennheiser SKP100
      • Sony UTX-P03
      • Similar-sized wireless transmitters
    UPC: 847628007604
  • SKB iSeries 3i-1209-4-BH3 Waterproof Case for Rode Newsshooter Wireless Mic System
    • Rode RodeLink Filmmaker Kit: Hands On Review
    • Introducing the RODELink Digital Wireless Audio System
    Custom-designed for , the iSeries 3i-1209-4-BH3 Waterproof Case from SKB features a custom foam interior designed to accommodate up to two Rode Newsshooter wireless mic systems, including two TX-Belt wireless transmitters, two RX-Cam wireless receivers, one TX-XLR handheld mic transmitter, and one Reporter handheld interview mic. It also features a large accessory pocket for lavalier mics, cables, and more. Lightweight (at 3.6 lb), the injection-molded waterproof case is constructed from high-strength polypropylene copolymer resin, and is equipped with a built-in gasket for an airtight and submersible seal (IP67-rated). Furthermore, the case resists corrosion, solvents, fungus, and impact damage. The molded-in hinge, trigger-release latch system, snap-down rubber over-molded, cushion-grip handle, and automatic ambient pressure-equalization valve all contribute to its military-grade design.
    • Form-cut interior accommodates up to two TX-Belt wireless transmitters, two RX-Cam wireless receivers, one TX-XLR handheld mic transmitter, one Reporter handheld interview mic
    • One large accessory pocket for lavalier mics, cables, and more
    • High-strength, injection-molded polypropylene copolymer resin case
    • Submersible design with water- and dust-proof gasket seal (IP67-rated)
    • Resistant to impact damage, UV, solvents, corrosion, and fungus
    • Automatic ambient pressure-equalization valve
    • Stainless-steel, molded-in hinges
    • Trigger-release latch system
    • Comfortable, snap-down rubber, over-molded, cushion-grip handle
    • Lightweight at 3.6 lb
    • Made in the USA
    UPC: 789270999626
  • Vello V-Rig 4.1" Triple Shoe Bracket
    • Rode RodeLink Filmmaker Kit: Hands On Review
    • Introducing the RODELink Digital Wireless Audio System
    The Vello V-Rig 4.1" Triple Shoe Bracket mounts onto a camera's accessory shoe in order to provide three additional accessory shoes for mounting lights, monitors, microphones, or other accessories. In addition to the shoe mount, a 1/4"-20 thread is also available for attaching the bracket to a tripod, rig, or other bracket featuring a 1/4"-20-threaded mount.

    The bracket is constructed from rigid, yet lightweight single-piece aluminum alloy, and the mounting shoes are machined out of the same piece as the bracket, for additional strength. The accessory shoes also feature backstops for greater security when attaching accessories. The bottom shoe that attaches to the camera features a locking pin, which keeps the shoe in place and prevents the shoe from rotating during use.
      4.1"-Wide Bracket
    • This V-Bracket's width spans 4.1" and has a tiered design for mounting up to three additional accessories.
      Machined Aluminum Alloy
    • The bracket is machined out of a single piece of aluminum alloy, which provides greater strength to the three shoes.
      Accessory Shoe and 1/4"-20 Socket Mounts
    • The bracket can attach directly to a camera via the accessory shoe or, additionally, it features a 1/4"-20 socket for attaching to threaded mounts such as a tripod.
      Locking Pin
    • The bottom shoe that mounts on to the camera features a locking pin, which prevents the bracket from rotating.
    UPC: 847628580169
  • Kopul CMX-1-V2 Two-Channel Mini Mixer with Shoe Bracket
    • Rode RodeLink Filmmaker Kit: Hands On Review
    • Introducing the RODELink Digital Wireless Audio System
    Designed for filmmaking using a DSLR, camcorder, or mirrorless camera with a 3.5mm mic input, the CMX-1-V2 Two-Channel Mini Mixer with Shoe Bracket from Kopul is a compact and robust mixer that provides extra inputs and level controls for two separate mono inputs or a stereo mic input.

    A mono/stereo switch can be engaged to send audio signals to two separate channels (in stereo mode) or combine the two channels into one signal when set to mono. The dual stepped trim control knobs provide precise adjustment of the output levels to the camera, while the fully passive design prevents unnecessary noise from influencing the signal.

    The rugged metal bracket features three integrated shoe mounts on the sides and top of the unit for attaching accessories such as lights, microphones, wireless microphone receivers, and more. Suitable for amateurs and pros alike, the mixer allows you to input audio that's in sync with your video.
      Camera Mountable
    • Enables mounting the mixer to a camcorder, DSLR, or mirrorless camera
      Stereo Output
    • Features a stereo 3.5mm output that is compatible with most devices and cameras with a stereo 3.5mm mic input
      3.5mm Mic Inputs
    • Features 3.5mm mono inputs for two separate microphones and a 3.5mm stereo input for a stereo mic
      Mono and Stereo Modes
    • Sends audio signals to two separate channels when in stereo mode or combines the signals in mono mode
      Shoe Mounting Bracket
    • Enables mounting microphones, wireless receivers, or any other shoe-mountable camera accessories
      Trim Knobs
    • Allow you to adjust and balance the input signals from the device
      Durable
    • Features metal construction that is capable of withstanding continued use in the field
      Coiled Cable
    • Allows for the connection of the device to the 3.5mm microphone input of the camcorder, DSLR, or mirrorless camera
    UPC: 847628002159
In the Box
  • 2 x RODELink Filmmaker Kit Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz) xdvdcsbcyfezey
  • RX-CAM Camera-Mounted Wireless Receiver
  • TX-BELT Beltpack Wireless Transmitter with Lavalier Mic
  • Foam Windscreen
  • Locking 3.5mm to 3.5mm Right-Angle Output Cable
  • Limited 1-Year Warranty, Extends to 5 Years for the Lav and 2 Years for the System upon Registration
  • TX-XLR Wireless Transmitter
  • Senal - ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)
  • Auray - UPOH-B Universal Plug-On Transmitter Holster
  • SKB - iSeries 3i-1209-4-BH3 Waterproof Case for Rode Newsshooter Wireless Mic System
  • Vello - V-Rig 4.1" Triple Shoe Bracket
  • Kopul - CMX-1-V2 Two-Channel Mini Mixer with Shoe Bracket
Table of Contents




Upload User Manual

Have you got an user manual for the Rode RODELink 2-Person Digital Camera-Mount Wireless Combo Microphone System Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • 2 x Rode RODELink Filmmaker Kit Digital Camera-Mount Wireless Omni Lavalier Microphone System (2.4 GHz)
    Wireless Transmission Digital 2.4 GHz
    Included Transmitters 1 x Bodypack with Microphone
    Diversity Frequency
    Max Operating Range 330' / 100.6 m (Line of Sight)
    Max Systems per Setup 8
    Sample Rate/Resolution 44.1 kHz / 24-Bit
    Latency 4 ms (Maximum)
    Dynamic Range 112 dB
    Encryption 128-Bit
    Form Factor Camera-Mount (Bag Suitable)
    Mounting Options Belt Clip, Shoe-Mount (with Included Hardware)
    Antenna Internal
    Number of Audio Channels 1
    Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
    Audio Output Level 0 dBV (Max)
    Frequency Response 35 Hz to 22 kHz
    USB Port 1 x Micro-USB (Bus Power)
    Impedance 1/8" Output:
    300 Ohms (Unbalanced)
    Power Requirements Battery, USB Bus Power
    Battery Type 2 x AA (Not Included)
    Approx. Battery Life 30 Hours (Alkaline)
    Display & Indicators 1 x OLED (Battery Status, Channel, Mute, Peak)
    Housing Plastic
    Dimensions 2.6 x 4.4 x 2.0" / 65.0 x 111.0 x 52.0 mm
    Weight 6.7 oz / 190.0 g
    Form Factor Bodypack
    Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
    Plug-In Power 4 V
    Pad None
    Muting Programmable Mute Switch
    Audio Input Level 1 V RMS (Max)
    Signal Processing None
    Frequency Response 35 Hz to 22 kHz
    Antenna 1 x Internal
    Power Requirements Battery, USB Bus Power
    Battery Type 2 x AA (Not Included)
    Approx. Battery Life 30 Hours (Alkaline)
    USB Port 1 x Micro-USB (Bus Power)
    Display & Indicators 1 x LED (Battery Status, Mute)
    Housing Plastic
    Dimensions 2.6 x 4.4 x 1.6" / 65.0 x 111.0 x 40.0 mm
    Weight 6.7 oz / 190.0 g
    Form Factor Lavalier
    Sound Field Mono
    Transducer Electret Condenser
    Diaphragm 0.10" / 2.54 mm
    Polar Pattern Omnidirectional
    Frequency Range 60 Hz to 18 kHz
    Equivalent Noise Level 25 dB A-Weighted
    Maximum SPL 110 dB SPL
    Impedance 3 kOhms
    Sensitivity -33.5 dB at 1 kHz
    Output Connectors 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
    Length 0.47" / 12 mm
    Diameter 0.18" / 4.5 mm
    Weight 0.04 oz / 1 g
    Box Dimensions (LxWxH) 7.1 x 5.3 x 5.1"
  • Rode TX-XLR Wireless Transmitter
    Input XLR with locking collar
    3.5 mm TRS locking mini-jack
    Antenna Internal
    Input Impedance XLR: 1 kOhm
    3.5 mm TRS: 10 kOhms
    Phantom Power 48 V through XLR jack
    Plug-in power Available through TRS Jack
    Power Source 2 X AA battery, Sony NP-F battery or micro-USB
    Battery Life Approximately seven hours, less with phantom power running
    Dimensions (H x W x D) 4.7 x 1.8 x 1.8" / 12 x 4.5 x 4.5 cm
    Panel OLED
    Weight 7.8 oz / 222 g
    Box Dimensions (LxWxH) 6.9 x 4.9 x 2.6"
  • Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)
    Polar Pattern Omnidirectional
    Element Type Dynamic
    Output Connector 3-Pin XLR Male
    Frequency Response 50 Hz - 18 kHz
    Output Impedance 500 Ohms
    Sensitivity 2.2 mV/Pa
    Case Material Aluminum
    Dimensions (L x D) 1.3 x 9.1" / 33.0 x 231.0 mm
    Weight 4.8 oz / 136 g
    Box Dimensions (LxWxH) 11.1 x 5.1 x 2.6"
  • Auray UPOH-B Universal Plug-On Transmitter Holster
    Material of Construction Leather
    Closure Method Touch fastener
    Carrying / Transport Options Belt clip
    Dimensions (H x W x D) 4.0 x 2.0 x 2.0" / 10.2 x 5.1 x 5.1 cm
    Weight 1.2 oz / 34 g
    Box Dimensions (LxWxH) 5.0 x 2.7 x 2.0"
  • SKB iSeries 3i-1209-4-BH3 Waterproof Case for Rode Newsshooter Wireless Mic System
    Material of Construction High-strength, injection-molded polypropylene copolymer resin case
    Custom form-cut PE (polyethylene) foam interior
    Water and Dust Resistance Submersible with water- and dust-proof gasket seal (IP67-rated)
    Construction Resistant to impact damage
    Resistant to UV, solvents, corrosion, fungus
    Automatic ambient pressure-equalization valve (MIL-STD-648C)
    Stainless-steel, molded-in hinges
    Trigger-release latch system
    Carrying / Transport Options Cushion-grip handle
    Interior Dimensions (L x W x D) 12.00 x 9.00 x 4.50" / 30.48 x 22.86 x 11.43 cm
    Exterior Dimensions (L x W x D) 13.80 x 11.12 x 5.21" / 35.05 x 28.24 x 13.23 cm
    Weight 3.6 lb / 1.63 kg
    Box Dimensions (LxWxH) 13.5 x 11.7 x 5.7"
  • Vello V-Rig 4.1" Triple Shoe Bracket
    Bottom Mount 1 x Accessory Foot
    Top Mount 3 x Accessory Shoe
    Material Aluminum
    Dimensions 4.1 x 3.4 x 0.9" / 10.5 x 8.5 x 2.2 cm
    Weight 2 oz / 56.7 g
    Box Dimensions (LxWxH) 7.7 x 6.1 x 0.9"
  • Kopul CMX-1-V2 Two-Channel Mini Mixer with Shoe Bracket
    I/O 2 x 1/8 (3.5 mm) mono input (left and right)
    1 x 1/8" (3.5 mm) stereo input
    1 x 1/8" (3.5 mm) stereo output
    Input Level -35 dBu minimum
    Frequency Response 20 Hz to 20 kHz (±0.5 dB)
    Dimensions (W x D x H) 3.0 x 2.3 x 2.2" (7.5 x 5.9 x 5.6 cm)
    Weight 5.4 oz (153 g)
    Box Dimensions (LxWxH) 3.9 x 3.8 x 3.0"

Rating

90% users recommend this product to others. And what about you?
Rating: 4.5 of 5

This product has already been rated by 80 owners. Add your rating and experience with the product.

Discussion

Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

The discussion is empty - enter the first post

Post a new topic / query / comment:

Items marked with * are required.
Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution.
Processing of personal data in accordance with GDPR


Request for user manual
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:

I’m looking for a manual / Request for manual

Current requests for instruction manuals:

Milano Carbon Fiber Tripod with B1 Head...
c.PLASMA X LARGE SIN/SION user manual-pdf centrotherm PECVD platform c.PLASMA...
Streamlight Macrostream...
AOC curved gaming monitor...
User manual for Bowens ML500 Flash head ...

Discussion
Latest contributions to the discussion:

SQ 7 PDF
Name: Yash Deshmukh
Allen & Heath SQ-7 48-Channel 36-Bus
I want to download PDF ...
Business Card Studio 10
Name: Yvon
Summitsoft Business Card Studio Pro
Business Card Studio 10 will not print. Window 11 My printer will print anything else....
REQUESTING FOR QUOTE
Name: ALBERT GABRIEL
Auray X-Style Piano Bench & Double
RFQ 919 S/ N DESCRIPTION UNIT QTY 1 KEYBOARD YAMAHA MODEL PSR-S750 61-KEY DIGITAL WORKSTATION PCS 1 2 AURAY DOUBLE-X KEYBOARD STAND WITH PULL LOCK MFR #KSPL-2X PCS 1 3 YAMAHA YBA-611 ARTISTE SERIES KEYBOARD BAG FOR 61-KEY PORTABLE KEYBOARDS PCS 1 4 AURAY FP-P1...
Leatherman Micra
Name: Rebecca Burgess
Leatherman Micra Tool with Box
Please send me a user's manual for Leatherman Micra...
total cost of Casio CTK 3500 61 key manual
Name: Eric Sensiba
Casio CTK-3500 61-Key Keyboard with Touch
What is the total cost for a Casio CTK 3500 61 key Electronic keyboard manual including taxes and shipping t85739?...

PDF User Manuals
We regularly supplement and update our library. Latest instruction manuals added for download:

Detail - Neewer RF550D LED Macro Ring Light
https://www.search-manual.com/ upload/ neewer-rf550d-led-macro-ring-light-321086-user-manual.pdf
Detail - Tiffen Q-13 Color Separation Guide
https://www.search-manual.com/ upload/ tiffen-q-13-color-separation-guide-125593-user-manual.pdf
Detail - Sony Cyber-shot DSC-HX99 Digital Camera Deluxe
https://www.search-manual.com/ upload/ sony-cyber-shot-dsc-hx99-digital-camera-deluxe-kit-369789-user-manual.pdf
Detail - Bogen Communications SBA225 - 25 Room
https://www.search-manual.com/ upload/ bogen-communications-sba225-25-room-selector-switchboard-panel-62732-user-manual.pdf
Detail - Kraken Sports NR-1000 800-Lumen Dive Light
https://www.search-manual.com/ upload/ kraken-sports-nr-1000-800-lumen-dive-light-349586-user-manual.pdf


What our users say about us:

Peter Morgan: "Thanks for this website! With help from your instructions I’ve got my dishwasher working again."

Nick Jackson: "Your site’s been a massive help because the user manual didn’t come with the product. Thanks a lot."

Leslie Scott: "I finally found the user's guide with you that I couldn’t find anywhere else! Totally happy!"

Take a look through our user manuals in our on-line library, with instruction manuals and service handbooks downloadable in PDF format. Our instructions database is constantly updated and supplemented with new products. Looking for instruction manuals? Ask us!
SEARCH-MANUAL.com
Sitemap.xml
