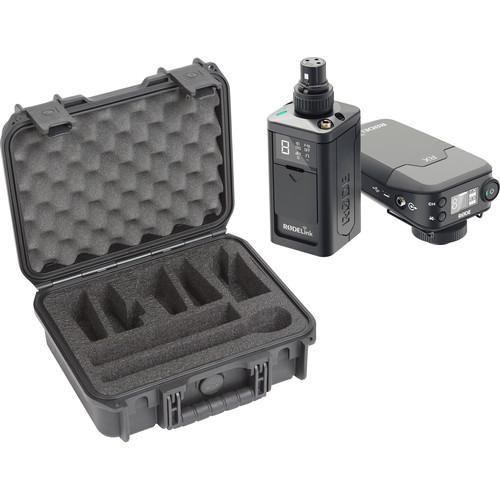

User Manual for Rode RODELink Newsshooter Kit Digital Camera-Mount Wireless Plug-On Microphone System with Case and No Mic Kit Click to enlarge the picture
Contents of the user manual for the Rode RODELink Newsshooter Kit Digital Camera-Mount
- Product category: Wireless Systems Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Wireless Systems
|
User manual for the Rode RODELink Newsshooter Kit Digital Camera-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description Bundled by B&H for your convenience, this version of the Rode RODELink Newsshooter Kit adds a custom SKB iSeries waterproof case, allowing you to safely store and transport your wireless system and mics in the field.
The kit also includes a Rode TX-XLR wireless transmitter, an RX-Cam camera-mounted wireless receiver, and a cable to connect to your camera's audio input. The system can be used with the handheld or shotgun mic of your choice (available separately) for a complete, camera-mount, plug-and-record solution for man-on-the-street and red-carpet-style interviews, or wireless booming. - Rode RODELink Newsshooter Kit Digital Camera-Mount Wireless Plug-On Microphone System with No Mic (2.4 GHz)
- Hands-On Review: RODELink Newsshooter Kit Digital Wireless System
The Rode RODELink Newsshooter Kit brings DIY journalists, vloggers, and reporters a cost-effective digital wireless microphone system with simple plug-and-record operation, clean and reliable sound, and multiple power options.The Newsshooter Kit features a plug-on transmitter, along with a bodypack transmitter and a camera-mount receiver. The plug-on is designed to work primarily with handheld microphones for man-on-the-street interviews or with shotgun mics for wireless booming. Its XLR connector provides 48V phantom power, giving you the option of using it with condenser microphones (the mics are available separately). This versatile unit can also be used as a beltpack transmitter by simply plugging a lav into the additional 3.5mm mic input.The RODELink operates anywhere in the world in the 2.4 GHz spectrum—well away from potential TV and radio interference. For ease of use, the transmitter and receiver are paired at the factory. Just power up and you're good to go.The system plugs into your DSLR or mirrorless camera, allowing you to capture audio for projects ranging from YouTube vlogs and wedding videos to corporate spots and red-carpet-style interviews. Up to eight systems can operate on set. - Plug-On Transmitter with XLR and 3.5mm Mic Inputs
-
- Constructed with a plastic and metal chassis protected by a rubberized coating, the plug-on transmitter attaches to any dynamic or condenser microphone equipped with an XLR connector. A locking ring secures your mic firmly in place.
- The second mic input features a locking 3.5mm TRS connector and supplies plug-in power, allowing you to use it with the lav or headset mic of your choice. Note that you can only use one of the mic inputs at a time.
- Controls let you engage the phantom power, choose an input and set its gain, mute the mic, and control the headphone volume.
- Each input offers adjustable gain, allowing you to set the best level for your talent’s delivery—whether it’s a whisper or a shout.
- The front cover slides over the controls to turn off the screen, save battery life, protect the controls, and make the plug-on as inconspicuous on camera as possible.
- The included leather case lets you use the plug-on as a beltpack transmitter, while still allowing you to see the screen and access the controls.
- Receiver with OLED Display
-
- The lightweight (at 6.7 oz) receiver features easy, one-button operation for basic controls, and a detachable shoemount with a rounded base that lets you conveniently angle the unit on top of your camera.
- The included cable connects the receiver's output to the 3.5mm audio input of any DSLR or mirrorless camera. Alternatively, the VXLR 3.5mm to XLR adapter (available separately) allows you plug your system into the XLR input of a camcorder or recording device.
- The receiver features a high-output level with three-stage gain adjustment that allows you to turn down the camera gain, for cleaner recordings with less hiss.
- Conveniently, the receiver’s OLED display shows critical information for the receiver as well as the transmitter, including battery status, signal level, mute status, and channel selection for both units.
- Simple and Flexible Operation
-
- The transmitter and the receiver arrive pre-paired, and automatically seek out a clean frequency when you turn them on—saving you the hassle of scanning and syncing before a shoot.
- The system uses an intuitive multi-function button for quick power and muting functions.
- More advanced controls over audio levels, additional pairing, and channel selection are also available.
- Clean and Reliable Sound
-
- RODELink employs Series II 2.4 GHz digital transmission, which constantly monitors and hops between frequencies to maintain a clean transmission, at a range up to 330’.
- To ensure clear communication, the system sends the audio on two separate frequencies (frequency diversity) and uses the cleanest signal.
- The system transmits a strong signal at the selected frequency to overcome interference even in busy 2.4 GHz (Wi-Fi) environments. For optimal performance, users are encouraged to maintain as direct a line of sight as possible between the transmitter and receiver.
- To deliver high-quality wireless audio, the system offers a resolution of 24-bit / 44.1 kHz, a wide frequency response of 35 Hz to 22 kHz, and an impressive dynamic range of 112 dB.
- Note: Each RODELink system creates a wireless peer-to-peer connection allowing the transmitter and the receiver to operate as a pair. This means that the transmitter can transmit audio to only one receiver at a time. Conversely, the receiver can only receive audio from one transmitter at a time.
- Three Power Options for Longer Shoots
-
- The transmitter and the receiver each runs on two AA batteries.
- The transmitter operates 5 to 9 hours on lithium batteries with phantom power activated, and even longer if phantom is not needed.
- The transmitter also supports NP-F batteries for up to 16 hours of shooting time, depending on phantom power and headphone usage.
- While in operation, the system can be powered via USB with a wall power source or a portable battery.
- Other Features
-
- 128-bit encryption for security
- 4 ms maximum latency
- For more flexibility, you can add the TX-BELT bodypack transmitter with lavalier mic (available separately) to your Newsshooter Kit for hands-free speech and dialog
- Designed and made in Australia
UPC: 698813004249 - SKB iSeries 3i-1209-4-BH3 Waterproof Case for Rode Newsshooter Wireless Mic System
- Hands-On Review: RODELink Newsshooter Kit Digital Wireless System
Custom-designed for , the iSeries 3i-1209-4-BH3 Waterproof Case from SKB features a custom foam interior designed to accommodate up to two Rode Newsshooter wireless mic systems, including two TX-Belt wireless transmitters, two RX-Cam wireless receivers, one TX-XLR handheld mic transmitter, and one Reporter handheld interview mic. It also features a large accessory pocket for lavalier mics, cables, and more. Lightweight (at 3.6 lb), the injection-molded waterproof case is constructed from high-strength polypropylene copolymer resin, and is equipped with a built-in gasket for an airtight and submersible seal (IP67-rated). Furthermore, the case resists corrosion, solvents, fungus, and impact damage. The molded-in hinge, trigger-release latch system, snap-down rubber over-molded, cushion-grip handle, and automatic ambient pressure-equalization valve all contribute to its military-grade design. - Form-cut interior accommodates up to two TX-Belt wireless transmitters, two RX-Cam wireless receivers, one TX-XLR handheld mic transmitter, one Reporter handheld interview mic
- One large accessory pocket for lavalier mics, cables, and more
- High-strength, injection-molded polypropylene copolymer resin case
- Submersible design with water- and dust-proof gasket seal (IP67-rated)
- Resistant to impact damage, UV, solvents, corrosion, and fungus
- Automatic ambient pressure-equalization valve
- Stainless-steel, molded-in hinges
- Trigger-release latch system
- Comfortable, snap-down rubber, over-molded, cushion-grip handle
UPC: 789270999626 In the Box - RODELink Newsshooter Kit Digital Camera-Mount Wireless Plug-On Microphone System with No Mic (2.4 GHz) yvvqbdrbxyuacvxeua
- RX-CAM Camera-Mounted Wireless Receiver
- TX-XLR Wireless Transmitter
- Locking 3.5mm to 3.5mm Right-Angle Output Cable
- Limited 1-Year Warranty, Extends to 2 Years upon Registration
- SKB - iSeries 3i-1209-4-BH3 Waterproof Case for Rode Newsshooter Wireless Mic System
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode RODELink Newsshooter Kit Digital Camera-Mount Wireless Plug-On Microphone System with Case and No Mic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode RODELink Newsshooter Kit Digital Camera-Mount Wireless Plug-On Microphone System with No Mic (2.4 GHz)
| | | Wireless Transmission | Digital 2.4 GHz | | Included Transmitters | 1 x Plug-On | | Diversity | Frequency | | Max Operating Range | 330' / 100.6 m (Line of Sight) | | Max Systems per Setup | 8 | | Sample Rate/Resolution | 44.1 kHz / 24-Bit | | Latency | 4 ms (Maximum) | | Dynamic Range | 112 dB | | Encryption | 128-Bit | | | | Form Factor | Camera-Mount | | Mounting Options | Shoe-Mount (with Included Hardware) | | Antenna | Internal | | Number of Audio Channels | 1 | | Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) | | Audio Output Level | 0 dBV (Max) | | Frequency Response | 35 Hz to 22 kHz | | USB Port | 1 x Micro-USB (Bus Power) | | Impedance | 1/8" Output:
300 Ohms (Unbalanced) | | Power Requirements | Battery, USB Bus Power | | Battery Type | 2 x AA (Not Included) | | Approx. Battery Life | 9 Hours (Alkaline) | | Display & Indicators | 1 x OLED (Battery Status, Channel, Mute, Peak) | | Housing | Plastic | | Dimensions | 2.6 x 4.4 x 2.0" / 65.0 x 111.0 x 52.0 mm | | Weight | 6.7 oz / 190.0 g | | | | Form Factor | Plug-On | | Audio I/O | 1 x XLR 3-Pin Female Unbalanced Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) | | Phantom Power | +48 V | | Plug-In Power | 4 V | | Pad | None | | Muting | Off/On Switch | | Audio Input Level | 1 V RMS (Max) | | Gain Range | 0 Up to 40 dB | | Signal Processing | None | | Frequency Response | 35 Hz to 22 kHz | | Antenna | 1 x Internal | | Power Requirements | Battery, USB Bus Power | | Battery Type | 2 x AA (Not Included)
1 x NP-F/L-Series (Not Included) | | Approx. Battery Life | 9 Hours (Alkaline)
16 Hours (Lithium Rechargeable) | | USB Port | 1 x Micro-USB (Bus Power) | | Display & Indicators | 1 x LCD (Battery Status, Channel, Mute) | | Housing | Plastic | | Dimensions | 1.8 x 4.7 x 1.8" / 45.0 x 120.0 x 45.0 mm | | Weight | 7.8 oz / 222.0 g | | | | Box Dimensions (LxWxH) | 7.0 x 5.3 x 5.0" | - SKB iSeries 3i-1209-4-BH3 Waterproof Case for Rode Newsshooter Wireless Mic System
| Material of Construction | High-strength, injection-molded polypropylene copolymer resin case
Custom form-cut PE (polyethylene) foam interior | | Water and Dust Resistance | Submersible with water- and dust-proof gasket seal (IP67-rated) | | Construction | Resistant to impact damage
Resistant to UV, solvents, corrosion, fungus
Automatic ambient pressure-equalization valve (MIL-STD-648C)
Stainless-steel, molded-in hinges
Trigger-release latch system | | Carrying / Transport Options | Cushion-grip handle | | Interior Dimensions (L x W x D) | 12.00 x 9.00 x 4.50" / 30.48 x 22.86 x 11.43 cm | | Exterior Dimensions (L x W x D) | 13.80 x 11.12 x 5.21" / 35.05 x 28.24 x 13.23 cm | | Weight | 3.6 lb / 1.63 kg | | | | Box Dimensions (LxWxH) | 13.5 x 11.7 x 5.7" |
