User Manual for Rode RX-CAM Camera-Mounted Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Rode RX-CAM Camera-Mounted Wireless Receiver
- Product category: Wireless Receivers Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Wireless Receivers
 |
User manual for the Rode RX-CAM Camera-Mounted Wireless Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|

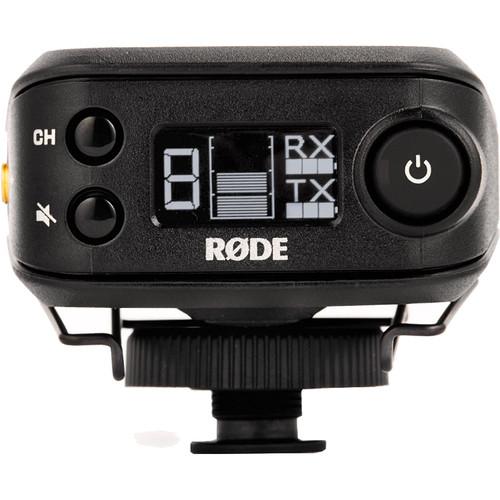

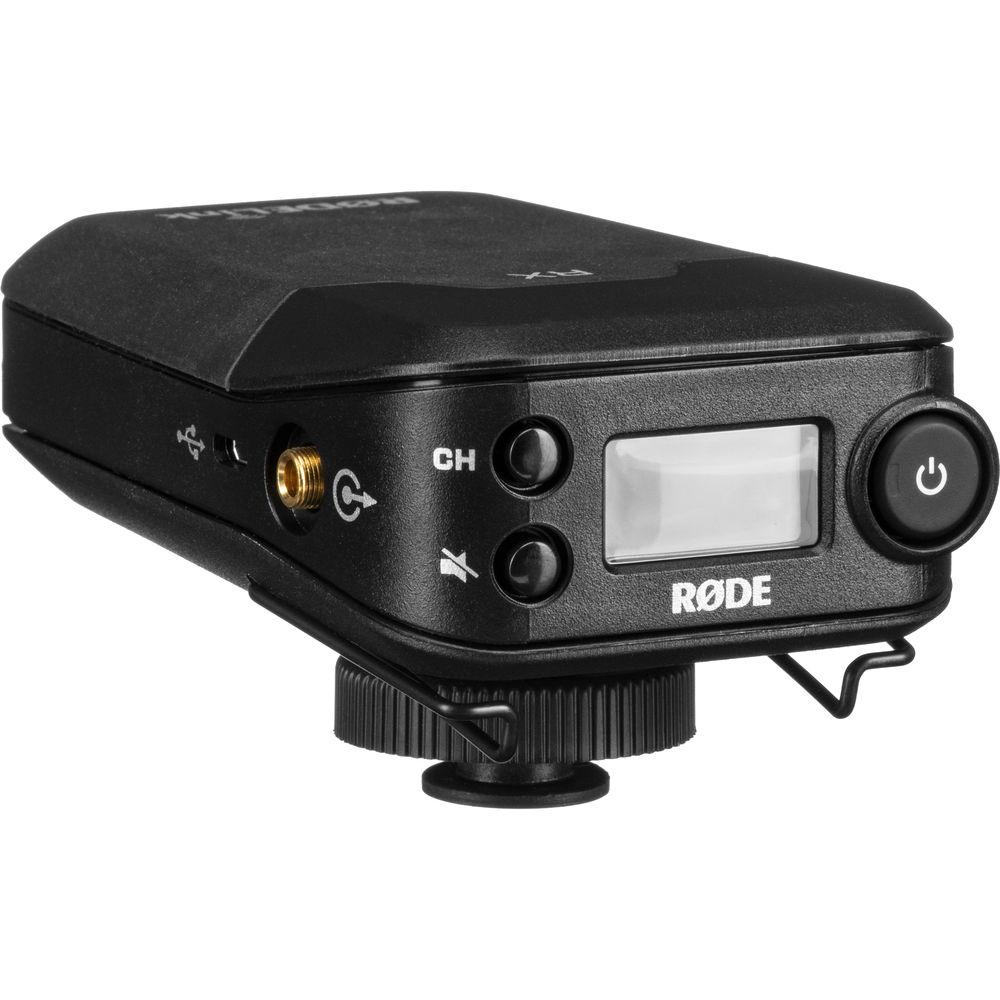

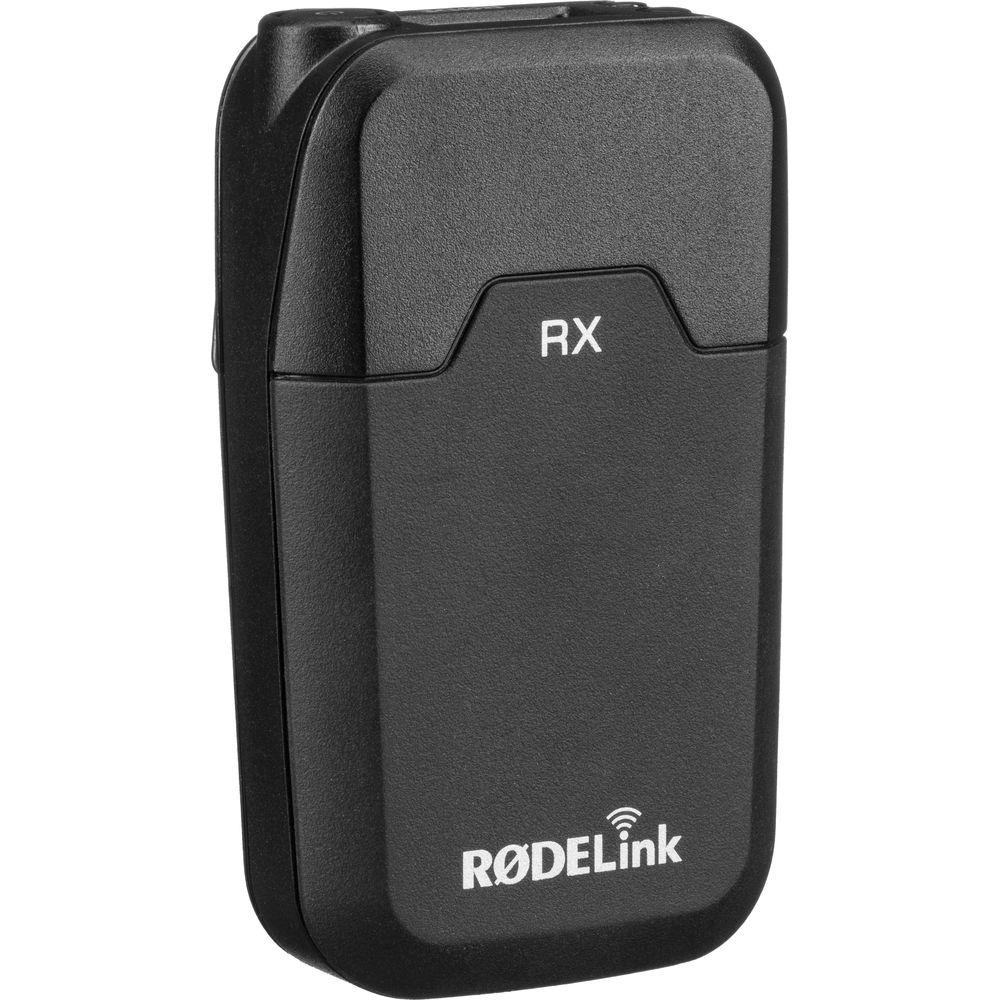

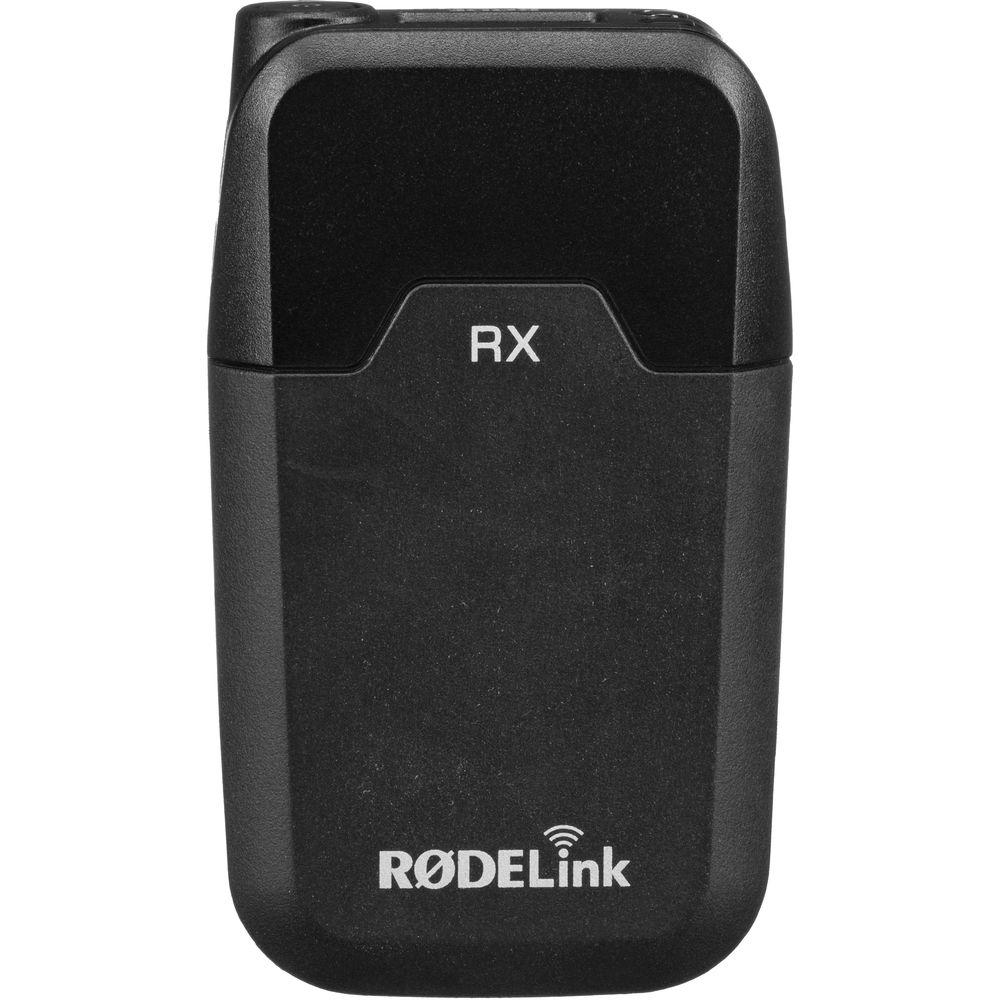

Product description The Rode RX-CAM is a camera-mounted wireless receiver designed to provide easy reception of wireless audio for videographers, filmmakers, and electronic news gatherers. It works with RODELink digital wireless systems and can be powered via two AA batteries or a micro-USB connection.An internal antenna contributes to the compactness of the RX-CAM. It supports mounting to a standard camera shoe mount or via 3/8” thread or belt clip. The bottom panel slides down for access to the gain switch, which has positions for 0 dB, -10 dB, and -20 dB. An OLED display delivers clear indication of level, battery status for the receiver and transmitter, current channel, and mute status. Dedicated buttons for power, channel selection, and mute offer simple menu-free operation. The 3.5mm TRS output is wired for dual mono and features a locking jack socket to prevent accidental disconnection. - Designed for use with RODELink digital wireless systems

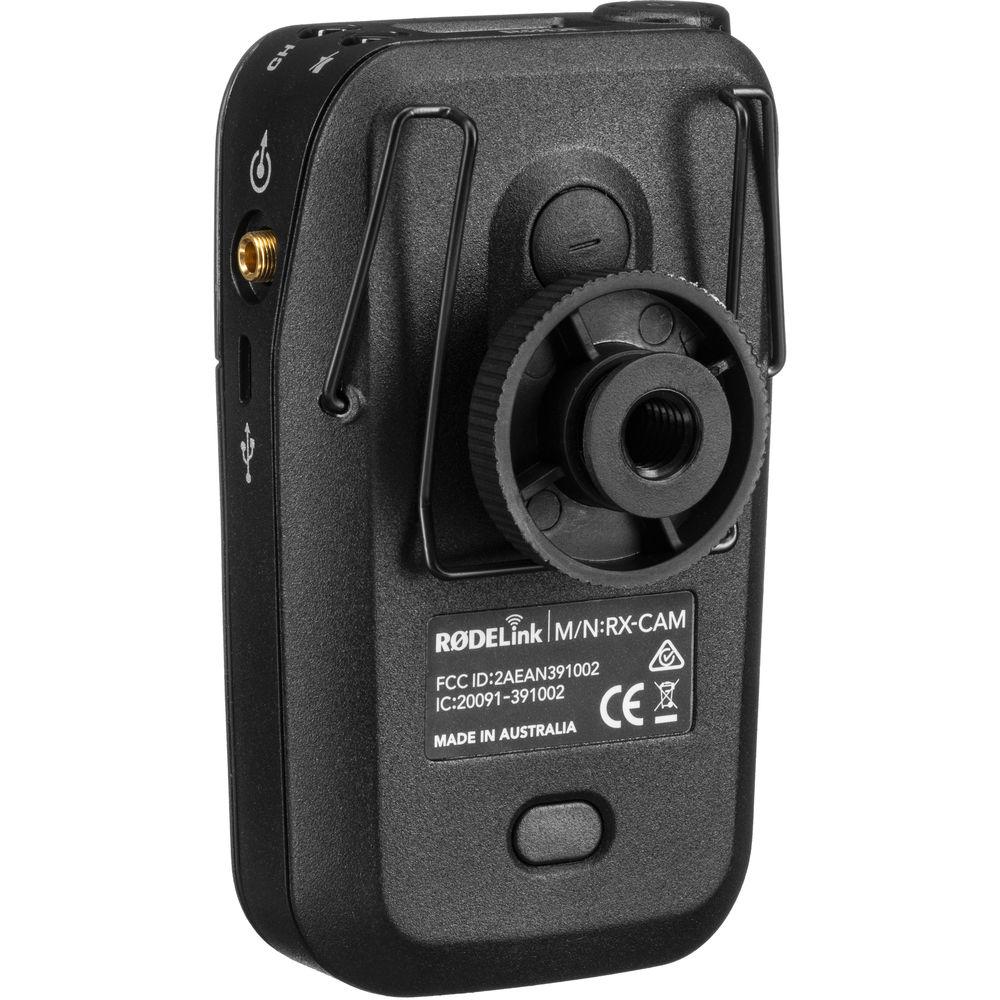

- Mount on a 3/8" thread or belt clip or in one of two positions on a standard camera shoe mount

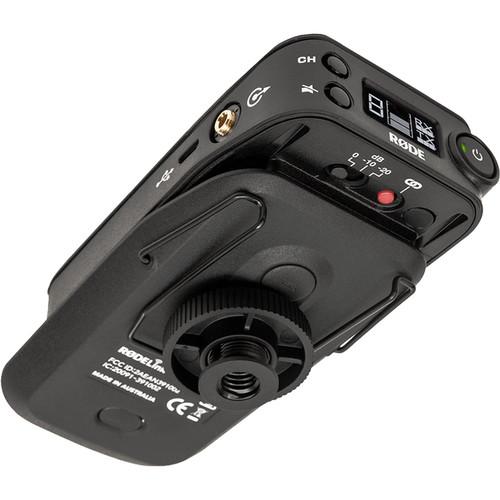

- Selectable 0 dB, -10 dB, or -20 dB gain via switch beneath the slide-down bottom panel
- OLED display indicates level, battery status for the receiver and transmitter, channel selection, and mute status
- Dedicated channel selector and mute button

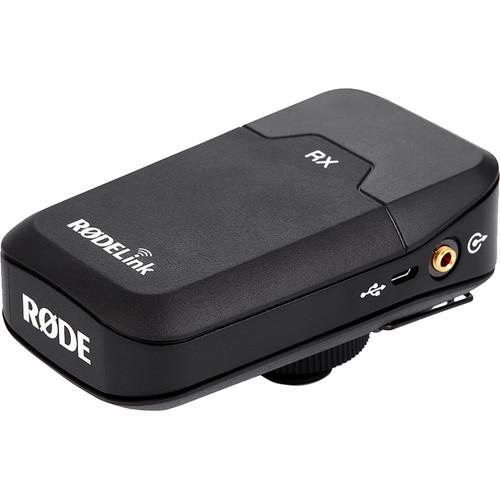

- Output connection utilizes a 3.5mm TRS locking jack socket wired for dual mono
- Powered via two AA batteries or micro-USB connection
UPC: 698813004454 In the Box Rode RX-CAM Camera-Mounted Wireless Receiver Locking 3.5mm TRS Patch Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode RX-CAM Camera-Mounted Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode RX-CAM Specs | Antenna | Internal | | Output | 1 x 1/8" (3.5 mm) TRS locking jack socket (dual mono) | | Output Impedance | 300 Ohms | | Power Requirement | 2 x AA batteries or micro-USB connection | | Dimensions (W x H x D) | 2.6 x 4.4 x 2.0" / 65 x 111 x 52 mm | | Weight | 6.7 oz / 190 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 2.6" |
