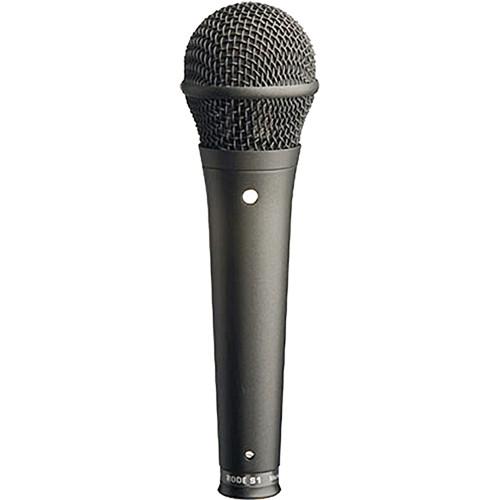

User Manual for Rode S1 Supercardioid Condenser Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Rode S1 Supercardioid Condenser Handheld Microphone
- Product category: Handheld Performance Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Handheld Performance Microphones
|
User manual for the Rode S1 Supercardioid Condenser Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The Rode S1 is a supercardioid handheld microphone designed to deliver studio level quality signal response, in live sound applications. The supercardioid element effectively minimizes noise and signal at the off-axis sections of the microphone element. The result provides high gain before feedback when near monitor speakers, while eliminating signal from adjacent instruments and singers. It's 20Hz to 20kHz frequency response is tailored for vocal capturing and an SPL rating of 151dB ensures accurate reproduction of transient signals without distortion. The S1 is powered with 44v to 52v phantom power. - Supercardioid Polar Pattern
- The supercardioid polar pattern is effective in minimizing noise at the off-axis sections of the microphone, eliminating ambient noise and monitor feedback.
- Condenser Transducer
- The condenser element operates on 44v to 52v phantom power and delivers the signal response common with studio level microphones.
- Wide Frequency Response
- The 20Hz to 20kHz frequency response is contoured to accentuate vocal performance.
- Integral Windscreen
- An integral "plosive" windscreen protects the microphone for overload due to "plosives" and excessive wind.
UPC: 698813003037 In the Box Rode S1 Supercardioid Condenser Handheld Microphone (Black) Zip Pouch Stand Mount 10 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode S1 Supercardioid Condenser Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode S1 Specs | Transducer | Externally polarized condenser, pressure gradient transducer | | Polar Pattern | Supercardioid | | Frequency Response | 20Hz to 20kHz | | Dynamic Range (Typical) | 132dB | | Signal-to-Noise Ratio | 75dB (1kHz rel 1 Pa; per IEC651, IEC268-15) | | Maximum Input Sound Level | 151dB (@0.7% THD into 1k ohms) | | Power Requirements | 44V to 52V Phantom Power (current consumption 4.4mA) | | Output Impedance | 50 ohms | | Output Connectors | 3-pin XLR male | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 7.2 x 2.05" (183 x 51mm) (Length x Diameter) | | Weight | 10.58 oz (300g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 11.181 x 5.118 x 2.126" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
