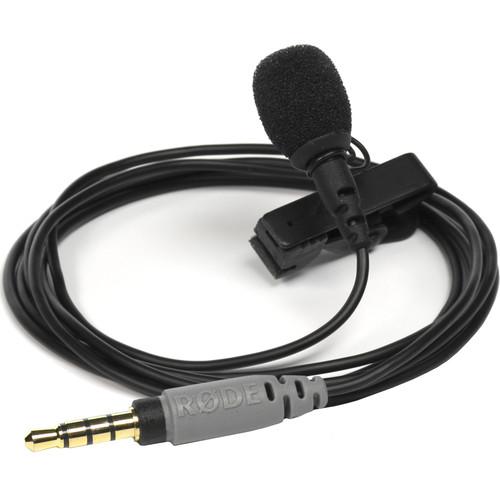

Product description The Rode smartLav+ is a lavalier microphone for your Apple or Android mobile device that is designed to deliver high-quality audio recording. The smartLav+ clips on to your shirt or lapel, and the sensitive, omnidirectional condenser capsule captures the sound equally from all sides of the microphone. This design lends to effective, hands-free recording of speeches, interviews, dictations and more.

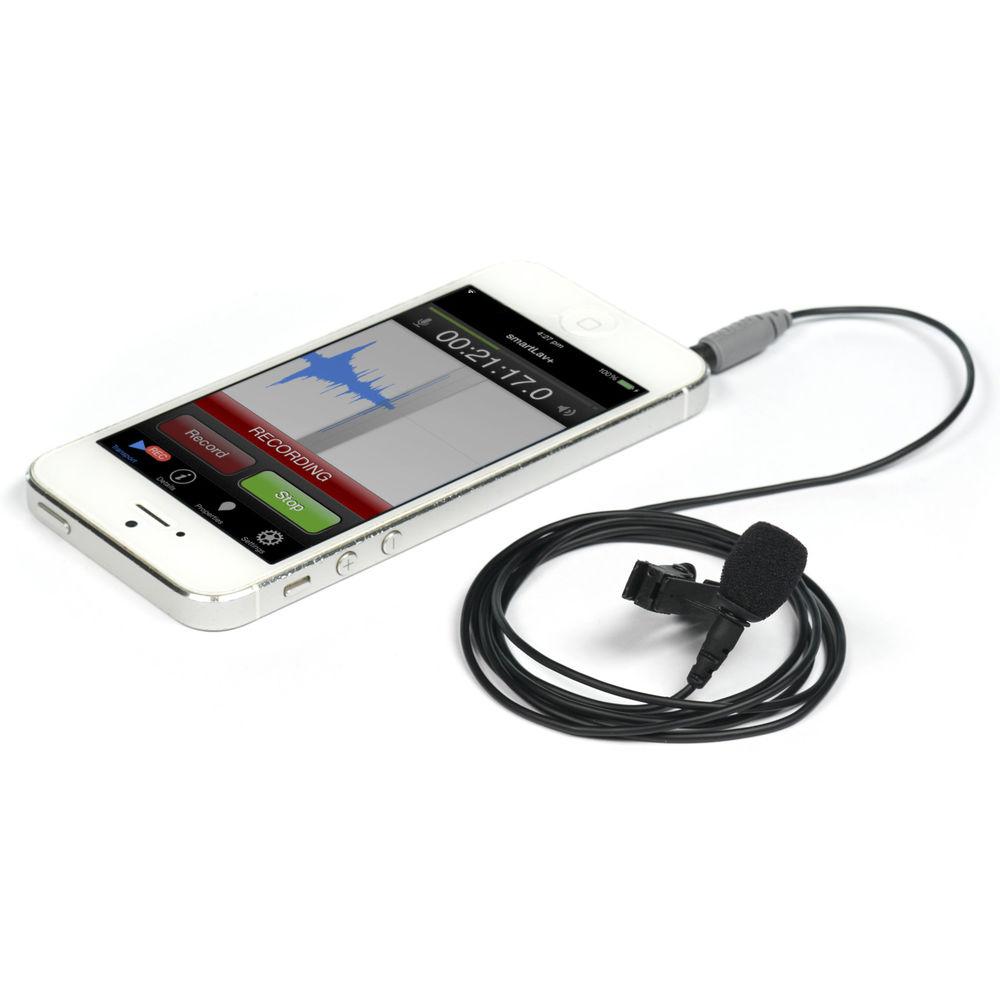

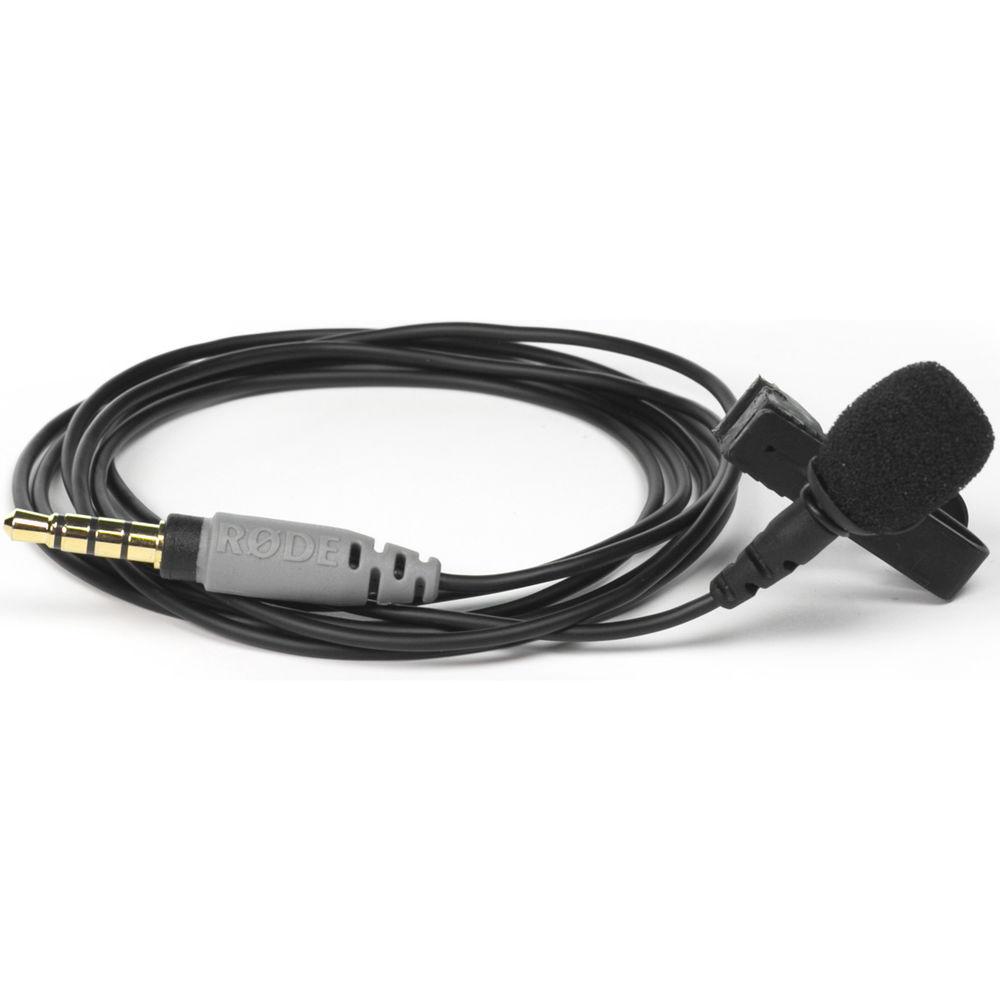

The smartLav+ is equipped with a Kevlar-reinforced cable that has been strain tested up to 10kg to help ensure reliable performance. It uses a grey-sleeved TRRS connector to connect into your smartphone or tablet's headphone input and it works with most audio recording apps.
The smartLav+ also features improved sensitivity and higher signal-to-noise ratio over the original smartLav. The package comes with a mic clip with cable management, a foam pop shield and a small carry pouch.
Compatible with iPhone 5S, iPhone 5, iPhone 5C, iPhone 4S, iPhone 4, iPad Air, iPad (3rd generation), iPad 2, iPad mini, iPod touch (4th and 5th generation) & many Android devices. A full list of compatible devices can be found here.abtcbvqtxusfu - Works with any audio app that records from the headset input
- Record, EQ, edit, and publish your audio with Rode Rec App for Apple iOS (not included)
- Foam pop shield softens vocal plosives and wind noise
- Mic clip with cable management included for neatly securing microphone to clothing
- Small pouch included for storage and transport

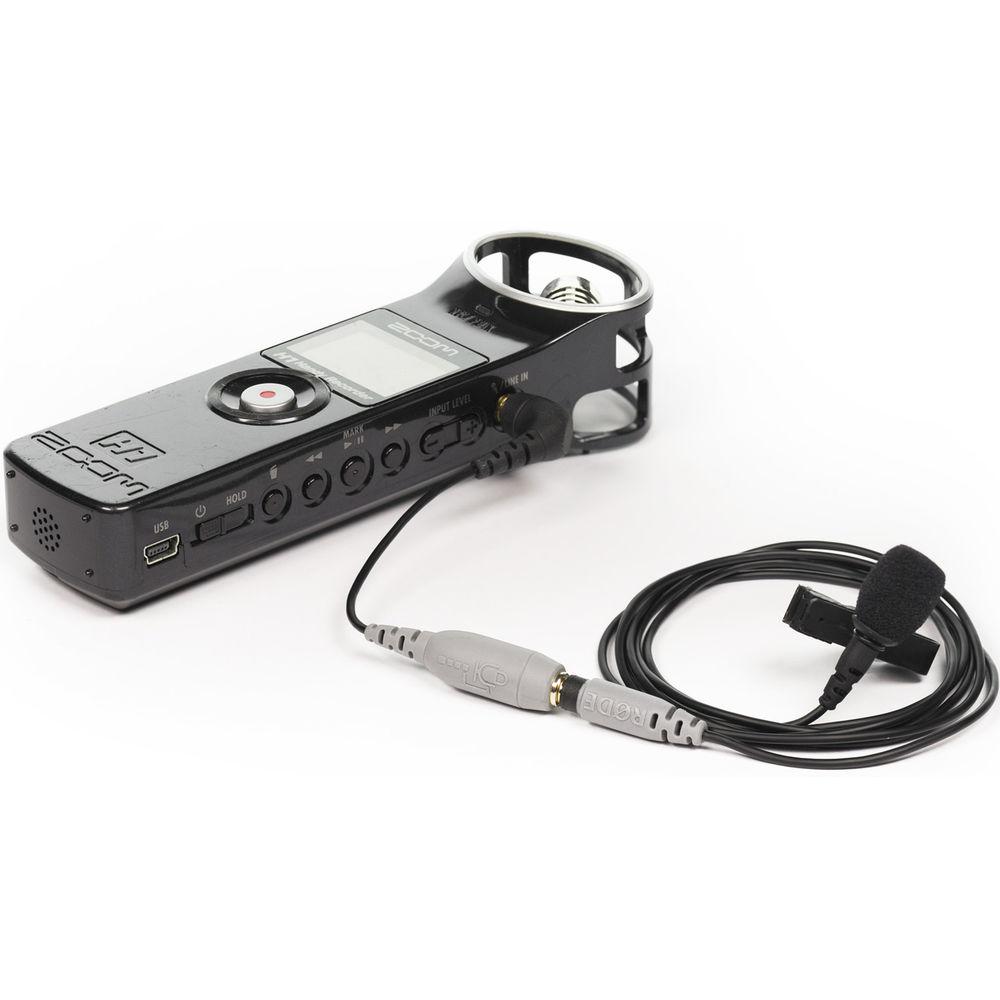

- Combine with SC3 adapter to use with TRS devices
- Combine with SC6 dual TRRS input adapter to use two smartLav+ with one smartphone

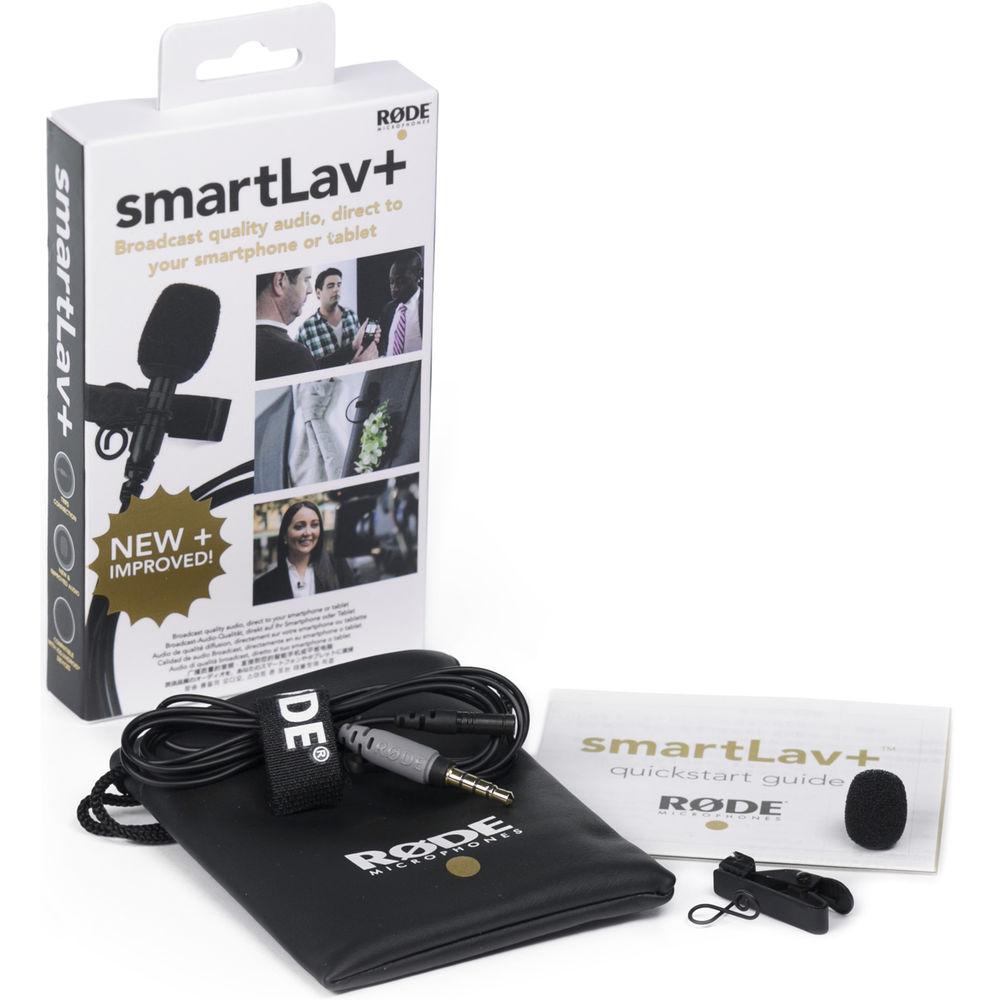

UPC: 698813004058 In the Box Rode smartLav+ Lavalier Condenser Microphone for Smartphones Foam Pop Shield Mic Clip Small Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode smartLav Lavalier Condenser Microphone for Smartphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode smartLav+ Specs | Acoustic Principle | Pressure gradient | | Active Electronics | JFET | | Capsule | 0.10" / 2.54 mm | | Polar Pattern | Omnidirectional | | Address Type | End | | Frequency Range | 60 Hz to 18 kHz | | Output Impedance | 3 kOhms Typical | | Signal to Noise Ratio | 67 dB | | Maximum SPL | 110 dB SPL (@ 1 kHz, 1% THD into 1 kOhm load) | | Maximum Output Level | 189.0 dBu (@ 1 kHz, 1% THD into 1 kOhm load) | | Sensitivity | -35 dB (17.8 mV @ 94 dB SPL) | | Equivalent Noise Level | 27 dB-A | | Connector | TRRS | | Maximum Output | 189 mV | | Dynamic Range | 83 dB typical | | Dimensions | 46.5 x 0.18 x 0.18" / 1180 x 4.5 x 4.5 mm, mic and cable | | Weight | 0.211 oz / 6.00 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.354 x 3.307 x 0.787" |
